Hubbell GAI-TRONICS 751-002ICS Quick Installation Manual

ICS DC-Powered Page/Party
Important Safety Instructions
This equipment is suitable for use in Class I, Division 2, Groups A, B, C and D, Class II Division 2, Groups F, and G, Class III OR non-hazardous locations only.
Combinations of equipment in your system are subject to investigation by the local Authority Having Jurisdiction at the time of installation.
Read, follow, and retain instructions – All safety and operating instructions should be read and followed before operating the unit. Retain instructions for future
reference.
Heed warnings – Adhere to all warnings on the unit and in the operating instructions.
Attachments – Attachments not recommended by the product manufacturer should not be used, as they may cause hazards. Maximum system cable length is not to
exceed two miles.
Servicing – Do not attempt to service this unit by yourself. Opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.
WARNING – EXPLOSION HAZARD – Do not disconnect equipment unless power has been removed or the area is known to be non-hazardous. Averttissement –
Risque d'explosion – avant de déconnector l'equipment, couper le courant ou s'assurer que l'emplacement est désigné non dandereux.
USA and Canada Consult the National Electrical Code (NFPA 70), Canadian Standards Association (CSA 22.1), and local codes for specific requirements regarding
your installation. Class 2 circuit wiring must be performed in accordance with NEC 725.55.
WARNING
In 24 V dc systems: Under NO condition should this equipment be operated from a battery charger without the batteries connected.
In 24 V dc systems, most chargers have an unloaded output of 35 to 45 volts that can quickly damage the equipment designed for nominal 24 volts. The maximum
battery voltage should never exceed the maximum specified input voltage.
General Information and Available Options
guide covers the installation of the ICS DC-Powered Plug-in Amplifiers. See the chart below for applicable models.
This quick
ICS Amplifier
Model Description
751-002ICS Speaker Amplifier
701-307ICS Handset/Speaker Amplifier
701-309ICS Handset/Speaker Amplifier with
Auxiliary Jack
751-002ICSVC Speaker Amplifier with VLC
701-307ICSVC Handset/Speaker Amplifier with VLC
701-309ICSVC Handset/Speaker Amplifier with
Auxiliary Jack and VLC
751-902ICS SmartSeries Speaker Amplifier

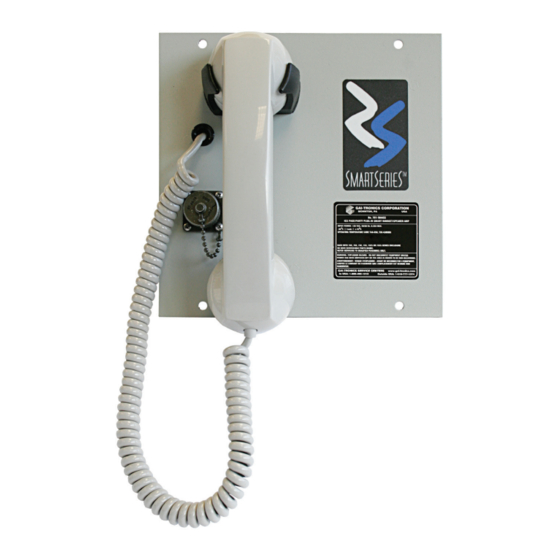

701-907ICS SmartSeries Handset/Speaker
Amplifier
701-909ICS SmartSeries Handset/Speaker
Amplifier with Auxiliary Jack
Refer to Pub. 42004-731L2 at the "Manuals & Specs" link at
and their settings, adjustments and warranty.
Installing the ICS Page/Party
1. Plug the amplifier directly into the enclosure. Use extra care not to damage the protruding latch wings of connector P6 located on
the top right edge of the amplifier during installation.
2. Attach the amplifier to the enclosure with the hardware provided. See Figure 1.
3. Apply power to the station.
GAI-Tronics Corporation 400 E. Wyomissing Ave. Mohnton, PA 19540 USA
G A I - T R O N I C S ® C O R P O R A T I O N
A H U B B E L L C O M P A N Y
Plug-in Amplifiers - Quick Installation Guide
®
Plug-in Amplifier
®
610-777-1374 800-492-1212
V . - .
ISIT WWW GAI TRONICS COM FOR PRODUCT LITERATURE AND MANUALS
Figure 1. ICS DC-Powered Page/Party
www.gai-tronics.com for detailed explanations of the available models
Fax: 610-796-5954
Pub. 42004-731L2BQG
®
Plug-in Amplifier Installation
