Hubbell GAI-TRONICS SmartSeries 709-901 Addendum

Pub. 42006-012B
G A I - T R O N I C S ®
A H U B B E L L C O M P A N Y

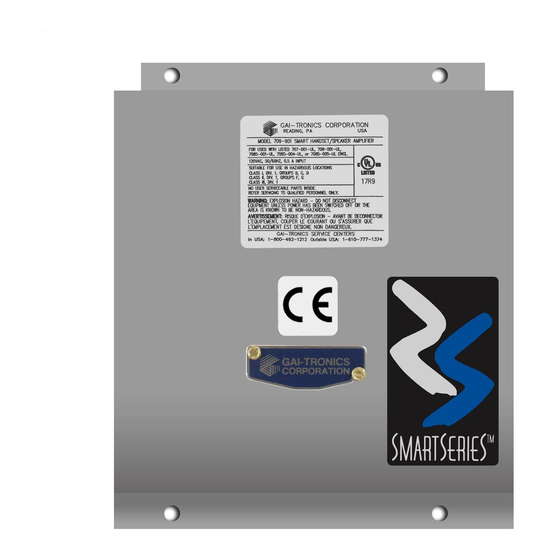

Addendum to Model 709-901
SmartSeries Handset/Speaker Amplifier

Confidentiality Notice

This manual is provided solely as an operational, installation, and maintenance guide and contains
sensitive business and technical information that is confidential and proprietary to GAI-Tronics.
GAI-Tronics retains all intellectual property and other rights in or to the information contained herein,
and such information may only be used in connection with the operation of your GAI-Tronics product or
system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any
third party.

Procedure

Your Model 709-901 Handset/Speaker Amplifier comes equipped with a 61504-121 Plug Assembly
installed on P2. This plug assembly must be removed and discarded when the Model 709-901 is used in
conjunction with the Model 708 or 7085 Series Handset Station Enclosures. Use extra care not to damage
the protruding latch wings of connector J2 located on the bottom edge of the amplifier during installation.
This plug assembly must be allowed to remain in place when the Model 709-901 is used with Model 707

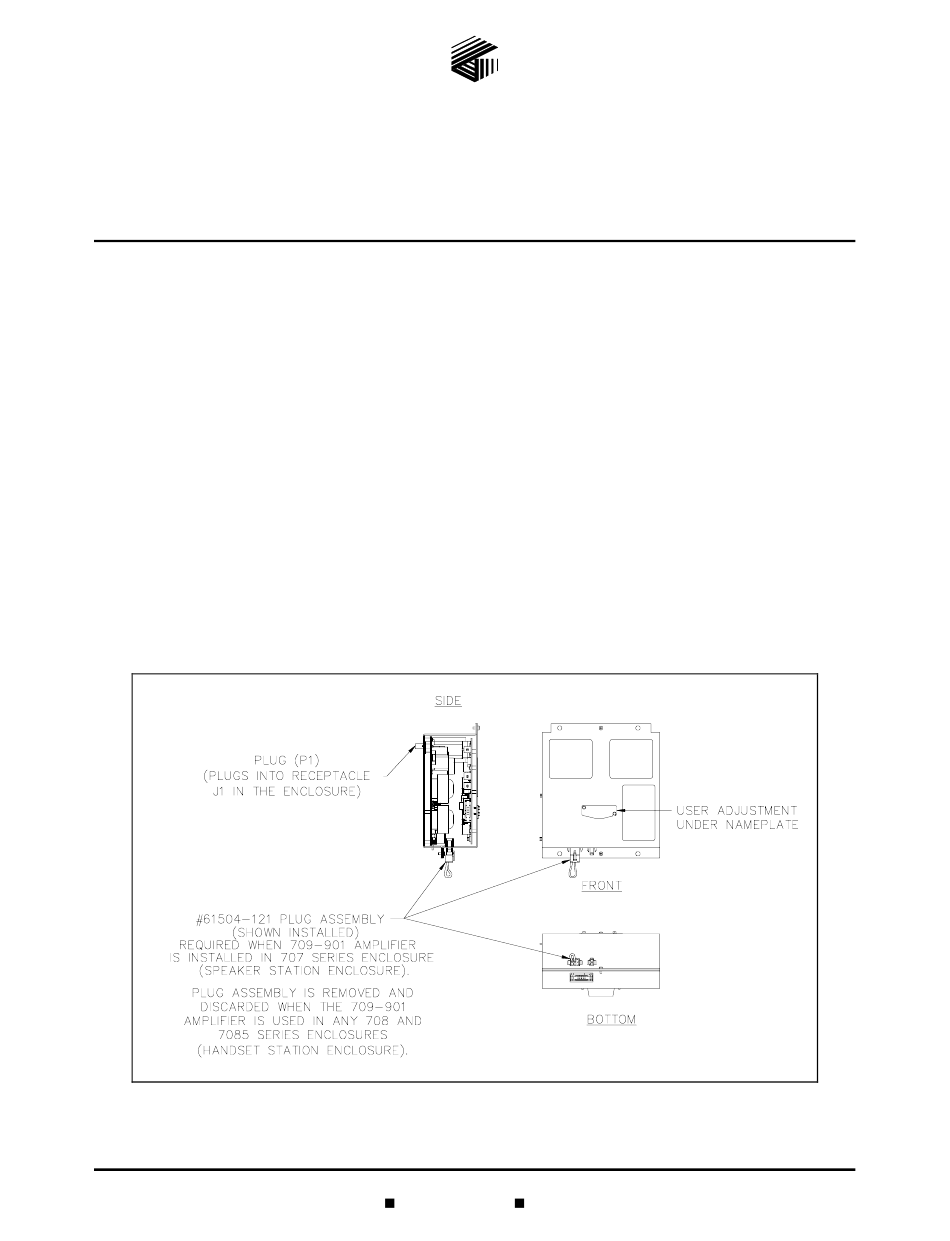

Series Speaker Amplifier Enclosures. Refer to Figure 1 below:
