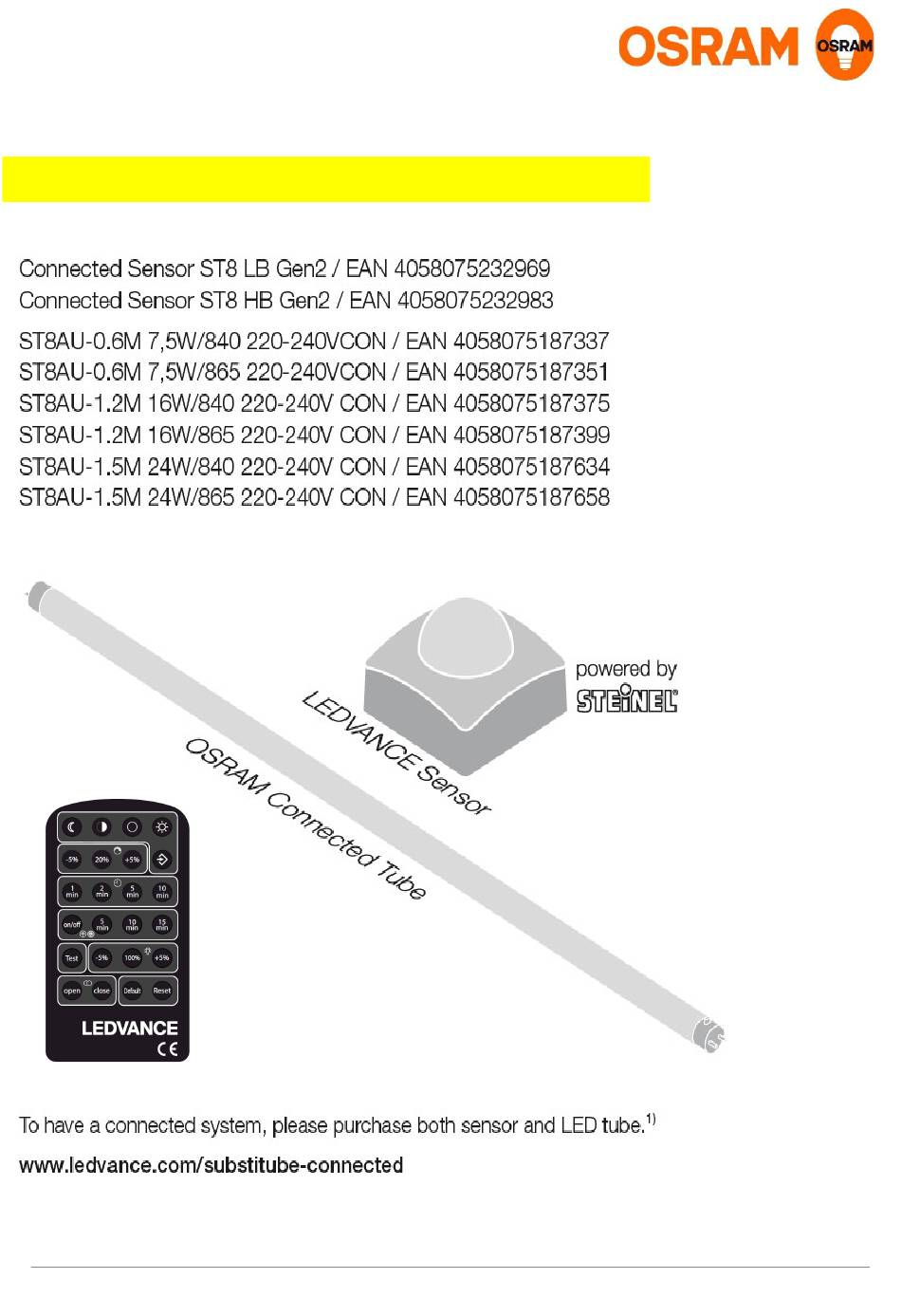

- Page 1 LEDVANCE Connected system user instruction extended version Connected Sensor Remote / EAN 4058075374034 user instructions, technical details are available SubstiTUBE ® Connected System UI extend version LEDVANCE GmbH, Parkring 29 – 33, 85748 Garching...
- Page 2 LEDVANCE Connected system user instruction extend version Introduction of Connected system The connected system consists of a wireless system with external Passive Infra-Red sensors and SubstiTUBE Connected tubes. The system can be configured directly on the sensor or by a remote control. The system provides illumination when vehicles or pedestrians enter a detection zone and goes back to stand-by mode when no motion is detected.

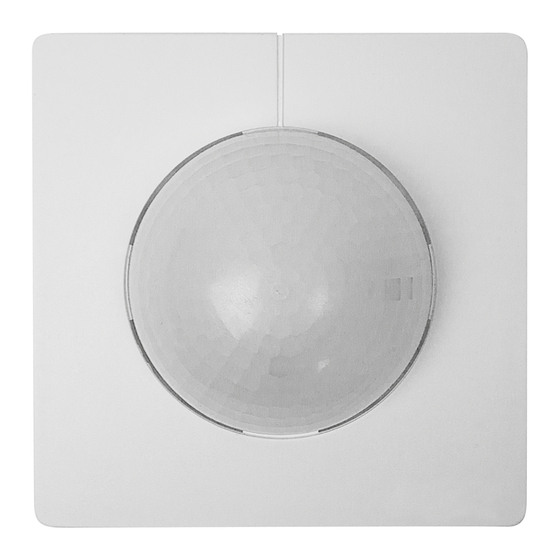

- Page 3 LEDVANCE ST8 Connected sensor at a glance Can connect up to 200 devices in a network 1 master sensor+ m slave sensors + n LED tubes examples: 1 master sensor , m=20 slave sensors, n=179 tubes 1 master sensor, m=30 slave sensors, n=169 tubes ! only 1 master sensor is allowed in a network.
-
Page 4: Creating A Network
Creating a network What is a network the network is a group of tubes and sensors that form a connected system. It is controlled by one master sensor All the tubes in a network will react in the same way. If you want to have different behaviors of the tubes in one area you have to create different networks. - Page 5 Sensor and tube installation Creating a newtwork Slave sensors Functions Actions Results • Pairing (network) is open (LED indicator color will turn from red to green Assign a master sensor. First and starts blinking) sensor you open the network will be assigned as a master •...
-
Page 6: Potentiometer Functions
Test mode ( test paired tubes in a network) Functions Actions Results Paired tubes and sensors will start Press operation button 2 blinking continuously to identify which Test mode on times (short press) on any tubes and sensors are paired within the sensor network Press again operation button... - Page 7 Stand by mode and lamp off mode Functions Actions The sensor detects motion and tubes go up at the maximum light Motion detected 100% The sensor doesn’t detect movement and after the delay time elapses (1-10min) tubes dim down to 20% dim level. Tubes always Stand by mode stay at 20% dim level when motion is not detected.
- Page 8 Adding a new lamp into the network Master sensor Master sensor Green Adding a sensor into the network Master sensor Master sensor Slave sensor installation Slave sensor Green Removing a sensor from the network Slave sensor Wait for 30 seconds and remove slave sensor Removing a tube from the network LEDVANCE GmbH, Parkring 29 –...
- Page 9 functions Actions Results at least 50 cm away from other lights because heat radiated from these may activate Sensor mounting location system. What is max. allowed Close luminiare, cornerstone, distance between sensor 15m fee air airconditioner, heater within this and tube distance may shorten the distance What is max.
