INSTALLATION
Installation, maintenance and repairs have to be carried out by skilled personnel, in line
with safety regulations in force.
To receive information on installers and technical assistance centres, please contact your
local retailer.
The manufacturer disclaims all responsibilities in case that this obligation is not observed.
I

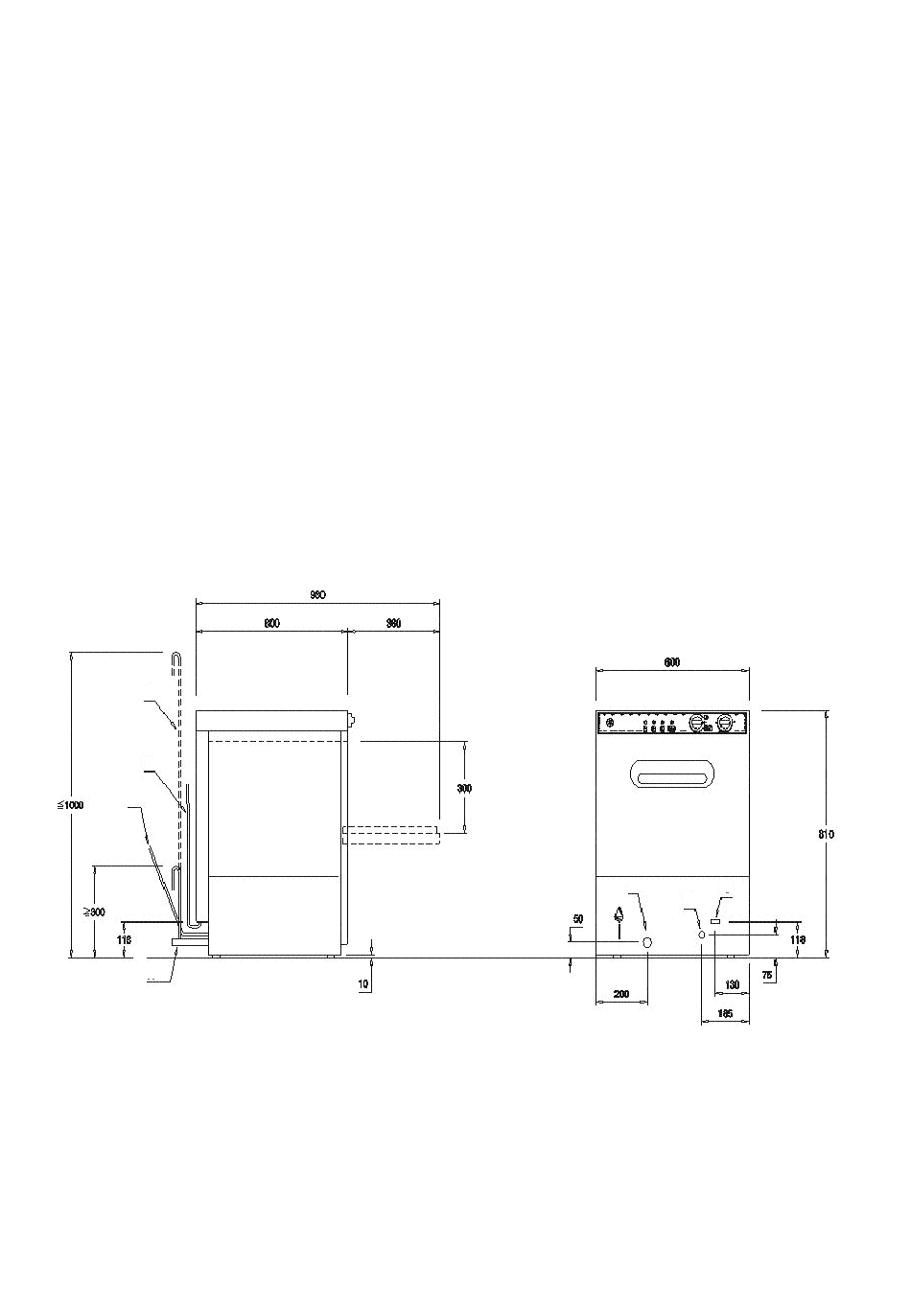

NSTALLATION DIAGRAMS
LS 3 models
S1
P
A
S
Meaning
A Water supply (Ø ¾" G)
S Gravity drain (Ø 35 mm)
P Power supply
S1 Drain with drain pump (Ø 18 mm)
