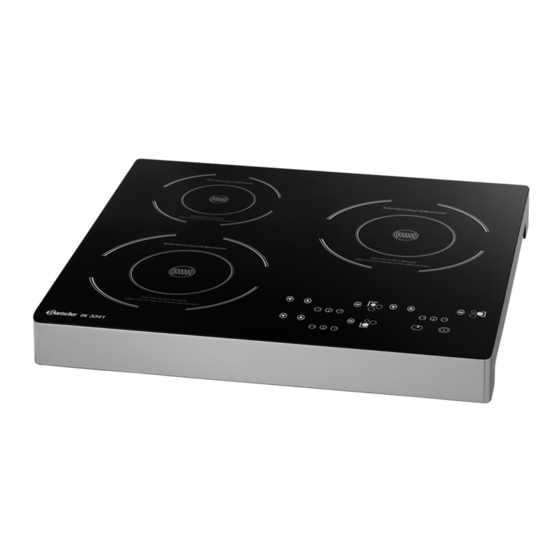

Bartscher IK 3341 User Manual

Induction cooker
Hide thumbs
Table of Contents

Advertisement

Quick Links

IK 3341
105940
Original-Bedienungsanleitung
V2/0916

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IK 3341 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bartscher IK 3341

Summary of Contents for Bartscher IK 3341

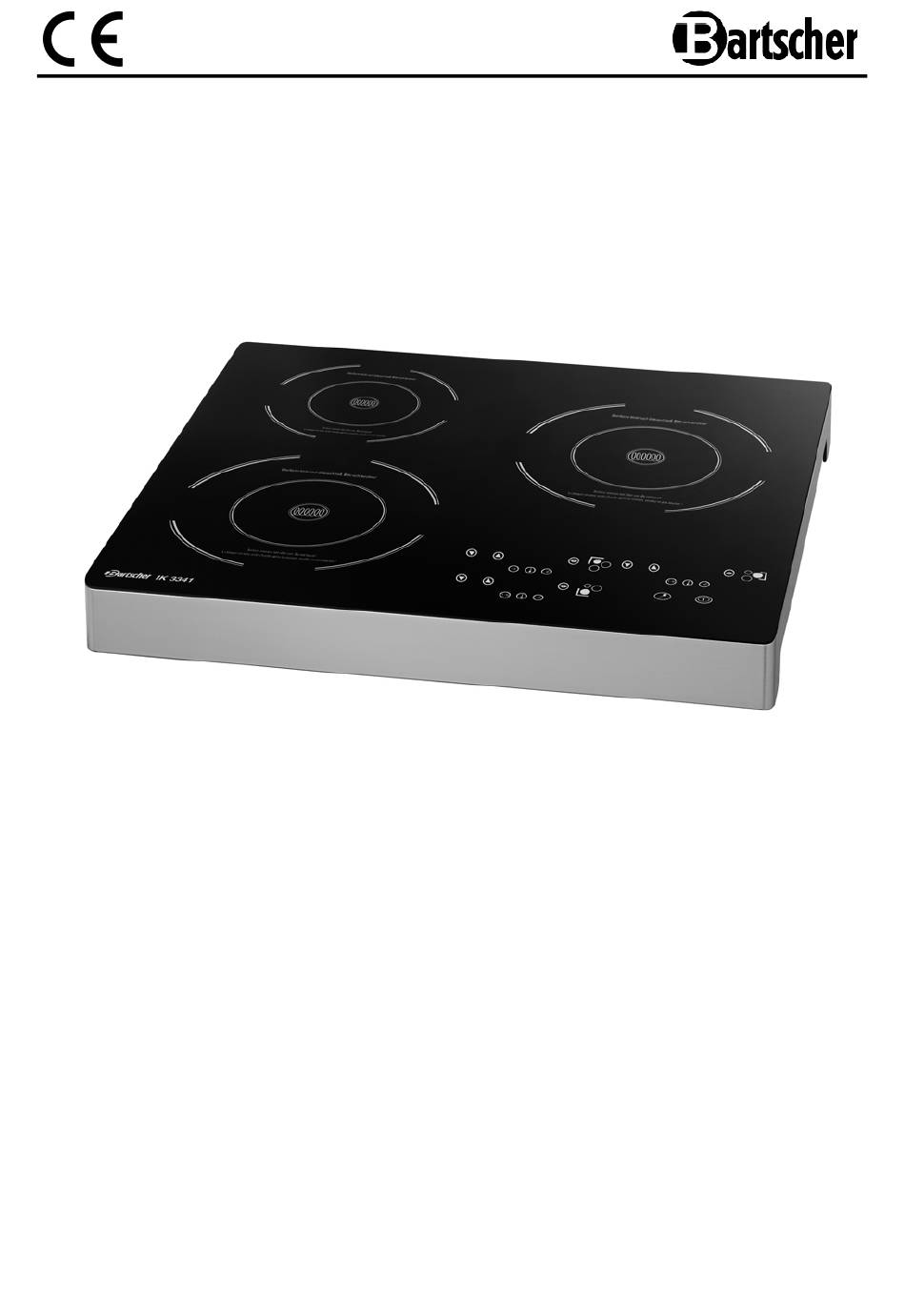

  • Page 1 IK 3341 105940 Original-Bedienungsanleitung V2/0916...

  • Page 2: Table Of Contents

    6.1 Functionality of induction cookers ................ 37 6.2 Suitable and unsuitable cookware ................ 38 6.3 Operation instructions................... 40 7. Cleaning ........................46 8. Possible Malfunctions .................... 47 9. Waste disposal ......................48 Bartscher GmbH Franz-Kleine-Str. 28 33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:...

  • Page 3: Safety

    Read these instructions before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

  • Page 4: Safety Instructions

    CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. CAUTION! Magnetic field! This symbol informs that the magnetic fields occurring during the device operation may cause interference. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation.
  • Page 5 • Prevent access of children to the package materials like plastic bags and foamed polystyrene elements. Suffocation hazard! • Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself. •...
  • Page 6 • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged. If this cable is damaged, it must be replaced by customer service or a qualified electrician in order to avoid dangers. •...
  • Page 7 • Do not place any metal kitchen utensils, pot covers, frying pans, knives, or other metal objects on the cooking field. After the device activation they may become very hot. • Keep in mind that the objects like rings, watches, etc. may become hot in the vicinity of the cooking surface.
  • Page 8 • Do not heat closed containers, e.g. canned food, on the induction cooking field. The containers or cans may explode (crack) due to overpressure. Open the can and place it in the pot with some water heated on the cooking field. CAUTION! Electromagnetic field hazard! To avoid the hazard results please follow the instructions below.

  • Page 9: Intended Use

    • The cooking surface is made from glass resistant to high temperature. In case of damages or small cracks disconnect the device from the power supply immediately and contact the service. 1.3 Intended use Safe operation is only guaranteed when using the device for its intended purpose. Any technical interventions, as well as assembly and maintenance are to be made by a qualified customer service only.

  • Page 10: General Information

    2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors.

  • Page 11: Transport, Packaging And Storage

    3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

  • Page 12: Technical Data

    4. Technical data 4.1 Technical data Name Induction Cooker IK 3341 105940 Code-No.: Material: Plastic body, glass hob Cooking zones: 1 – 1-10, 2 – 1-5, 3 – 1-10 Power levels: Temperature range from 60 ° C to 240 ° C, with 20 ° C increments...

  • Page 13: Installation

    5. Installation 5.1 Positioning • Before the operation unpack the device and remove all package material. CAUTION! Never remove the rating plate and any warning signs from the device. • Place the device on top of an even, stable, dry, and water-resistant surface which supports the weight of the device and is not heat sensitive.

  • Page 14: Electric Connection

    5.2 Electric connection WARNING! Electric shock hazard! The device can cause injuries due to improper installation! Before installation the local power grid specification should be compared with that of the device (see type label). Connect the device only in case of compliance! The device must only be connected to a properly installed single socket with protective contact.

  • Page 15: Suitable And Unsuitable Cookware

    Additional advantages of an induction cooker: • As the cooking zone is only heated up indirectly via the bottom of the cookware, over spilling food cannot stick. The glass cooking zone is only heated up by the hot cookware. • If the device is turned on and no dish for cooking is present or is removed, a repeating audio signal will sound and the device will turn itself off after approx.
  • Page 16 Bartscher Induction cookware, 9-piece cooking pot set chromium-nickel steel ● edge suitable for pouring ● cold handles 4 pots with lid 1 pan 2.0 litres ● Ø 16 cm ● height 10.0 cm 2.8 litres ● Ø 24 cm ● height 6.5 cm 2.7 litres ●...

  • Page 17: Operation Instructions

    6.3 Operation instructions • Before the operation, clean the device according to the instructions specified in section 7 „Cleaning“. • The device has 3 cooking zones which may be operated separately. Settings are adjusted by control elements, separately for each cooking zone. Control elements of cooking zones Control elements, cooking zone 1 Control elements, cooking zone 2...
  • Page 18 Indicators and function keys on the control panels Button for increasing power, temperature or time Button for decreasing power, temperature or time Digital display Function button Cooking zone selection button LED indicator for Timer mode LED indicator for temperature LED indicator for power level - 41 -...
  • Page 19 Use of cooking zones • The device has 3 cooking zones which may be operated separately or simultaneously. • One or more zones may be selected by using relevant buttons for selecting cooking zones: Cooking zone 1 Cooking zone 2 Cooking zone 3 •...
  • Page 20 Turning the device on • Select the cooking zone and place an appropriate cookware with the prepared dish in the middle of the selected zone. CAUTION! Never place an empty cookware on the cooking zone. Warming up an empty pot or frying pan activates the protection system against overheating;...
  • Page 21 Settings Power level • After selecting the power mode, set the desired power level using the buttons . The selected power level will be shown on the digital display of a given cooking zone. • The buttons can be used at any moment to adjust the power level Temperature •...
  • Page 22 NOTE! During the operation in Timer mode, the time may be adjusted at any moment using the buttons The memory function that the device is equipped with allows for the set power or temperature levels to remain unchanged. You can change the power or temperature levels in the same way without changing the time settings.

  • Page 23: Cleaning

    7. Cleaning WARNING! Disconnect the unit from the power supply (unplug!) before cleaning. Let the device cool down. Never clean the device with use of water jet! Be careful and do not let the water into the unit. o Clean the device regularly. o Wipe the cooking zones and the housing with a soft, damp cloth with a mild, non-abrasive cleaner.

  • Page 24: Possible Malfunctions

    8. Possible Malfunctions Error Cause Solution code • Short-lasting low voltage • Disconnect the device from the power (<160V). supply (pull the plug!). The socket to which the device is connected must have the voltage consistent with the data indicated on the rating plate. •...

  • Page 25: Waste Disposal

    CAUTION! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 33154 Salzkotten phone: +49 (0) 5258 971-0 Germany...
