fadini APROLI 280 Batt Instruction Manual

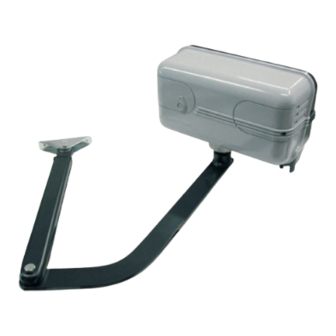

External oil-hydraulic operator with articulated arm for swinging gates mounted on large pillars
Hide thumbs
Also See for APROLI 280 Batt:
- Installation manual (12 pages) ,
- Instruction manual (12 pages)
Related Manuals for fadini APROLI 280 Batt
Summary of Contents for fadini APROLI 280 Batt
- Page 1 GB Instructions manual 1 - 12 pages APROLI 280 Batt External oil-hydraulic operator with articulated arm for swinging gates mounted on large pillars EN 13241 EN 12453 EN 12445...
-
Page 2: Installation
Meccanica Fadini S.r.l. (Via Mantova, 177/A - 37053 Cerea - VR - Italy) declares under own responsibility that: APROLI 280 Batt complies with the 2006/42/CE Machinery Directive, and also that it is sold to be installed in an “automatic system”, along with original accessories and components as indicated by the manufacturing company. An automatic gate operator is, by law, a “machinery”... - Page 3 For Aproli 280 Batt to work as an automatic system it is required that an electronic control box type Elpro be fitted externally in a sheltered place. Operations can be selected to be either fully automatic or semiautomatic (closing by pulse), depending on the user’s requirements.
- Page 4 APROLI 280 BATT SAME VERSION FOR BOTH RIGHT AND LEFT INSTALLATIONS Aproli 280 Batt is not designed as a handed ie. left- or right-hand unit; it comes in a single version factory pre-set to be installed to the left handside of the gate (gate closed, view from inside). For those installations where the operator is on the right handside, it is required that the rotation shaft be set accordingly (Pic.
- Page 5 PRELIMINARY ASSESSMENTS BEFORE INSTALLATION Since Aproli 280 Batt comes with an arm whose gate fixing end can be adjusted into three lengths (460, 520 and 580 mm), it is required that the most suitable length be assessed in relation to the gate width (and inertia) and, also, in consideration of the space that the arm is allowed to take in the most critical position when the gate is fully open (Pic.
- Page 6 The back bracket is to be fixed to the gate post by means of suitable expanding bolts using 4 of the 8 holes provided in it. M8 expanding bolts to suit gate post material or brickwork Pic. 7 Gate view from inside Aproli 280 Batt installed on the left Aproli 280 Batt installed on the right Pic. 8...
- Page 7 Once satisfied that voltage is properly supplied to the motors, operator setting is to be attended. Aproli 280 Batt installed on the left is factory pre-set, gate in closed position. Whereas with Aproli 280 Batt installed on the right, it is required that the motor shaft be turned to the end of the permitted rotation.
- Page 8 Anyway, for those situations where a gate stop in open position cannot be fixed on the ground, Aproli 280 Batt comes with an accessory (open gate stop), adjustable, to be mounted on to the operator under the gate post fixing back bracket for the operator arm to stop against it.
- Page 9 In order to adjust thrust power in opening and closing, turn the respective adjusting screws under the cover as indicated (Pic. 13). NOTE WELL: Depending on which side of the gate Aproli 280 Batt is mounted, on the left or on the right, The function of the red and green adjusting screws changes in relation to open and close control.
- Page 10 Max. gate weight per leaf 400 kg Working torque 220-300 Nm Max. gate width per leaf Oil type Oil Fadini - Item 708L Shaft rotation angle 205° VERSIONS Weight with arm 15 kg - Non locking (reversible): an electric lock is needed...
-
Page 11: Maintenance Record
NOTE WELL: this document must record any ordinary and extraordinary services including installation, maintenance, repairs and replacements to be made only by using Fadini original spare parts. This document, for the data included in it, must be made available to authorized inspectors/officers, and a copy of it must be handed over the end user/s. - Page 12 RELEASING FOR MANUAL OPERATIONS With Aproli 280 Batt non locking (reversible version) it is first required that the electric lock be released by the coded key and the gate pushed open by hand. With the locking version, releasing is by opening the flap in the front cover by the coded key and lowering the inner lever.
