ADVANCE SERIES | ADVANCE90
Installation & Operation Instructions

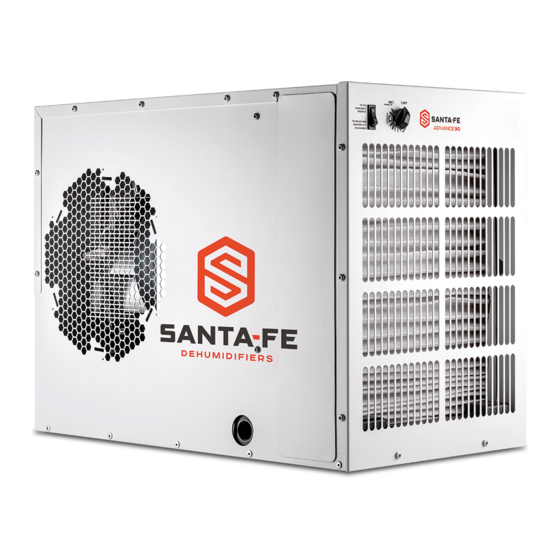

The Santa Fe Advance90 and Advance120
have a horizontal configuration and unique dual
airflow outlets that make them an ideal solution
for basements and crawl spaces. Installation
flexibility makes these units ideal for almost any
application. No conventional dehumidifier
can perform as efficiently and effectively
in basements and crawl spaces as the
Advance Series.
Santa-Fe-Products.com | 800.533.7533
ADVANCE120
Serial Number
Install Date
Sold By
Patent: thermastor.com/patents
TS-1152 08/20 Rev B
Advertisement
Table of Contents
Related Manuals for Santa Fe ADVANCE90
Summary of Contents for Santa Fe ADVANCE90
- Page 1 ADVANCE SERIES | ADVANCE90 ADVANCE120 Installation & Operation Instructions The Santa Fe Advance90 and Advance120 Serial Number have a horizontal configuration and unique dual Install Date airflow outlets that make them an ideal solution Sold By for basements and crawl spaces. Installation flexibility makes these units ideal for almost any application.
-
Page 2: Table Of Contents
Table of Contents Safety Instructions ..................3 Intended Applications ................3 Registrations ....................3 Dehumidifier Set Up .................4 Items Included In Box.................4 Important Precautions ................4 Location Considerations ................4 Installing Leveling Feet ................4 Drain Installation ..................5 Operation ....................6 Humidity Control Adjustment ..............6 Defrost Cycle ....................6 Fan Operation .....................6 Air Filtration ....................7 Changing The Filter ..................7... -
Page 3: Safety Instructions
• Contact installer or call 1-800-533-7533 for all repair or warranty needs. Intended Application(s) The Santa Fe Advance dehumidifier is intended for use in crawl spaces or basements: however, the unit can be placed in almost any residential setting where dehumidification is desired. Use in non-residential applications and pool areas may void warranty. -
Page 4: Dehumidifier Set Up
Important Precautions • Do not install the Santa Fe Advance dehumidifier with the intake or exhaust of the unit within one foot (12”) of a wall or other obstruction. Avoid directing the discharge air at people. The dehumidifier should be used in the upright position. -
Page 5: Drain Installation
The pitch/slope of the drain pipe should be no less than 1 inch per 10 feet of drain pipe. An optional condensate pump kit is available for use with the Santa Fe Advance dehumidifier and may be installed if lift is required to dispose of condensate. -
Page 6: Operation
This function is desirable if the unit is used for air circulation or filtration. Turning the fan switch to “FAN AUTO” (recommended) will cause the unit’s internal blower to run only while the unit is dehumidifying. Santa Fe Advance90 / Advance120 Installation & Operation Instructions Santa-Fe-Products.com | 800.533.7533... -
Page 7: Air Filtration
Air Filtration The Santa Fe Advance dehumidifier is equipped with MERV-13 air filter (89-90% ASHRAE dust spot). An optional MERV-8 or MERV-11 filter is available at www.ThermastorFilters.com. The filters should be checked and replaced every three to six months. Operating the unit with a dirty filter will reduce dehumidifier capacity and efficiency. -
Page 8: Ducting To Finished Areas (Optional)
Use the included duct plate to block off one of the outlets if needed. Front View Output of Dehumidified Air Input of Humid Air Santa Fe Advance90 / Advance120 Installation & Operation Instructions Santa-Fe-Products.com | 800.533.7533... -
Page 9: Recommended Installations
Dehumidistat (mounts on Duct Work opposite wall in finished area) • Place the Santa Fe dehumidifier in the unfinished area of the basement, near a drain access (condensate will • Place the Santa Fe dehumidifier in the unfinished area drain via gravity or with an optional pump kit). -
Page 10: Service
7. Collecting the water removed in a 24 hour period will give a measurement of performance. Santa Fe Advance90 / Advance120 Installation & Operation Instructions Santa-Fe-Products.com | 800.533.7533... -
Page 11: Refrigerant Charging
2. Defective compressor overload. 3. Defective compressor. 4. Defrost thermostat defective. 5. Dirty air filter(s) or air flow restricted. 6. Defective fan or relay. 800.533.7533 | Santa-Fe-Products.com Santa Fe Advance90 / Advance120 Installation & Operation Instructions... -
Page 12: Electrical Requirements
GFCI protected circuit is recommended. The unit should not be used in areas prone to flooding. Consult local electrical codes for any further information. An optional remote dehumidistat is available for use with the Santa Fe Advance dehumidifier and is to be located remotely from the dehumidifier. -
Page 13: Warranty
Warranty Limited Warranty. Therma-Stor, LLC (“Therma-Stor”) warrants as follows: (i) the Santa Fe Advance dehumidifier (“Product”) will be free of material defects in workmanship or materials for a period of 2 years (“Two-Year Warranty”) following the date of initial purchase of such Product by an original customer purchasing from Therma-Stor or an authorized reseller (“Customer”);... - Page 14 Santa Fe Advance90 / Advance120 Installation & Operation Instructions Santa-Fe-Products.com | 800.533.7533...
- Page 15 800.533.7533 | Santa-Fe-Products.com Santa Fe Advance90 / Advance120 Installation & Operation Instructions...
- Page 16 D E H U M I D I F I E R S Santa-Fe-Products.com 800.533.7533...
