CAUTION !

•Mounting

WARNING !
1/2" locknut
1/2" at washer
tank foot
isolator backing plate
1/2" x 2" bolt
isolator
HORIZONTAL TANK UNITS HORIZONTAL TANK UNITS
UNANCHORED

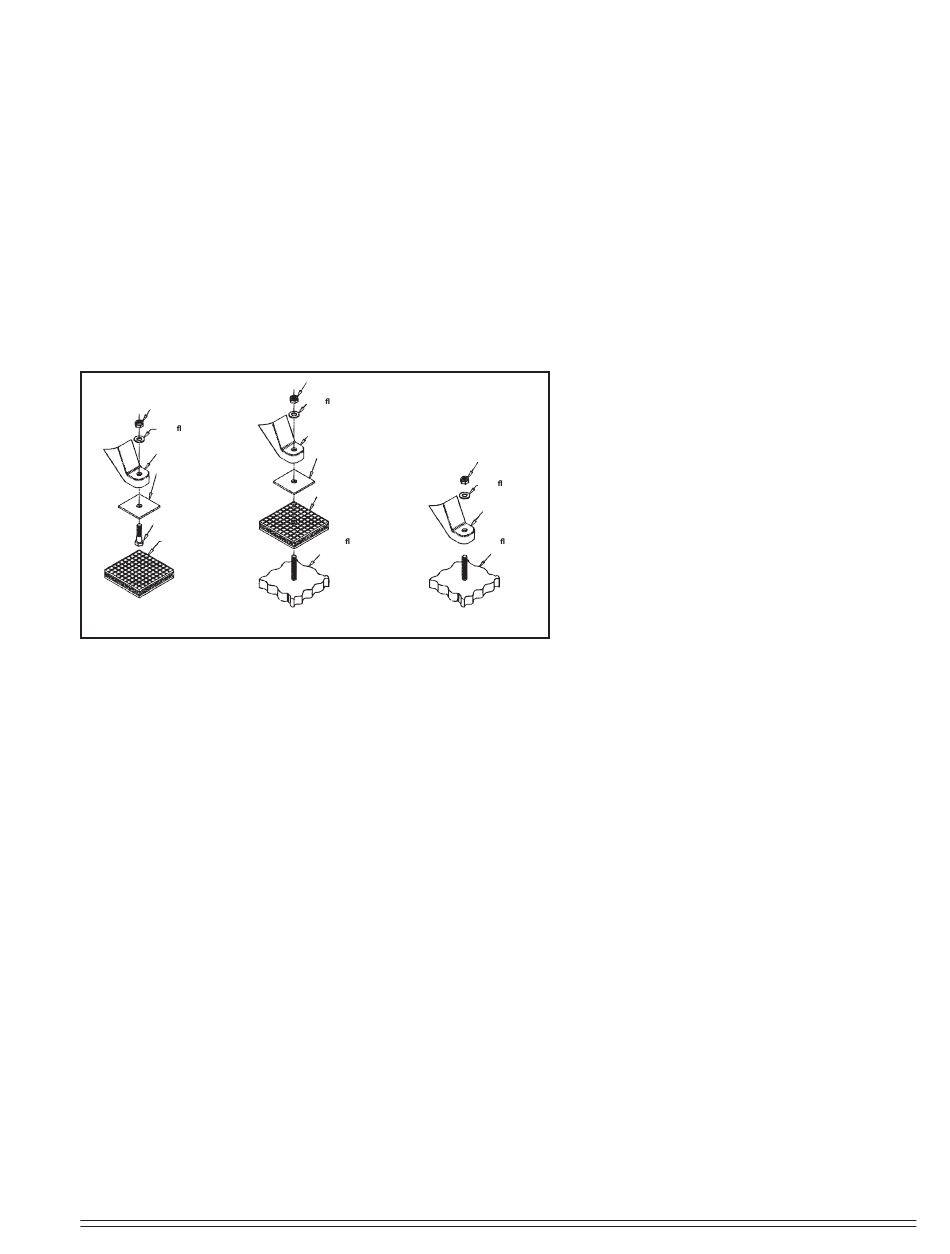

Fig. 3-1 Isolator Installation for
Unanchored or Anchored Receivers
CAUTION !

•System components

WARNING !
Climate Control Series
2022209100, August 2018
Overload relays are designed to protect the motor from damage
due to motor overload. If the overload relay trips persistently, DO
NOT CONTINUE TO PUSH THE RESET BUTTON! Contact your lo-
cal Quincy distributor for assistance.
The compressor unit must be removed from the shipping skid prior
to operation.
Proper mounting of Quincy Compressor units is crucial to the safe operation
and longevity of the equipment. The installation requires a flat and level
concrete floor or pad. Satisfactory results can usually be obtained by mount-
ing horizontal tank units on vibration isolating pads available from your
1/2" locknut
1/2" at washer
tank foot
isolator backing plate
isolator
1/2" oor stud
(provided by customer)
VERTICAL TANK UNITS
ANCHORED ANCHORED
Do not operate this compressor more than 15° off level or move it
while it is operating.
Efficiency and safety are the primary concerns when selecting components
for compressed air systems. Products of inferior qual ity can not only hinder
performance of the unit, but could cause sys tem failures that result in bodily
harm or even death. Select only top quality components for your system. Call
your local Quincy Distributor for quality parts and professional advice.
Drive Pulleys
Drive pulleys must be properly aligned and drive belt tension set to specifica-
tions (refer to SECTION 5, •Pulley / Sheave Alignment & Belt Tension).
Improper pulley alignment and belt tension can cause motor overloading,
excessive vibration, and premature belt and/or bearing failure.
Excessive compressor RPM's (speed) could cause a pulley to shat-
ter. In an instant, the pulley could separate into fragments capable
of penetrating the belt guard and causing bodily harm or death. Do
not operate the compressor above the recommended RPM (refer to
SECTION 2, •Specifications).
local Quincy Distributor. All vertical tank
units must be anchored! Refer to Fig. 3-1,
Isolator Installation for Unanchored or
Anchored Receivers. Quincy recommends
that all vertical tank units be mounted as
indicated without isolators.
1/2" locknut
1/2" at washer
State or local codes may mandate that the
tank foot
compressor be bolted to the floor. In this case
the unit must be leveled and bolted making
1/2" oor stud
(provided by customer)
absolutely certain the feet are not stressed
in any manner. Leave the locknut loose!
Uneven feet drawn tightly to the concrete
pad will cause severe vibrations resulting
in cracked welds or fatigue failure. The
customer is responsible for pro viding a
suitable foundation & isolator mounting
where necessary.
