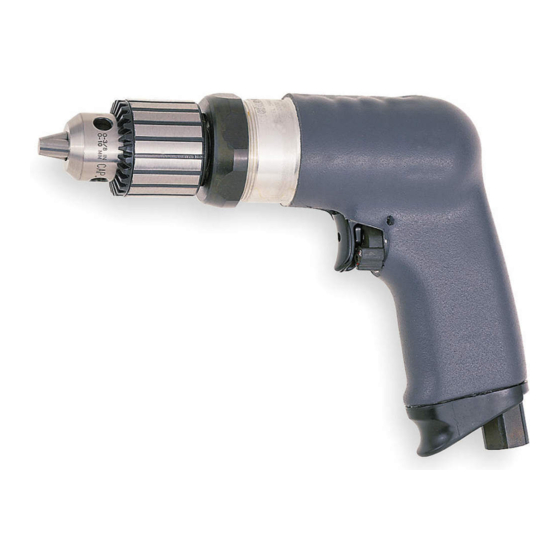

- Page 1 16572620 Edition 2 October 2013 Air Drill, Screwdriver and Angle Wrench 5L and 5RL Maintenance Information Save These Instructions...
- Page 2 Product Safety Information WARNING • Failure to observe the following warnings, and to avoid these potentially hazardous situations, could result in death or serious injury. • Read and understand this and all other supplied manuals before installing, operating, repairing, maintaining, changing accessories on, or working near this product.
- Page 3 Install the Jacking Nut on the Jacking Bolt near the head of the Bolt. NOTICE Position the Bearing Removal Sleeve on the face of the Angle Head with the large open end toward the Spindle. With the Angle Head This is left-hand thread. nested in the shallow counterbore of the Sleeve, screw the Jacking Bolt into the Spindle through the sleeve.
- Page 4 8. Tap the externally threaded end of the Gear Case on a workbench 10. Remove the Exhaust Deflector (12), Inlet Bushing Spacer (14), to remove the Grease Shield (28) and Spindle Bearing (29). Exhaust Silencer (11), Muffler Element (13), Exhaust Deflector 9.
- Page 5 For Reversible Models: NOTICE Using a bearing inserting tool as shown in Dwg. TPD786, press a new Rear Rotor Bearing (2) into the Motor Housing until it is To determine which end of the Cylinder is the front end, hold about .015”...
- Page 6 7. Work 3 cc to 6 cc of the recommended grease into the gear train. 12. Install the Clutch Housing Assembly into the Gear Case 8. Insert the Spindle Assembly into the front end of the Gear Assembly (36), matching the spline of the Clutch Housing with Case (36), making certain the Assembly is seated in the recess in that of the Gear Case.
- Page 7 4. For 7L1A1, 7L1A3, 7L1A4, 7L1B1, 7L1B4, 7L2A4, 5L2D5 or i. Insert the required number of shims, as determined from step 6L2D6 Angle Head, lubricate the Bevel Pinion Thrust (g) into the upper bearing recess of the Angle Head. Bearing (112 or 211) as instructed under LUBRICATION. Install See Dwg.
- Page 8 Place shims between Bevel Gear and marked side of Bearing. Bearing Inserting Sleeve Installation Sleeve Guide Shoulder Stop Correct Bearing Depth (Dwg. TPD787) m. Apply a small drop of Loctite No. 601 to the small outside Pull Bevel Pinion back diameter at the upper end of the Spindle.
-
Page 9: Troubleshooting Guide
Troubleshooting Guide Trouble Probable Cause Solution Loss of Power Low air pressure Check air supply. For top performance, the air pressure must be 90 psig (6.2 bar/620 kPa) at the inlet. Plugged Inlet Bushing Screen or Air Strainer Clean the screen in a clean, suitable, cleaning solution. If the Screen Screen cannot be cleaned, replace it. - Page 10 Notes:...
- Page 11 Notes:...
- Page 12 ingersollrandproducts.com © 2013 Ingersoll Rand...
