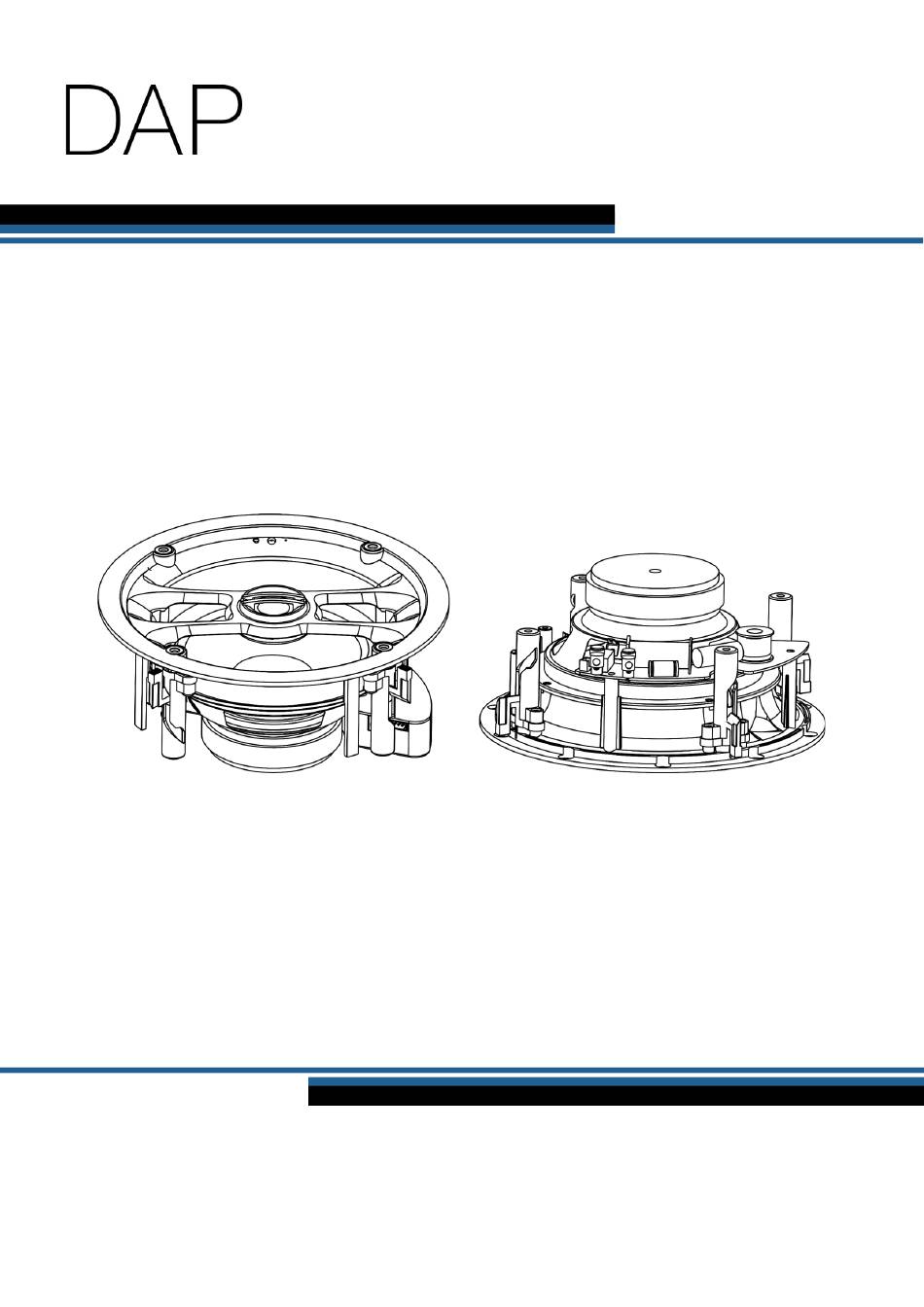

- Page 1 USER MANUAL ENGLISH WCSS-230 G2 WiFi Speaker Product code: D6451 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 WCSS-230 G2 WiFi Speaker Preface Thank you for purchasing this DAP product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
WCSS-230 G2 WiFi Speaker Table of contents Introduction ................................3 Before Using the Product ..........................3 Intended Use ............................... 3 Text Conventions ..............................3 Symbols and Signal Words ..........................4 Symbols on the Information Label ........................4 Safety ..................................5 Warnings and Safety Instructions ........................ -
Page 4: Introduction
After unpacking, examine the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● DAP WCSS-230 G2 WiFi Speaker (active + passive) ● Schuko to IEC power cable (1 m) ●... -
Page 5: Symbols And Signal Words
WCSS-230 G2 WiFi Speaker Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 6: Safety
WCSS-230 G2 WiFi Speaker Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions... -
Page 7: Requirements For The User
WCSS-230 G2 WiFi Speaker Attention This device shall be used only for the purposes it is designed for. This device is designed to be used as a ceiling speaker. Any incorrect use may lead to hazardous situations and result in injuries and material damage. -
Page 8: Description Of The Device

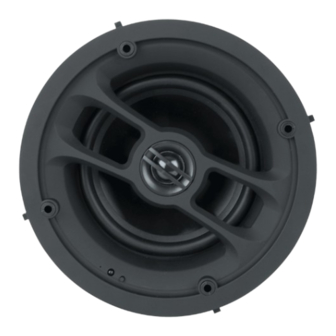

Description of the Device The DAP WCSS-230 G2 is a set of two 6,5-inch ceiling speakers. The active speaker has an integrated 2 x 30 W class D amplifier and is equipeed with an SMPS. The device has a volume limiter that limits the output to 50 % (2 x 15 W). -
Page 9: Active Speaker
WCSS-230 G2 WiFi Speaker Active Speaker Fig. 03 Fig. 04 07) Built-in amplifier 12) 2-pin terminal connector OUT (+/-) 08) RJ45 ethernet connector IN 13) 24 V DC power connector IN 09) RCA line-level connectors IN (Left/Right) 14) 6-pin connector IN... -
Page 10: Product Specifications
WCSS-230 G2 WiFi Speaker Product Specifications Model: WCSS-230 G2 WiFi Speaker AC power adapter: Input voltage: 100–240 V AC, 50/60 Hz Output voltage: 24 V DC Audio specifications: Speaker system: 2-way Speaker sensitivity (1 W/1 m): 87 dB Speaker impedance: 8 Ω... -
Page 11: Installation
WCSS-230 G2 WiFi Speaker Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. ● Make sure that the ceiling can hold the weight of the device. ● Make sure that the installation location on the ceiling is free of any obstructions and the speaker cables do not come in contact with other objects. -
Page 12: Cutting Out A Mounting Opening
WCSS-230 G2 WiFi Speaker Cutting Out a Mounting Opening Before cutting out a mounting opening, make sure that there is at least 100 mm of free space behind the ceiling. If there is not enough free space, it is not possible to mount the speaker. -
Page 13: Connecting The Passive Speaker
WCSS-230 G2 WiFi Speaker Connecting the Passive Speaker Use signal cables to connect the 2-pin terminal connector OUT (12) of the active speaker to the 2-pin terminal connector IN (16) of the passive speaker. Make sure that the cable polarity is correct (+/-) (Fig. -
Page 14: Connecting Line-Level Devices
WCSS-230 G2 WiFi Speaker Connecting Line-level Devices You can connect the speakers to line-level devices (e.g. an amplifier or a media player). If you want to use the speakers only to stream music, you do not need to read this chapter. -
Page 15: Connecting To Power Supply
WCSS-230 G2 WiFi Speaker Connecting to Power Supply Attention Incorrect handling of the AC power adapter may result in hazardous situations This device is delivered with an AC power adapter. Incorrect handling of the AC power adapter may result in hazardous situations. -
Page 16: Installing The Speaker
WCSS-230 G2 WiFi Speaker Installing the Speaker Attention Connect all cables before installation. Make sure that all devices are connected and all settings are correct before installing the speaker on the ceiling. To install the speaker, follow the steps below: Insert the installation tool, delivered with the device, into each of the 4 dog-leg buttons (01) and push. - Page 17 WCSS-230 G2 WiFi Speaker 03) Press the dog-leg buttons (01) to unlock the dog legs (15). The dog legs (15) hold the device in position (Fig. 13). Fig. 13 04) Attach the speaker grill, delivered with the device, to the speaker. The magnets in the speaker rim hold the speaker grill in position (Fig.14).
-
Page 18: Setup
WCSS-230 G2 WiFi Speaker Setup Stand-alone Setup The WCSS-230 G2 WiFi Speaker functions as a stand-alone device. It can be operated manually or with an infrared (IR) remote control. Network Connection Use the SmartSonix app to pair your streaming device with the active speaker. The active speaker will play audible messages informing you about the pairing status. - Page 19 WCSS-230 G2 WiFi Speaker 03) Select the speaker on the list of available 04) In the SmartSonix app, select your network and networks. enter the password in the PASSWORD field. 05) Select CONTINUE to confirm the password. 06) Select NEXT to confirm.
-
Page 20: Lan Connection
WCSS-230 G2 WiFi Speaker 07) Select CUSTOM (to enter a custom name) or one of the many preset names. 08) Select NEXT to confirm. The SmartSonix app is configured. You can now use the SmartSonix app to stream music via various streaming services. -
Page 21: Operation
WCSS-230 G2 WiFi Speaker Operation Safety Instructions for Operation Attention Connect all data cables before supplying power. Disconnect power supply before connecting or disconnecting data cables. Attention This device must be used only for the purposes it is designed for. -
Page 22: Remote Control
WCSS-230 G2 WiFi Speaker Remote Control The speakers can be controlled with an IR remote control. The remote control is included in the delivery. DANGER Do not ingest battery, chemical burn hazard The remote control contains a coin cell battery. If the coin cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. -
Page 23: Functions Of The Remote Control Buttons
WCSS-230 G2 WiFi Speaker Functions of the Remote Control Buttons The remote control has the following functions: Fig. 16 Button Description Function Turns the speaker on Turns the speaker off Mute Turns the sound on/off Volume Increases/decreases the volume Treble... -
Page 24: Selecting Equalizer Presets
WCSS-230 G2 WiFi Speaker Selecting Equalizer Presets You can select an equalizer preset. Repeatedly press the EQ button to select an equalizer preset. The order of the presets is as follows: Flat, Classical, Pop, Rock, Jazz, Enhanced vocals Restoring Factory Settings You can restore the default factory settings using the the function button (04) or the remote control. -
Page 25: Maintenance
WCSS-230 G2 WiFi Speaker Maintenance Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing. Preventive Maintenance Attention Before use, examine the device visually for any defects. Make sure that: ● All screws used for installing the device or parts of the device are tightly fastened and are not corroded. -
Page 26: Disposal
WCSS-230 G2 WiFi Speaker Disposal Correct disposal of this product Waste Electrical and Electronic Equipment This symbol on the product, its packaging or documents indicates that the product shall not be treated as household waste. Dispose of this product by handing it to the respective collection point for recycling of electrical and electronic equipment. - Page 27 WCSS-230 G2 WiFi Speaker Product code: D6451...
- Page 28 ©2023 DAP...
