- Page 1 USER MANUAL ENGLISH WMS4-W Product code: D3831 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
WMS4-W Table of contents Introduction ................................3 Before Using the Product ..........................3 Intended Use ............................... 3 Text Conventions ..............................3 Symbols and Signal Words ..........................4 Symbols on the Information Label ........................4 Safety ..................................5 Warnings and Safety Instructions ........................5 Requirements for the User .......................... - Page 3 WMS4-W Preface Thank you for purchasing this DAP product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 4: Introduction
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● DAP WMS4-W ● Mounting plate ● Mounting screw ●... -
Page 5: Symbols And Signal Words
WMS4-W Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 6: Safety
WMS4-W Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions... -
Page 7: Requirements For The User
WMS4-W Attention Do not expose the device to conditions that exceed the rated IP class conditions. This device is IP54 rated. IP (Ingress Protection) 54 class means that the device is dust-protected. Ingress of dust does not interfere with satisfactory operation of the device. Water splashed against the enclosure from any direction shall have no harmful effect. -
Page 8: Description Of The Device

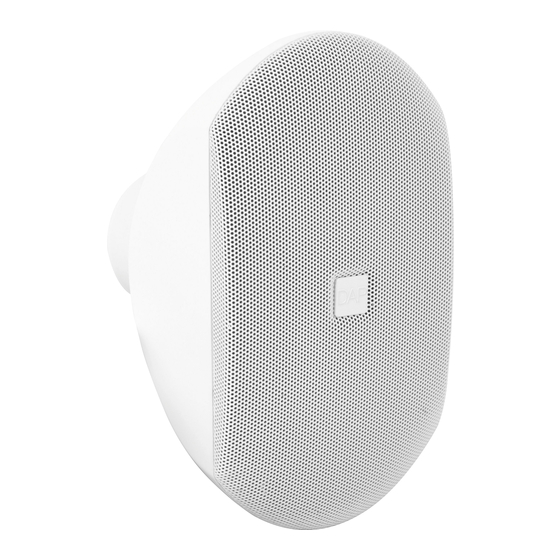

WMS4-W Description of the Device The DAP WMS4-W is an IP-rated conventional speaker for low-impedance audio installations. The device can be easily mounted on a wall, in a horizontal or vertical orientation. The DAP logo on the front is rotatable. The device can be used in shops, restaurants or clubs, as well as in sheltered outdoor locations. -
Page 9: Bottom View
WMS4-W Bottom View Fig. 04 09) Mounting screw (M3 x 10 mm) 10) 2 x adjustment screws (M6 x 45 mm) 11) Ball-joint Mounting Plate Fig. 05 12) 4 x mounting holes (Ø 5 mm) 13) 4 x mounting hooks... -
Page 10: Product Specifications
WMS4-W Product Specifications Model: DAP WMS4-W Physical: Dimensions: 144 x 180 x 260 mm (L x W x H) Weight: 1,7 kg Inputs: Passive input connector: 4-pin terminal Output: Passive output connector: 4-pin terminal Audio Specifications: Speaker system: 2-way Speaker sensitivity (1 W/1 m):... -
Page 11: Dimensions
WMS4-W Dimensions Fig. 06 Product code: D3831... -
Page 12: Installation And Setup
WMS4-W Installation and Setup Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. Installation Site Requirements ● The device can be used outdoors. ● The device can be mounted on a wall in a vertical or horizontal orientation. -
Page 13: Drilling Mounting Holes
WMS4-W Drilling Mounting Holes 01) Hold the mounting plate (07) against the wall, as shown in Fig. 07, and mark the mounting locations. Fig. 07 02) Drill holes at the marked locations. See 4.3.1.1. Drilling into Wood or 4.3.1.2. Drilling into Concrete on page 12 for more information. -
Page 14: Connecting Devices
WMS4-W Connecting Devices Connect all cables to the mounting plate (07). Make sure that the cable polarity is correct (+/-) (Fig. 11). Fig. 11 To connect the device with a conventional amplifier, follow the steps below: 01) Connect the (-) output of the conventional amplifier to one of the (-) connectors on the mounting plate (07) of the first speaker. -
Page 15: Installing The Mounting Plate
WMS4-W Installing the Mounting Plate Install the mounting plate (07) with the 4 x mounting hooks (13) facing up (Fig. 13). Fig. 13 To install the mounting plate (07), follow the steps below: 01) Hold the mounting plate (07), with the rubber gasket (08), against the wall, in such a way that all cables fit through the opening in the rubber gasket (08) (Fig. -
Page 16: Installing The Speaker
WMS4-W Installing the Speaker To mount the speaker, follow the steps below: Turn the mounting screw (09) counter-clockwise to remove it. Hang the speaker on the mounting plate (07) (Fig. 17). Notes: ● The 4 x mounting hooks (13) shall fit through the 4 x speaker mounting holes (05) on the mounting panel (04). -
Page 17: Adjusting The Angle
WMS4-W Adjusting the Angle You can adjust the angle of the device with the adjustment screws (10). To adjust the angle, follow the steps below: 01) Fold the rubber ball-joint cover (03) to get access to the adjustment screws (10). -
Page 18: Adjusting The Logo
WMS4-W Adjusting the Logo You can adjust the orientation of the DAP logo on the speaker grill so that it is always legible, regardless of the orientation of the device. Option 1 Use a tool to pry up the rotatable logo (02). -
Page 19: Connecting The Amplifier
WMS4-W Connecting the Amplifier Attention Speaker load Before connecting the amplifier to the power supply, make sure that the total load of all connected speakers is below the maximum rating of the amplifier. If the total load is higher, it may cause damage to the amplifier and to the speakers. -
Page 20: Maintenance
WMS4-W Maintenance Preventive Maintenance Attention Before use, examine the device visually for any defects. Make sure that: ● There are no deformations on the housing. ● The device is rigidly mounted to the wall. Basic Cleaning Instructions To clean the device, follow the steps below: Clean the device with a soft, lint-free cloth. -
Page 21: Deinstallation, Transportation And Storage
WMS4-W Deinstallation, Transportation and Storage Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. ● Disconnect power supply before deinstallation. ● Always observe the national and site-specific regulations during deinstallation and derigging of the device. - Page 22 WMS4-W Product code: D3831...
- Page 23 WMS4-W Product code: D3831...
- Page 24 ©2022 DAP...
