Summary of Contents for SELVAS Healthcare ACCUNIQ BP210

  • Page 2 The device bears the CE label in accordance with the provisions of Medical Device Directive 93/42/EEC. THE PERSONS RESPONSIBLE FOR PLACING DEVICES ON THE EC MARKET UNDER MDD 93/42/EEC SELVAS Healthcare, Inc. 155, Sinseong-ro, Yuseong-gu, Daejeon, 34109 Republic of Korea TEL: 82-42-879-3000, FAX: 82-42-864-4462 Obelis s.a.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS • INTRODUCTION ..................... 1. IINTENDED USE................... 2. WORD DEFINITIONS..................3. CLASSIFICATION AND COMPLIANCE............4. SAFETY PRECAUTIONS................5. SAFETY SYMBOLS AND INFORMATION............. 6. Guidance for Electromagnetic compatibility (EMC) ........• TERMS OF EACH PART AND FUNCTIONS ..........1. FRONT PART....................2.

  • Page 4: Introduction

    We will provide you with detailed instructions. 1. INTEDED USE ACCUNIQ BP210 Automatic Blood Pressure Monitor is designed to measure systolic and diastolic blood pressure and pulse rate of Persons who are 18 years and older using the oscillometric method on a cuffed arm.

  • Page 5: Classification And Compliance

    3. CLASSIFICATION AND COMPLIANCE 1) This device is classified as; - Class 1 type-BF against electric shock - Ordinary equipment without protection against ingress of water - Equipment not suitable for use in presence of a flammable anesthetic mixture by standard of IEC 60601-1:2005/A1:2012(Basic safety and essential performance of Medical Electrical Equipment) 2) This device is complied with Class A for Noise-Emission, Level B for Noise-immunity, by standard of IEC 60601-1-2:2014(Electromagnetic Compatibility Requirements).
  • Page 6 7) Avoid the following environments for storage; - Where the ambient temperature falls -20°C or exceeds 60°C. - Where the atmospheric pressure falls below 70kPa (700mbar) or exceeds 106kPa (1060mbar). - Where the humidity is over 95% non-condensing. - Where the unit is exposed to spray or splashing water. - Where the unit is exposed to dust.
  • Page 7 1. Measurements may be impaired if this device is used near televisions, microwave Caution ovens, X-ray equipment or other devices with strong electrical fields. To prevent such interference, use the meter at a sufficient distance from such devices or turn them off.

  • Page 8: Safety Symbols And Information

    5. SAFETY SYMBOLS AND INFORMATION The International Electrotechnical Commission (IEC) has established a set of symbols for medical electrical equipment which classifies a connection or warning of any potential hazard. The classifications and symbols are shown below. Save these instructions for your safety. Degree of protection against electric shock: TYPE BF Please observe operating instructions General warning sign...
  • Page 9 This symbol is used inside system. Identifies the point where the safety ground of the system is fastened to the chassis. Do not open. This is for factory only. Alternating current Direct current Date of manufacture Manufacturer Non-ionizing radiation CE mark Serial No.

  • Page 10: Guidance For Electromagnetic Compatibility (Emc)

    RoHS2 6. Guidance for Electromagnetic compatibility (EMC) Details about the electromagnetic compatibility (EMC) of the ACCUNIQ BP210 are given below. Before using the ACCUNIQ BP210, be sure to read and understand the following information. 1) Guidance and manufacturer’s declaration – electromagnetic emissions The ACCUNIQ BP210 is intended for use in the electromagnetic environment specified IEC 60601-1-2:2014 (Fourth Edition).

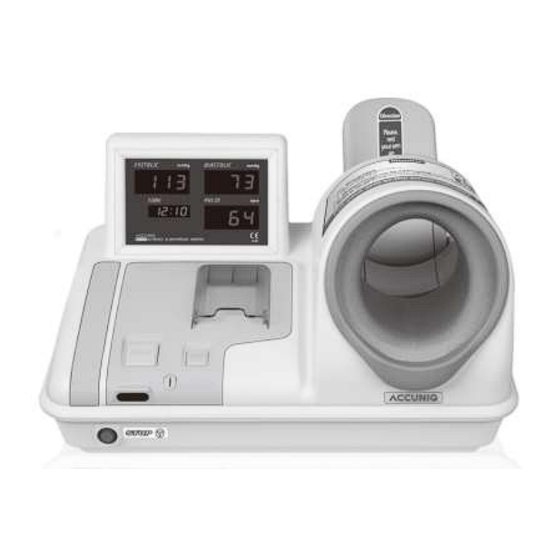

  • Page 11: Terms Of Each Part And Functions

    TERMS OF EACH PART AND FUNCTIONS 1. FRONT PART ① START BUTTON Press START button after being ready to measure, the cuff will be wrapped automatically and begins to pressurize. ② STOP BUTTON Press STOP button if you want to stop it during measurement. Pressurizing will stop and the air will exhaust from the cuff.
  • Page 12 Note The cuff and the buttons (START and STOP button) of this device are located at reverse side by R and L type. FRONT PART ④ DIASTOLIC DISPLAY ⑪ ARM REST ③ SYSTOLIC DISPLAY ⑥ TIMER ⑤ PULSE DISPLAY ⑩ CUFF ⑬...

  • Page 13: Printer

    2. PRINTER ① PRINT button - Use it when you print out the data. - If you set [ON] at the rear (PRINT ON/OFF switch), the data is printed automatically even when you do not press PRINT button. - Normally, when you press this button, one previous data will be printed. (If you turn it off, all memorized data would be deleted.) - When you set the date and time, the number goes up with this button pressed.

  • Page 14: Rear Part

    3. REAR PART ① POWER It is used to turn the power on and off. ② POWER INPUT It is used to connect with the adapter. ③ CAL This is only for inspection. Never open it. ④ EARTH (POTENTIAL EQUALIZATION TERMINAL) Please make sure for safety.
  • Page 15 1. While sound switch is activated on (so sound is functioning), place the VOLUME Note ON/OFF switch to [OFF] for deactivation of voice message and music play. 2. Printer, card reader, human sensor and reverse monitor is optional. 3. The operator should not touch both USB port and the patient’s body simultaneously.

  • Page 16: Accessories

    4. ACCESSORIES Adapter/Power cable User guide Guide 5. OPTIONS Cart / Chair RFID Card/Magnetic Card Thermal paper / Printer Human sensor Reverse monitor Reverse monitor support/cable - 16 -...

  • Page 17: Installation

    INSTALLATION 1. CONNECTION ADAPTER Just connect the power cable to the adapter on the rear and turn the POWER ON/OFF switch on the lower part of the rear (See the picture). Caution In order to avoid the risk of electrical shock, connect this device only to the power supply equipped with the protective grounding.

  • Page 18: Connecting Ports (Rs-232C)

    Being thermal type, printing is photocopied on one side of the paper (slippery side), Note without using printing ink. Please check remainder of the paper always and then replace it. Please use exclusive paper (58mm). Keep paper rolls in a dark and ventilated place. Avoid any dust on the paper.

  • Page 19: Setting Time And Date

    4. SETTING TIME AND DATE • Turn on the unit. • Open the printer cover. • Sequence is HOUR → MINUTE → MONTH → DAY → YEAR HOUR ① Press SET button, then indicator will blink. At that time, press PRINT button. Its counts that have been measured since keeping button ON will be printed.
  • Page 20 Note If you want to measure blood pressure during setting the date and time, press STOP button. Then you can measure again immediately. You should set all data at once (hour, minute, month, day and year). Note In case of stopping setting, the values return to previous ones which you have done before.

  • Page 21: Measurement

    MEASUREMENT 1. CAUTIONS FOR MEASUREMENT - 21 -...

  • Page 22: Measurement

    2. MEASUREMENT ① Check the voltage and turn the power on. ② With the switch-on, a music sound flows as the LED screen is activated. But, the SOUND ON/OFF switch in the rear of the unit should be set as 「ON」 ③...
  • Page 23 Place your arm on the arm supporter with Caution the palm facing up through the cuff deeply. Adjust the height of the chair so that the arm is leveled off with the heart. When the arm is placed lower than the heart, blood pressure will become higher than actual value, and vice versa.
  • Page 24 ⑦ Blood pressure and pulse rate are displayed on LED and then the results are printed out. Also the results are informed by the voice message as “Your blood pressure is systolic 000, diastolic 000 and pulse 000.” ⑧ Pull your arm out from the cuff. Note 1.

  • Page 25: Data On Measurement By Printer

    3. DATA ON MEASUREMENT BY PRINTER ▼ Results on Printing Paper Thermal Paper Setting [PrO: ON / PrP: ON] [PrO: OFF / PrP: ON] Thermal Paper Setting [PrO: ON / PrP: OFF] [PrO: OFF / PrP: OFF] - 25 -...

  • Page 26: How To Set Printer Paper

    4. How to set printer paper *you must turn off the volume-control switch when you do printer paper setting below. 1) When the power is off, turn the power on by pressing ‘START’ button 2) ‘Con’ is marked on the right bottom side. Con>Snd>Lcd>Prn>Fls is repeated whenever ’STOP’...
  • Page 27 By getting PrL on the upper side of the screen and setting ON or OFF, you can choose whether Logo is printed out on the bottom side of the result sheet or not. Press START button to save the setting. Then, press ‘emergency stop button’...
  • Page 28 Classification of the blood pressure : National High Blood Pressure Education Program, National Heart, Lung and Blood institute, NIH (JNC7, 2003) - When pressure is high with the jammed air hose, message appears on the printer as Note ERROR PRESSURE. When the message is repeated, call for maintenance service.
  • Page 29 OPTION 1. Reverse monitor 1) Attachment of the reverse monitor ① Put support of reverse monitor in the direction of arrow. ② Attach reverse monitor into reverse monitor support as above. ③④ Put guide board in the direction of arrow and then complete it. 2) Connect Connect reverse monitor and a blood pressure monitor to the rear ‘BACK MONITOR PORT’...
  • Page 30 ⑥ Weight button Used when putting user’s body weight. ⑦ Height button Used when putting user’s height. ⑧ Numbers and • button Used when putting numbers such as ID, body weight, height etc. Use ‘•’ button in order to put a decimal point in case of body weight, height. For example, if body weight is 68.9kg, put ‘weight button→6→8→•→9’...
  • Page 31 4) Measurement ① Input data ID: After pressing ‘ID’ button in the initial screen, put ID, using 0~9 numeric button. (go back to the initial screen unless you don’t put for 40 seconds.) - ID limitation you can put is 000000001~999999999. Weight: After putting ID, putting ‘WEIGHT’...
  • Page 32 ③ Result When measurement is complete, body mass index (B.M.I.), fatness is displayed based on ID, weight and height in LCD. ④ Standard for judging result • Body Mass Index (B.M.I.): this is calculated by dividing body weight by the square of height in meter. thin normal overweight...
  • Page 33 2. MAGNETIC CARD Machine manager can issue cards through supportive card issuer, in machine’s delivery, you can issue it yourself. When machine manager issues cards, please refer to card issuer or program manual. 1) Setting In card’s using, you should set CARD ON/OFF in the rear part by ‘ON’. CARD ON/OFF switch of the rear part of the machine must be set by 「ON」in Note order to use card.
  • Page 34 ④ Print-out the result of the measurement ▼ using only magnetic card ▼ Magnetic Card + reverse monitor - 34 -...
  • Page 35 3. RFID card Machine manager can issue cards through supportive card issuer, in machine’s delivery, you can issue it yourself. When machine manager issues cards, please refer to card issuer or program manual. 1) Setting In card’s using, you should set CARD ON/OFF in the rear part by ‘ON’. 2) Measurement ①...
  • Page 36 ④ output the result of measurement ▼ in using only RFID card ▼ RFID card+ in putting the rear monitor - 36 -...

  • Page 37: Maintenance

    MAINTENANCE - 37 -...
  • Page 38 - 38 -...

  • Page 39: Error&Repair

    ERROR & REPAIR Error Cause Repair ERROR PRESSURE pressure is high with the When message jammed air hose repeated, call maintenance service. ERROR CUFF pressure is low as air leaks When message repeated, call maintenance service. - Don’t move or speak. ERROR MEASURE subject moves or speaks while in testing...

  • Page 40: After Service

    How to contact our company Write us at: SELVAS Healthcare, Inc. 155, Sinseong-ro, Yuseong-gu, Daejeon, 34109 Republic of Korea TEL: 82-42-879-3000 FAX: 82-42-864-4462 (You can also contact the following representative or your local distributor) 2.

  • Page 41: Specification

    SPECIFICATION ACCUNIQ BP210 ACCUNIQ BP210 Model (Right type) (Left type) Measuring method Oscillometric Display mode High Brightness LED (197X145mm) display Systolic/Diastolic/Mean blood pressure, Pulse pressure, Pulse, Blood pressure assessment, Pulse wave pattern Result Contents Reverse Monitor(Option): Systolic/Diastolic blood pressure, Pulse, ID No, B.M.I., and Fatness...

  • Page 42: Warranty

    WARRANTY WARRANTY Item Automatic Blood Pressure Monitor Warranty period Model ACCUNIQ BP210 1year (main unit only) Serial NO. Date of purchase Month Year Name: TEL: Customer Address: Name: TEL: Dealer Address: Date Defection Confirmation Note - When you receive this warranty, make sure that the name of the dealer and the month, day and year of purchase are all completed.
  • Page 43 Pass/Fail 4 Measurement Proper measurement Pass/Fail General Judgment Pass/Fail Model ACCUNIQ BP210 Serial No. Installation place Date of purchase Check date Checked by Approved by Copy this sheet for use If repair is required, write down so in the Remarks column.
  • Page 44 Pass/Fail Other 1 Clock Present date/time Pass/Fail General Judgment Pass/Fail Model ACCUNIQ BP210 Serial No. Installation place Date of purchase Check date Checked by Approved by Copy this sheet for use If repair is required, write down so in the Remarks column.
  • Page 45 BP210E-20210624 Rev 3.2...
