User Manual BC310
English. 06/2021. V3.02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Accuniq BC310 and is the answer not in the manual?

Questions and answers

Related Manuals for SELVAS Healthcare Accuniq BC310

Summary of Contents for SELVAS Healthcare Accuniq BC310

  • Page 1 User Manual BC310 English. 06/2021. V3.02...
  • Page 2 The device bears the CE label in accordance with the provisions of Medical Device Directive 93/42/EEC. THE PERSONS RESPONSIBLE FOR PLACING DEVICES ON THE EC MARKET UNDER MDD 93/42/EEC SELVAS Healthcare, Inc. 155, Sinseong-ro, Yuseong-gu, Daejeon, 34109 Republic of Korea TEL: 82-42-879-3000, FAX: 82-42-864-4462 Obelis s.a.

  • Page 3: Table Of Contents

    < VOLUME > ..............32 Basic Package ................15 < CONTRAST > .............. 33 < BACKLIGHT > ............. 33 ACCUNIQ BC310 (For whole body) ...... 15 < ABDOMINAL > ............34 ACCUNIQ BC310 (For upper body) ...... 16 <GOAL SETTER > ............34 ACCUNIQ BC310 (For lower body) .......
  • Page 4 STORAGE & MAINTENANCE ERROR & REPAIR Kinds of Error & Repair ............54 Error occurrence & Repair ..........55 AFTER SERVICE AFTER SERVICE ................ 57 How to contact SELVAS Healthcare ..... 57 PACKING AND TRANSPORT ..........57 SPECIFICATION WARRANTY _CONTENTS...

  • Page 5: Introduction

    You are kindly requested to be familiar with these directions before using this product and always keep it together with the product. In case you are not sure about any directions or problems arising while using the product, please contact with SELVAS Healthcare or its local distributor where is purchased. We will provide you with detailed instructions.

  • Page 6: Classification And Compliance

    SELVAS Healthcare, Inc. Note "Notice" indicates important information in order to notify installation, operation or maintenance of this device. "Notice" is important but not hazard-related. Hazard warnings are not included here. CLASSIFICATION AND COMPLIANCE This device is classified as; Class 1 type-BF against electric shock ...
  • Page 7 Caution If you plan to connect any device from other manufacturers electrically or mechanically to the unit, contact SELVAS Healthcare or its authorized dealer for instructions before doing so. When you connect computer or other system to the unit (RS-232C), the attached systems should be those certified by IEC 950 or equivalent standards for data processing equipment.
  • Page 8 SELVAS Healthcare, Inc. Where the angle of inclination of mounting surface exceeds 10 degrees.  Where the unit is exposed to direct sunlight.  Caution This device needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided in the ACCOMPANYING DOCUMENTS.
  • Page 9 User Manual BC310 Prohibition Never jump on the Weighing Platform, there may be a risk of stumbling and malfunction of the equipment. Note This equipment has been tested and found to comply with the limits for medical devices according to IEC 60601-1-2:2014. These limits are designed to provide reasonable protection against harmful interference in a typical medical installation.

  • Page 10: Safety Symbols And Information

    Defective units or accessories must be packed in the replacement cartons to be shipped off from you to SELVAS Healthcare. Shipping and insurance costs for return of defective unit must be prepaid by the users.
  • Page 11 User Manual BC310 SYMBOL INFORMATION "OFF" (only for a part of equipment) "ON" (only for a part of equipment) This symbol is used inside system. Identifies the point where the safety ground of the system is fastened to the chassis. Do not open.

  • Page 12: Guidance For Electromagnetic Compatibility

    Medical Device Guidance for Electromagnetic compatibility (EMC) Details about the electromagnetic compatibility (EMC) of the ACCUNIQ BC310 are given below. Before using the ACCUNIQ BC310, be sure to read and understand the following information. Guidance and manufacturer’s declaration – electromagnetic emissions The ACCUNIQ BC310 is intended for use in the electromagnetic environment specified IEC 60601-1- 2:2014 (Fourth Edition).

  • Page 13: About Body Composition

    User Manual BC310 ABOUT BODY COMPOSITION Body Composition Human body consists of body fat and lean body. Lean body means non-fat constituents of human body like body water, muscles, mineral, etc. Body water is divided into intra- and extra-cellular water and the ratio between them is controlled and maintained within a certain range.
  • Page 14 SELVAS Healthcare, Inc. Abdominal Fatness Body fat is divided into subcutaneous fat and visceral fat. Visceral obesity is considered to be a critical risk factor along with Percentage of body fat. Lipoprotein lipase can be easily activated in visceral fat, and it causes visceral fat to be dissolved easily.

  • Page 15: Term And Function Of Each Part

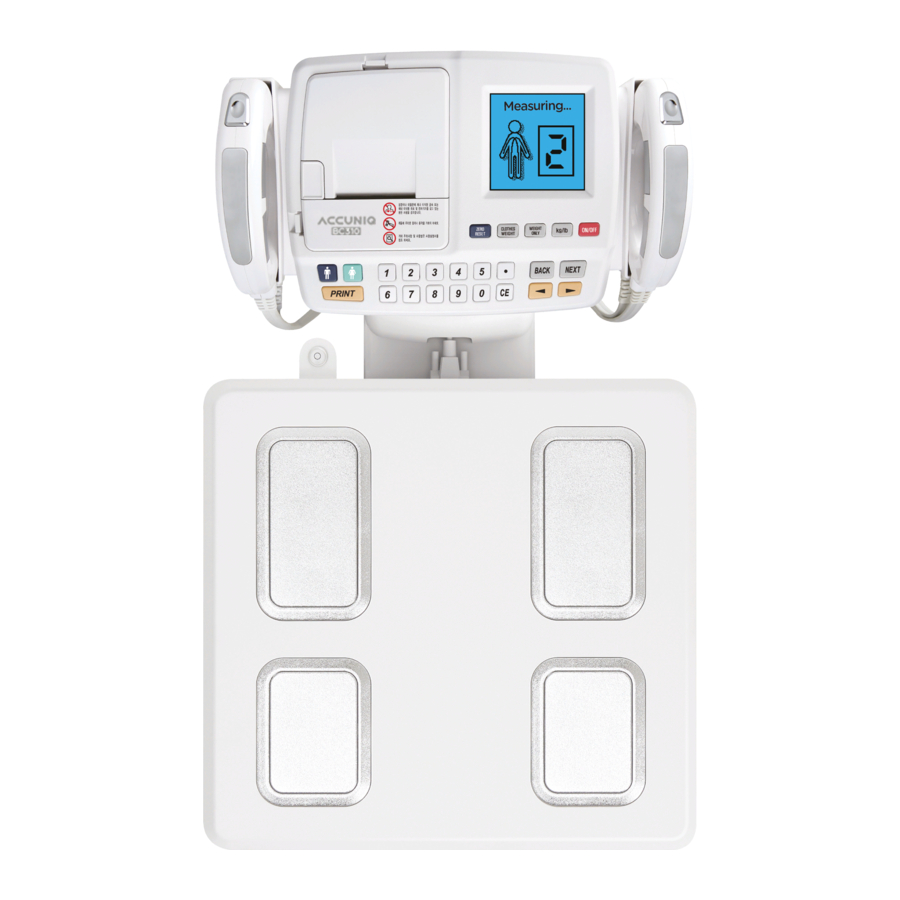

    User Manual BC310 TERM AND FUNCTION OF EACH PART Basic Package ACCUNIQ BC310 (For whole body) ① Column ② Head Part ③ Weight scale ④ User manual & (Base part) Data management program ⑤ USB cable ⑥ Serial cable ⑦ Power cable and adapter ⑧...

  • Page 16: Accuniq Bc310 (For Upper Body)

    SELVAS Healthcare ACCUNIQ BC310 (For upper body) ② Head Part ③ Weight scale (Base part) ④ User manual & Data management program ⑤ USB cable ⑥ Serial cable ⑦ Power cable and adapter ⑧ Thermal printer ⑨ Roller The model or specification are subject to change according to the market demand.

  • Page 17: Accuniq Bc310 (For Lower Body)

    User Manual BC310 ACCUNIQ BC310 (For lower body) ② Head Part ③ Weight scale (Base part) ④ User manual & Data management program ⑤ USB cable ⑥ Serial cable ⑦ Power cable and adapter ⑧ Thermal printer ⑨ Roller The model or specification are subject to change according to the market demand.

  • Page 18: Options

    SELVAS Healthcare Options Data management program This program helps managing body composition easily and systematically. It shows the core items needed to control body composition. The items include measured body composition, dietary control plan, exercise plan, etc. If the device is connected to blood pressure monitor, it also indicates the measurer's blood pressure.

  • Page 19: Main Body

    User Manual BC310 Column It attaches to the head part with base part. Main Body Front Part ACCUNIQ BC310 (For whole body / upper body) Handle Electrode LCD screen Keypad Thermal printer TERM AND FUNCTION OF EACH PART_...
  • Page 20 ‘ON/OFF’, 0 to 9, Alphabet, ‘MALE’, ‘FEMALE’, ’Print’, ' · ', 'CE', '◀', '▶', 'BACK', 'NEXT' and the numeric button. Thermal Printer  In-built printer allows the speedy and convenient printing. ACCUNIQ BC310 (For lower body) LCD screen Thermal printer Keypad LCD screen ...

  • Page 21: Rear Part

    Adapter port Scale port PC port EXTERNAL DEVICE port SCLAE port: Connecting the scale.  EXTERNAL DEVICE port: Connecting External device manufactured by SELVAS Healthcare, Inc.  PC port: Connecting a computer.  ADAPTER port: Connecting the adapter.  Note Rear port is same for all three machines;...

  • Page 22: Base Part

    SELVAS Healthcare Base Part ACCUNIQ BC310 (For whole body / lower body) Plate electrode Weight scale Weight scale: It consists of four plate electrodes and it measures weight.  Plate electrode: It measures the impedance. The user should step it in bare feet.
  • Page 23 User Manual BC310 Hold them with hands during measurement. Start button Start button: Start button after input of personal data  Keypad -1 ZERO RESET: It adjusts the scale to ‘0’ point.  CLOTHES WEIGHT: The user can input the weight of the clothes. (0~5.5kg / 0~9.9lbs) ...
  • Page 24 SELVAS Healthcare Keypad -2 MALE/FEMALE: Select gender.  PRINT: It prints the result.  Numeric Keys & CE button: Numeric Keys are used for entering personal data (Height, Age).  The input data can be deleted by CE button. BACK/NEXT: It moves forward/backward to the next/previous step during the System setting or during ...

  • Page 25: Installation

    User Manual BC310 INSTALLATION Basic Installation of product Connecting the power supply and the scale cable Connect the adapter to the adapter port placed on the rear panel of this device. After the cables are connected to each port, turn on the power switch on the keypad. Leveling Make sure that the scale is placed on a flat and level surface.

  • Page 26: Peripheral Device Installation

    SELVAS Healthcare Peripheral Device Installation Connecting PC Connect the device to PC with USB cable. Note If use USB port, the cable should be connected to the computer port. When use computer port, USB driver should be installed at first.

  • Page 27: Connecting Printer (Option)

    User Manual BC310 Connecting Printer (Option) Connect the device, PC, and the printer. Connect the device to PC with USB cable. The USB port is placed on the rear panel of the device. Connect the printer to the PC with printer cable. The result sheet can be printed out from the printer. Connecting EXTERNAL DEVICE: EXTERNAL DEVICE can be connected to the device.

  • Page 28: Replacing Thermal Paper

    SELVAS Healthcare Replacing Thermal Paper Replace thermal paper while the power is on. Pull the Top button up. Then press the Side button. Open the upper printer cover. Put the roller into the center hole of the thermal paper. Insert the thermal paper with the roller into the holder as shown in the picture.
  • Page 29 User Manual BC310 Press the Jam button located inside the printer. Remove the jammed paper. INSTALLATION_...

  • Page 30: System Setup

    At initial display, press '◀ → 1 → 2 → 3 → 4 → ▶' button in keypad to enter 'SYSTEM SETUP' screen. Menu in SYSTEM SETUP The function of each menu item is as follows. DATE /TIME VOLUME CONTRAST BACKLIGHT ABDOMINAL DATE TYPE GOAL SETTER (ACCUNIQ BC310 F ONLY) KEY SOUND THERMAL PRINTER _SYSTEM SETUP...

  • Page 31: Selecting A Menu In System Setup

    User Manual BC310 THERMAL LOGO Selecting a Menu in SYSTEM SETUP Select the menu by pressing ‘◀’ and ‘▶’ button and press NEXT button in keypad. (BACK button act as ‘CLOSE’ button in SYSTEM SETUP and NEXT button act as ‘SET’ button.) Moving to SYSTEM SETUP Press BACK button on selected item.

  • Page 32: Volume

    SELVAS Healthcare Press NEXT button in keypad to save date and time.  Return to SYSTEM SETUP screen by pressing BACK button in keypad.  Note If NEXT button is pressed before finishing setup of date and time, the date and time inputted at that time is saved and SYSTEM SETUP screen appears.

  • Page 33: Contrast

    User Manual BC310 < CONTRAST > It adjusts the brightness of the screen. Default Setting: 0  Range: -3 ~ +3  Adjust the brightness by pressing ‘◀’ and ‘▶’on the screen.  Press NEXT button to save the setting. ...

  • Page 34: Abdominal

    SELVAS Healthcare Press BACK button to return to SYSTEM SETUP screen.  < ABDOMINAL > It sets the analysis of abdominal fatness under 18yrs. Select abdominal fatness on SYSTEM SETUP screen by pressing ‘◀’ and ‘▶’ button. Press NEXT ...

  • Page 35: Date Type

    Return to SYSTEM SETUP screen by pressing BACK button in keypad.  Note It has no ‘Goal setter’ in the ACCUNIQ BC310 (For upper body /lower body). < DATE TYPE > This is to set the format of the date.

  • Page 36: Key Sound

    SELVAS Healthcare < KEY SOUND > It choose the sound of keys when the data is input. -Select SOUND on SYSTEM SETUP screen by pressing ‘◀’ and ‘▶’ button, and press NEXT button in  keypad. ‘ELEC’ is electronic sounds, ‘VOICE’ is human sounds.

  • Page 37: Thermal Logo

    User Manual BC310 PRINT TYPE: Choose PRINT TYPE by pressing ‘2’.  Select the paper format either HORIZONTAL TYPE or VERTICAL TYPE.  < THERMAL LOGO > It choose whether using thermal logo. Select THERMAL LOGO on SYSTEM SETUP screen by pressing ‘◀’ and ‘▶’ button. Press NEXT button ...

  • Page 38: Measurement And Analysis

    SELVAS Healthcare MEASUREMENT AND ANALYSIS Precautions for Measurement The reliability of the results can be assessed by its accuracy. The "Accuracy" of the device is determined by comparing the actual body composition and the results from Body Composition Analyzer. The "Reproducibility"...

  • Page 39: Correct Posture

    User Manual BC310 Dry hands and feet might affect the results. In case your hands and feet are dry, please wipe them with wet wipes before measuring for enhanced electrical conductivity. In order to keep one's health and the balance of body composition, check the changes of body composition through the continuous analysis and compare the results.

  • Page 40: Measuring Posture

    SELVAS Healthcare (O) Correct grip (X) Imbalanced touch (X) Grip with only palm Note When a subject has small hands or feet and cannot cover all electrodes sufficiently, please pay attention to touch all electrodes fairly. The way to touch the electrodes will affect the reliability of the results.

  • Page 41: Measuring Procedure

    User Manual BC310 Measuring Procedure Basic Analysis ACCUNIQ BC310 (For whole body) Weight measurement When the subject steps on the scale, the screen changes  with a chime bell. Do not move or speak until the measurement is  completed.
  • Page 42 SELVAS Healthcare Input height  The following message appears. “Input your height.”  Input height using the numerical buttons on the keypad.  Press the ‘NEXT’ button.  Input goal Body fat%  The following message appears. “Input goal P.B.F.”...
  • Page 43 When the program is installed in a computer connected to the device, the result can be viewed at PC, and it can be printed. Please refer to the software user manual in the supplied USB memory. ACCUNIQ BC310 (For upper body) Weight measurement When the subject steps on the scale, the screen changes ...
  • Page 44 SELVAS Healthcare After the weight measurement, input the personal data. Personal information Input the following information in a order gender, age, and height. Confirm input data. Press NEXT button to the next step. Select gender  The following message appears. “Select your gender.”...
  • Page 45 The result is presented in graph and numerical value.  Check the results and press PRINT or NEXT button.  ACCUNIQ BC310 (For lower body) Weight measurement When the subject steps on the scale, the screen changes  with a chime bell.
  • Page 46 SELVAS Healthcare Select gender  The following message appears. “Select your gender.”  Select either MALE or FEMALE from the keypad.  Input age  The following message appears. “Input your age.”  Input age using the numerical buttons on the keypad.

  • Page 47: Analysis Using Blood Pressure Monitor/Software Program

    Analysis Using Blood Pressure Monitor/Software Program The blood pressure monitor from SELVAS Healthcare, Inc. can be connected to the device as an option. In this way, the blood pressure can be monitored together with weight control. It helps to manage the body fat while checking the blood pressure simultaneously.

  • Page 48: Result Interpretation

    SELVAS Healthcare RESULT INTERPRETATION Here's the explanation and the criteria of the printed results. Personal Data The subject's name / ID, date, height, weight, age and gender are indicated on the result sheet. Logo The user can input LOGO such as name of hospital, sports center, or obesity clinic, telephone number, address, contact person, etc.
  • Page 49 User Manual BC310 Percent Body Fat (P.B.F., %): It is the ratio (%) of the body fat based on the subject’s weight. low fat normal over fat obese severe obese Male less than 15 15 ~ ≤ 20 20 ~ ≤ 25 25 ~ ≤...
  • Page 50 SELVAS Healthcare Abdominal Analysis Abdominal fatness is divided into subcutaneous type and visceral type. When it comes to body fat, experts say that it is important not only the amount of fat but also the distribution of it. If visceral fat area is over 100 cm , it is classified as "visceral obesity"...
  • Page 51 User Manual BC310 Control guide muscle regulation This is the control target to achieve the appropriate muscle mass based on the current measurement. If the muscle is more than the right value, the adjustment value is displayed as +0.0. Fat regulation This is the control target value for proper body fat amount based on the present measurement value.

  • Page 52: Storage & Maintenance

    In case of inserting foreign substances or exposing to particular environment, this device must be  examined by an expert before use. Use the power cable, plug, and fuse that are offered by SELVAS Healthcare.  At this time, confirm the covering of cable, the state of plug connection, and other check points to the things below.
  • Page 53 Please refer to and abide by the “SAFETY PRECAUTIONS.” Caution Users must be sure to use sterile safety equipment such as gloves when in contact with or cleaning electrodes. SELVAS Healthcare is not responsible for safety accidents caused by users’ carelessness. STORAGE & MAINTENANCE_...

  • Page 54: Error & Repair

    If the same error is repeated, please contact  Impedance is out of  range SELVAS Healthcare or its local distributor from Range: 100 ~ 950 Ω  where this device is purchased Out of range When the subject’s P.B.F.

  • Page 55: Error Occurrence & Repair

    User Manual BC310 Error Cause Repair Can’t measure When the subject’s weight Measure the weight again. Don't move or   the weight deviates from the limit speak during measurement Measuring error  It can't measure if the weight is out of range. ...
  • Page 56 Make sure there are no foreign  substances between electrodes and measuring body parts It does not work Defective cable between the head Contact SELVAS Healthcare or its   even when start and the scale local distributor where this device...

  • Page 57: After Service

    (You can also contact the following representative or your local distributor) PACKING AND TRANSPORT SELVAS Healthcare wraps this device up with the most suitable method to protect it from any impact or damage during shipping and transporting. This device can be damaged during delivery if it is packed with other ways except the one SELVAS Healthcare uses.
  • Page 58 SELVAS Healthcare Turn off the power of the peripheral devices and disconnect all cables. Disassemble the device in reverse order of assembly. Pack the device with the original packing materials. Transport it carefully. _AFTER SERVICE...

  • Page 59: Specification

    User Manual BC310 SPECIFICATION DIVISION SPECIFICATION Model ACCUNIQ BC310 Measuring BIA via tetra-polar electrode method using 8 touch electrodes. method Frequency Range 5, 50, 250 kHz ACCUNIQ BC310 ACCUNIQ BC310 ACCUNIQ BC310 Measuring site (for whole body) (for upper body)
  • Page 60 SELVAS Healthcare DIVISION SPECIFICATION About 13.5kg Weight About 11.5kg About 11kg (Included column) Measuring range 100 ~ 950 Ω Measuring time Within 1 minute Input height 50~220 cm Measuring weight 10~200 kg Applicable age 1 ~ 99 years old Operation Temperature: 5~40℃, Humidity: 15~93% (non condensing)

  • Page 61: Warranty

    User Manual BC310 WARRANTY Name of product Body composition analyzer Name of model ACCUNIQ BC310 Serial number Period of warranty Within 1 year from the date of manufacture Date of purchase Customer Add. Name Tel. Dealer (market) Add. Name Tel.
  • Page 62 Pass/Fail Measurement Proper measurement Pass/Fail General Judgment Pass/Fail Model ACCUNIQ BC310 Serial No. Installation place Date of purchase Check date Checked by Approved by Copy this sheet for use If repair is required, write down so in the Remarks column.
  • Page 63 Pass/Fail Other Clock Present date/time Pass/Fail General Judgment Pass/Fail Model ACCUNIQ BC310 Serial No. Installation place Date of purchase Check date Checked by Approved by Copy this sheet for use If repair is required, write down so in the Remarks column.
  • Page 64 SELVAS Healthcare, Inc. HEADQUARTERS 155, Sinseong-ro, Yuseong-gu, Daejeon, 34109 Republic of Korea Tel +82 42 879 3000 Fax +82 42 864 4462 If the problems continue, call the service center. When you ask for service, the manufacturer’s label, serial number, date of original purchase and explanation of malfunction will be required.
