SELVAS Healthcare Accuniq BC310 User Manual

Hide thumbs Also See for Accuniq BC310:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Accuniq BC310 and is the answer not in the manual?

Questions and answers

Related Manuals for SELVAS Healthcare Accuniq BC310

Summary of Contents for SELVAS Healthcare Accuniq BC310

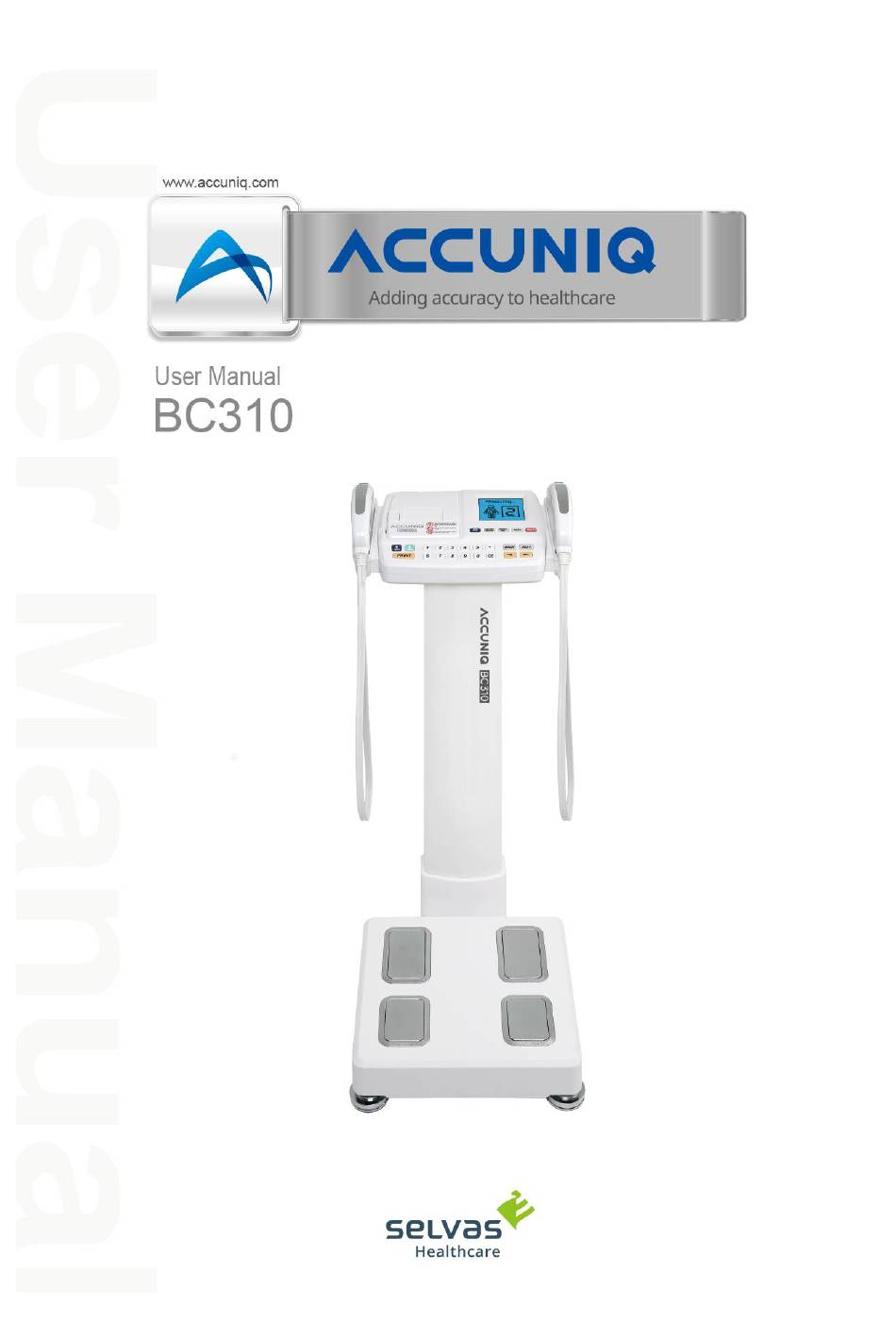

  • Page 2 The device bears the CE label in accordance with the provisions of Medical Device Directive 93/42/EEC. THE PERSONS RESPONSIBLE FOR PLACING DEVICES ON THE EC MARKET UNDER MDD 93/42/EEC SELVAS Healthcare, Inc. 29, Gongdan 4-ro, Jillyang-eup, Gyeongsan-si, Gyeongsangbuk-do, 38470 Republic of Korea TEL: 82-53-856-0993, FAX: 82-53-856-0995 VITAKO Sp.

  • Page 3: Table Of Contents

    TERM AND FUNCTION OF EACH PART ·························································· 19 1. Main Body ···························································································· 19 2. Basic Package ······················································································ 27 1) ACCUNIQ BC310 (For whole body) ························································ 27 2) ACCUNIQ BC310 (For upper body) ························································· 28 3) ACCUNIQ BC310 (For lower body)··························································· 29 3.
  • Page 4 MEASUREMENT AND ANALYSIS ··································································· 48 1. Precautions for Measurement ··································································· 48 2. Correct Posture ····················································································· 50 1) How to Touch Plate Electrodes ······························································· 50 2) How to Touch Handle Electrodes ···························································· 50 3) Measuring Posture ·············································································· 51 3. Measuring Procedure ············································································· 52 1) Basic Analysis ····················································································...

  • Page 5: Introduction

    INTRODUCTION We highly appreciate that you chose our company’s product. You are kindly requested to be familiar with these directions before using this product and always keep it together with the product. In case you are not sure about any directions or problems arising while using the product, please contact our service center.

  • Page 6: Classification And Compliance

    3. CLASSIFICATION AND COMPLIANCE 1) This device is classified as; - Class 1 type-BF against electric shock - Ordinary equipment without protection against ingress of water - Equipment not suitable for use in presence of a flammable anesthetic mixture by standard of EN 60601-1:1998+A1: 1991:1995(Safety of Medical Electrical Equipment) 2) This device is complied with Class A for Noise-Emission, Level B for Noise-immunity, by standard of IEC 60601-1-2:2001(Electromagnetic Compatibility Requirements).
  • Page 7 Caution If you have experienced any trouble with the unit, switch it off immediately, and contact our company or its authorized dealer for assistance. If you plan to connect any device from other manufacturers electrically or Caution mechanically to the unit, contact our company or its authorized dealer for instructions before doing so.
  • Page 8 Caution Cross contamination is possible because this equipment is used with bare hands and feet. Refer to the cleaning and disinfecting methods in this manual. Measurements may be impaired if this device is used near televisions, Caution microwave ovens, X-ray equipment or other devices with strong electrical fields.
  • Page 9 This equipment has been tested and found to comply with the limits for medical Note devices according to IEC 60601-1-2:2007. These limits are designed to provide reasonable protection against harmful interference in a typical medical installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to other devices in the vicinity.

  • Page 10: Safety Symbols And Information

    Incorrect operation or failure of user to maintain the unit spares the manufacturer or his agent of the responsibility for system’s non-compliance with specifications or responsibility for any damage or injury. This manual is made for informational purposes and this manual and product are not meant to be a substitute for the advice provided by your own physician or other medical expert.
  • Page 11 Waste Electrical and Electronic Equipment (WEEE) The device could be sent back to the manufacturer for recycling or proper disposal after their useful lives. Alternatively the device shall be disposed in accordance with national laws after their useful lives. "ON / OFF" key : Turn the power ON / OFF Class II equipment This symbol is used inside system.

  • Page 12: Guidance For Electromagnetic Compatibility(Emc)

    1) Guidance and manufacturer’s declaration – electromagnetic emissions The ACCUNIQ BC310 is intended for use in the electromagnetic environment specified below. The customer or the user of the ACCUNIQ BC310 should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment –...
  • Page 13 2) Guidance and manufacturer’s declaration – electromagnetic immunity The ACCUNIQ BC310 is intended for use in the electromagnetic environment specified below. The customer or the user of the ACCUNIQ BC310 should assure that it is used in such an environment. IEC 60601 test...
  • Page 14 3) Guidance and manufacturer’s declaration – electromagnetic immunity 2 The ACCUNIQ BC310 is intended for use in the electromagnetic environment specified below. The customer or the user of the ACCUNIQ BC310 should assure that it is used in such an environment. 60601...
  • Page 15 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the ACCUNIQ BC310 is used exceeds the applicable RF compliance level above, the ACCUNIQ BC310 should be observed to verify normal operation.
  • Page 16 4) Recommended separation distances between portable and mobile RF communications equipment and the ACCUNIQ BC310 The ACCUNIQ BC310 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the ACCUNIQ BC310 can help prevent...

  • Page 17: About Body Composition

    ABOUT BODY COMPOSITION 1. Body Composition Human body consists of body fat and lean body. Lean body means non-fat constituents of human body like body water, muscles, bones, etc. Body water is divided into intra- and extra-cellular water and the ratio between them is controlled and maintained within a certain range.
  • Page 18 5. Abdominal Fatness Body fat is divided into subcutaneous fat and visceral fat. Visceral obesity is considered to be a critical risk factor along with Percent of body fat. Lipoprotein lipase can be easily activated in visceral fat, and it cause visceral fat to be dissolved easily.

  • Page 19: Term And Function Of Each Part

    TERM AND FUNCTION OF EACH PART 1. Main Body 1) Front Part ① ACCUNIQ BC310 (For whole body / upper body) Handle Electrode Thermal printer LCD screen Key Pad Handle Electrode measure the impedance by sending harmless electric current to the body.
  • Page 20 ▪ LCD screen It displays the procedure and results. ▪ Handle Electrode Handle Electrode measure the impedance by sending harmless electric current to the body. Hold them with the hands during measurement. ▪ Key pad The keypad consists of the function keys ;‘ZERO RESET’, ‘CLOTH WEIGHT’,’ WEIGHT ONLY’, ‘kg/lb’, ‘ON/OFF’, 0 to 9, Alphabet, ‘MALE’, ‘FEMALE’, ’Print’, ' •...
  • Page 21 ② ACCUNIQ BC310 (For lower body) Key Pad Thermal printer LCD screen ▪ LCD screen It displays the procedure and results. ▪ Key pad The keypad consists of the function keys ;‘ZERO RESET’, ‘CLOTH WEIGHT’,’ WEIGHT ONLY’, ‘kg/lb’, ‘ON/OFF’, 0 to 9, Alphabet, ‘MALE’, ‘FEMALE’, ’Print’, ' • ', 'CE', '◀', '▶', 'BACK' , 'NEXT' and the numeric button.
  • Page 22 Adapter port EXTERNAL DEVICE port ▪ SCLAE port: Connecting the scale. ▪ EXTERNAL DEVICE port: Connecting External device manufactured by SELVAS Healthcare, Inc. ▪ PC port: Connecting a computer. ▪ ADAPTER port: Connecting the adapter. Note Rear port is same for all three machines;...
  • Page 23 3) Base Part ① ACCUNIQ BC310 (For whole body / lower body) Plate electrode ‘ Weight scale ▪ Weight scale: It consists of four plate electrodes and it measures weight. ▪ Plate electrode: It measures the impedance. The user should step it in bare feet.
  • Page 24 ② ACCUNIQ BC310 (For upper body) Weight scale ▪ Weight scale: It consists of four plate electrodes and it measures weight.
  • Page 25 4) Handle electrode It measures the impedance of body by flowing harmless electric current. Hold them with hands during measurement. ① ① Start button: Start button after input of personal data 5) Key Pad -1 ZERO RESET: It adjusts the scale to ‘0’ point. ▪...
  • Page 26 6) Key Pad-2 ▪ MALE/FEMALE: Select gender. ▪ PRINT: It prints the result. ▪ Numeric Keys & CE button: Numeric Keys are used for entering personal data (Height, Age). The input data can be deleted by CE button. ▪ BACK/NEXT: It moves forward/backward to the next/previous step during the System setting or during the measurement.

  • Page 27: Basic Package

    2. Basic Package 1) ACCUNIQ BC310 (For whole body ) ① Head Part ② Weight scale(Base part) ③ User manual ④ Body Pass Plus (CD) ⑤ USB / Serial cable ⑥ Power cable and adapter ⑦ Thermal printer ⑧ Roller ⑨...

  • Page 28: Accuniq Bc310 (For Upper Body)

    2) ACCUNIQ BC310 (For upper body) ① Head Part ② Weight scale(Base part) ③ User manual ④ Body Pass Plus (CD) ⑤ USB / Serial cable ⑥ Power cable and adapter ⑦ Thermal printer ⑧ Roller ① Head Part ② Weight scale(Base part) ③...

  • Page 29: Accuniq Bc310 (For Lower Body)

    3) ACCUNIQ BC310 (For lower body) ① Head Part ② Weight scale(Base part) ③ User manual ④ Body Pass Plus (CD) ⑤ USB / Serial cable ⑥ Power cable and adapter ⑦ Thermal printer ⑧ Roller ① Head Part ② Weight scale(Base part) ③...

  • Page 30: Options

    3. Options 1) Professional health counseling software, Easy Body Plus (CD) This program helps managing body composition easily and systematically. It shows the core items needed to control body composition. The items include measured body composition, dietary control plan, exercise plan, etc. If the device is connected to blood pressure monitor, it also indicates the measurer's blood pressure.

  • Page 31: Installation

    INSTALLATION 1. Basic Installation of product 1) Connecting the power supply and the scale cable Connect the adapter to the adapter port placed on the rear panel of this device. After the cables are connected to each port, turn on the power switch on the keypad. 2) Leveling ①...

  • Page 32: Peripheral Device Installation

    2. Peripheral Device Installation 1) Connecting PC Connect the device to PC with USB cable. 1. In order to save, search, and retrieve subject’s data, the device should be Note connected to PC in which Body Pass Plus is installed. The result sheet can be printed from the printer connected to the PC 2.

  • Page 33: Connecting Printer (Option)

    2) Connecting Printer (Option) ① Connect the device, PC, and the printer. Connect the device to PC with USB cable. The USB port is placed on the rear panel of the device. Connect the printer to the PC with printer cable. The result sheet can be printed out from the printer.

  • Page 34: Replacing Thermal Paper

    4) Replacing Thermal Paper Replace thermal paper while the power is on. ① Pull the up. Then press the Side button. Open the upper printer cover. Top button ② Put the roller into the center hole of the thermal paper. ③...

  • Page 35: The Troubleshooting Of Thermal Paper Jam

    5) The trouble shooting when the thermal paper is jammed. ① Pull the lower printer cover up as shown in the picture. ② Press the Jam button located inside the printer. ③ Remove the jammed paper.

  • Page 36: Installation Of Column (Option)

    3. Installation of Column (Option) 1) The components for installing the body Note Please arrange (+)/(-) screw drivers. The screw drivers are not included in the package. ① HEAD(Main body): 1ea ⑦ M6 FH bolt for wrench : 4ea ② BRACKET :1ea ⑧...
  • Page 37 2) Connecting weight scale cable ① Connect the weight scale wit h cable as shown in the picture. Fasten the two bolts by hands or (-)screw driver. Note Connect the opposite side of the cable to the port located at the back of Head.
  • Page 38 3) Assembling the bracket. ① Please check the bolt holes located at the bottom of the weight scale. ② Using a 5mm six angles L type wrench, fix the body bracket with 4 pcs of M6 wrench bolts. 4) Body assembly –Step 1. ①...
  • Page 39 5) Body assembly –Step 2. ① Place the scale on a flat and level surface. ② Insert the column into the bracket. Make sure that the cable is out of the column as shown in the picture. ③ Insert M6 plate bolts into the holes of the column as shown in the picture. Fasten the bolts by 4mm six angles L type wrench.
  • Page 40 6) Body cover assembly Insert the Body cover as shown in the picture. 7) Leveling ① Make sure that the scale is placed on a flat and level surface. ② Ensure a level by turning a wheel.
  • Page 41 8) Connecting the power supply and the scale cable ① Connect the scale cable to the scale port placed on back of head. Fasten the cable bolts. ② Connect the adapter cable to the adapter port. Plug the power cord into a power outlet. 1.

  • Page 42: System Setup

    2. Menu in SYSTEM SETUP The function of each menu item is as follows. 1. DATE /TIME 7. GOAL SETTER 2. VOLUME (ACCUNIQ BC310 F ONLY) 3. CONTRAST 8. KEY SOUND 4. BACKLIGHT 9. THERMAL PRINTER 5. ABDOMINAL 10. THERMAL LOGO 6.

  • Page 43: Moving To System Setup

    4. Moving to SYSTEM SETUP Press BACK button on selected item. SYSTEM SETUP screen appears. 5. Exiting SYSTEM SETUP Press BACK button on SYSTEM SETUP screen. The initial screen appears.

  • Page 44: Setup

    6. Setup < DATE / TIME > This is to set date and time (year, month, day, hour, and minute). ◀ - Select DATE / TIME on SYSTEM SETUP screen by pressing ‘ ’ ▶ and ‘ ’ button . Once it is selected, press NEXT button in key pad. - Pre-set: The date of the device released from the manufacturer's factory.
  • Page 45 < CONTRAST > It adjusts the brightness of the screen. - Default Setting: 0 - Range: -3 ~ +3 ◀ ▶ - Adjust the brightness by pressing ‘ ’ and ‘ ’on the screen - Press NEXT button to save the setting. - Press BACK button to return to SYSTEM SETUP screen.
  • Page 46 - Return to SYSTEM SETUP screen by pressing BACK button in key pad. Note It has no ‘Goal setter’ in the ACCUNIQ BC310 (For upper body /lower body). < DATE TYPE > This is to set the format of the date.
  • Page 47 < THERMAL PRINT > It selects the printing mode of thermal printer. (Thermal printer is an option.) - Select THERMAL PRINT on SYSTEM SETUP screen by pressing ◀ ▶ ‘ ’ and ‘ ’ button . Press NEXT button in key pad. - Pre-set: OFF - ON/OFF: Select either ON or OFF by pressing ‘1’...

  • Page 48: Measurement And Analysis

    MEASUREMENT AND ANALYSIS 1. Precautions for Measurement The reliability of the results can be assessed by its accuracy. The "Accuracy" of the device is determined by comparing the actual body composition and the results from Body Composition Analyzer. The "Reproducibility" is determined when the device gives the identical results under the same condition.
  • Page 49 In order to keep one's health and the balance of body composition, check the changes of body composition through the continuous analysis and compare the results. Make sure that the body composition should be measured under the same physical and environmental conditions. If the condition before the measurement such as volume of a meal, meal time, and activities (exercise, sauna, drinking lots of beverage, urination, etc.) are kept same, the reproducibility of a device is obtained.

  • Page 50: Correct Posture

    2. Correct Posture 1) How to Touch Plate Electrodes - Make sure that the plate electrodes are clean. - Take off the socks or stockings then, stand on the plate electrodes. - Remove sweat or foreign matters on the soles. - Fairly place the bare feet on the plate electrodes.

  • Page 51: Measuring Posture

    3) Measuring Posture - Step the scale in the bare feet. Stretch both arms and spread them 30° from the body. - Press start buttons with thumbs for 2 ~ 3 seconds to start the measurement. Once it starts, release the start button and hold the same posture until the measurement is over. - Do not speak or move the body until the measurement is completed.

  • Page 52: Measuring Procedure

    3. Measuring Procedure 1) Basic Analysis A. ACCUNIQ BC310 (For whole body) ① Weight measurement - When the subject steps on the scale, the screen changes with a chime bell. - Do not move or speak until the measurement is completed.
  • Page 53 ▪ Input height - The following message appears. “Input your height.” - Input height using the numerical buttons on the keypad. - Press the ‘NEXT’ button. ▪ Input goal Body fat% - The following message appears. “Input goal P.B.F.” - Input goal P.B.F using the numerical buttons on the keypad. - The possible input range is 3~30%.
  • Page 54 ⑤ During the measurement, the screen appears as shown in the picture. 1. Do not move or bend the arms until the measurement is completed. Note Measuring time is within 1 minute. 2. When the measurement is wrong, - Error message appears on the screen. - Refer to ERROR &...

  • Page 55: The Manual Measurement

    ACCUNIQ BC310 (For upper body) ① Weight measurement - When the subject steps on the scale, the screen changes with a chime bell. - Do not move or speak until the measurement is completed. - The measured weight is displayed on the screen.
  • Page 56 ▪ Input height - The following message appears. “Input your height.” - Input height using the numerical buttons on the keypad. - Press the ‘NEXT’ button. ④ Measurement posture Once the input is completed, the screen appears. - Press the ‘NEXT’ button. - Hold the handle electrodes and stand up rightly.

  • Page 57: The Measurement By Manager Program

    ACCUNIQ BC310 (For lower body) ① Weight measurement - When the subject steps on the scale, the screen changes with a chime bell. - Do not move or speak until the measurement is completed. - The measured weight is displayed on the screen.
  • Page 58 ▪ Input height - The following message appears. “Input your height.” - Input height using the numerical buttons on the keypad. - Press the ‘NEXT’ button. ④ During the measurement, the screen appears as shown in the picture. - Stand up rightly. - Measuring impedance is start.

  • Page 59: Analysis Using Blood Pressure Monitor/Software Program

    2) Analysis Using Blood Pressure Monitor/Software Program The blood pressure monitor from SELVAS Healthcare, Inc. can be connected to the device as an option. In this way, the blood pressure can be monitored together with weight control. It helps to manage the body fat while checking the blood pressure simultaneously.

  • Page 60: Result Interpretation

    RESULT INTERPRETATION Here's the explanation and the criteria of the printed results. 1) ACCUNIQ BC310 (for whole body) result items. 1. Personal Data The subject's name / ID, date, height, weight, age and gender are indicated on the result sheet.
  • Page 61 3. Segmental Analysis Lean Body Mass of five body parts (left and right arms, left and right legs, and trunk) is indicated in a diagram. 4. Body Composition Human body is mainly divided into body fat and lean body mass. Lean body mass is the sum of non-fat constituents like muscle, bone, body water, etc.
  • Page 62 5. Basal Metabolic Rate (B.M.R.) B.M.R. is the calories to maintain human body's basic function such as movement of heart, brain, neural transmission, regulating body temperature and so on. B.M.R. is in proportion to S.L.M. because body fat stores energy while muscle consumes energy. Therefore, even if the weight is same between persons, the person with more muscle has greater B.M.R.
  • Page 63 2) ACCUNIQ BC310 (for upper/lower body) result items. 1. Personal Data The subject's name / ID, date, height, weight, age and gender are indicated on the result sheet. 2. Body Composition Analysis The subject's body composition is analyzed in a bar graph.
  • Page 64 Not only the measured data but also the evaluation and the optimal range based on standard weight are presented. For example, Weight: It is one of the item in body composition table. Weight / Over Over: It is the evaluation of the subject’s state based on standard weight. 135.5 135.5: It is the measured value of the subject’s body composition.

  • Page 65: Storage & Maintenance

    STORAGE & MAINTENANCE 1) Pay attention to the allowable value to electric current. 2) Avoid direct sunlight, humidity, dust, thick oil and salty or extreme changes in temperature. 3) Do not install or store the device in a place where any chemicals or gas is stored. 4) Do not use the device in any unstable, vibrating, or impact-giving area.

  • Page 66: Error & Repair

    ERROR & REPAIR 1. Kinds of Error & Repair Error Cause Repair • Clean the measuring parts (the electrodes, • When the subject’s body impedance palms, and soles) and try again. Out of is deviated from the limit • Measure again with correct posture. range of - Insufficient touch to electrodes •...
  • Page 67 Error Cause Repair No printing • There is no thermal paper. • Insert the thermal paper. paper. Printer cover is • Printer cover is opened. • Check the cover is firmly closed. opened. • Open the cover of Printer-Cut. Turn the plastic Phillips-head screws Problem is •...

  • Page 68: Error Occurrence & Repair

    2. Error Occurrence & Repair Error Cause Repair - Measure in unstable condition such • Measure again in a stable condition with as right after the exercise, bath, the correct posture. sweat, or drinking lots of water. - Moving or speaking during the •...

  • Page 69: After Service

    How to contact our company Write us at: SELVAS Healthcare, Inc. 29,Gongdan 4-ro, Jillyang-eup, Gyeongsan-si, Gyeongsangbuk-do, 38470 Republic of korea TEL: 82-53-856-0993 FAX: 82-53-856-0995 (You can also contact the following representative or your local distributor) 2.

  • Page 70: Specification

    SPECIFICATION Model ACCUNIQ BC310 Measuring method BIA via tetra-polar electrode method using 8 touch electrodes. Frequency Range 5, 50, 250 kHz Measuring site ACCUNIQ BC310 ACCUNIQ BC310 ACCUNIQ BC310 (for whole body) (for upper body) (for lower body) ACCUNIQ BC310...
  • Page 71 Measuring weight 10~200 kg Applicable age 1 ~ 99 years old ℃ Operation ambient Temperature: 5~40 , Humidity : 15~93% (non condensing) ℃ Storage ambient Temperature: -25~70 , Humidity: lower than 9 3% (non condensing) ※ For purpose of improvement, specifications and design are subject to change without notice.

  • Page 72: Warranty

    WARRANTY Warranty Name of product Body Composition Analyzer Name of model ACCUNIQ BC310 Serial number Period of warranty Within 1 year from the date of purchase Date of purchase Customer Add. Name Tel. Dealer (market) Add. Name Tel. Note - When you receive this warranty, make sure that the name of the dealer and the month, day and year of purchase are all completed.
  • Page 73 Pass/Fail 4 Measurement Proper measurement Pass/Fail General Judgment Pass/Fail Model ACCUNIQ BC310 Serial No. Installation place Date of purchase Check date Checked by Approved by Copy this sheet for use If repair is required, write down so in the Remarks column.
  • Page 74 Pass/Fail Other 1 Clock Present date/time Pass/Fail General Judgment Pass/Fail Model ACCUNIQ BC310 Serial No. Installation place Date of purchase Check date Checked by Approved by Copy this sheet for use If repair is required, write down so in the Remarks column.
  • Page 75 EUROPEAN REPRESENTATIVE VITAKO Sp. z o.o. ul. Stanisława Żaryna 7c 02-593 Warszawa, POLAND TEL: +48 22 400 8000 BC310E-20161124 Rev1.1...
