ICON Health & Fitness PRO-FORM HYBRID TRAINER User Manual page 10

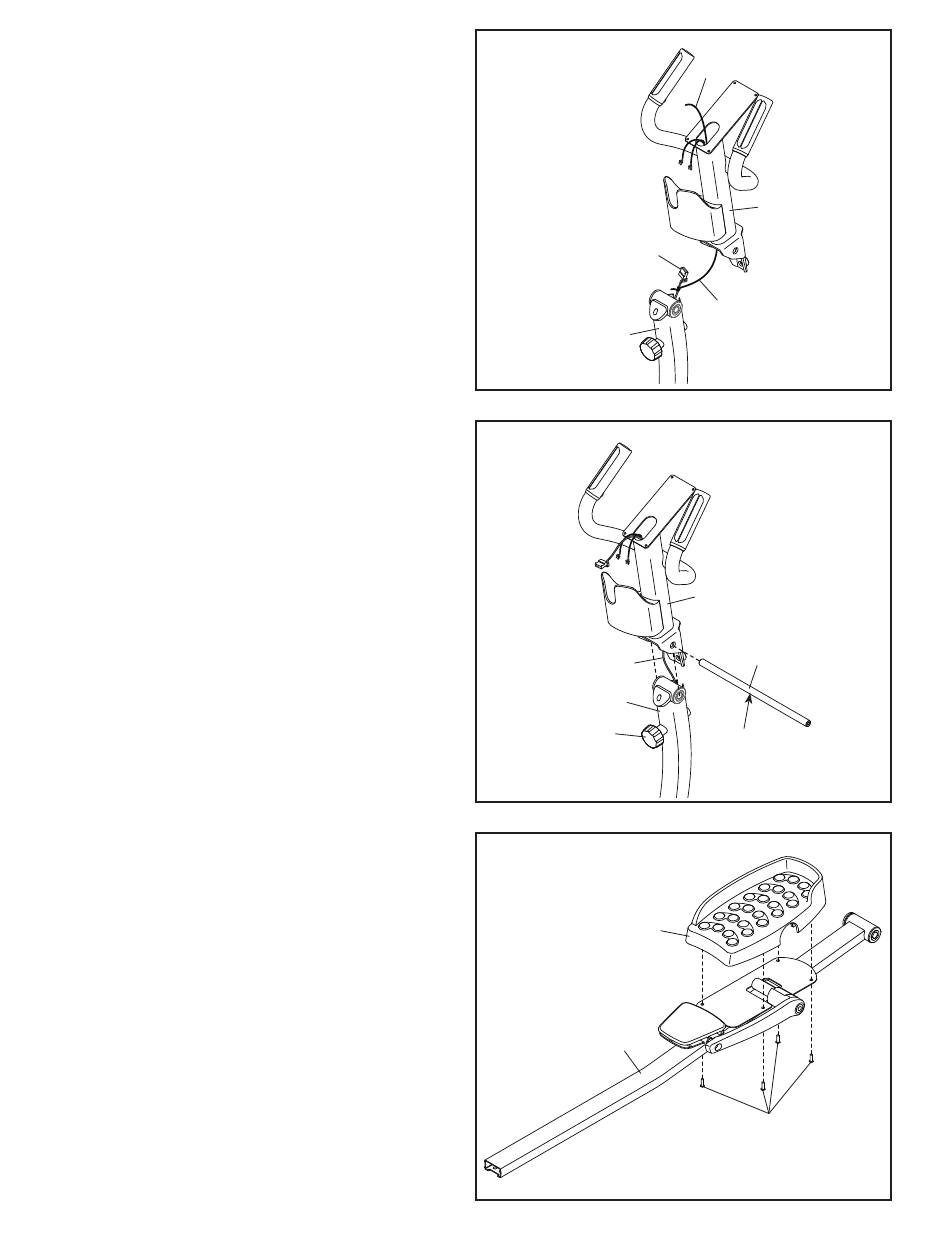

7. Have a second person hold the Pivot Bracket (3)
near the Upright (2).
Locate the wire tie (G) in the Pivot Bracket (3).
Tie the wire tie to the Upper Wire (94) and then
pull the other end of the wire tie until the Upper
Wire is routed through the Pivot Bracket.
8. Using a plastic bag to keep your fingers clean,
apply a generous amount of the included grease
to the Pivot Axle (80).
Tip: Avoid pinching the Upper Wire (94). Slide
the Pivot Bracket (3) onto the Upright (2) and
hold it in place.
Next, insert the Pivot Axle (80) into the Pivot
Bracket (3) and into the Upright (2). Center the
Pivot Axle.
Then, tighten the Pivot Knob (13) into the Pivot
Bracket (3).
9. Identify the Right Pedal Arm (9) and the Right
Large Pedal (70), and orient them as shown.
Attach the Right Large Pedal (70) to the Right
Pedal Arm (9) with four M6 x 12mm Screws (40);
start all the Screws, and then tighten them.
Repeat this step for the Left Pedal Arm (not
shown) and the Left Large Pedal (not shown).
7
94
2
8
94
2
13
9
70
9
10
G
3
G
Avoid
pinching
the Upper
3
Wire (94)
80
Grease
40
