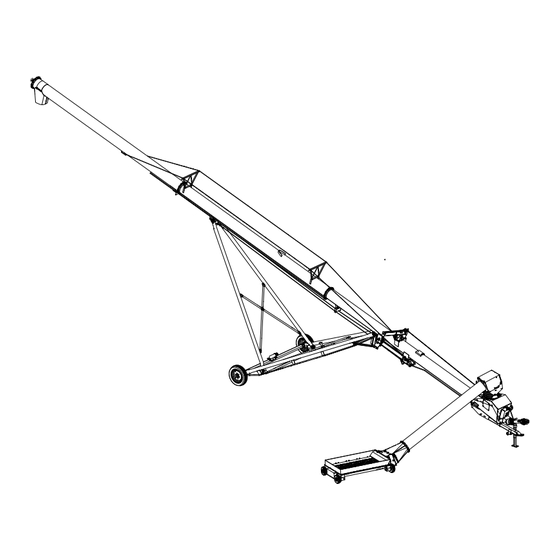

Swing-away grain auger

Advertisement

Quick Links

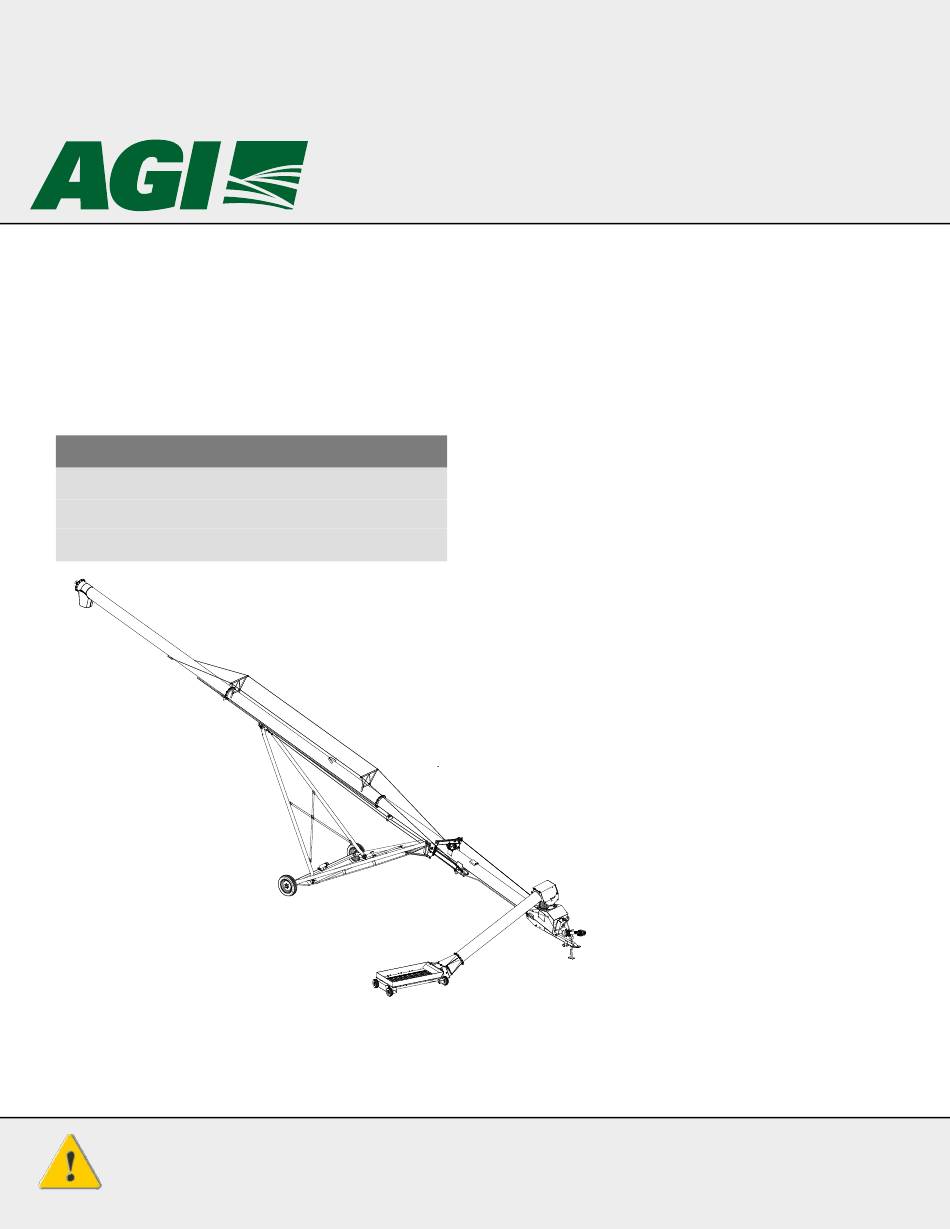

Swing-Away Grain Auger
MKX 13, HX13
Assembly Manual
This manual applies to:
Westfield MKX 13-64, MKX 13-74
Hutchinson HX 13-64
Mayrath HX 13-64
Read this manual before using product. Failure to
follow instructions and safety precautions can
result in serious injury, death, or property
damage. Keep manual for future reference.
Part Number: 30796 R10
Revised: May 2023
Original Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Westfield MKX 13-64 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AGI Westfield MKX 13-64

  • Page 1 Swing-Away Grain Auger MKX 13, HX13 Assembly Manual This manual applies to: Westfield MKX 13-64, MKX 13-74 Hutchinson HX 13-64 Mayrath HX 13-64 Read this manual before using product. Failure to Part Number: 30796 R10 follow instructions and safety precautions can...
  • Page 2 New in this Manual The following changes have been made in this revision of the manual: Description Section Removed extra bolt. Section 4.7 – Install the Track Shoe, Track Stop, and Cable Roller on page 29 Section 4.8 – Install the Boot on the Auger Tube on page 31...
  • Page 3: Table Of Contents

    SWING-AWAY GRAIN AUGER – MKX 13, HX13 CONTENTS 1. Introduction ............................5 2. Safety............................... 6 2.1 Safety Alert Symbol and Signal Words..................6 2.2 General Safety Information....................... 6 2.3 Rotating Flighting Safety ......................7 2.4 Rotating Parts Safety......................... 7 2.5 Hand Winch Safety ........................7 2.6 Hydraulic Winch Safety ......................
  • Page 4 SWING-AWAY GRAIN AUGER – MKX 13, HX13 6.1 Bolt Torque..........................59 7. AGI Limited Warranty........................... 60 30796 R10...
  • Page 5: Introduction

    Before assembling, please read this manual. Familiarize yourself with the process and the necessary precautions for efficient and safe assembly of this AGI Swing-Away Grain Auger. Everyone present at the assembly site is required to be familiar with all safety precautions.
  • Page 6: Safety

    2. SAFETY SWING-AWAY GRAIN AUGER – MKX 13, HX13 2. Safety 2.1. Safety Alert Symbol and Signal Words This safety alert symbol indicates important safety messages in this manual. When you see this symbol, be alert to the possibility of injury or death, carefully read the message that follows, and inform others.
  • Page 7: Rotating Flighting Safety

    SWING-AWAY GRAIN AUGER – MKX 13, HX13 2. SAFETY 2.3. Rotating Flighting Safety • KEEP AWAY from rotating flighting. • DO NOT remove or modify flighting guards, doors, or covers. Keep in good working order. Have replaced if damaged. • DO NOT operate the auger without all guards, doors, and covers in place.
  • Page 8: Hydraulic Winch Safety

    2. SAFETY SWING-AWAY GRAIN AUGER – MKX 13, HX13 2.6. Hydraulic Winch Safety When Equipped: • Keep away from rotating cable drum and winch cable. Do not touch or grab cable while winch is being operated or use hands to guide the cable. •...
  • Page 9: Hydraulic Power Safety

    SWING-AWAY GRAIN AUGER – MKX 13, HX13 2. SAFETY 2.7.2 Hydraulic Power Safety Power Source • Refer to the rules and regulations applicable to the power source operating the hydraulic system. • Do not connect or disconnect hydraulic lines while system is under pressure.
  • Page 10: Tire Safety

    2. SAFETY SWING-AWAY GRAIN AUGER – MKX 13, HX13 2.8. Tire Safety Failure to follow proper procedures when mounting a tire on a wheel or rim can produce an explosion that may result in serious injury or death. • DO NOT attempt to mount a tire unless you have the proper equipment and experience to do the job.
  • Page 11: Safety Equipment

    SWING-AWAY GRAIN AUGER – MKX 13, HX13 2. SAFETY Steel-Toe Boots • Wear steel-toe boots to protect feet from falling debris. Work Gloves • Wear work gloves to protect your hands from sharp and rough edges. Dust Mask • Wear a dust mask to prevent breathing potentially harmful dust. Hearing Protection •...
  • Page 12: Decal Installation/Replacement

    2. SAFETY SWING-AWAY GRAIN AUGER – MKX 13, HX13 2.11.1 Decal Installation/Replacement 1. Decal area must be clean and dry, with a temperature above 50°F (10°C). 2. Decide on the exact position before you remove the backing paper. 3. Align the decal over the specified area and carefully press the small portion with the exposed sticky backing in place.
  • Page 13 SWING-AWAY GRAIN AUGER – MKX 13, HX13 2. SAFETY Table 1. Safety Decals Part Number Description 20813 DANGER ROTATING FLIGHTING HAZARD To prevent death or serious injury: • KEEP AWAY from rotating auger flighting. • DO NOT remove or modify auger flighting guards, doors, or covers.
  • Page 14 2. SAFETY SWING-AWAY GRAIN AUGER – MKX 13, HX13 Table 1 Safety Decals (continued) Part Number Description 20816 DANGER ELECTROCUTION HAZARD To prevent death or serious injury: • When operating or moving, keep equipment away from overhead power lines and devices. •...
  • Page 15 SWING-AWAY GRAIN AUGER – MKX 13, HX13 2. SAFETY Table 1 Safety Decals (continued) Part Number Description 20807 WARNING To prevent serious injury or death: • Read and understand the manual before assembling, operating, or maintaining the equipment. • Only trained personnel may assemble, operate, or maintain the equipment.
  • Page 16 2. SAFETY SWING-AWAY GRAIN AUGER – MKX 13, HX13 Table 1 Safety Decals (continued) Part Number Description 20811 WARNING UPENDING HAZARD To prevent death or serious injury: • Anchor intake end and/or support discharge end to prevent upending. • Intake end must always have downward weight. Do not release until attached to tow bar or resting on ground.
  • Page 17 SWING-AWAY GRAIN AUGER – MKX 13, HX13 2. SAFETY Table 1 Safety Decals (continued) Part Number Description 20805 WARNING HIGH PRESSURE FLUID HAZARD Hydraulic fluid can cause serious injury if it Hydraulic fluid can cause serious injury if it penetrates the skin. If it does, see a doctor penetrates the skin.
  • Page 18 2. SAFETY SWING-AWAY GRAIN AUGER – MKX 13, HX13 Table 1 Safety Decals (continued) Part Number Description 20804 WARNING ENTANGLEMENT HAZARD To prevent serious injury or death: • Keep body, hair, and clothing away from rotating pulleys, belts, chains, and sprockets. •...
  • Page 19 SWING-AWAY GRAIN AUGER – MKX 13, HX13 2. SAFETY Table 1 Safety Decals (continued) Part Number Description 17107 CAUTION To prevent personal injury or damage to equipment, close valve in lift cylinder hydraulic line after raising equipment into position. 17531 NOTICE To prevent damage...
  • Page 20 2. SAFETY SWING-AWAY GRAIN AUGER – MKX 13, HX13 Table 1 Safety Decals (continued) Part Number Description 18859 NOTICE Disconnect PTO driveline from tractor before moving equipment. If attached, driveline will bottom out, severely damaging the CV u-joint and lower flight shaft. See manual for maintenance.
  • Page 21: Features

    SWING-AWAY GRAIN AUGER – MKX 13, HX13 3. FEATURES 3. Features Read this section to familiarize yourself with the basic component names and functions of the auger. Discharge Spout Stabilizer Brace Truss Tower Track Boot Lift Arm Cable Adjustment Swing Hydraulic Cylinders 30796 R10...
  • Page 22 3. FEATURES SWING-AWAY GRAIN AUGER – MKX 13, HX13 Swing Features Spout Head Swing Arm Maintenance Hatch Hopper Flights and Flight Guarding Grain Transfer Boot Features Hitch Jack Hitch PTO Driveline Ball Valve Clean-Out Hatch Grain Transfer Boot Manual Winch (Hopper) Manual Holder 30796 R10...
  • Page 23: Assembly

    Take pictures of shipments prior to, or just after, unloading if there are any damages. Report missing or damaged parts immediately to ensure that proper credit is received from AGI or your representative, and to ensure that any missing parts can be shipped quickly to avoid holding up the assembly process.
  • Page 24: Arrange Tubes And Apply Model Decals

    Strap tubes to the support stands to prevent the tubes from rolling off the stands. Figure 1. 64’ Auger Tube Sections BRAND DECAL LOWER TUBE 4" (10.2 cm) MODEL/SIZE DECAL UPPER MIDDLE TUBE 18" (45.7 cm) AGI DECAL UPPER TUBE 35" (88.9 cm) 30796 R10...
  • Page 25 SWING-AWAY GRAIN AUGER – MKX 13, HX13 4. ASSEMBLY Figure 2. 74’ Auger Tube Sections LOWER TUBE BRAND DECAL LOWER MIDDLE TUBE 65" (165.1 cm) MODEL/SIZE DECAL UPPER MIDDLE TUBE 18" (45.7 cm) AGI DECAL UPPER TUBE 35" (88.9 cm) 30796 R10...
  • Page 26 4. ASSEMBLY SWING-AWAY GRAIN AUGER – MKX 13, HX13 Apply the Logo and Model Decals on the Auger Tubes Important Do not cover any existing safety or instruction decals with the model decals. 1. Prepare surface by cleaning thoroughly with soap and water. Surface must be clean and free of dirt, grime, rust and oil.
  • Page 27: Install Hydraulic Lift Cylinders

    SWING-AWAY GRAIN AUGER – MKX 13, HX13 4. ASSEMBLY 4.5. Install Hydraulic Lift Cylinders 1. Identify the tube section where the hydraulic lift cylinders install, and rotate the section so that the cylinder mount brackets are facing up. 2. Position one lift cylinder on the right side of welded brackets on the lower end of auger tube (see Figure 3 on page 27 for correct position).
  • Page 28: Connect Auger Tube Sections Together

    4. ASSEMBLY SWING-AWAY GRAIN AUGER – MKX 13, HX13 4.6. Connect Auger Tube Sections Together Important Always strap tubes to the support stands to prevent the tubes from rolling off the stands. Note Assemble the auger tube starting with the discharge section and working toward the intake section. 1.
  • Page 29: Install The Track Shoe, Track Stop, And Cable Roller

    SWING-AWAY GRAIN AUGER – MKX 13, HX13 4. ASSEMBLY 4.7. Install the Track Shoe, Track Stop, and Cable Roller Refer to Figure 5 on page 29 for the 64' model, and Figure 6 on page 30 for the 74' model. 1.
  • Page 30 4. ASSEMBLY SWING-AWAY GRAIN AUGER – MKX 13, HX13 Figure 6. Track Shoe, Cable Roller, and Track-Stop (74' Model) NOTE: ALL BOLTS ARE 7/16” X 1-1/4” ALL NUTS ARE 7/16” LOCK NUTS TRACK SHOE CABLE ROLLER ANGLE TRACK-STOP 30796 R10...
  • Page 31: Install The Boot On The Auger Tube

    SWING-AWAY GRAIN AUGER – MKX 13, HX13 4. ASSEMBLY 4.8. Install the Boot on the Auger Tube Components are heavy and create a crushing hazard if improperly handled. Be sure to use proper hoisting equipment and procedures, and ensure lifting apparatus is secure. Lock out the lifting apparatus before working around or under the raised components;...
  • Page 32 4. ASSEMBLY SWING-AWAY GRAIN AUGER – MKX 13, HX13 Assembly Notes: • Ensure that the flight shaft shoulder is seated against washer and bearing. • Position the lock collar tightly against the bearing, then tighten the collar set screw. • Align lower sprocket face with upper sprocket face using a straight edge, then tighten set screws. •...
  • Page 33: Install The Boot Tow Bar

    SWING-AWAY GRAIN AUGER – MKX 13, HX13 4. ASSEMBLY 4.9. Install the Boot Tow Bar Tow Bar Reducer/Reverser Reverser U-Bolt, 3/4" x 3-1/2" x 5" Regular Bolt, 3/4" x 5-1/2" Lock Nut, 3/4" 4.10. Install the Spout Assembly Note: • Apply caulking to seal the seam of spout to tube.
  • Page 34: Set The Thrust Adjuster

    4. ASSEMBLY SWING-AWAY GRAIN AUGER – MKX 13, HX13 4.11. Set the Thrust Adjuster 1. Remove the upper bearing lock collar (if necessary). Ensure that flight shaft slides freely in/out of bearing. 2. Slide the lock collar and bushing onto the shaft and attach the 1-1/2" nut. 3.
  • Page 35 SWING-AWAY GRAIN AUGER – MKX 13, HX13 4. ASSEMBLY 5. Pull the cable over the truss brackets, around upper truss anchor and back over truss support brackets to the lower truss anchor bracket, holding it loosely in place with one 5/16" cable clamp at upper truss anchor bracket, and two 5/16"...
  • Page 36 4. ASSEMBLY SWING-AWAY GRAIN AUGER – MKX 13, HX13 Figure 7. Truss Support and Truss Cable Brackets (64’ Model) 7/16” X 1-1/4” BOLTS STANDARD TRUSS BRACKETS 7/16” LOCK NUTS 7/16” LOCK NUTS TRUSS CABLE BRACKET 7/16” X 1-1/4” BOLTS 30796 R10...
  • Page 37 SWING-AWAY GRAIN AUGER – MKX 13, HX13 4. ASSEMBLY Figure 8. Truss Cables (64’ Model) 5/16” CABLE CLAMP 1/2” EYEBOLT LOWER TRUSS ANCHOR BRACKET UPPER TRUSS ANCHOR BRACKET 1/2” LOCK NUT 5/16” CABLE CLAMP 3/8” CABLE CLAMPS 30796 R10...
  • Page 38 4. ASSEMBLY SWING-AWAY GRAIN AUGER – MKX 13, HX13 Figure 9. Truss Support and Truss Cable Brackets (74’ Model) STANDARD TRUSS BRACKET 7/16” X 1-1/4” BOLTS HIGH TRUSS BRACKET 7/16” LOCK NUTS 7/16” LOCK NUTS TRUSS CABLE STANDARD TRUSS BRACKET BRACKET 7/16”...
  • Page 39: Assemble The Frame

    SWING-AWAY GRAIN AUGER – MKX 13, HX13 4. ASSEMBLY Figure 10. Truss Cables (74’ Model) 5/16” CABLE CLAMP 1/2” EYEBOLT LOWER TRUSS ANCHOR BRACKET UPPER TRUSS ANCHOR BRACKET 5/16” CABLE CLAMP 1/2” LOCK NUT 3/8” CABLE CLAMPS 4.13. Assemble the Frame 1.
  • Page 40 4. ASSEMBLY SWING-AWAY GRAIN AUGER – MKX 13, HX13 Figure 11. Lower Frame Table 2. Lower Frame Parts Item Description Item Description Lower Reach Arm, LH Bolt, 1/2" x 1-1/4" Lower Reach Arm, RH Lock Nut, 1/2" Axle Bolt, 5/8" x 2" Frame Cross Brace Lock Nut, 5/8"...
  • Page 41: Connect The Auger Tube To The Frame

    SWING-AWAY GRAIN AUGER – MKX 13, HX13 4. ASSEMBLY 4.14. Connect the Auger Tube to the Frame 1. Raise the discharge end of auger with a front end loader and a strong sling/chain or block and tackle. The height should be sufficient to clear the undercarriage assembly. Do not remove tube support until the assembly in this section has been completed.
  • Page 42 4. ASSEMBLY SWING-AWAY GRAIN AUGER – MKX 13, HX13 Figure 12. Connecting the Auger Tube to Frame 30796 R10...
  • Page 43: Install The Auger Tube Lift Cylinders And Cables

    SWING-AWAY GRAIN AUGER – MKX 13, HX13 4. ASSEMBLY Table 3. Parts Required to Connect the Auger Tube to the Frame Item Item Description Description Stabilizer Bracket, LH Bolt, 1" x 3-1/2" (64' Only) Stabilizer Bracket, RH Bolt, 1" x 3-3/4" (74' Only) Bolt, 1"...
  • Page 44: Connect Hydraulic Hoses And Ball Valve

    4. ASSEMBLY SWING-AWAY GRAIN AUGER – MKX 13, HX13 Figure 13. Connecting the Lift Cylinder Cables to the Track Shoe 5/16” CABLE CLAMPS (THREE PER CABLE) RIGHT-ANGLE TRACK STOP TRACK SHOE CABLE ROLLER HYDRAULIC LIFT CYLINDERS 4.16. Connect Hydraulic Hoses and Ball Valve Note Determine right or left side of auger by standing at intake end facing top discharge end.
  • Page 45 SWING-AWAY GRAIN AUGER – MKX 13, HX13 4. ASSEMBLY 5. Secure the ball valve to the boot using the valve holder and two 1/4” x 3/4” bolts and lock nuts (see Figure 16 on page 46). 6. Recheck that bolts on undercarriage, lift cylinders, and cable clamps are tight, then remove auger tube support.
  • Page 46 4. ASSEMBLY SWING-AWAY GRAIN AUGER – MKX 13, HX13 Figure 15. Hydraulic Diagram Figure 16. Installing the Ball Valve on the Boot Item Description Item Description Cylinder Hose Assembly Bolt, 1/4" x 3/4" Ball Valve Lock Nut, 1/4" Valve Holder 30796 R10...
  • Page 47: Connect The Pto Driveline

    SWING-AWAY GRAIN AUGER – MKX 13, HX13 4. ASSEMBLY 4.17. Connect the PTO Driveline Assembly Note: • Clean paint or dirt off of PTO driveline and flighting shaft ends. PTO Bracket Roll Pin, 3/8" x 2-1/2" Transport Saddle Bolt, 1/2" x 1-1/2" Sprocket Cover Lock Nut, 1/2"...
  • Page 48: Install Low Profile Intake Hopper

    4. ASSEMBLY SWING-AWAY GRAIN AUGER – MKX 13, HX13 4.18. Install Low Profile Intake Hopper Components are heavy and create a crushing hazard if improperly handled. Be sure to use proper hoisting equipment and procedures, and ensure lifting apparatus is secure. Lockout the lifting apparatus before working around or under the raised components.
  • Page 49 SWING-AWAY GRAIN AUGER – MKX 13, HX13 4. ASSEMBLY Assembly Notes: • Tighten set screws on u-joints, then close and secure the service door. • There are 3 height settings for the hopper wheels that can be used according to preference. Door Pin Wheel Lynch Pin...
  • Page 50 4. ASSEMBLY SWING-AWAY GRAIN AUGER – MKX 13, HX13 Assembly Notes: • Open the spring clasps and rotate the spout lid open, so that it lies down on the top of the swing tube. • Clean the u-joint spline and splined shaft on the lower gearbox, then apply a light film of grease on this splined shaft.
  • Page 51: Install The Frame Deflector Plates

    SWING-AWAY GRAIN AUGER – MKX 13, HX13 4. ASSEMBLY 4.19. Install the Frame Deflector Plates For the 64’ model, install a frame deflector plate assembly on each side of the auger frame to prevent the hopper from impacting the frame when it is lifted into transport position. For both lower reach arms (left side and right side): 1.
  • Page 52: Install The Hopper Lift Arm And Winch

    4. ASSEMBLY SWING-AWAY GRAIN AUGER – MKX 13, HX13 4.20. Install the Hopper Lift Arm and Winch Augers with 10' Swing Tube Assembly (Standard) Assembly Notes: • Determine which side of the auger the hopper will be operating on. • Position the lift arm assembly on top of the auger tube with the arm overhanging the side that the hopper will be operating on.
  • Page 53 SWING-AWAY GRAIN AUGER – MKX 13, HX13 4. ASSEMBLY Augers with 15' Swing Tube Assembly (Optional) This option is only available for 74' models. Assembly Notes: • Determine which side of the auger the hopper will be operating on. • Position the lift arm assembly on top of the auger tube with the arm overhanging the side that the hopper will be operating on.
  • Page 54 4. ASSEMBLY SWING-AWAY GRAIN AUGER – MKX 13, HX13 Boot Hairpin Winch Assembly Winch Cable This section only applies to MKX13 models. Assembly Notes: • Thread the cable through the hopper lift arm and pull the cable to the winch. •...
  • Page 55: Hopper Transport Position

    SWING-AWAY GRAIN AUGER – MKX 13, HX13 4. ASSEMBLY 4.21. Hopper Transport Position Augers with 10' Swing Tube Assembly (Standard) Assembly Note: • Feed side of hopper must face the main auger when in transport. Safety Chain Winch Cable Augers with 15' Swing Tube Assembly (Optional) This option is only available for 74' models.
  • Page 56: Install The Hitch Jack

    4. ASSEMBLY SWING-AWAY GRAIN AUGER – MKX 13, HX13 4.22. Install the Hitch Jack The jack is attached to the auger with a pin at the pivot point. To install: 1. Elevate the auger boot (intake end) approximately 2’ (61 cm) with a front-end loader and sling, and install the jack in a vertical position.
  • Page 57: Install The Plastic Manual Container

    SWING-AWAY GRAIN AUGER – MKX 13, HX13 4. ASSEMBLY 4.23. Install the Plastic Manual Container Assembly Note: • Before beginning installation, ensure that all winch/auger lift controls are locked in place and shut down and/or lock out auger. Boot Self Tapping Screw Plastic Manual Holder 4.24.
  • Page 58: Specifications

    5. SPECIFICATIONS SWING-AWAY GRAIN AUGER – MKX 13, HX13 5. Specifications Specification 13-64 13-74 13" (33.0 cm) Tube Size CAPACITIES Unloading Rate 8700-9600 Bu/Hr TRANSPORT DIMENSIONS Length 64' (9.93 m) 74' (16 m) 124" 130" Width (3.15 m) (3.30 m) Height 13'2"...
  • Page 59: Appendix

    Tighten all bolts to the torque specified, unless otherwise noted. Check tightness periodically, using Table 4 as a guide. Replace the hardware with the same strength bolt, contact AGI if you are unsure. Table 4. Recommended Bolt Torque Threads per Recommended Torque (ft-lb)
  • Page 60 7. AGI Limited Warranty This warranty relates to AGI Augers (the “Product”) sold by AGI, (referred to herein as the “Seller”) and applies only to the first user of the Product (meaning a purchaser directly from the Seller or from an authorized dealer or distributor of the Product, referred to herein as the “Buyer”).
  • Page 61 SWING-AWAY GRAIN AUGER – MKX 13, HX13 7. AGI LIMITED WARRANTY 30796 R10...
  • Page 62 AGI is a leading provider of equipment solutions for agriculture bulk commodities including seed, fertilizer, grain, and feed systems with a growing platform in providing equipment and solutions for food processing facilities. AGI has manufacturing facilities in Canada, the United States, the United Kingdom, Brazil, South Africa, India and Italy and distributes its products globally.
