MKX², X², HX², GMX² 16" Series

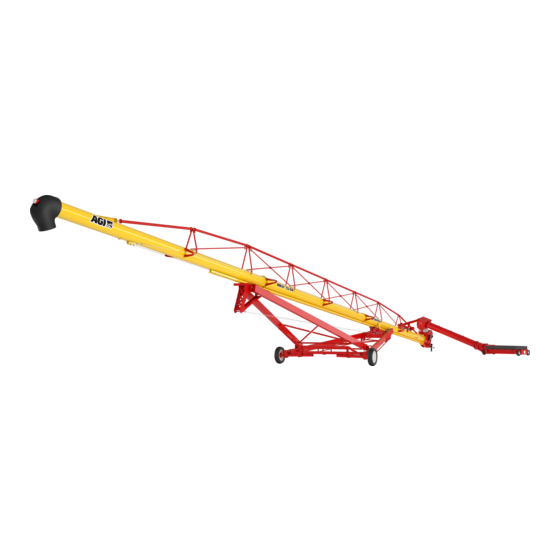

Swing-Away Grain Auger
Assembly Manual
This manual applies to:
AGI Westfield MKX² 16-85, 16-105, 16-125
AGI X² 16-85, 16-105, 16-125
AGI Hutchinson HX² 16-85, 16-105, 16-125
AGI Mayrath HX² 16-85, 16-105, 16-125
AGI GrainMaxx GMX² 16-105, 16-125
Read this manual before using product. Failure to
follow instructions and safety precautions can
result in serious injury, death, or property
damage. Keep manual for future reference.
LOOKING FOR PARTS?
Check out our online
Parts Catalog!
Part Number: 31185 R0
Revised: March 2023
Original Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MKX2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AGI MKX2 Series

Summary of Contents for AGI MKX2 Series

  • Page 1 MKX², X², HX², GMX² 16" Series Swing-Away Grain Auger Assembly Manual This manual applies to: AGI Westfield MKX² 16-85, 16-105, 16-125 AGI X² 16-85, 16-105, 16-125 AGI Hutchinson HX² 16-85, 16-105, 16-125 AGI Mayrath HX² 16-85, 16-105, 16-125 AGI GrainMaxx GMX² 16-105, 16-125...
  • Page 2 New in this Manual The following changes have been made in this revision of the manual: Description Section This is a new manual.

  • Page 3: Table Of Contents

    MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER CONTENTS 1. Introduction ............................5 2. Safety............................... 6 2.1 Safety Alert Symbol and Signal Words..................6 2.2 General Safety Information....................... 6 2.3 Rotating Flighting Safety ......................7 2.4 Rotating Parts Safety......................... 7 2.5 Hydraulic Winch Safety ......................
  • Page 4 4.28 Install the Plastic Manual Holder ..................73 4.29 Install Work Lights......................... 74 4.30 Install Transport Lights......................75 4.31 Install the Retroreflective Strips ................... 77 5. Specifications ............................78 6. Appendix ............................... 79 6.1 Bolt Torque..........................79 7. AGI Limited Warranty........................... 80 31185 R0...

  • Page 5: Introduction

    Before assembling, please read this manual. Familiarize yourself with the process and the necessary precautions for efficient and safe assembly of this AGI Swing-Away Grain Auger. Everyone present at the assembly site is required to be familiar with all safety precautions.

  • Page 6: Safety

    • Follow a health and safety program for your worksite. Contact your local occupational health and safety organization for information. • Contact your local representative or AGI if you need assistance or additional information. • Always follow applicable local codes and regulations.

  • Page 7: Rotating Flighting Safety

    2. SAFETY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 2.3. Rotating Flighting Safety • KEEP AWAY from rotating flighting. • DO NOT remove or modify flighting guards, doors, or covers. Keep in good working order. Have replaced if damaged. •...

  • Page 8: Drives And Lockout Safety

    2. SAFETY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 2.6. Drives and Lockout Safety Inspect the power source(s) before using and know how to shut down in an emergency. Whenever you service or adjust your equipment, make sure you shut down the power source and unplug or remove the key (as applicable) to prevent inadvertent start-up and hazardous energy release.

  • Page 9: Hydraulic Power Safety

    2. SAFETY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 2.6.2 Hydraulic Power Safety Power Source • Refer to the rules and regulations applicable to the power source operating the hydraulic system. • Do not connect or disconnect hydraulic lines while system is under pressure.

  • Page 10: Tire Safety

    2. SAFETY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 2.7. Tire Safety Failure to follow proper procedures when mounting a tire on a wheel or rim can produce an explosion that may result in serious injury or death. •...

  • Page 11: Safety Equipment

    2. SAFETY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER Steel-Toe Boots • Wear steel-toe boots to protect feet from falling debris. Work Gloves • Wear work gloves to protect your hands from sharp and rough edges. Hearing Protection •...

  • Page 12: Decal Installation/Replacement

    2. SAFETY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 2.10.1 Decal Installation/Replacement 1. Decal area must be clean and dry, with a temperature above 50°F (10°C). 2. Decide on the exact position before you remove the backing paper. 3.
  • Page 13 2. SAFETY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER Table 1. Safety Decals Part Number Description 20813 DANGER ROTATING FLIGHTING HAZARD To prevent death or serious injury: • KEEP AWAY from rotating auger flighting. • DO NOT remove or modify auger flighting guards, doors, or covers.
  • Page 14 2. SAFETY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER Table 1 Safety Decals (continued) Part Number Description 20816 DANGER ELECTROCUTION HAZARD To prevent death or serious injury: • When operating or moving, keep equipment away from overhead power lines and devices. •...
  • Page 15 2. SAFETY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER Table 1 Safety Decals (continued) Part Number Description 20804 WARNING ENTANGLEMENT HAZARD To prevent serious injury or death: • Keep body, hair, and clothing away from rotating pulleys, belts, chains, and sprockets. •...
  • Page 16 2. SAFETY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER Table 1 Safety Decals (continued) Part Number Description 20811 WARNING UPENDING HAZARD To prevent death or serious injury: • Anchor intake end and/or support discharge end to prevent upending. •...
  • Page 17 2. SAFETY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER Table 1 Safety Decals (continued) Part Number Description 20807 WARNING To prevent serious injury or death: • Read and understand the manual before assembling, operating, or maintaining the equipment.
  • Page 18 2. SAFETY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER Table 1 Safety Decals (continued) Part Number Description 20803 WARNING MISSING GUARD HAZARD To prevent serious injury or death, shut off power and reattach guard before operating machine. 20809 WARNING To prevent serious injury or death:...
  • Page 19 2. SAFETY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER Table 1 Safety Decals (continued) Part Number Description 20805 WARNING HIGH PRESSURE FLUID HAZARD Hydraulic fluid can cause serious injury if it Hydraulic fluid can cause serious injury if it penetrates the skin.
  • Page 20 2. SAFETY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER Table 1 Safety Decals (continued) Part Number Description 17107 CAUTION To prevent personal injury or damage to equipment, close valve in lift cylinder hydraulic line after raising equipment into position. 17378 NOTICE This equipment is not intended for...
  • Page 21 2. SAFETY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER Table 1 Safety Decals (continued) Part Number Description 18859 NOTICE Disconnect PTO driveline from tractor before moving equipment. If attached, driveline will bottom out, severely damaging the CV u-joint and lower flight shaft.

  • Page 22: Features

    3. FEATURES MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 3. Features Read this section to familiarize yourself with the basic component names and functions of the auger. Discharge Spout Boot Truss Tower Swing Tube Side Truss Hydraulic Cylinders Lift Arm Cable Adjustment 10 Lift Assist...
  • Page 23 3. FEATURES MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER Grain Transfer Boot Features Plastic Manual Holder PTO Driveline PTO Holder Hose Holder Ball Valve External Check Valve Work Light Switch Side Access Panel Top Access Panel 10 Jack 11 Clean-out Hatch 12 Hitch Angle Adjuster 13 Hitch...

  • Page 24: Assembly

    Take pictures of shipments prior to, or just after, unloading if there are any damages. Report missing or damaged parts immediately to ensure that proper credit is received from AGI or your representative, and to ensure that any missing parts can be shipped quickly to avoid holding up the assembly process.

  • Page 25: Before You Begin

    Otherwise, use some form of shim to keep the tubes level across all of the support stands. Important Strap tubes to the support stands to prevent the tubes from rolling off the stands. Figure 1. 85' Auger Tube Sections AGI DECAL 40" (102 cm) BRAND DECAL MODEL/SIZE DECAL 6"...
  • Page 26 4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER Figure 2. 105' Auger Tube Sections AGI DECAL 40" (102 cm) MODEL/SIZE DECAL 6" (15 cm) BRAND DECAL 15" (38 cm) 31185 R0...
  • Page 27 4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER Figure 3. 125' Auger Tube Sections AGI DECAL 40" (102 cm) MODEL/SIZE DECAL 6" (15 cm) BRAND DECAL 250" (635 cm) 31185 R0...

  • Page 28: Connect Auger Tubes

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER Apply the Logo and Model Decals on the Auger Tubes Important Do not cover any existing safety or instruction decals with the model decals. 1. Prepare surface by cleaning thoroughly with soap and water. Surface must be clean and free of dirt, grime, rust and oil.
  • Page 29 4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 125' Side Truss Locations Side Trussing at Tube Connections Assembly Notes: • Always strap tubes to the support stands to prevent the tubes from rolling off the stands. •...

  • Page 30: Hydraulic Lift Cylinders

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 4.6. Hydraulic Lift Cylinders 4.6.1 Install the 85' Hydraulic Lift Cylinders Important Always use a fork lift to lift hydraulic cylinders during installation. Assembly Notes: • Slide the cylinder ram guide onto the end of the track closest to where the lift cylinders install. •...

  • Page 31: Install The 105'/125' Hydraulic Lift Cylinders

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 4.6.2 Install the 105'/125' Hydraulic Lift Cylinders Important Always use a fork lift to lift hydraulic cylinders during installation. Intake End Discharge End Assembly Note: • Ensure that the tube cylinder mounts are facing down. Rear Cylinder-Attach Bracket Bolt, 5/8"...
  • Page 32 4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER Assembly Note: • Slide the cylinder ram guide onto the end of the track closest to where the lift cylinders install. Hydraulic Lift Cylinder Bolt, 1/2" x 1-1/2" Cylinder Ram Guide Lock Nut, 1/2"...

  • Page 33: Install The Track Shoe And Track Stop

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 4.7. Install the Track Shoe and Track Stop Assembly Notes: • Slide Track Shoe onto track before attaching upper track stop. • Slide the track shoe along the full length of the track to make sure there is no binding and that the track ends are properly aligned.

  • Page 34: Install The Boot On The Auger Tube

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 4.8. Install the Boot on the Auger Tube Assembly Notes: • Align boot flighting and lower tube flighting to ensure a continual spiral of auger surface. • The boot gearbox is sent from the factory filled half way with 1.7 L (0.45 gal) EP90 gear oil. Before further assembly, check oil level to make certain the gearbox is half full.

  • Page 35: Install The Pto Shield Assembly

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 4.9. Install the PTO Shield Assembly PTO Shield, Rear Flange Lock Nut, 5/16" PTO Shield, Front Lock Pin Hairpin Bolt, 5/16" x 3/4" 4.10. Install the PTO Bracket Assembly PTO Bracket Assembly Lock Nut, 1/2"...

  • Page 36: Install The Boot Tow Bar

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 4.11. Install the Boot Tow Bar Tow Bar Lock Nut, 3/4" Boot Channel U-Bolt, 3/4" x 4-1/16" x 5-3/4" Bolt, 3/4" x 6-1/2" 31185 R0...

  • Page 37: Set The Thrust Adjuster

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 4.12. Set the Thrust Adjuster 1. Remove the dust cap. 2. Turn the nut until it is snug against the bushing, then turn it so that the shaft moves an additional 1/4" (0.6 cm).

  • Page 38: Top Truss Tube

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 16-105 Tower Locations 16-125 Tower Locations Truss Tower, Low Bolt, 7/16" x 1-1/4" Truss Tower, High Lock Nut, 7/16" 4.13.2 Top Truss Tube 16-85 Top Truss Locations 31185 R0...
  • Page 39 4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 16-105 Top Truss Locations 16-125 Top Truss Locations Assembly Notes: • Work from discharge to intake. • Due to rigidity of the tubular trussing, do not put an upward bow in the auger. Assemble trussing with main auger tube straight/level and well supported over its length.

  • Page 40: Cross Brace

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER Truss Tower Bolt, 3/4" x 2" Top Truss Tube Flat Washer, 3/4" Bolt, 1/2" x 2" Lock Nut, 3/4" Lock Nut, 1/2" 4.13.3 Cross Brace 16-85 Cross Brace Connections 16-105 Cross Brace Connections 31185 R0...
  • Page 41 4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 16-125 Cross Brace Connections Cross Brace Oval Lock Nut, 3/4" Bolt, 1/2" x 1-1/2" Lock Nut, 1/2" Cross Brace Shackle Cross Brace Lock Nut, 1/2" Bolt, 1/2" x 1-1/2" Bolt, 1/2"...

  • Page 42: Install Truss Cables

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER Cross Brace — Long Cross Brace Clamp Bolt, 7/16" x 1" Lock Nut, 7/16" 4.14. Install Truss Cables 1. Thread truss cable through eyebolts and double-back a minimum of 15-1/4" (39 cm) of cable. Secure the cable in place by installing and tightening three 1/2"...
  • Page 43 4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER a. Apply first clamp one base width from the minimum turn back length of cable with the u-bolt over the dead end. Live end rests in clamp saddle. Turn nuts firmly but do not tighten. b.

  • Page 44: Assemble The Lower Frame

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 4.15. Assemble the Lower Frame Assembly Notes: • Insert a punch tool (P) in the middle hole to help align the four bolt holes. • Check that pressure of pre-inflated tires matches pressure indicated on tire sidewall. •...
  • Page 45 4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER Frame Cross Brace Bolt, 1/2" x 1-3/4" Lower Tie Tube Flat Washer, 1/2" Bolt, 1/2" x 1-1/2" Lock Nut, 1/2" Assembly Note: • Leave loose until the other ends of the stabilizer braces are connected in Section 4.17 –...

  • Page 46: Auger Steer Installation

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 4.16. Auger Steer Installation Assembly Note: • Make sure that the steer axle links are in the fully retracted holes. Steer Center Link Lynch Pin Steer Axle Link Adjustable Steer Axle Link Assembly Steer Axle End Link Hex Nut, 1"...
  • Page 47 4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER Assembly Notes: • Make sure both steerable axles are locked in the transport position with the pre-assembled pins by the wheel hubs. • Adjust the hex nuts on the adjustable steer axle link assembly to relieve any binding in the pins connecting the steer links.

  • Page 48: Connect The Auger Tube To The Frame

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 4.17. Connect the Auger Tube to the Frame STRONG SLING OR CHAIN Important Be sure to use proper hoisting equipment and procedures when raising the discharge end of the auger. Lock out the hoist apparatus prior to working around or under the raised tube.
  • Page 49 4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER Axle Frame Pin Flat Washer, 1/2" Upper Tie Tube Lock Nut, 1/2" Frame Cross Brace Assembly Note: • Lower upper end of auger slowly until track shoe rests against upper track stop and the lift assist stops rest against track.

  • Page 50: Install Lift Cylinder Cables To The Lift Assist

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 4.18. Install Lift Cylinder Cables to the Lift Assist Track shoe must rest against track stop when adjusting cable. If this isn’t done, the auger can raise higher than designed to lift, resulting in damage to auger and possible injury to personnel.
  • Page 51 4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER Lift Assist Cable Clamp, 3/8" (85' Model) Lift Cable Cable Clamp, 1/2" (105'/125' Models) 31185 R0...

  • Page 52: Connect Hydraulic Hoses

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 4.19. Connect Hydraulic Hoses 4.19.1 Connect Hydraulic Auger Steer Hoses Note Use thread sealant (not supplied) on all hydraulic connections. Steer Axle Cylinder Elbow Fitting Hydraulic Hose, 3/8" x 60" Hydraulic Hose, 3/8"...
  • Page 53 4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER Axle Steer Hose Routing Assembly Note: • Tighten the hydraulic hose clamps enough to hold the hoses in place. Hydraulic Hose, 3/8" x 266" (85' Model) Line Block Hydraulic Hose, 3/8"...

  • Page 54: Connect Hydraulic Lift Hoses

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 4.19.2 Connect Hydraulic Lift Hoses Note Use thread sealant (not supplied) on all hydraulic connections. Wear on hose can cause auger to drop suddenly, causing serious injury or death and damage to the equipment.
  • Page 55 4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 105'/125' Models 8 10 9 10 Assembly Notes: • Make sure that lift cables are tightly stretched. • Adjust elbow and “T” fittings so that the hoses are as far as possible from the lift cables. •...

  • Page 56: Connect The Pto Driveline

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER All Models Hydraulic Hose, 1/2" x 78" Coupler 4.20. Connect the PTO Driveline Assembly Notes: • Clean dirt off of stub shaft ends before assembly. • Tighten the 3/8" x 3/8" set screw on the PTO driveline. PTO Driveline Square Key, 3/8"...
  • Page 57 4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER PTO Driveline Forward Transport Saddle Reverse 31185 R0...

  • Page 58: Connect The Intake Hopper To The Swing Tube

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 4.21. Connect the Intake Hopper to the Swing Tube This section does not apply to GMX² augers. Lockout the lifting apparatus before working around or under the raised components. Failure to do so may cause serious personal injury.
  • Page 59 4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 50" (127 cm) Assembly Notes: • Raise and support the hopper tube spout head on a stand about 50" (127 cm) high. • DO NOT overtighten; tighten to a slightly loose fit only as these bolts act as pivot points. Hopper Assembly Bolt, 5/8"...

  • Page 60: Connect The Spout Head To The Grain Transfer Boot

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 1 (X2) Assembly Note: • There are three height settings for the hopper wheels that can be used according to preference. Hairpin Wheel Door Pin Short Wheel Axle Long Wheel Axle Lynch Pin 4.22.
  • Page 61 4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER WELD BETWEEN SHAFT SPLINES GAP BETWEEN SPLINES Assembly Notes: • Separate the gearbox coupler into two sections by pulling it apart. • The weld between splines on the top gearbox shaft must line up with the gap between splines on the bottom gearbox coupler.

  • Page 62: Install The Hopper Lift Arm

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 4.23. Install the Hopper Lift Arm Assembly Notes: • Determine which side of the auger the hopper will be operating on. • Position the hopper lift arm assembly on the mount bracket on top of the lower auger tube with the arm overhanging the side of the auger that the hopper will be operating on.

  • Page 63: Install The Hydraulic Winch

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 4.24. Install the Hydraulic Winch Installing the Hydraulic Winch Hydraulic Winch Assembly Flat Washer, 3/8" Lock Nut, 3/8" Installing the Winch Cable Assembly Notes: • Thread the cable through the hopper weight and the hopper lift arm.
  • Page 64 4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER Routing the Hydraulic Winch Hose Steel Elbow 90, 1/2 FNPSM x 3/8 MNPT Bolt, 5/16" x 1-1/4" Hydraulic Hose, 1/2" x 226" Lock Nut, 5/16" Hydraulic Hose Clamp Coupler 31185 R0...

  • Page 65: Electric Power Swing Assembly

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 4.25. Electric Power Swing Assembly This section does not apply to GMX² augers. 4.25.1 Power Swing Components Manual Jack Attach Bracket Hitch Ring Half Clamp Right-Side Attach Bracket Manual Jack Landing Gear Assembly (Electric) Transmitter (Not Shown)

  • Page 66: Install The Landing Gear

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 4.25.2 Install the Landing Gear 1. Fasten the right-side attach bracket to the swing tube using four 7/16" x 1-1/4" bolts and lock nuts. 2. Fasten the jack attach bracket to the swing tube using four 7/16" x 1-1/4" bolts and lock nuts. 3.
  • Page 67 4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 31185 R0...

  • Page 68: Install And Connect The Receiver Box

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER Jack Attach Bracket Bolt, 5/8" x 4" Right-Side Attach Bracket Lock Nut, 5/8" Manual Jack Rim Washer, 3/4" Lynch Pin Bolt, 7/16" x 1-1/4" Lock Nut, 7/16" Wheel (tire on rim) Landing Gear Pin Wheel Bolt 4.25.3 Install and Connect the Receiver Box...
  • Page 69 4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 6. Attach the wires to the motor terminals on the power swing. The positive wire with the red boot connects to the positive (+) terminal on the electric motor. To connect: a.
  • Page 70 4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER Figure 4. Connecting the Receiver Box QUICK CONNECT POSITIVE WIRE WITH RED BOOT CONNECTS TO POSITIVE MOTOR TERMINAL. NEGATIVE WIRE CONNECTS TO NEGATIVE MOTOR TERMINAL. 31185 R0...
  • Page 71 4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER Receiver Box Insulated Clamp, 5/8" x 1/2" Tractor Wire Harness Bolt, 1/4" x 3/4" Short Electrical Cable Lock Nut, 1/4" Fuse Quick Connect Positive Wire Battery Negative Wire Tractor Ground (chassis) Power Swing Long Electrical Cable...

  • Page 72: Hopper Transport Position

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 4.26. Hopper Transport Position Assembly Note: • Feed side of hopper must face the main auger when in transport. Winch Cable Safety Chain 4.27. Install the Hitch Jack The jack is attached to the auger with a pin at the pivot point.

  • Page 73: Install The Plastic Manual Holder

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 4.28. Install the Plastic Manual Holder Plastic Manual Holder Self-Tapping Screw 31185 R0...

  • Page 74: Install Work Lights

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 4.29. Install Work Lights Assembly Notes: • Route the wiring harness along the truss cable and secure using zip ties. • Plug the wiring harness connectors into the lamp connectors. •...

  • Page 75: Install Transport Lights

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 4.30. Install Transport Lights Light Mount Assembly, LH Bolt, 7/16" x 1-1/4" Light Mount Assembly, RH Lock Nut, 7/16" 31185 R0...
  • Page 76 4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER Harness Routing Assembly Notes: • Secure the wiring harness to the axle and frame using P-clamps. Mount the P-clamps approximately 6 ft apart. • Secure the wiring harness to the hydraulic hoses using zip ties. •...

  • Page 77: Install The Retroreflective Strips

    4. ASSEMBLY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 4.31. Install the Retroreflective Strips Spout 2" (5.1 cm) Lower and Upper Arms 85' Models: 12" (30.5 cm) 85' Models: 25" (63.5 cm) 105' Models: 63" (160 cm) 105' Models: 34"...

  • Page 78: Specifications

    5. SPECIFICATIONS MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 5. Specifications Specification 16-85 16-105 16-125 16" (40.6 cm) Tube Size CAPACITIES Unloading Rate 23000 Bu/Hr TRANSPORT DIMENSIONS 110' 4" 130' 2" Length (27.4 m) (33.6 m) (39.7 m) 14' 7"...

  • Page 79: Appendix

    Tighten all bolts to the torque specified, unless otherwise noted. Check tightness periodically, using Table 2 as a guide. Replace the hardware with the same strength bolt, contact AGI if you are unsure. Table 2. Recommended Bolt Torque Recommended Torque (ft-lb) Threads...

  • Page 80: Agi Limited Warranty

    7. AGI Limited Warranty This warranty relates to AGI Augers (the “Product”) sold by AGI, (referred to herein as the “Seller”) and applies only to the first user of the Product (meaning a purchaser directly from the Seller or from an authorized dealer or distributor of the Product, referred to herein as the “Buyer”).
  • Page 81 7. AGI LIMITED WARRANTY MKX², X², HX², GMX² 16" SERIES – SWING-AWAY GRAIN AUGER 31185 R0...
  • Page 82 AGI is a leading provider of equipment solutions for agriculture bulk commodities including seed, fertilizer, grain, and feed systems with a growing platform in providing equipment and solutions for food processing facilities. AGI has manufacturing facilities in Canada, the United States, the United Kingdom, Brazil, South Africa, India and Italy and distributes its products globally.
