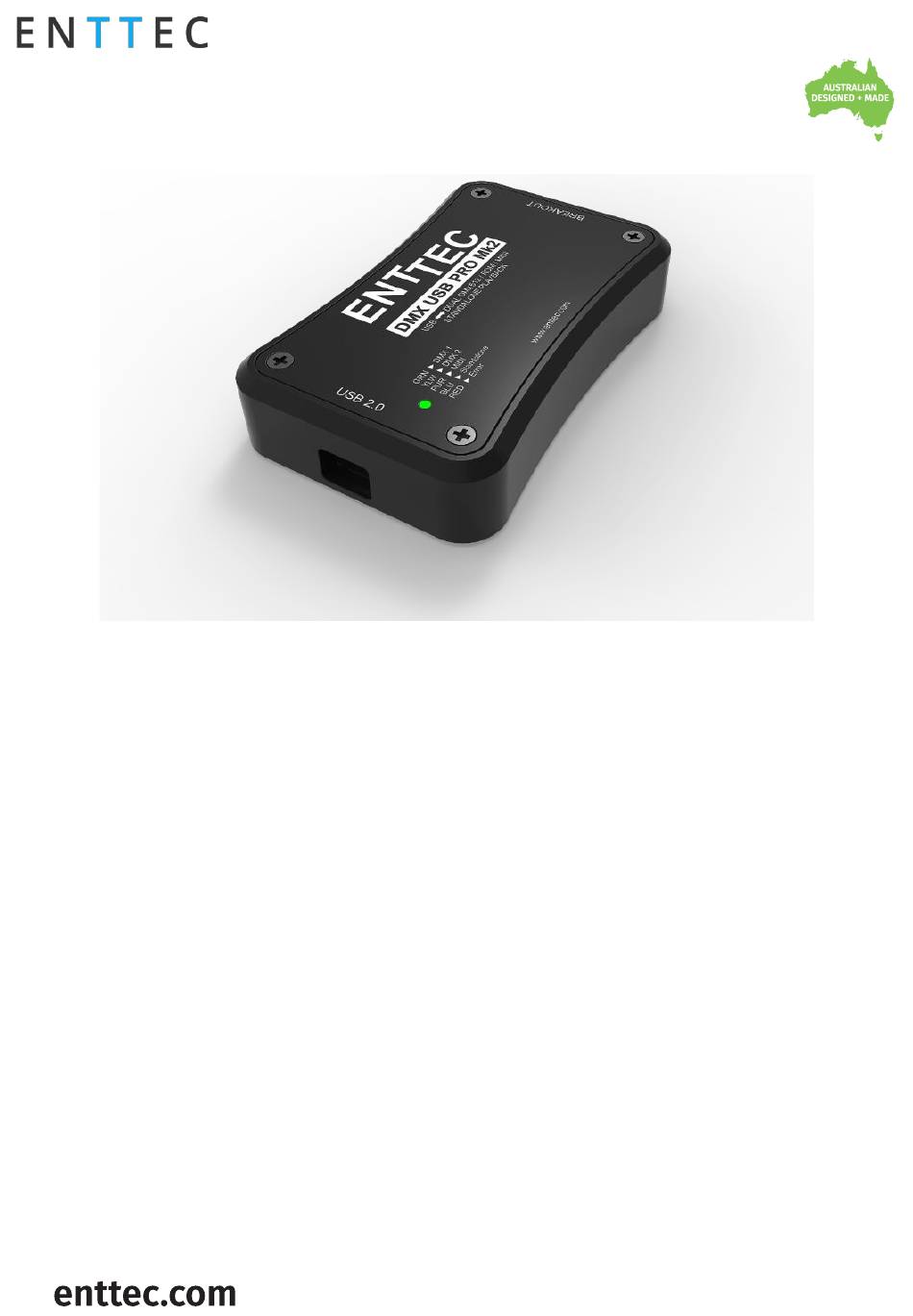

DMX USB PRO MK2 - User Manual
The ultimate DMX USB widget with 2 universes of input or output + standalone playback.
Content
Safety ............................................................................................................................................................................................................................ 2
Electrical safety ............................................................................................................................................................................................................................. 2
System Planning and Specification.................................................................................................................................................................................... 2
Protection from Injury During Installation ..................................................................................................................................................................... 2
Installation Safety Guidelines ............................................................................................................................................................................................... 2
Functional features ............................................................................................................................................................................................... 3
Adjustable refresh rate ............................................................................................................................................................................................................. 3
RDM ..................................................................................................................................................................................................................................................... 3
Standalone ...................................................................................................................................................................................................................................... 3
Hardware features ................................................................................................................................................................................................. 3
LED status indicator ................................................................................................................................................................................................................... 4
Out of the Box .......................................................................................................................................................................................................... 4
EMU ................................................................................................................................................................................................................................ 4
Config ................................................................................................................................................................................................................................................. 5
Firmware ........................................................................................................................................................................................................................................... 5
DMX Send Test ............................................................................................................................................................................................................................... 6
Standalone ...................................................................................................................................................................................................................................... 6
DMX receive ..................................................................................................................................................................................................................................... 8
MIDI (legacy feature) .................................................................................................................................................................................................................. 8
DMX ports ................................................................................................................................................................................................................... 9
DMX out ............................................................................................................................................................................................................................................. 9
DMX in ................................................................................................................................................................................................................................................ 9
Servicing, Inspection & Maintenance ........................................................................................................................................................ 10
Cleaning .......................................................................................................................................................................................................................................... 10
Package Contents ................................................................................................................................................................................................ 10
Ordering Information ........................................................................................................................................................................................ 10
1
|
ID: 134658
Document Updated: Dec 2021
DMX USB PRO MK2 (70314)
Visit the ENTTEC website for the latest version.
USER MANUAL
..
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Enttec DMX USB PRO MK2
Summary of Contents for Enttec DMX USB PRO MK2
-
Page 1: Table Of Contents
DMX USB PRO MK2 (70314) Visit the ENTTEC website for the latest version. DMX USB PRO MK2 – User Manual The ultimate DMX USB widget with 2 universes of input or output + standalone playback. Content Safety ............................................2 Electrical safety ............................................. 2 System Planning and Specification.................................... -
Page 2: Safety
ENTTEC device. If you are in any doubt about system safety, or you plan to install ENTTEC device in a configuration that is not covered within this guide, contact ENTTEC or your ENTTEC supplier for assistance. -
Page 3: Functional Features
The standalone mode built into the DMX USB Pro Mk2 allows the recording and playback of a DMX sequence/show. The DMX USB Pro Mk2 Standalone Mode is limited to 1 Universe only and can be configured using the EMU software. -
Page 4: Led Status Indicator

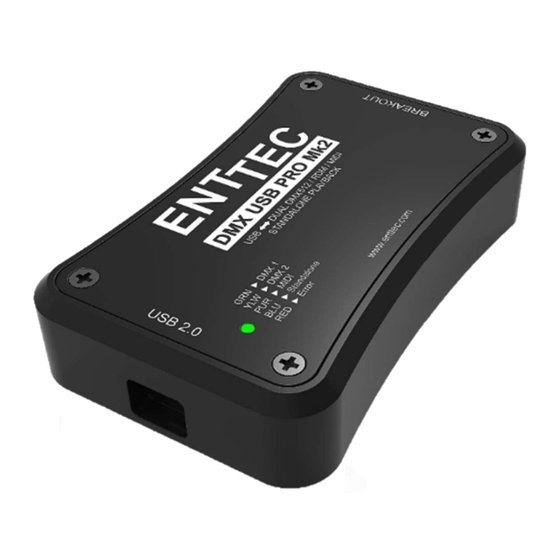

LED status indicator DMX USB PRO Mk2 comes with a RGB LED indicator located on the top surface of the device (above the USB connector). When in operation, the DMX USB PRO Mk2 led will change between a combination of these states. The... -
Page 5: Config
The Firmware update procedure can be used to: Update to the latest feature set. Reset DMX USB PRO Mk2 if it ever gets stuck or stops responding. (Error mode). The following steps will explain firmware update procedure: 1. Within EMU Firmware Tab, you will find current firmware version of connected device. -
Page 6: Dmx Send Test
USB logo will light up on the top left to indicate output to DMX USB PRO on EMU. With your fixtures connected to the DMX output of the DMX USB PRO MK2, you will see the desired effect for the value of the channel you change. - Page 7 Visit the ENTTEC website for the latest version. Playback PLAY or STOP standalone show in this tab. Note: Upon opening EMU to access DMX USB PRO MK2, the standalone show will stop automatically. User will have to power cycle device or select PLAY option for standalone show to continue playing.
-
Page 8: Dmx Receive
By manually highlighting the channel, the DMX value received will be displayed in the plot beneath the matrix. MIDI (legacy feature) The DMX USB PRO Mk2 has the capacity to support the legacy ‘DMX + MIDI accessory cable (PN: 79147)’. discontinued Q1 2021. -
Page 9: Dmx Ports
DMX out The DMX USB Pro Mk2 breakout cable feature two DMX Female ports to allow the DMX USB PRO Mk2 to control DMX Lights connected to it via DMX512. It is not necessary to have any connection to the DMX Out socket (or a breakout cable connected) while programming the DMX USB PRO Mk2. -
Page 10: Servicing, Inspection & Maintenance
Do not spray device or accessories. The device is an IP20 product. To clean an ENTTEC device, use low-pressure compressed air to remove dust, dirt, and loose particles. If deemed necessary, wipe the device with a damp microfiber cloth.
