Connecting to Monitors

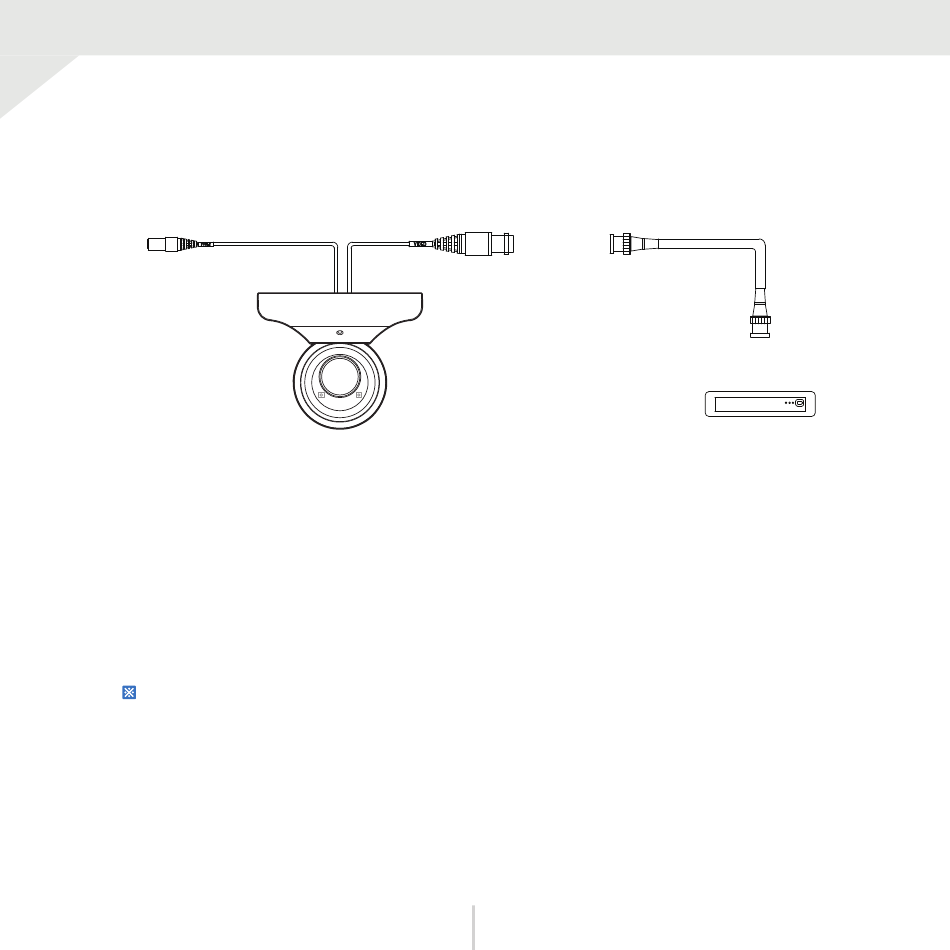

Use the diagram below to connect the camera to a Universal HD over Coax
DVR.
12VDC
- Power connection - the camera supports 12VDC voltage only.
- All cameras are equipped with a test video output for on-site configuration.
NOTE: To use your Star-Light Plus™ 5MP cameras at a lower resolution, you must
use a VMAX ® A1 Plus™ DVR to access the camera's menu due to the cameras
being set to 5MP as the default. A DVR that does not support 5MP resolution may
recognize the camera, but will not deliver a picture.
13
®
Video output
Universal HD over
Coax ® DVR
