Quick Start Guide

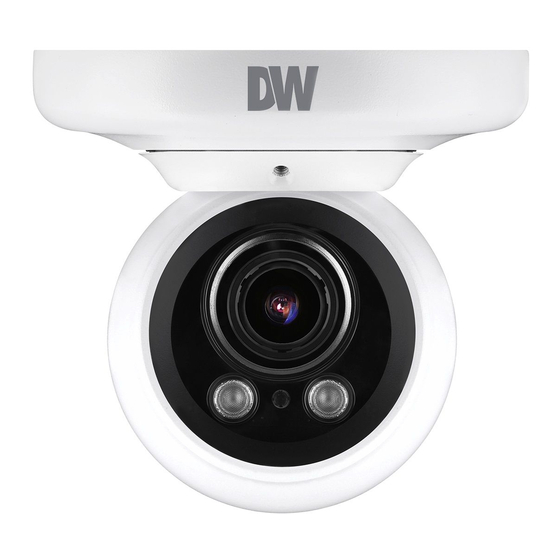

DWC-VA583WTIR
WHAT'S IN THE BOX
Template
DC plug 1 Set
sheet
Mount Bolt & Nut
Torque Quick Setup
1 Set
wrench Guide
Template Sheet
Screw and
for installing by Bolt & Nut
plastic 1 Set
anchor-2pcs
Screw &
Torx Wrench
Plastic Anchor-2pcs
NOTE: Download all your support materials and tools in one place
1. Go to: http://www.digital-watchdog.com/resources
2. Search your product by entering the part number in
the 'Search by Product' search bar. Results for
applicable part numbers will populate automatically
based on the part number you enter.
3. Click 'Search'. All supported materials, including manuals
Manual Test Video Cable
and quick start guide (QSGs) will appear in the results.
Attention: This document is intended to serve as a quick reference for
initial set-up. It is recommended that the user read the entire instruction
manual for complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours:
9:00AM – 8:00PM EST, Monday thru Friday

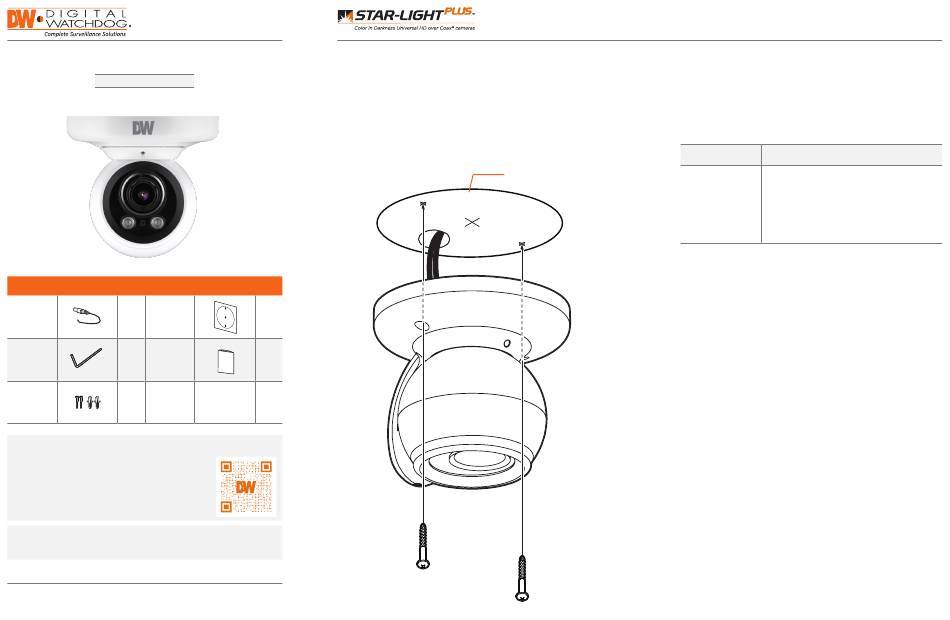

STEP 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must withstand five times the
camera weight.
2. Do not let the cables get caught in improper places or the electric
line cover can be damaged. This may cause a short or fire.
3. Use the mounting template to mark and drill the necessary holes in
the mounting surface.
Screw &
Mount Bolt & Nut Torx Wrench
Plastic Anchor-2pcs
1 Set
Screw &
Torx Wrench
Plastic Anchor-2pcs
Template Sheet
Manual Test Video Cable
for installing by Bolt & Nut
1 Set
Manual Test Video Cable
digital-watchdog.com
STEP 2 – CABLING THE CAMERA TO
EXTERNAL DEVICES
Pass the wires through the mount bracket and make all
necessary connections. Connect the BNC cable and power
cables to the camera.
Template sheet
Quick Start Guide
Power
Power Consumption
Requirements
DC12V (LED off): 4.36W, 363mA
DC12V / AC24V DC12V (LED on): 7.6W, 638mA
dual-voltage
AC24V (LED off): 4.5W, 278mA
AC24V (LED on): 6.27W, 456mA
