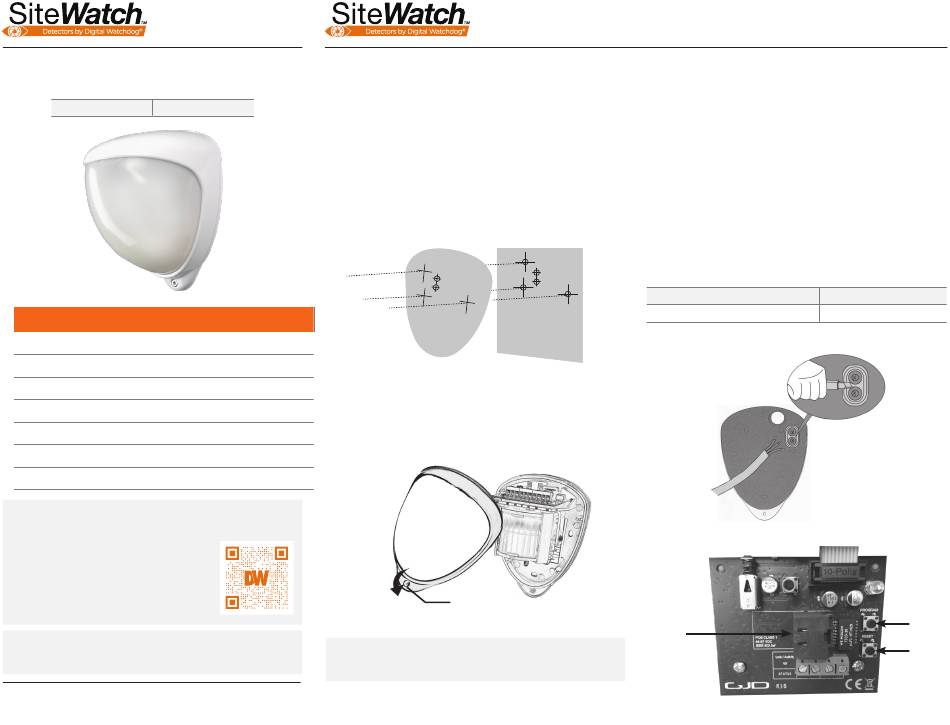

Digital Watchdog SiteWatch DW-DTPIRIPW Quick Start Manual

Quick Start Guide
MOTION DETECTORS
DW-DTPIRIPW DW-DTMWIPW
WHAT'S IN THE BOX
1 x detector
1 x mounting template
3 x 1.25" (31.75mm) wall anchors and washers
2 x spare sliding curtains
1 x tamper feet 0.039" (1mm) long
1 x tamper feet 0.078" (2mm) long.
1 x quick setup guide
NOTE:
Download all your support materials and tools in one place.
1. Go to: http://www.digital-watchdog.com/resources.
2. Search for your product by entering the part
number in the 'Search by Product' search bar.
Results for applicable part numbers will
populate automatically based on the part
number you enter.
3. Click 'Search'. All supported materials, including
manuals and quick start guide (QSGs) will
appear in the results.
Attention: This document is intended to serve as a quick reference
for initial setup. It is recommended that the user read the entire
instruction manual for complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours:
9:00AM – 8:00PM EST, Monday thru Friday
STEP 1 – Mounting the Motion Detector
1. Find the suitable location to install the SiteWatch™. The
sensor should be position so the person will pass across
the field of view and not directly toward or away
from it.
2. Using the mounting template sheet or the detector
itself, mark and drill the necessary holes in the wall. It
is recommended to use the tamper cup on uneven wall
surfaces. Refer to Fig. 1.
Suggested mounting hight of 10ft is recommended.
2. Remove the cover assembly by loosening the locking
screw. The cover hinges from the top and lifts out of the
location slot. Refer to Fig. 2.
NOTE: The maximum mounting height is 10ft when
utilizing the creep detection zone.
digital-watchdog.com
Fig. 1
Locking
screw
Fig. 2
Quick Start Guide
STEP 2 – CABLING THE DETECTOR
1. Pass the CAT5e/CAT6 cable through the cable entry
from outside to inside.
2. Install the Cat5e / Cat6 through the provided hole on
the rear of the detector. Terminate the Cat5e / Cat6
cable using an RJ46 connector leaving enough cable to
connect to the RJ45 port. Refer to Fig. 3.
3. Plug the connector into the RJ45 port. Refer to Fig. 4.
* Tools are required to crimp RJ45 connector. RJ45
Connector not included.
Use the diagram below to connect your detector to the
necessary external devices.
Power input
Power over Ethernet (48V DC)
Fig. 3
RJ45
Fig. 4
Power consumption
Max 3.8W, PoE class 1
Program
Reset
