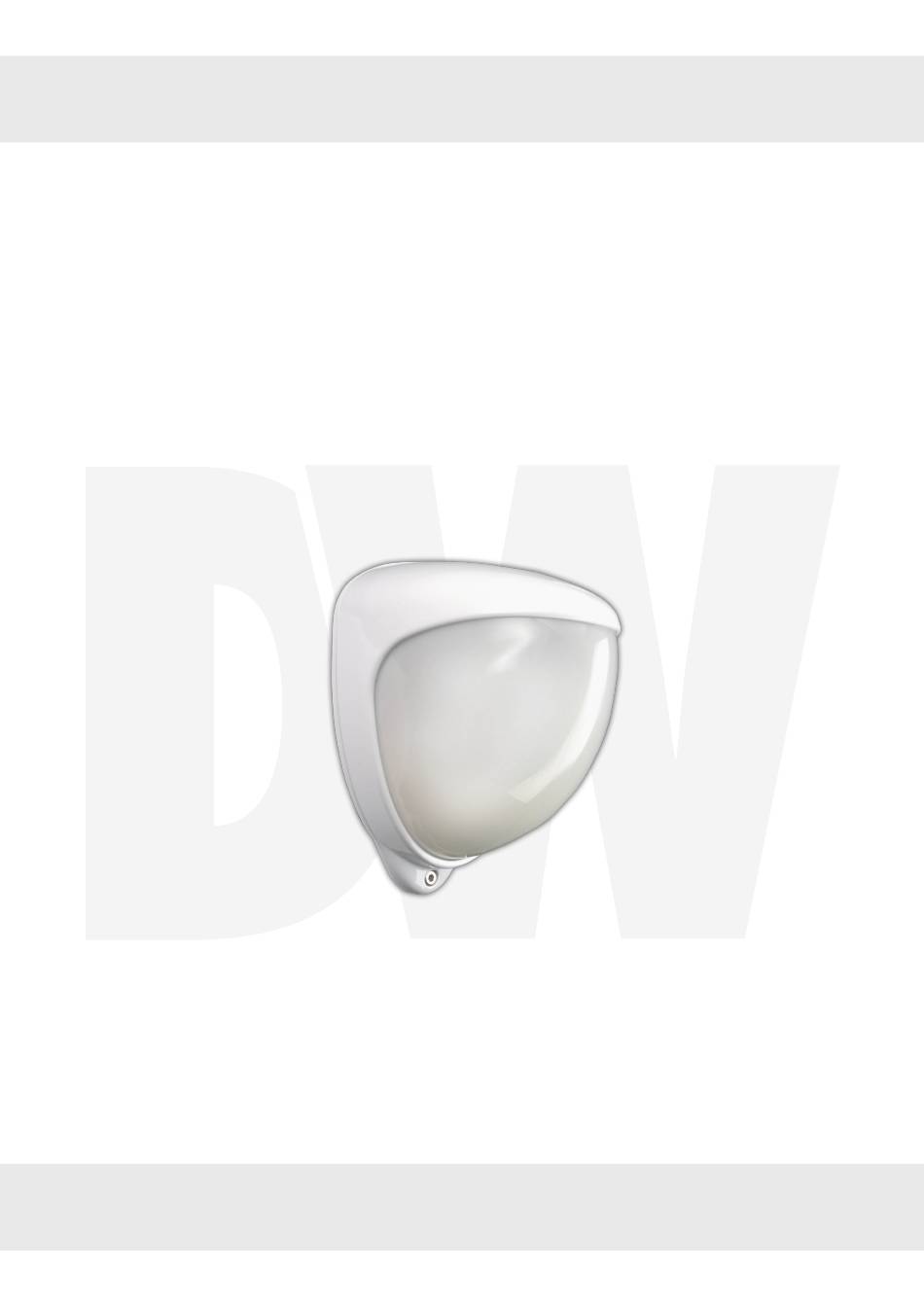

- Page 1 SiteWatch™ motion detectors DW-DTMWIPW DW-DTPIRIPW User’s Manual Ver. 08/19 Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference.
- Page 2 Safety Information BEFORE OPERATION This section of the manual uses the following warning symbols to provide information regarding use of the product to prevent you and others from being harmed and your product from being damaged. These warning symbols are described below. Ensure you understand these precautions before proceeding with the installation.
-
Page 3: Table Of Contents
Contents INTRODUCTION Package Contents Dimensions INSTALLATION Mounting the detector Connecting the detector Installing the detector Multi-beam alignment and masking PROGRAMMING Using the Programming Button Web-based user interface General connection Default settings Sensor settings Device configuration Import and export settings Firmware update ALARM SETTINGS Alarm inputs Create Alarm Actions... -
Page 4: Introduction
Introduction PACKAGE CONTENTS • 1 x detector • 1 x mounting template • 3 x 1.25” (31.75mm) wall anchors and washers • 2 x spare sliding curtains • 1 x tamper feet 0.039” (1mm) long • 1 x tamper feet 0.078” (2mm) long •... -
Page 5: Installation
Installation MOUNTING THE DETECTOR During installation, protect the electronics from water. Trapped moisture can affect or damage the unit. Find the suitable location to install the SiteWatch™. The sensor should be positioned so the person will pass across the field of view and not directly toward or away from it. 2. -
Page 6: Installing The Detector
Installation INSTALLING THE DETECTOR The nylon washers provided must be used with screws. 2. Ensure cable entry and screw holes are sealed with water-based sealant. Do not use silicone-based sealant. Tamper Cup 3. Screw the unit to the wall ensuring that the rear tamper pin is correctly located and that the tamper micro switch is closed. -
Page 7: Multi-Beam Alignment And Masking
Installation MULTI BEAM ALIGNMENT AND MASKING The multifunction lens fitted to the SiteWatch™ detectors produces seven long-range beams and seven medium- to short-range curtain PIR beams. The Passive infra-red (PIR) circuitry detects changes in heat and movement in the beam pattern. - Page 8 Installation When mounted at heights above 10ft (3m), there could be a significant reduction in the range of detection. The target will have to move a greater distance within the detector’s field of view before an alarm is generated. The figure below shows the pattern for the maximum (left) and minimum (right) range in the optimum position. On the maximum range diagram, masking the top section of the lens reduces the range to 65.6ft (20m).
-
Page 9: Programming
Programming - using the programming button PROGRAMMING PROGRAMMING OPTIONS DEFINITIONS Pulse Count There are 2 ways to program the detector’s detection The number of times the detector must detect range, pulse count and LED setting. motion on both of its sensors before signaling an 1. -
Page 10: General Connection
Programming - web-based user interface GENERAL CONNECTION Connect the network cable to the detector and verify that the unit powers-up and the network connection is working. FACTORY RESET Make sure the detector is powered on. Hold down the reset button for 8 seconds. Release reset button, the status LED on the board will turn off for a second. -
Page 11: Sensor Settings
Programming - web-based user interface SENSOR SETTINGS Open the ‘sensor settings’ tab. To change any of the detector’s range, pulse count and detection LED settings, use the drop-down boxes to select the required setting. Changes are saved automatically. Press the ‘factory default’ button and then ‘save settings’ to restore the detector to its default range, pulse count and LED settings. -
Page 12: Device Configuration
Programming - web-based user interface DEVICE CONFIGURATION Open the ‘device configuration’ tab. This tab shows the detector’s current TCP/IP, HTTPS and user login settings. The detector supports static IP information. This means you will have to manually enter the proper IP address, subnet mask and default gateway to match the network’s settings. -
Page 13: Import And Export Settings
Programming - web-based user interface IMPORT AND EXPORT SETTINGS You can download the detector’s current settings and use them to setup other detectors. The detector’s alarm settings and I/O configuration will be exported as a CFG file. Network and login settings are not included in the exported file. -
Page 14: Firmware Update
Programming - web-based user interface FIRMWARE UPDATE The SiteWatch™ detector’s firmware should be updated when new versions are available. To update the detector’s firmware: Open the ‘firmware update’ tab. The current firmware version is displayed. Press the ‘select firmware file’ button. Locate the firmware file on your hard drive and click open. Click ‘upload firmware’. -
Page 15: Alarm Settings
Alarm settings ALARM SETTINGS All alarm settings can be made and managed in the ‘events’ tab. The SiteWatch™ detectors work on the “Alarm - Action” principle. Alarms are created based on all types of input signals. For each alarm, it is possible to create one or more actions. -
Page 16: Create Alarm Actions
Create Alarm Actions CREATE ALARM ACTIONS Press ‘add action’ under the desired alarm. Input fields appear to the right. Choose the action type from the ‘event type’ drop-down menu: Output 1 This turns output 1 on when the detector is activated and turns it off when the alarm clears. Output 2 This turns output 2 on when the detector is activated and turns it off when the alarm clears. -
Page 17: Warranty
Warranty Information Digital Watchdog (referred to as “the Warrantor”) warrants the motion detector against defects in materials or workmanships as follows: Labor: For the initial two (2) years from the date of original purchase if the camera is determined to be defective, the Warrantor will repair or replace the unit with new or refurbished product at its option, at no charge. -
Page 18: Limits And Exclusions
This warranty gives you specific legal rights, and you may also have other rights from vary from state to state. If the problem is not handled to your satisfaction, then write to the following address: Digital Watchdog, Inc. ATTN: RMA Department 16220 Bloomfield Ave...
