Monitor Network Diagnostics

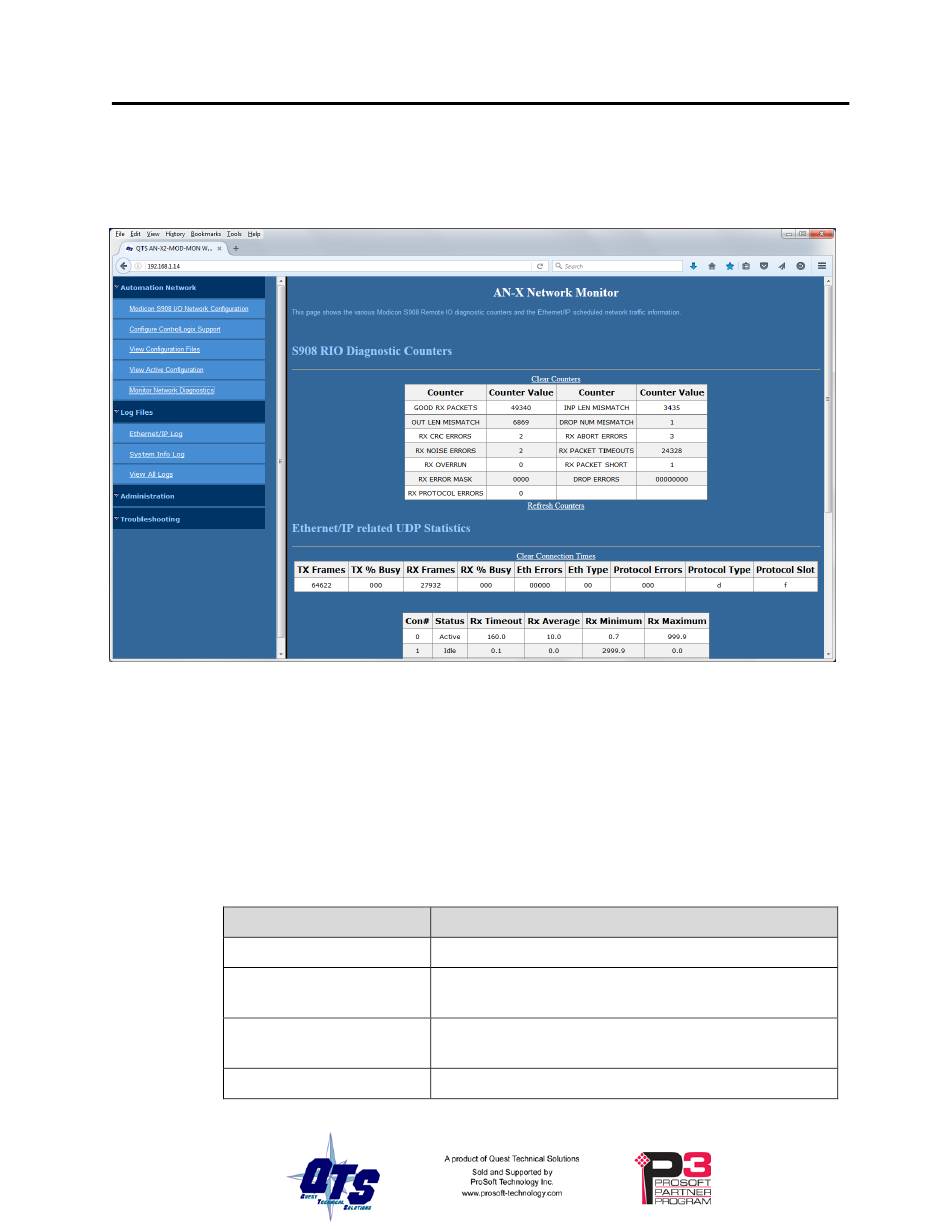

Select Automation Network/Monitor Network Diagnostics to display the remote I/O
network diagnostic counters and the Ethernet/IP related UDP Statistics.
To refresh the counters, use the corresponding Refresh Counters button or click anywhere
in the table.
To clear either set of counters, use the corresponding Clear Counters link.
After clearing the counters, refresh the counters.
S908 Remote I/O Diagnostic Counters
Counter
GOOD RX PACKETS
INP LEN MISMATCH
OUT LEN MISMATCH
DROP NUM MISMATCH
Description
Count of good received packets
Input data received but the length didn't match what was
expected
Output monitored data received but the length did not
match what was expected
Packet received but the drop number did not match what
