Configure Controllogix Support - QTS AN-X2-MOD-MON User Manual

43
AN-X2-MOD-MON Page
To manually configure the AN-X, first create a configuration file. Refer to page 23 for
details on the file format.
Use the Browse button to select the file.
Click the Send File to AN-X button to send the file to the AN-X.
AN-X parses the file and displays either the configuration if it has been successful or a
message that indicates the source of the error if it fails.

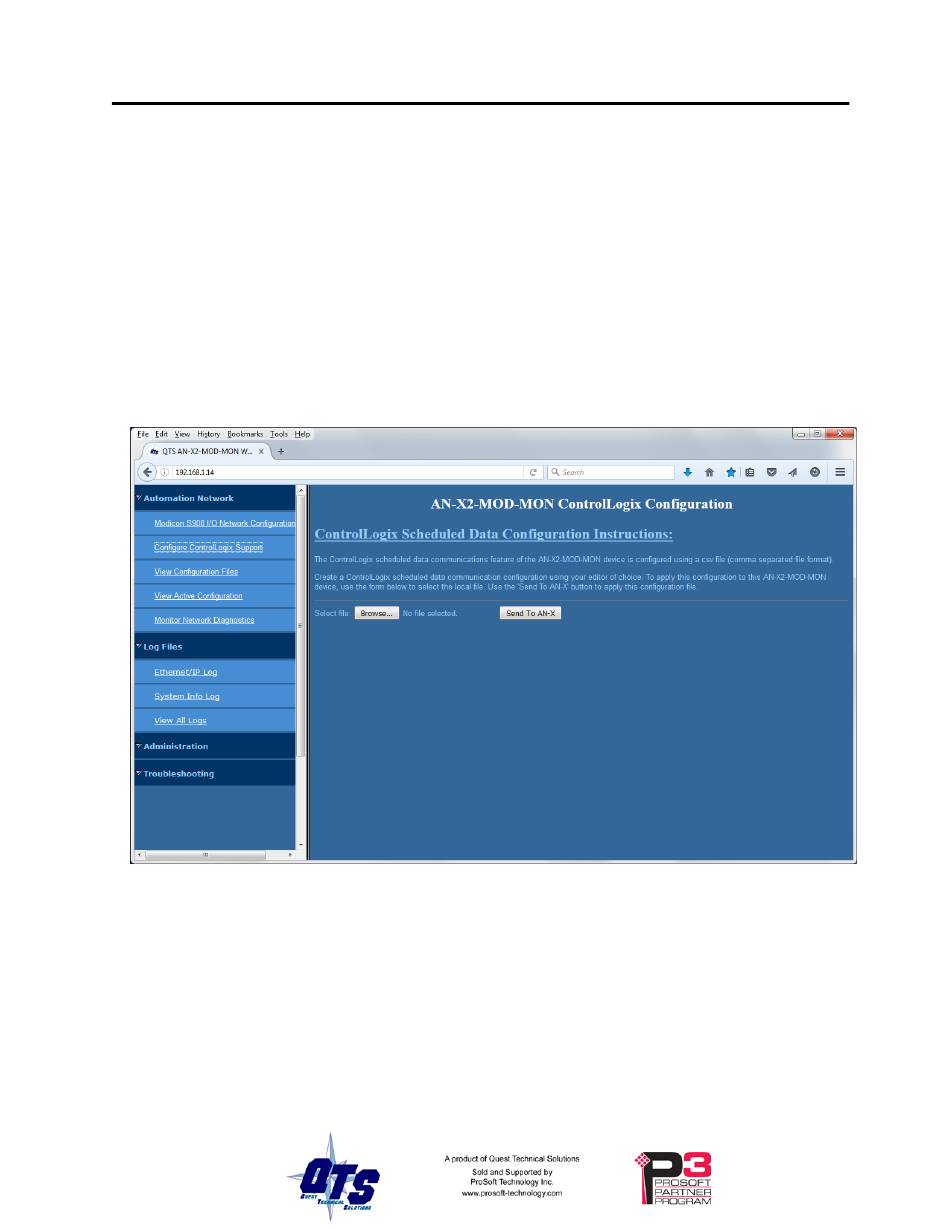

Configure ControlLogix Support

Select Automation Network/Configure ControlLogix Support to send a ControlLogix
configuration file to the AN-X.
First create a configuration file. Refer to page 30 for details on the file format.
Use the Browse button to select the file.
Click the Send File to AN-X button to send the file to the AN-X.
AN-X parses the file and displays either the configuration if it has been successful or a
message that indicates the source of the error if it fails.
