Prevent Electrostatic Discharge

The module is sensitive to electrostatic discharge.
WARNING!

Power

AN-X requires a DC power input of anywhere from 12 to 24 VDC.

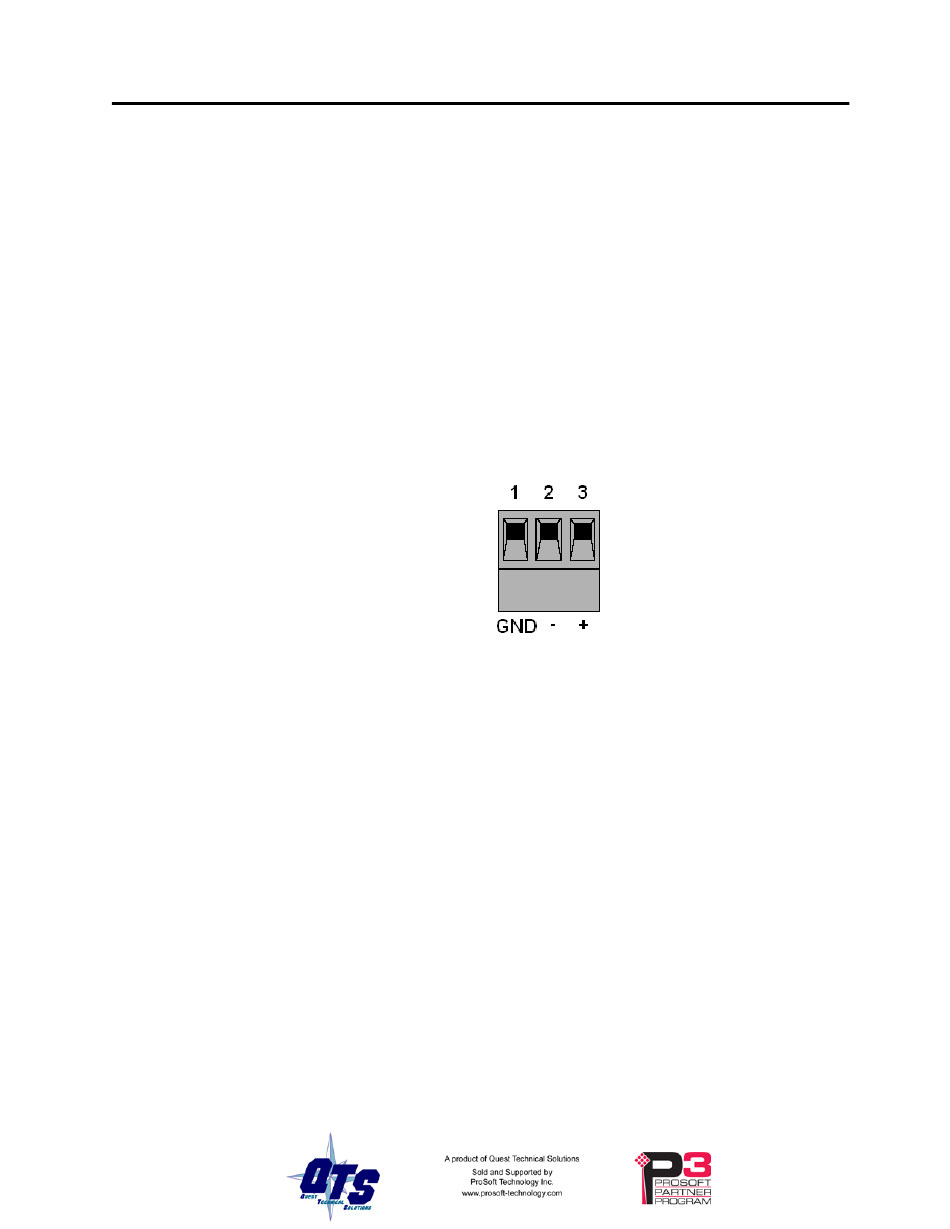

Left to right the pins on the power connector are chassis ground, negative voltage and
positive voltage.
The chassis ground should be connected.
Power consumption is 150 mA @ 12VDC or 75 mA @ 24VDC.
The part number for the power connector is Phoenix MSTB 2.5/3-ST-5.08

S908 Cabling and Termination

Refer to the Modicon Remote I/O Cable System Planning and Installation Guide 890
USE 101 00 Version 3.0 for detailed information on cabling and installation.
The module has a standard F connector for connection to the S908 remote I/O network.
The hardware for the AN-X-MOD-MAS and AN-X-MOD-MON contains built-in
termination.
When you connect the AN-X-MOD-MON to the network, you can't connect it just like
any other node. There's a loss of about 14 dB through a tap to each drop, so if the AN-X
were connected as a drop, there would be a loss of at least 28 dB in the signal from other
drops to the AN-X-MOD-MAS, as well as any attenuation along the cables.
Electrostatic discharge can damage integrated circuits or
semiconductors. Follow these guidelines when you handle the module:
•
Touch a grounded object to discharge static potential
•
Do not touch the connector pins
