Specifications; Physical Dimensions - CENTURION SYSTEMS V400 Mechanical Installation Manual

Linear swing gate operator
Hide thumbs
Table of Contents

Advertisement

3. Specifications

3.1. Physical Dimensions

1370mm extended
970mm retracted
400mm
extended
piston stroke
Ø100mm

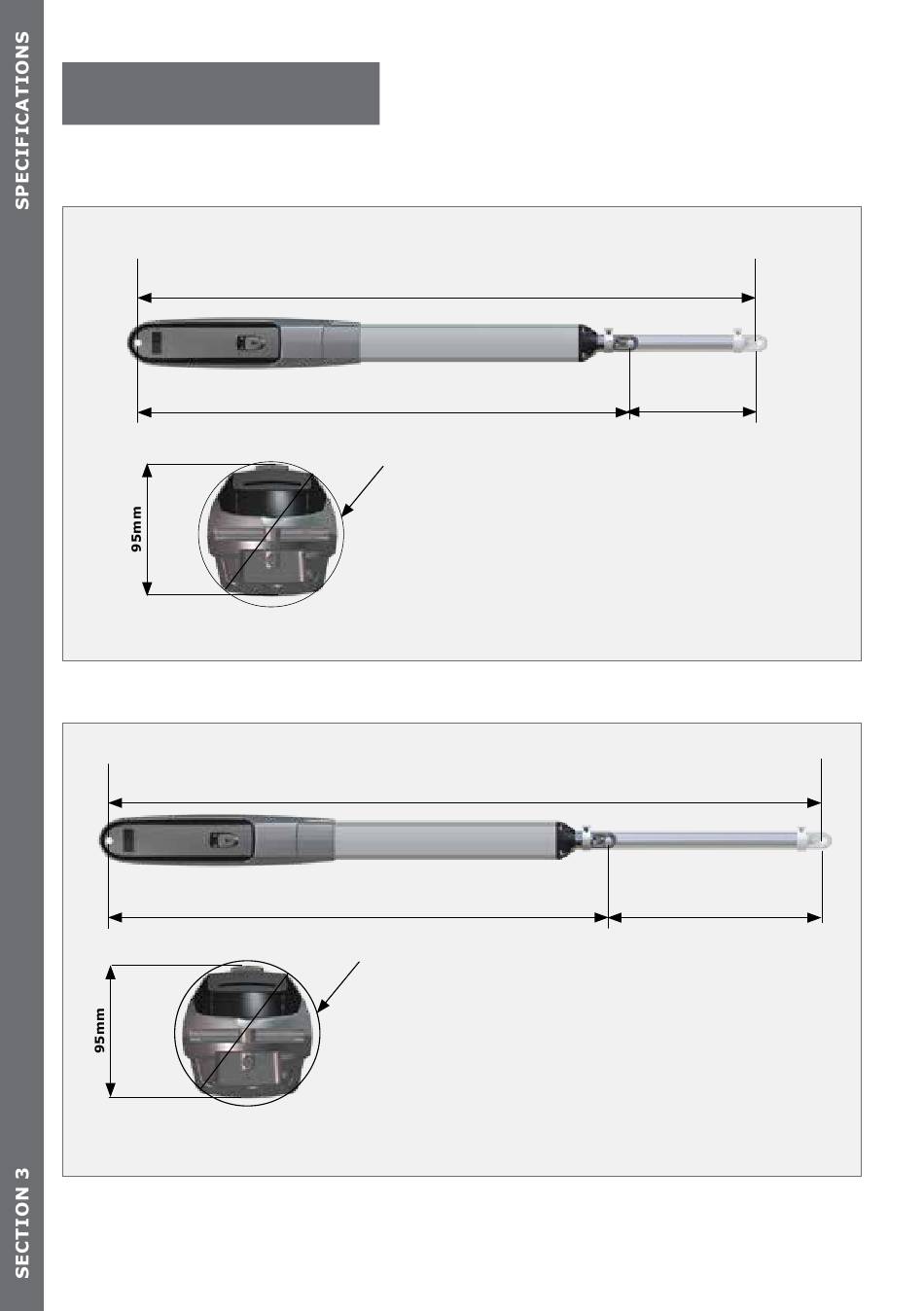

FIGURE 1. V 400 OVERALL DIMENSIONS
1570mm extended
1070mm retracted
500mm
extended
Ø100mm
piston stroke
FIGURE 2. V 500 OVERALL DIMENSIONS
page 10
