to top.


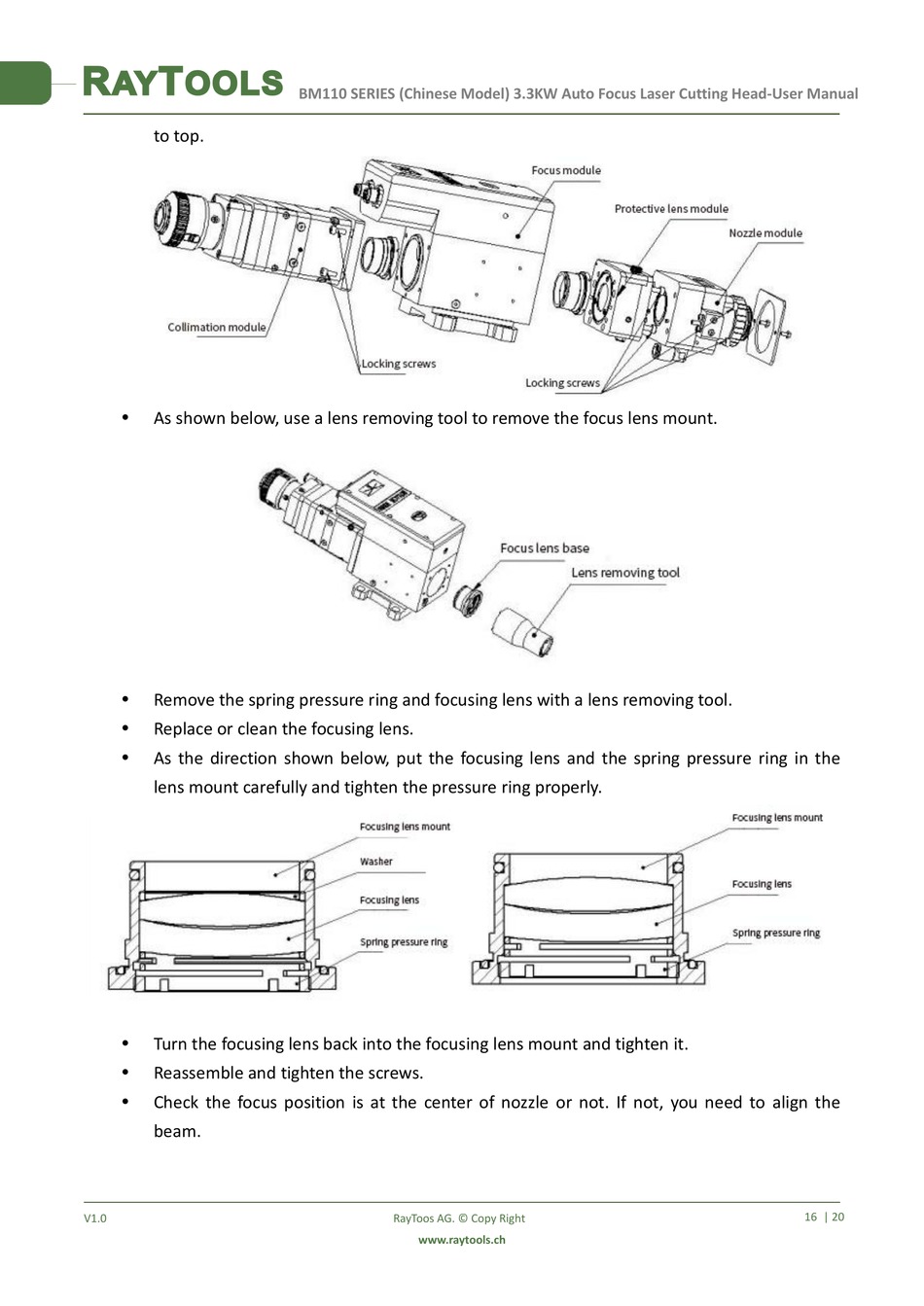

As shown below, use a lens removing tool to remove the focus lens mount.

Remove the spring pressure ring and focusing lens with a lens removing tool.

Replace or clean the focusing lens.

As the direction shown below, put the focusing lens and the spring pressure ring in the
lens mount carefully and tighten the pressure ring properly.

Turn the focusing lens back into the focusing lens mount and tighten it.

Reassemble and tighten the screws.

Check the focus position is at the center of nozzle or not. If not, you need to align the
beam.
