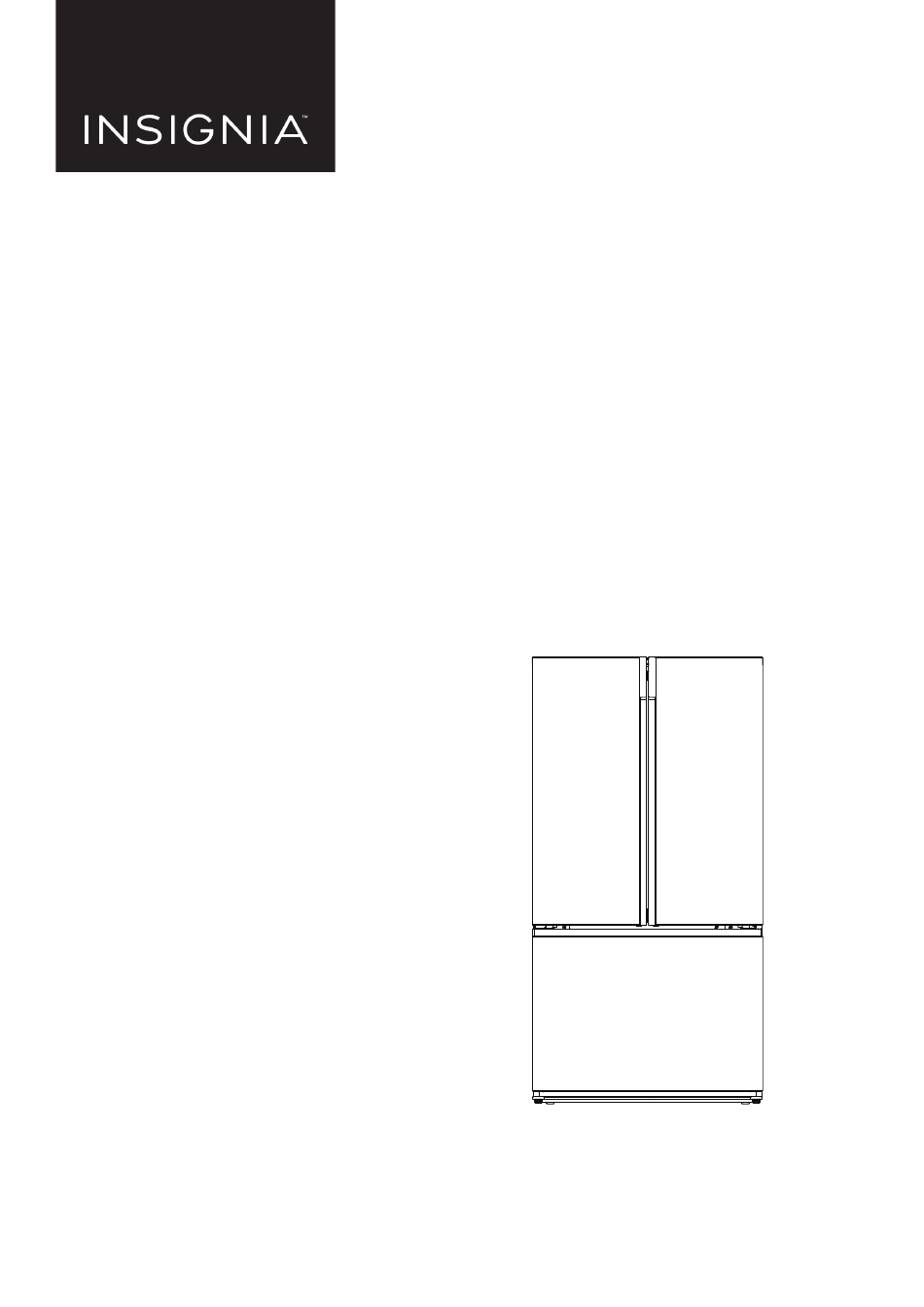

- Page 1 USER GUIDE 26.6 Cu. Ft. French Door Refrigerator NS-RFD26SS9/NS-RFD26SS9-C Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
Contents Introduction ..................3 IMPORTANT SAFETY INSTRUCTIONS . -
Page 3: Introduction
NS-RFD26SS9/NS-RFD26SS9-C 26.6 Cu. Ft. French Door Refrigerator Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-RFD26SS9/NS-RFD26SS9-C represents the state of the art in refrigerator design and is designed for reliable and trouble-free performance. IMPORTANT SAFETY INSTRUCTIONS CAUTION... -
Page 4: Grounding Requirement
26.6 Cu. Ft. French Door Refrigerator 21 Children should be supervised to ensure that they do not play with your refrigerator. 22 If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified person, in order to avoid a hazard. -
Page 5: Features
NS-RFD26SS9/NS-RFD26SS9-C Features Package contents • 26.6 cu. ft. French door refrigerator • 1/4" extension tubing (1) (inside the refrigerator drawer) • Coupler (1) (inside the refrigerator drawer) • Clips (2) (inside the refrigerator drawer) • User Guide Dimensions www.insigniaproducts.com... -
Page 6: Interior
26.6 Cu. Ft. French Door Refrigerator Interior Note: The illustrations shown in this user guide are only for reference. The actual product may differ slightly. Top cover Display Water filter Refrigerator Door rack Shelf Water dispenser Crisper (inside) cover Fruit and vegetable crisper Multi-function... -
Page 7: Exterior
NS-RFD26SS9/NS-RFD26SS9-C Exterior Refrigerator doors Handles Freezer door www.insigniaproducts.com... -
Page 8: Control Panel
26.6 Cu. Ft. French Door Refrigerator Control panel The control panel is located at the top of the inside of your refrigerator. The first time you connect your refrigerator to power, all the icons light for three seconds and a buzzer sounds. When you open the refrigerator compartment door, the control panel lights. -
Page 9: Setting Up Your Refrigerator
NS-RFD26SS9/NS-RFD26SS9-C ITEM DESCRIPTION Lights when the refrigerator compartment is in Super Cool mode. See Using Super Cool to speed refrigerator cooling on page 24. Lights when your refrigerator is in Energy Saving mode. See Using the Energy Saving mode on page 24. -
Page 10: Finding A Suitable Location
26.6 Cu. Ft. French Door Refrigerator Finding a suitable location • Place your refrigerator on a floor that is strong enough to support your refrigerator when it is fully loaded. • Do not install your refrigerator on carpeting or a rug. •... -
Page 11: Providing Room For Doors To Open
NS-RFD26SS9/NS-RFD26SS9-C Providing room for doors to open Make sure that you have enough room in front of your refrigerator to swing the doors open. 35.8" (91 cm) 59.1" (150 cm) Providing the correct power source Check your power outlet. Your refrigerator requires a 115V, 60Hz power supply. -
Page 12: Leveling Your Refrigerator
26.6 Cu. Ft. French Door Refrigerator Leveling your refrigerator Leveling your refrigerator is important. If you do not level your refrigerator during installation, the doors may not close or seal correctly which can cause cooling, frost, or moisture problems. CAUTION: The rollers are not casters. Use the rollers to move your refrigerator forward or backward. Do not use the rollers to move your refrigerator from side to side. -
Page 13: Removing The Refrigerator Doors (Optional)
NS-RFD26SS9/NS-RFD26SS9-C Removing the refrigerator doors (Optional) If the opening to the installation area you chose is too narrow for your refrigerator to pass through, remove the doors and drawers, then move your refrigerator sideways into the area. Note: Do not remove the doors unless you have to. - Page 14 26.6 Cu. Ft. French Door Refrigerator 4 Using both hands, open each refrigerator compartment door more that 90°, then lift the door up and off. >90° www.insigniaproducts.com...
- Page 15 NS-RFD26SS9/NS-RFD26SS9-C 5 Use a 5 mm Allen wrench to remove the four hex head hinge bolts (two per hinge) on the lower left and rights sides of your refrigerator, then remove the hinges. Hinge Hinge bolts Allen wrench 6 Pull the freezer compartment door and the upper freezer drawer fully open.
- Page 16 26.6 Cu. Ft. French Door Refrigerator 7 Lift the ice storage box up and out. Ice storage box www.insigniaproducts.com...
- Page 17 NS-RFD26SS9/NS-RFD26SS9-C 8 Lift the upper freezer drawer up from the rails and out. Upper freezer drawer 9 Lift the lower freezer drawer up and out. Lower freezer drawer www.insigniaproducts.com...
- Page 18 26.6 Cu. Ft. French Door Refrigerator 10 Remove the four screws that secure the support frame. Support frame www.insigniaproducts.com...
-
Page 19: Connecting The Water Supply
NS-RFD26SS9/NS-RFD26SS9-C 11 Pull the bottom of freezer compartment door away from the support frame, then lift the door up and out. 12 Move your refrigerator into its final position, then re-install the drawers and doors by reversing these steps. Connecting the water supply Your refrigerator comes with a water dispenser and an ice maker. - Page 20 26.6 Cu. Ft. French Door Refrigerator You will need the following tools and parts (not included): You need to purchase several items to complete this connection. You may find these items sold as a kit at your local hardware store. Phillips screwdriver Ferrule 1/4"...
- Page 21 NS-RFD26SS9/NS-RFD26SS9-C 3 Connect the 1/4" extension tubing (included) to the shutoff valve. Cold water line Pipe clamp Water line installation kit Shutoff valve 4 Turn the main water supply back on, then turn on the shutoff valve and flush out the tubing until the water runs clear.
-
Page 22: Connecting The Water Supply To Your Refrigerator
26.6 Cu. Ft. French Door Refrigerator Connecting the water supply to your refrigerator You need to purchase several items to complete this connection. You may find these items sold as a kit at your local hardware store. You can use plastic tubing, copper tubing, or stainless steel tubing. PLASTIC TUBING COPPER TUBING STAINLESS STEEL TUBING... -
Page 23: Using Your Refrigerator
NS-RFD26SS9/NS-RFD26SS9-C 3 Turn the water on and check for any leakage. If you find water drops or leakage in the connection areas, turn off the main water supply, then check the connections and tighten, if necessary. 4 Flush one gallon of water through the filter before drinking or using the water from your refrigerator. (Flush approximately five minutes.) -
Page 24: Using The Water Dispenser
26.6 Cu. Ft. French Door Refrigerator Using the water dispenser The water dispenser is located inside the left side of the refrigerator compartment. 1 Open the left refrigerator door. 2 Position you glass about 1.5" (4 cm) under the dispenser, then push the lever with the glass. Note: The water coming into your refrigerator flows through the filter under increased pressure. -
Page 25: Using The Door Baskets
NS-RFD26SS9/NS-RFD26SS9-C Using the door baskets CAUTION: Do not put too many heavy items in the door baskets. You may break the baskets. Your refrigerator has six door baskets designed to store canned liquids, bottled drinks, and packaged food. To remove or relocate a door basket: 1 To remove a basket, remove all items from the basket, lift it, then pull it out of the door. - Page 26 26.6 Cu. Ft. French Door Refrigerator 2 To install the shelf in a new location, hold the shelf with the front tilted upward, the slide the hooks on the shelf into the slots in the shelf rails and lower the shelf. www.insigniaproducts.com...
-
Page 27: Maintaining Your Refrigerator
NS-RFD26SS9/NS-RFD26SS9-C Maintaining your refrigerator Your refrigerator is designed for year-round use with only minimal cleaning and maintenance. When you first receive it, wipe the cabinet with a mild detergent and warm water, then wipe dry with a dry cloth. Do this periodically to keep your refrigerator looking new. -
Page 28: Defrosting The Freezer Compartment
26.6 Cu. Ft. French Door Refrigerator Defrosting the freezer compartment Tip: To avoid standing water when you defrost, place some towels on the floor in front of your refrigerator. Although the freezer compartment automatically defrosts, a layer of frost may occur on the compartment’s interior walls if the freezer is opened frequently or kept open too long. - Page 29 NS-RFD26SS9/NS-RFD26SS9-C To drink the freshest and cleanest water from your refrigerator, change the filter on time. 1 Shut off the water supply, then turn off the water shutoff valve on your refrigerator. 2 Turn the old water filter about 1/4 turn counter-clockwise, then pull out the filter.
- Page 30 26.6 Cu. Ft. French Door Refrigerator 4 Pull out the water filter tray, then empty the tray. Dry around the filter opening, then put the tray back in. 5 Insert the new water filter into the water filter holder. Filter holder www.insigniaproducts.com...
-
Page 31: Replacing The Led Light
NS-RFD26SS9/NS-RFD26SS9-C 6 While turning the new filter clockwise, push it all the way into the holder until it locks into place. 7 Turn on the shutoff valve and the water supply, then run water through the dispenser until the water runs clear (about five minutes). -
Page 32: Moving Your Refrigerator
26.6 Cu. Ft. French Door Refrigerator Moving your refrigerator 1 Unplug your refrigerator from the power outlet. 2 Remove all food. 3 Securely tape down all loose items inside your refrigerator. 4 Tape the door shut. 5 Make sure that your refrigerator does not tilt more than 45° from the upright position during transportation. Tips on saving energy •... - Page 33 NS-RFD26SS9/NS-RFD26SS9-C PROBLEM SOLUTION • After you install the water supply line, you should wait 12 hours before you try dispensing ice. If the water is not sufficiently cooled, your refrigerator will take longer to make ice. • Make sure that the water line is connected and the water valve open. See Connecting the water supply on page 19.
-
Page 34: General
26.6 Cu. Ft. French Door Refrigerator PROBLEM SOLUTION Heat dissipation from the condenser may make the outside feel hot. This is normal and happens if: The outside of the refrigerator is • The room temperature is high. hot. • You have too much food in your refrigerator. •... -
Page 35: One-Year Limited Warranty
During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. - Page 36 For product inquiries, please contact us with the information below: 1-877-467-4289 www.insigniaproducts.com INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2021 Best Buy. All rights reserved.
