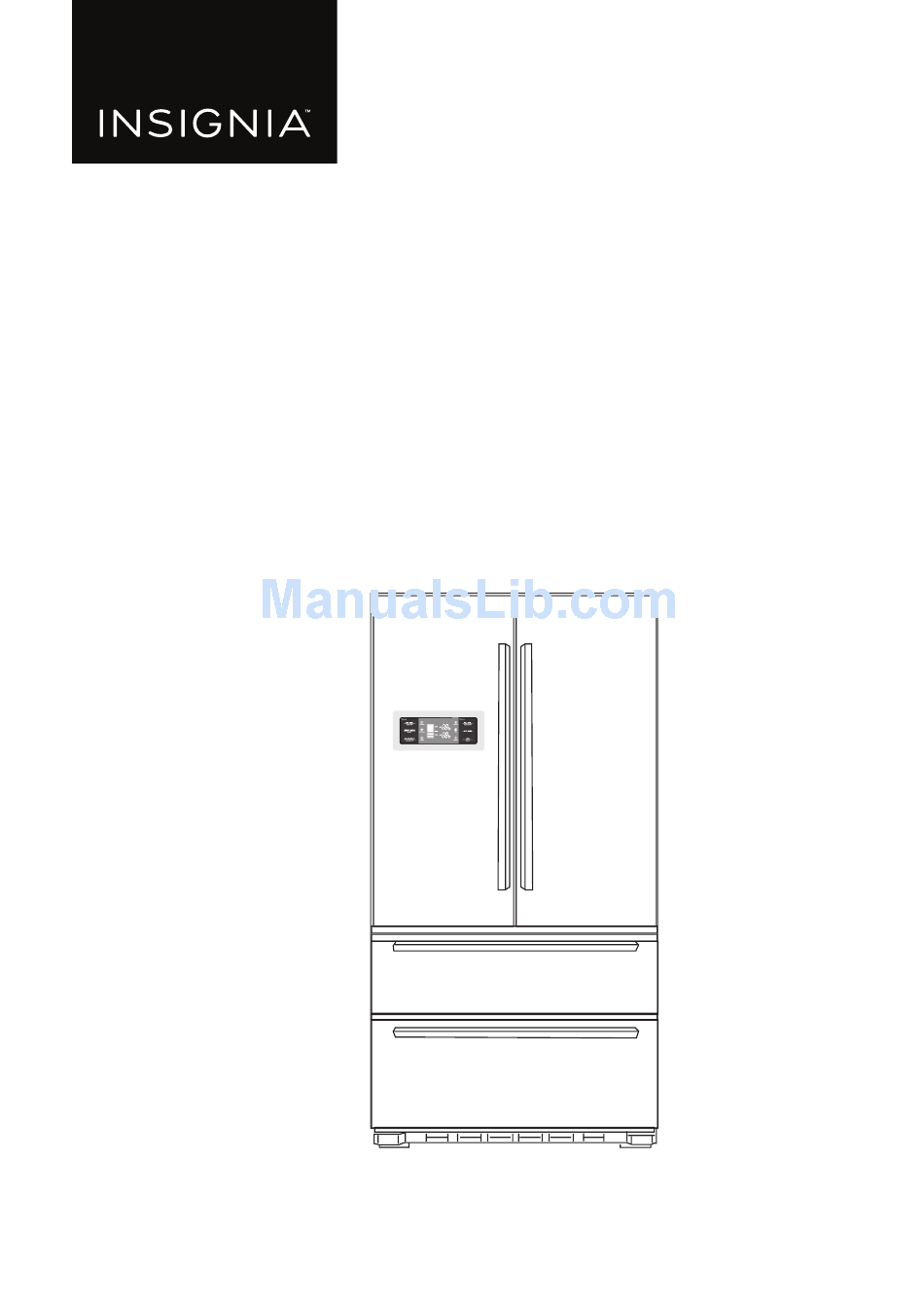

USER GUIDE
20.7 cu. ft. French Door
Refrigerator w/Freezer
Drawers
NS-RFD21SS7
Before using your new product, please read these instructions to prevent any damage.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NS-RFD21SS7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Insignia NS-RFD21SS7

Summary of Contents for Insignia NS-RFD21SS7

  • Page 1 USER GUIDE 20.7 cu. ft. French Door Refrigerator w/Freezer Drawers NS-RFD21SS7 Before using your new product, please read these instructions to prevent any damage.

  • Page 2: Table Of Contents

    Contents Introduction ............3 Important Safety Instructions.

  • Page 3: Introduction

    20.7 cu. ft. French Door Refrigerator w/Freezer Drawers Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-RFD21SS7 represents the state of the art in refrigerator design and is designed for reliable and trouble-free performance. Important Safety Instructions...
  • Page 4 NS-RFD21SS7 12 Unplug this appliance during lightning storms or when it will not be used for long periods of time. 13 Make sure that the available AC power matches the voltage requirements of this appliance. 14 Do not handle the plug with wet hands. This could result in an electric shock.

  • Page 5: Grounding Requirement

    20.7 cu. ft. French Door Refrigerator w/Freezer Drawers 4 WARNING–Do not damage the refrigerant tubing when handling, moving, or using the refrigerator. 5 WARNING–Do not use electrical appliances inside the food storage compartment of the refrigerator, unless they are of the type recommended by the manufacturer.

  • Page 6: Features

    NS-RFD21SS7 Features • 20.7 cubic foot capacity • Electronic controls with LED display • Dual-cycle and dual air-cooling • Wide door shelf design • LED lighting • Moisture retention technology Package contents • 20.7 cu. ft. French Door refrigerator •...
  • Page 7 20.7 cu. ft. French Door Refrigerator w/Freezer Drawers Interior Butter bin Cantilever rack Folded cantilever rack Sliding cantilever rack Gallon bottle rack Fruit and vegetable drawer Small drawer Big drawer Bottle rack Automatic ice maker Top freezer Bottom freezer Decorative cover Leveling feet for bottom beam www.insigniaproducts.com...

  • Page 8: Setting Up Your Refrigerator

    NS-RFD21SS7 Touch pad controls and display Refrigerator compartment indicator (Refrigerator) OFF icon Refrigerator compartment icon Refrigerator temperature AUTO MODE indicator ENERGY SAVING indicator SUPER FRZ. indicator SUPER COOL indicator Freezer Refrigerator temperature temperature control control Energy saving Auto mode mode button...

  • Page 9: Finding A Suitable Location

    20.7 cu. ft. French Door Refrigerator w/Freezer Drawers Finding a suitable location • This refrigerator is designed to be free standing only, and should not be recessed or built-in. • Allow at least 3.9 inches (10 cm) of clearance on both sides and the back of the refrigerator and 11.81 inches (30 cm) of clearance on the top.
  • Page 10 NS-RFD21SS7 Use a receptacle that accepts the grounding prong. The power cord is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this refrigerator. Using a 3-prong plug and outlet...
  • Page 11 20.7 cu. ft. French Door Refrigerator w/Freezer Drawers 2 Identify the handles. Lay all four on a flat surface. The refrigerator door handles extend higher than the freezer drawer handles. Freezer drawer handle 3.15 in. (8 cm) Refrigerator door handle 2.4 in.
  • Page 12 NS-RFD21SS7 If the doors are uneven, first try leveling the freezer. See “Leveling your refrigerator” on page 9. If the doors are still uneven, raise the uneven door, then use a pair of pliers to insert the supplied fastener-ring in the gap between the hinge-grommet and the lower hinge.
  • Page 13 20.7 cu. ft. French Door Refrigerator w/Freezer Drawers 2 Connect the other end of the water supply tubing to the water connector on your refrigerator. 5/16” water supply line (from cold water line) Water tube (refrigerator) Water connector Note: The water connector is provided with your refrigerator, the water supply line is not.

  • Page 14: Using Your Refrigerator

    NS-RFD21SS7 Using your refrigerator Notes • If the refrigerator is unplugged or loses power, you must wait three to ve minutes before restarting it. If you attempt to restart before this time delay, the refrigerator will not start. • Large amounts of food will lower the cooling e ciency of the refrigerator.

  • Page 15: Fast-Cooling Mode

    20.7 cu. ft. French Door Refrigerator w/Freezer Drawers longer the first time it is used. The ice maker checks the ice level automatically and stops making ice when the ice bin is full. • To turn the ice maker off, press the ICE-MAKER ON/OFF button again. The ICE-MAKING indicator turns off.

  • Page 16: Energy Saving Mode

    NS-RFD21SS7 Energy saving mode To save energy, this mode sets the refrigerator temperature to 44° F (7° C) and the freezer temperature to 5° F (-15° C). Press the ENERGY SAVING button. The ENERGY SAVING indicator turns on and all other modes are disabled.

  • Page 17: Adjusting The Door-Mounted Bottle Rack

    20.7 cu. ft. French Door Refrigerator w/Freezer Drawers Adjusting the door-mounted bottle rack Raise the bottle rack evenly with both hands, then pull out to remove it. Reinsert it in the reverse order at the height you want. Maintaining your refrigerator Your refrigerator is designed for year-round use with only minimal cleaning and maintenance.

  • Page 18: Removing The Big Drawer

    NS-RFD21SS7 Removing the big drawer 1 Pull out the big drawer until it stops. 2 Locate the hooks on the left and right sides of the drawer bottom. Hook Big drawer Sliding rail 3 Grip the hook with needle nose pliers or tweezers and push it up, then remove it from the groove in sliding rail.

  • Page 19: Removing, Cleaning, And Reinstalling The Ice Maker

    20.7 cu. ft. French Door Refrigerator w/Freezer Drawers 2 Press the buttons in both slots at the same time, then pull out the freezer drawer until it stops again. 3 Lift the drawer off the rails and remove it. 4 Reverse this procedure to reinstall the drawer. Removing, cleaning, and reinstalling the ice maker lf the ice maker isn't used for a long period of time, the ice cubes that are produced might have unpleasant smell.

  • Page 20: Defrosting The Freezer

    NS-RFD21SS7 1 Turn the dial to the Unlocked position, then pull to remove the ice maker. Locked position Unlocked position Rack Ice maker 2 Rinse the ice maker in clean, warm (not hot) water (don't use detergent). 3 Air dry the ice maker completely, otherwise water droplets in the ice maker might cause it to function abnormally.

  • Page 21: Moving Your Refrigerator

    20.7 cu. ft. French Door Refrigerator w/Freezer Drawers 4 Leave the door open slightly to avoid possible formation of condensation, mold, or odor. Caution Use extreme caution with children. The refrigerator should not be accessible to child's play. Moving your refrigerator 1 Turn off the refrigerator and unplug it from the wall outlet.

  • Page 22: Tips On Saving Energy

    NS-RFD21SS7 5 Reinstall the big drawer and close it. 6 To reinstall, reverse this procedure, then turn the ice maker on. Tips on saving energy • Locate your refrigerator in the coolest area of the room, away from heat producing appliances or heating ducts and out of the direct sunlight.

  • Page 23: Troubleshooting

    20.7 cu. ft. French Door Refrigerator w/Freezer Drawers The light-wave freshness lamps turn on when the refrigerator door is opened. The lamps turn off when the door has been open for one minute or more. After the refrigerator door is closed, the lamps cycle on for 10 minutes, then turn off for five minutes.
  • Page 24 NS-RFD21SS7 Problem Possible cause Possible solution Food in the refrigerator The thermostat is set too cold. Set the thermostat to a warmer setting. compartment is freezing. Food in the refrigerator The door has been opened too Make sure that the door is closed properly.

  • Page 25: Specifications

    20.7 cu. ft. French Door Refrigerator w/Freezer Drawers Problem Possible cause Possible solution There is a bubbling or This is normal. gurgling sound, like water boiling. Vibrations. The refrigerator is not on a Make sure that the refrigerator is on a level, sturdy surface. level or sturdy surface.

  • Page 26: One-Year Limited Warranty

    Products and parts replaced under this warranty become the property of Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Insignia Product during the Warranty Period.
  • Page 27 FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND...
  • Page 28 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC V ENGLISH 7601 Penn Ave South, Richfield, MN 55423 U.S.A. 16-0740 ©2016 Best Buy. All rights reserved.
