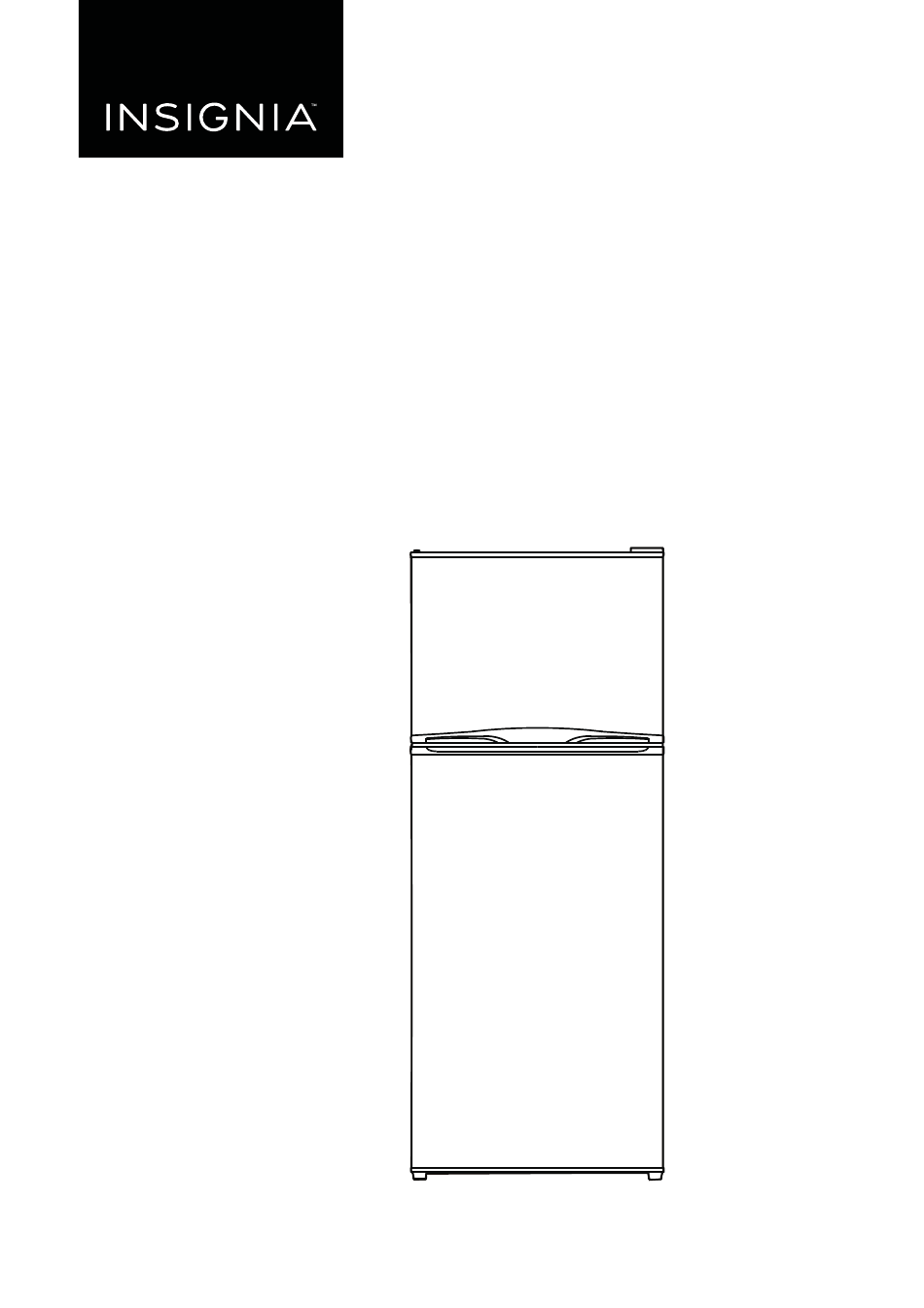

USER GUIDE
9.9 and 11.5 cu. ft. Top
Mount Refrigerator
NS-RTM10WH7/NS-RTM10BK8/
NS-RTM10WH7-C/NS-RTM12SS7-C
Before using your new product, please read these instructions to prevent any damage.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NS-RTM10BK8 and is the answer not in the manual?

Questions and answers

Summary of Contents for Insignia NS-RTM10BK8

  • Page 1 USER GUIDE 9.9 and 11.5 cu. ft. Top Mount Refrigerator NS-RTM10WH7/NS-RTM10BK8/ NS-RTM10WH7-C/NS-RTM12SS7-C Before using your new product, please read these instructions to prevent any damage.
  • Page 2: Table Of Contents

    ONE-YEAR LIMITED WARRANTY........22 Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-RTM10WH7, NS-RTM10BK8, NS-RTM10WH7-C, or NS-RTM12SS7-C, represents the state of the art in refrigerator design and is designed for reliable and trouble-free performance.
  • Page 3: Important Safety Instructions

    9.9 and 11.5 cu. ft. Top Mount Refrigerator Important Safety Instructions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your refrigerator. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your refrigerator.
  • Page 4 NS-RTM10WH7/NS-RTM10BK8/NS-RTM10WH7-C/NS-RTM12SS7-C 14 Do not handle the plug with wet hands. This could result in an electric shock. 15 Unplug the power cord by holding the plug, never by pulling the cord. 16 Do not turn the appliance on or off by plugging or unplugging the power cord.
  • Page 5: Grounding Requirement

    9.9 and 11.5 cu. ft. Top Mount Refrigerator 8 This appliance can be used by children age 8 years and older and persons with reduced physical or mental capabilities or lack of experience and knowledge if they are given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
  • Page 6: Features

    NS-RTM10WH7/NS-RTM10BK8/NS-RTM10WH7-C/NS-RTM12SS7-C Features • 9.9 or 11.5 cubic foot capacity • Electronic control • Wire shelf for freezer • Glass spill-safe shelves (2) • Glass crisper cover • Crisper drawers (2) • LED lighting • Frost free Package contents • 9.9 or 11.5 cu. ft. top mount refrigerator •...
  • Page 7: Setting Up Your Refrigerator

    9.9 and 11.5 cu. ft. Top Mount Refrigerator Setting up your refrigerator Before using your refrigerator 1 Remove the interior packing. 2 Let the refrigerator stand upright for approximately four hours before connecting it to power. This reduces the possibility of a malfunction in the cooling system from improper handling during transportation.
  • Page 8 NS-RTM10WH7/NS-RTM10BK8/NS-RTM10WH7-C/NS-RTM12SS7-C Use a receptacle that accepts the grounding prong. The power cord is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this refrigerator. Using a 3-prong plug and outlet...
  • Page 9: Using Your Refrigerator

    9.9 and 11.5 cu. ft. Top Mount Refrigerator Using your refrigerator Setting the refrigerator temperature Item Description SET button Press to change the refrigerator setting from 1 (cold) to 5 (coldest). LED indicators Light to show the current refrigerator setting. •...
  • Page 10: Using The Freezer Compartment

    NS-RTM10WH7/NS-RTM10BK8/NS-RTM10WH7-C/NS-RTM12SS7-C • Turn the control to adjust the freezer temperature. Allow 24 hours for the freezer to adjust and stabilize. Using the freezer compartment • Place frozen food into the freezer as quickly as possible after purchase. • Follow package instructions regarding storage times. The storage life of frozen foods varies and the recommended storage time should not be exceeded.
  • Page 11 9.9 and 11.5 cu. ft. Top Mount Refrigerator 1 Unplug your refrigerator and remove all food from the door shelves. 2 Remove the top cap and the top hinge cover, then unscrew and remove the top hinge and shim. Keep the screws to reuse. Top hinge cover Top cap Top hinge...
  • Page 12 NS-RTM10WH7/NS-RTM10BK8/NS-RTM10WH7-C/NS-RTM12SS7-C 4 Unscrew the two screws holding the center hinge, remove the hinge and center hinge shim, then lift the refrigerator door up and away from your refrigerator. Save the screws to reuse. Center hinge shim Center hinge 5 Unscrew the two screws holding the bottom right hinge, then remove the bottom right hinge.
  • Page 13 9.9 and 11.5 cu. ft. Top Mount Refrigerator 6 Remove the screw covers from the bottom left side of the refrigerator and use them to cover the screw holes on the bottom right side of the refrigerator. 7 Attach the bottom left hinge with the screws you removed from the bottom right hinge.
  • Page 14 NS-RTM10WH7/NS-RTM10BK8/NS-RTM10WH7-C/NS-RTM12SS7-C 10 Place the refrigerator door on the bottom left hinge. Make sure that the door is aligned horizontally and vertically. Center hinge Center hinge shim www.insigniaproducts.com...
  • Page 15 9.9 and 11.5 cu. ft. Top Mount Refrigerator 11 Attach the center hinge shim to the back of the center hinge, then align with holes on the left side of the refrigerator and secure it with the screws you removed from the right side. Center hinge shim Center hinge 12 Place the freezer door on the center hinge.
  • Page 16 NS-RTM10WH7/NS-RTM10BK8/NS-RTM10WH7-C/NS-RTM12SS7-C 13 Attach the top hinge and shim with the screws you removed previously, then replace the hinge cover and top cap. Hinge cover Top cap Top hinge Top hinge shim www.insigniaproducts.com...
  • Page 17: Maintaining Your Refrigerator

    9.9 and 11.5 cu. ft. Top Mount Refrigerator Maintaining your refrigerator Your refrigerator is designed for year-round use with only minimal cleaning and maintenance. When you first receive it, wipe the cabinet with a mild detergent and warm water, then wipe dry with a dry cloth. Do this periodically to keep your refrigerator looking new.
  • Page 18: Shutting Down Your Refrigerator - Long Vacations (Several Months)

    NS-RTM10WH7/NS-RTM10BK8/NS-RTM10WH7-C/NS-RTM12SS7-C Shutting down your refrigerator - long vacations (several months) 1 Turn off the refrigerator and unplug it from the wall outlet. 2 Remove all food. 3 Clean the refrigerator. 4 Leave the door open slightly to avoid possible formation of condensation, mold, or odor.
  • Page 19: Troubleshooting

    9.9 and 11.5 cu. ft. Top Mount Refrigerator Troubleshooting Caution Do not try to repair your refrigerator yourself. Doing so invalidates the warranty. Error codes LED display Problem LED 1 and LED 2 lit Temperature sensor circuit LED 1 and LED 3 lit Freezer defrost sensor LED 1 and LED 4 lit Ambient temperature sensor...
  • Page 20 NS-RTM10WH7/NS-RTM10BK8/NS-RTM10WH7-C/NS-RTM12SS7-C Problem Possible cause Possible solution Food in the refrigerator The door has been opened too Make sure that the door is closed properly. compartment is not cold. often or was not closed properly. You have just added a large Allow time for the new food to cool, then check again.
  • Page 21: Specifications

    9.9 and 11.5 cu. ft. Top Mount Refrigerator Specifications Dimensions (WxDxH) 9.9 cu.ft. - 24 x 26.1 x 59.8 in. (61 x 66.3 x 151.9 cm) 11.5 cu.ft. - 24 x 28.9 x 59.8 in.(61 x 73.3 x 151.9 cm) Weight 9.9 cu.ft.
  • Page 22: One-Year Limited Warranty

    Products and parts replaced under this warranty become the property of Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Insignia Product during the Warranty Period.
  • Page 23 FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND...
  • Page 24 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC V3 ENGLISH 7601 Penn Ave South, Richfield, MN 55423 U.S.A. 17-0191 ©2017 Best Buy. All rights reserved.
