Summary of Contents for Insignia NS-RSS26SS0

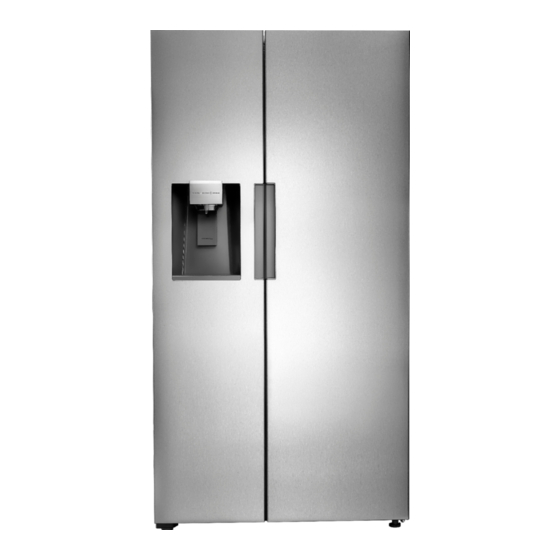

- Page 1 USER GUIDE 26.3 Cu. Ft. Side-by-Side Refrigerator NS-RSS26SS0/NS-RSS26WH0 Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
Contents Introduction ..................3 IMPORTANT SAFETY INSTRUCTIONS . -
Page 3: Introduction
NS-RSS26SS0/NS-RSS26WH0 26.3 Cu. Ft. Side-by-Side Refrigerator Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-RSS26SS0/NS-RSS26WH0 represents the state of the art in refrigerator design and is designed for reliable and trouble-free performance. IMPORTANT SAFETY INSTRUCTIONS Warning: risk of fire/flammable materials... - Page 4 26.3 Cu. Ft. Side-by-Side Refrigerator WARNINGS - ELECTRICAL • Do not pull on the power cord when unplugging the refrigerator. Firmly grasp the plug and pull it from the socket directly. • To ensure safe use, do not damage the power cord or use the power cord when it is damaged or worn.
-
Page 5: Grounding Requirement
NS-RSS26SS0/NS-RSS26WH0 • To prevent children from being locked inside, keep keys out of the reach of children and not in the vicinity of the refrigerator. WARNINGS - DISPOSAL Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is... -
Page 6: Features
26.3 Cu. Ft. Side-by-Side Refrigerator Features Package contents • 26.3 cu. ft. Side-by-Side Refrigerator • Water Filter (1) • Wrench (door adjustment) • User Guide Dimensions www.insigniaproducts.com... -
Page 7: Interior
NS-RSS26SS0/NS-RSS26WH0 Interior Note: The illustrations shown in this user guide are only for reference. The actual product may differ slightly. Refrigerator compartment Freezer compartment Ice storage Refrigerator LED light Water filter Deli drawer Ice/water dispenser Door tray Glass shelf Door tray... -
Page 8: Exterior
26.3 Cu. Ft. Side-by-Side Refrigerator Exterior Refrigerator door Ice/Water dispenser control panel Ice/Water dispenser Handles Freezer door www.insigniaproducts.com... -
Page 9: Control Panel
NS-RSS26SS0/NS-RSS26WH0 Control panel The control panel is located on the freezer door, just above the handle. The first time you connect your refrigerator to power, the control panel icons light for three seconds and a buzzer sounds. When you open the refrigerator compartment door, the control panel lights. -
Page 10: Setting Up Your Refrigerator
26.3 Cu. Ft. Side-by-Side Refrigerator ITEM DESCRIPTION CUBED button and • Press to select ice cubes to be dispensed. indicator • Indicator lights when ice cubes are selected . WATER button and • Press to select cold water to be dispensed. indicator •... -
Page 11: Providing Correct Ventilation
NS-RSS26SS0/NS-RSS26WH0 Providing correct ventilation Your refrigerator needs at least 3/8 in. (1 cm) between it and all surrounding walls and at least 2 in. (5 cm) between it and the ceiling. 2" (5 cm) 2" (5 cm) 3/8" 3/8" (1 cm) (1 cm) www.insigniaproducts.com... -
Page 12: Providing Room For Doors To Open
26.3 Cu. Ft. Side-by-Side Refrigerator Providing room for doors to open Make sure that you have enough room in front of your refrigerator to swing the doors open. 35.6" (91.1 cm) 130° 61.4" (156 cm) Providing the correct power source Check your power outlet. -
Page 13: Leveling Your Refrigerator
NS-RSS26SS0/NS-RSS26WH0 Leveling your refrigerator Leveling your refrigerator is important. If you do not level your refrigerator during installation, the doors may not close or seal correctly, causing cooling, frost, and moisture problems. CAUTION: The rollers are not casters. Use the rollers to move your refrigerator forward or backward. Do not use the rollers to move your refrigerator from side to side. -
Page 14: Leveling The Refrigerator Door (Optional)
26.3 Cu. Ft. Side-by-Side Refrigerator Leveling the refrigerator door (optional) Leveling your refrigerator door is important. If you do not level your refrigerator door during installation, the doors may not close or seal correctly which can cause cooling, frost, or moisture problems. The door is not level You need the following tool to level the refrigerator door: Wrench (provided) -
Page 15: Connecting The Water Supply
NS-RSS26SS0/NS-RSS26WH0 Connecting the water supply Your refrigerator comes with a water dispenser and an ice maker. To use these features, you need to connect your refrigerator to a drinking (potable) water supply. In order for the ice maker to operate correctly, the water pressure needs to be between 30 and 125 psi. - Page 16 26.3 Cu. Ft. Side-by-Side Refrigerator 3 Connect the 1/4" extension tubing (included) to the shutoff valve. Cold water line Pipe clamp Water line installation kit Shutoff valve 4 Turn the main water supply back on, then turn on the shutoff valve and flush out the tubing until the water runs clear. Note: The initial dark discoloration of water is normal.
-
Page 17: Connecting The Water Supply To Your Refrigerator
NS-RSS26SS0/NS-RSS26WH0 Connecting the water supply to your refrigerator You need to purchase several items to complete this connection. You may find these items sold as a kit at your local hardware store. You can use plastic tubing, copper tubing, or stainless steel tubing. - Page 18 26.3 Cu. Ft. Side-by-Side Refrigerator 4 Flush one gallon of water through the filter before drinking or using the water from your refrigerator. (Flush approximately five minutes.) To flush, press a large glass or cup against the water dispenser lever. Fill the glass, then empty it into the kitchen sink. Repeat until you dispense about one gallon of water.
-
Page 19: Using Your Refrigerator
If an error code is displayed on the temperature readout on the control panel, refer to Error codes on page 28 for additional information. If this should happen, the refrigerator and freezer functions may still work, but you should contact your place of purchase or Insignia customer service at 1-877-467-4289. Switching between Fahrenheit and Celsius To toggle between Celsius and Fahrenheit on the display, press and hold the ENERGY SAVING button for three seconds. -
Page 20: Using Super Cool To Speed Refrigerator Cooling
26.3 Cu. Ft. Side-by-Side Refrigerator • To dispense water, press the WATER button on the door dispenser, then press a glass or container into the dispenser lever. Note: The water coming into your refrigerator flows through the filter under pressure. When you dispense water, the pressure decreases which makes bubbles. -
Page 21: Using The Door Trays
NS-RSS26SS0/NS-RSS26WH0 Using the door trays CAUTION: Do not put too many heavy items in the door trays. You may break the trays. Your refrigerator has six door trays designed to store canned liquids, bottled drinks, and packaged food. 1 To remove a tray, remove all items from the tray, then press the sides of the tray in slightly while lifting up to pull it out of the door. -
Page 22: Maintaining Your Refrigerator
26.3 Cu. Ft. Side-by-Side Refrigerator Maintaining your refrigerator Your refrigerator is designed for year-round use with only minimal cleaning and maintenance. When you first receive it, wipe the cabinet with a mild detergent and warm water, then wipe dry with a dry cloth. Do this periodically to keep your refrigerator looking new. -
Page 23: Defrosting The Freezer Compartment
NS-RSS26SS0/NS-RSS26WH0 Cleaning the ice storage bin You may need to clean the ice storage bin to remove blockages or break up ice clumps that may hinder ice dispensing. The ice storage bin should be cleaned regularly to prevent bad tasting or smelling ice. - Page 24 26.3 Cu. Ft. Side-by-Side Refrigerator Carefully remove the plastic cap from the new filter before installation. 1 Press and hold the sides of the filter box, then pull down to remove the box. 2 Press and rotate the old filter counterclockwise to remove the filter. 3 Press the new filter into the compartment then rotate clockwise to install the filter.
-
Page 25: Replacing The Led Light
NS-RSS26SS0/NS-RSS26WH0 • Check for compliance with the state and local laws and regulations. • Systems must be installed and operated in accordance with the manufacturer’s recommended procedures and guidelines. • Spent adsorption media will not be regenerated and used. Warranty •... -
Page 26: Tips On Storing Food
26.3 Cu. Ft. Side-by-Side Refrigerator Tips on storing food • Always store cooked meats on a refrigerator shelf above raw meats to avoid bacterial transfer. Keep raw meat on a plate which is large enough to collect juices, and cover the plate with cling film or foil. •... - Page 27 NS-RSS26SS0/NS-RSS26WH0 PROBLEM SOLUTION The compressor runs longer if: • The room temperature is high. • You just added a large amount of food. Wait for the food to freeze, then check again. The compressor runs for a long • You open and close the door frequently.
-
Page 28: Error Codes
• The doors are not closed properly, resulting in too much frost. Error codes If an error code is displayed on the control panel, contact your place of purchase or Insignia customer service at 1-877-467-4289. ERROR CODE ERROR DESCRIPTION... -
Page 29: Specifications
NS-RSS26SS0/NS-RSS26WH0 ERROR CODE ERROR DESCRIPTION Temperature sensor fault in freezer compartment Defrost sensor fault in freezer compartment Communication fault in display board Ambient temperature fault Humidity sensor fault Ice maker sensor fault Communication fault in ice maker board Specifications General Exterior dimensions (H x W ×... - Page 30 26.3 Cu. Ft. Side-by-Side Refrigerator Chlorine Taste and Odor Reduction This system has been tested according to NSF/ANSI 42 and 53 for reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42 and 53.
-
Page 31: One-Year Limited Warranty
During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. - Page 32 For product inquiries, please contact us with the information below: 1-877-467-4289 www.insigniaproducts.com INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2019 Best Buy. All rights reserved.
