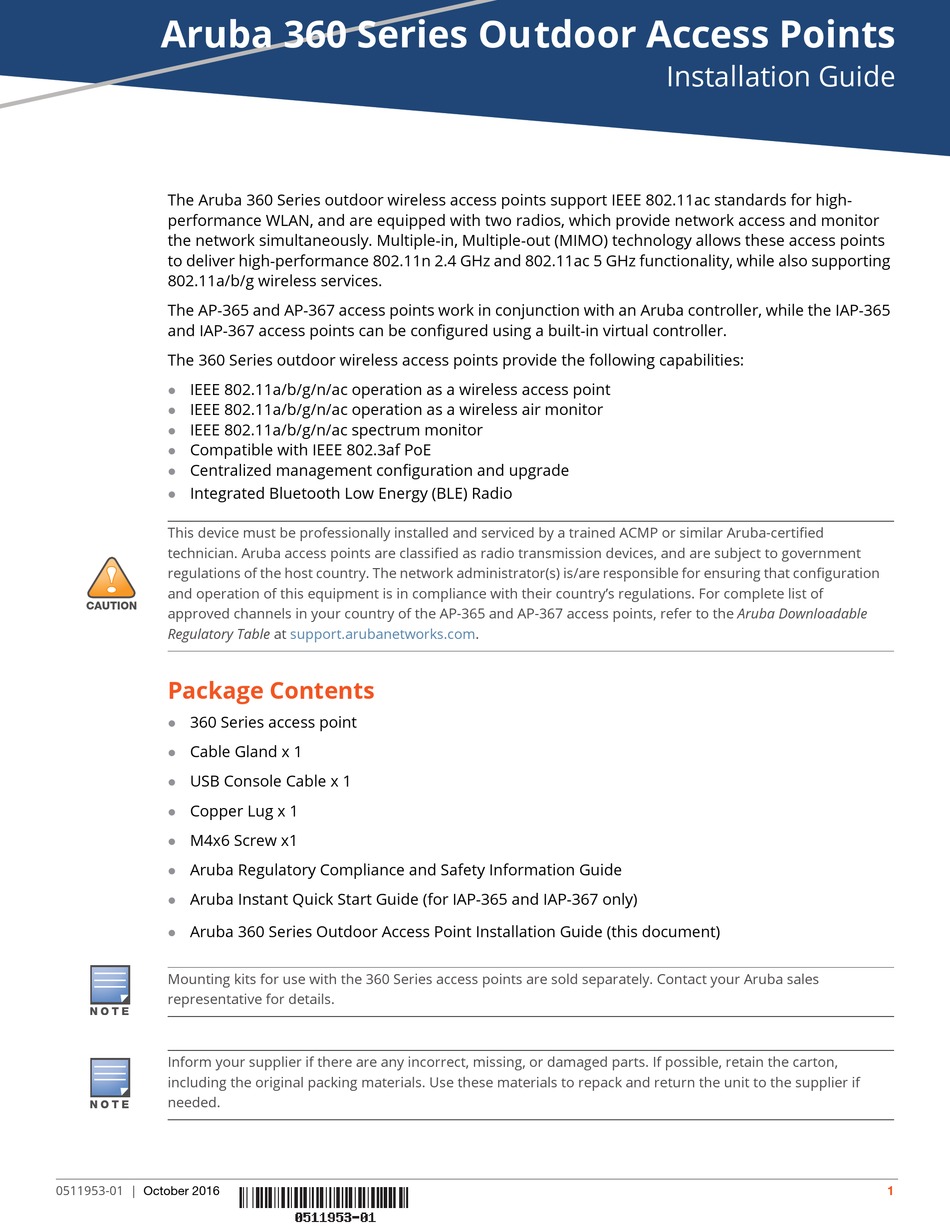

Aruba IAP-367 Installation Manual

Aruba 360 Series Outdoor Access Points
The Aruba 360 Series outdoor wireless access points support IEEE 802.11ac standards for high-
performance WLAN, and are equipped with two radios, which provide network access and monitor
the network simultaneously. Multiple-in, Multiple-out (MIMO) technology allows these access points
to deliver high-performance 802.11n 2.4 GHz and 802.11ac 5 GHz functionality, while also supporting
802.11a/b/g wireless services.
The AP-365 and AP-367 access points work in conjunction with an Aruba controller, while the IAP-365
and IAP-367 access points can be configured using a built-in virtual controller.
The 360 Series outdoor wireless access points provide the following capabilities:
IEEE 802.11a/b/g/n/ac operation as a wireless access point

IEEE 802.11a/b/g/n/ac operation as a wireless air monitor

IEEE 802.11a/b/g/n/ac spectrum monitor

Compatible with IEEE 802.3af PoE

Centralized management configuration and upgrade

Integrated Bluetooth Low Energy (BLE) Radio

This device must be professionally installed and serviced by a trained ACMP or similar Aruba-certified
technician. Aruba access points are classified as radio transmission devices, and are subject to government
regulations of the host country. The network administrator(s) is/are responsible for ensuring that configuration
!
and operation of this equipment is in compliance with their country's regulations. For complete list of
CAUTION
approved channels in your country of the AP-365 and AP-367 access points, refer to the Aruba Downloadable
Regulatory Table at support.arubanetworks.com.
Package Contents
360 Series access point

Cable Gland x 1

USB Console Cable x 1

Copper Lug x 1

M4x6 Screw x1

Aruba Regulatory Compliance and Safety Information Guide

Aruba Instant Quick Start Guide (for IAP-365 and IAP-367 only)

Aruba 360 Series Outdoor Access Point Installation Guide (this document)

Mounting kits for use with the 360 Series access points are sold separately. Contact your Aruba sales
representative for details.
Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton,
including the original packing materials. Use these materials to repack and return the unit to the supplier if
needed.
0511953-01 |
October 2016
Installation Guide
1
