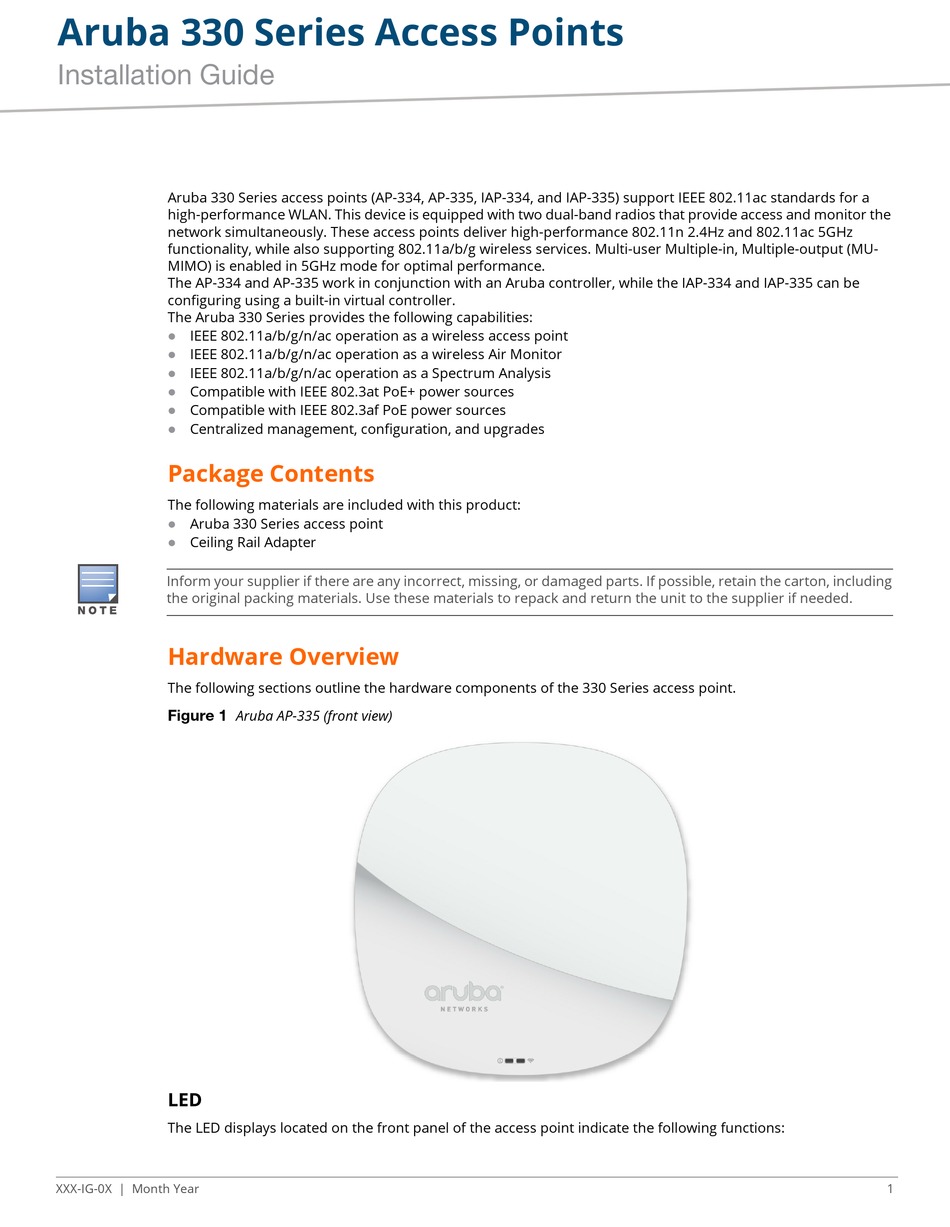

Aruba 330 Series Access Points
Installation Guide
Aruba 330 Series access points (AP-334, AP-335, IAP-334, and IAP-335) support IEEE 802.11ac standards for a
high-performance WLAN. This device is equipped with two dual-band radios that provide access and monitor the
network simultaneously. These access points deliver high-performance 802.11n 2.4Hz and 802.11ac 5GHz
functionality, while also supporting 802.11a/b/g wireless services. Multi-user Multiple-in, Multiple-output (MU-
MIMO) is enabled in 5GHz mode for optimal performance.
The AP-334 and AP-335 work in conjunction with an Aruba controller, while the IAP-334 and IAP-335 can be
configuring using a built-in virtual controller.
The Aruba 330 Series provides the following capabilities:
IEEE 802.11a/b/g/n/ac operation as a wireless access point

IEEE 802.11a/b/g/n/ac operation as a wireless Air Monitor

IEEE 802.11a/b/g/n/ac operation as a Spectrum Analysis

Compatible with IEEE 802.3at PoE+ power sources

Compatible with IEEE 802.3af PoE power sources

Centralized management, configuration, and upgrades

Package Contents
The following materials are included with this product:
Aruba 330 Series access point

Ceiling Rail Adapter

Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including
the original packing materials. Use these materials to repack and return the unit to the supplier if needed.
Hardware Overview
The following sections outline the hardware components of the 330 Series access point.

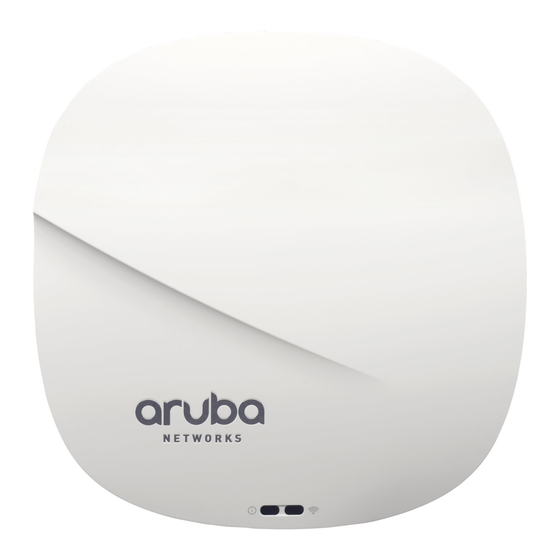

Figure 1
LED
The LED displays located on the front panel of the access point indicate the following functions:
XXX-IG-0X | Month Year
Aruba AP-335 (front view)
1
