Aruba 503H Hospitality Access Points
Installation Guide
The Aruba AP-503H Access Points are high-performance, multi-radio wireless devices that can be deployed in
either controller-based (AOS) or controller-less (Instant) modes in hospitality and branch or teleworker
deployments. The Aruba AP-503H Hospitality Access Points support the full 802.11ax (Wi-Fi 6) featureset with
dual 2x2 MIMO radios, deliver locationing functions, and can serve as a flexible IOT gateway, delivered through
the built-in BLE and 802.15.4 radio.
A variety of mounting scenarios are supported by a range of mount kits (sold separately). Make sure to purchase
the correct mount kit for the intended deployment of the AP.
Hardware Overview
The following sections outline the hardware components of the Aruba AP-503H Access Points.

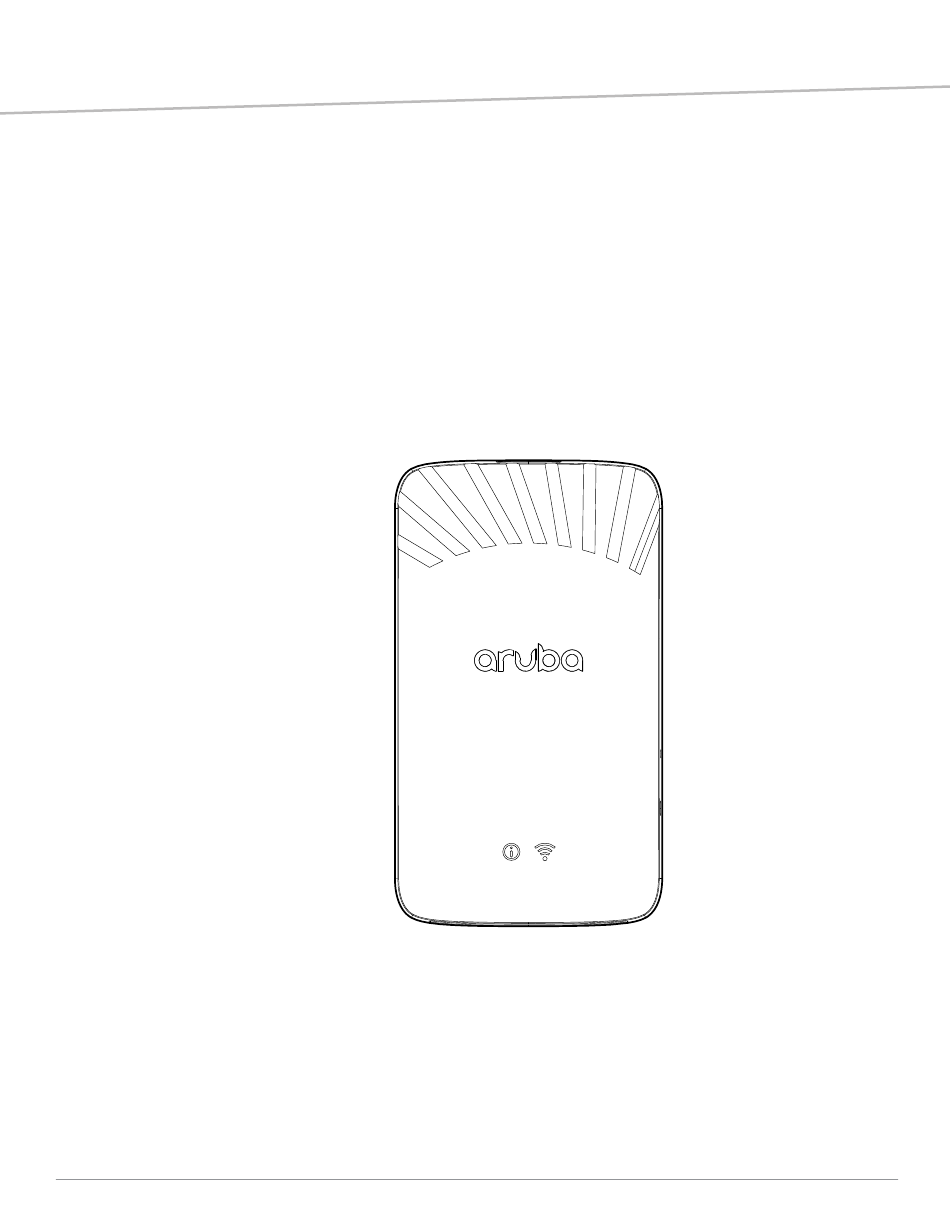

Figure 1
Installation Guide | July 2020
AP-503H (front view)
1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 503H and is the answer not in the manual?

Questions and answers

Summary of Contents for Aruba 503H

  • Page 1 Aruba 503H Hospitality Access Points Installation Guide The Aruba AP-503H Access Points are high-performance, multi-radio wireless devices that can be deployed in either controller-based (AOS) or controller-less (Instant) modes in hospitality and branch or teleworker deployments. The Aruba AP-503H Hospitality Access Points support the full 802.11ax (Wi-Fi 6) featureset with dual 2x2 MIMO radios, deliver locationing functions, and can serve as a flexible IOT gateway, delivered through the built-in BLE and 802.15.4 radio.
  • Page 2 AP-503H (side and rear view) Figure 2 Security Screw Console Reset Adapter AP-503H (bottom view) Figure 3 Aruba 503H Hospitality Access Points | Installation Guide...
  • Page 3 Force the LEDs into off mode and back to software defined mode by pressing the reset button for a short duration. Warning: pressing the reset button for longer than 10 seconds may cause the AP to reset and return to factory default state. | Installation Guide Aruba 503H Hospitality Access Points...
  • Page 4: Console Port

    During the normal operation of the access point, shortly press and release the reset button using a small, narrow object, such as a paperclip. Bluetooth Low Energy / Zigbee Radio Aruba AP-503H Access Points are equipped with an integrated BLE and Zigbee radio that provides the following capabilities: location and asset-tracking applications ...
  • Page 5: Before You Begin

    FCC for immediate termination of operation and may be subject to forfeiture (47 CFR 1.80). Pre-Installation Checklist Before installing your Aruba AP-503H Access Points, be sure that you have the following (not included with the AP): A mount kit compatible with the AP and mount surface ...
  • Page 6: Access Point Installation

    Failure to properly install this product may result in physical injury and/or damage to property. Tous les points d'accès Aruba doivent impérativement être installés par un professionnel agréé. Ce dernier doit s'assurer que l'appareil est mis à la terre et que le circuit de mise à la terre est conforme aux codes électriques nationaux en vigueur.
  • Page 7: Verifying Post-Installation Connectivity

     If a power adapter other than the Aruba-approved adapter is used in the US or Canada, it should be NRTL listed, with an output rated 12V DC, minimum 1.045A, marked “LPS” and “Class 2,” and suitable for plugging into a standard power receptacle in the US and Canada.
  • Page 8: Regulatory Information

     Aruba Networks provides a multi-language document that contains country-specific restrictions and additional safety and regulatory information for all Aruba access points. This document can be viewed or downloaded at www.arubanetworks.com. Changes or modifications to this unit not expressly approved by the party responsible for regulatory compliance could void the user’s authority to operate this equipment.
  • Page 9 23 dBm 5470-5725 30 dBm 5725-5850 14 dBm Lower power radio LAN product operating in 2.4 GHz and 5 GHz bands. Please refer to the Aruba AP-503H access points OS User Guide/Instant User Guide for details on restrictions. Japan Korean Mexico La operación de este equipo está...
  • Page 10: Нормативные Требования Евразийского Экономического Союза

    «HEWLETT-PACKARD Bel» ЖШС, Беларусь Республикасы, 220030, Минск қ., Интернациональная көшесі, 36/ 1, Телефон/факс: +375 17 392 28 20 ЖШС «Хьюлетт-Паккард (К)», Қазақстан Республикасы, 050040, Алматы к., Бостандык ауданы, Әл-Фараби даңғ ылы, 77/7, Телефон/факс: +7 (727) 355 35 50 Aruba 503H Hospitality Access Points | Installation Guide...
  • Page 11 FCC for immediate termination of operation and may be subject to forfeiture (47 CFR 1.80). The network administrator(s) is/are responsible for ensuring that this device operates in accordance with local/ regional laws of the host domain. | Installation Guide Aruba 503H Hospitality Access Points...
  • Page 12: Contact Aruba

    $10.00 to: Hewlett Packard Enterprise Company Attn: General Counsel 6280 America Center Dr. San Jose, CA 95002 Warranty This hardware product is protected by an Aruba warranty. For more details visit www.hpe.com/us/en/support.html Aruba 503H Hospitality Access Points | Installation Guide...
