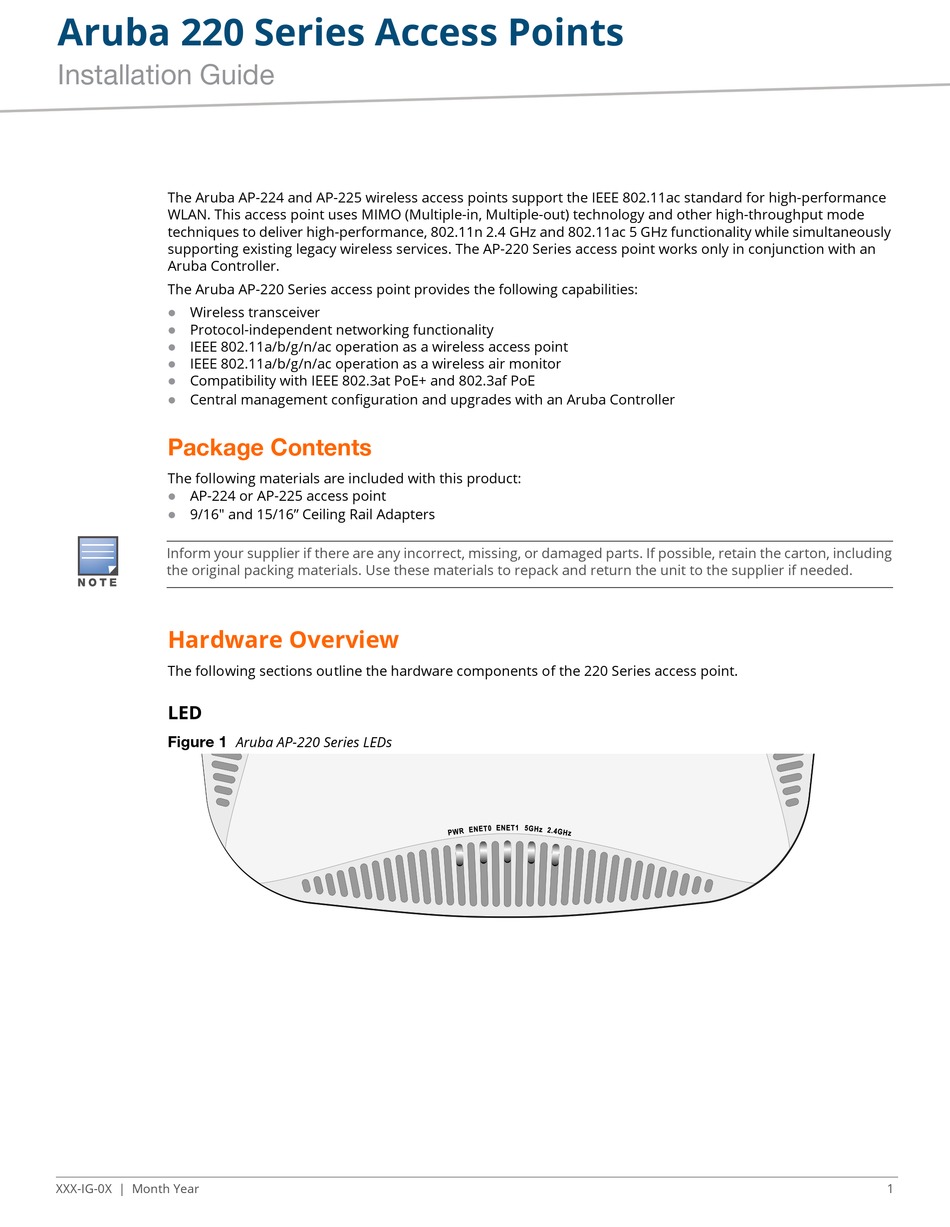

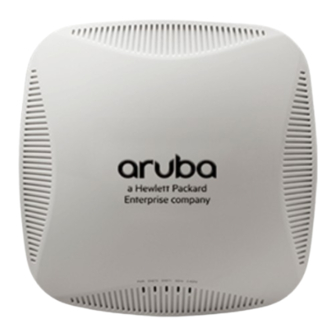

Aruba 220 Series Access Points
Installation Guide
The Aruba AP-224 and AP-225 wireless access points support the IEEE 802.11ac standard for high-performance
WLAN. This access point uses MIMO (Multiple-in, Multiple-out) technology and other high-throughput mode
techniques to deliver high-performance, 802.11n 2.4 GHz and 802.11ac 5 GHz functionality while simultaneously
supporting existing legacy wireless services. The AP-220 Series access point works only in conjunction with an
Aruba Controller.
The Aruba AP-220 Series access point provides the following capabilities:
Wireless transceiver
Protocol-independent networking functionality
IEEE 802.11a/b/g/n/ac operation as a wireless access point
IEEE 802.11a/b/g/n/ac operation as a wireless air monitor
Compatibility with IEEE 802.3at PoE+ and 802.3af PoE
Central management configuration and upgrades with an Aruba Controller
Package Contents
The following materials are included with this product:
AP-224 or AP-225 access point
9/16" and 15/16" Ceiling Rail Adapters
Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including
the original packing materials. Use these materials to repack and return the unit to the supplier if needed.
Hardware Overview
The following sections outline the hardware components of the 220 Series access point.
LED
Figure 1
XXX-IG-0X | Month Year
Aruba AP-220 Series LEDs
ENET1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 220 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Aruba 220 Series

  • Page 1 WLAN. This access point uses MIMO (Multiple-in, Multiple-out) technology and other high-throughput mode techniques to deliver high-performance, 802.11n 2.4 GHz and 802.11ac 5 GHz functionality while simultaneously supporting existing legacy wireless services. The AP-220 Series access point works only in conjunction with an Aruba Controller.
  • Page 2: External Antenna Connectors

    The AP-220 Series is equipped with five LEDs that indicate the status of the various components of the AP. Table 1 AP-220 Series Series LED Meanings Color/State Meaning No power to the AP Error Condition Flashing Device booting, not ready...
  • Page 3: Usb Interface

    USB Interface Kensington Lock External antennas for this device must be installed by an Aruba Certified Mobility Professional (ACMP) or other Aruba-certified technician, using manufacturer-approved antennas only. The Equivalent Isotropically Radiated Power (EIRP) levels for all external antenna devices must not exceed the regulatory limit set by the host country/domain.
  • Page 4 DC Power Socket If PoE is not available, an optional Aruba AP AC-DC adapter kit (sold separately) can be used to power the AP-220 Series. Additionally, a locally-sourced AC-to-DC adapter (or any DC source) can be used to power this device, as long as it...
  • Page 5: Power Modes

    Power Modes The AP-220 Series can operate in two power modes. The AP’s mode is not configurable and is determined by the AP based on the amount of power available. The two modes are as follows: Full Power: The AP is receiving power from an 802.3at PoE source or is powered using the optional AC-DC ...
  • Page 6: Verifying Pre-Installation Connectivity

    Identifying Specific Installation Locations You can mount the AP-220 Series access point on a wall or on the ceiling. Use the AP placement map generated by Aruba’s RF Plan software application to determine the proper installation location(s). Each location should be as close as possible to the center of the intended coverage area and should be free from obstructions or obvious sources of interference.
  • Page 7: Access Point Installation

    être utilisé ou situé à proximité d'autres antennes ou émetteurs-récepteurs. Access Point Installation The AP-220 Series ships with two ceiling rail adapters for 9/16” and 15/16” ceiling rails. Additional wall mount adapters amd ceiling rail adapters for other rail styles are available as accessory kits.
  • Page 8: Connecting Required Cables

    7. On the AP-224, install the external antennas according to the manufacturer’s instructions, and connect the antennas to the antenna interfaces of the AP. Connecting Required Cables Install cables in accordance with all applicable local and national regulations and practices. Aruba 220 Series Access Points | Installation Guide...
  • Page 9: Verifying Post-Installation Connectivity

     If a power adapter other than the one provided by Aruba Networks is used in the US or Canada, it must be cULus (NRTL) Listed, with an output rated 12 VDC, minimum 1.25A, marked “LPS” or “Class 2,” and suitable for plugging into a standard power receptacle in the US and Canada.
  • Page 10: Proper Disposal Of Aruba Equipment

    The expected service life for this device is 10 years. Waste of Electrical and Electronic Equipment Aruba products at end of life are subject to separate collection and treatment in the EU Member States, Norway, and Switzerland and therefore are marked with the symbol shown at the left (crossed-out wheelie bin).
  • Page 11 Type Designation: APIN0224_APIN0225 European Union RoHS Aruba products comply with the EU Restriction of Hazardous Substances Directive 2011/65/EC (RoHS). EU RoHS restricts the use of specific hazardous materials in the manufacture of electrical and electronic equipment. Specifically, restricted materials under the RoHS Directive are Lead (including Solder used in printed circuit assemblies), Cadmium, Mercury, Hexavalent Chromium, and Bromine.
  • Page 12: Regulatory Information

    AP-225: APIN0225  The equipment name for the 220 Series access points is 802.11a/b/g/n/ac Wireless LAN Access Point. Changes or modifications to this unit not expressly approved by the party responsible for regulatory compliance could void the user’s authority to operate this equipment.
  • Page 13: Industry Canada

    En cas d'utilisation dans la plage de fréquences de 5,15 à 5,25 GHz, cet appareil doit uniquement être utilisé en intérieur afin de réduire les risques d'interférence avec les systèmes satellites mobiles partageant le même canal. | Installation Guide Aruba 220 Series Access Points...
  • Page 14: Нормативные Требования Евразийского Экономического Союза

    이 기기는 업무용 환경에서 사용할 목적으로 적합성평가를 받은 기기로서 가정용 환경에서 사용하는 경우 전파간섭 의 우려가 있습니다 . => 사용자 안내문은 “ 업무용방송통신기자재 ’ 에만 해당된다 Taiwan 第十二條  經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用者均不得擅自變更頻率、加大功率或變 更原設計之特性及功能。 第十四條  低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發現有干擾現象時,應立即停用,並改善至 無干擾時方得繼續使用。 前項合法通信,指依電信法規定作業之無線電通信。   Aruba 220 Series Access Points | Installation Guide...
  • Page 15 3. Wipe with a dry cloth, no additional maintenance required. 4. No serviceable parts, the unit must be sent back to the manufacturer for repair. 5. No modifications are allowed without Aruba approval. | Installation Guide Aruba 220 Series Access Points...
