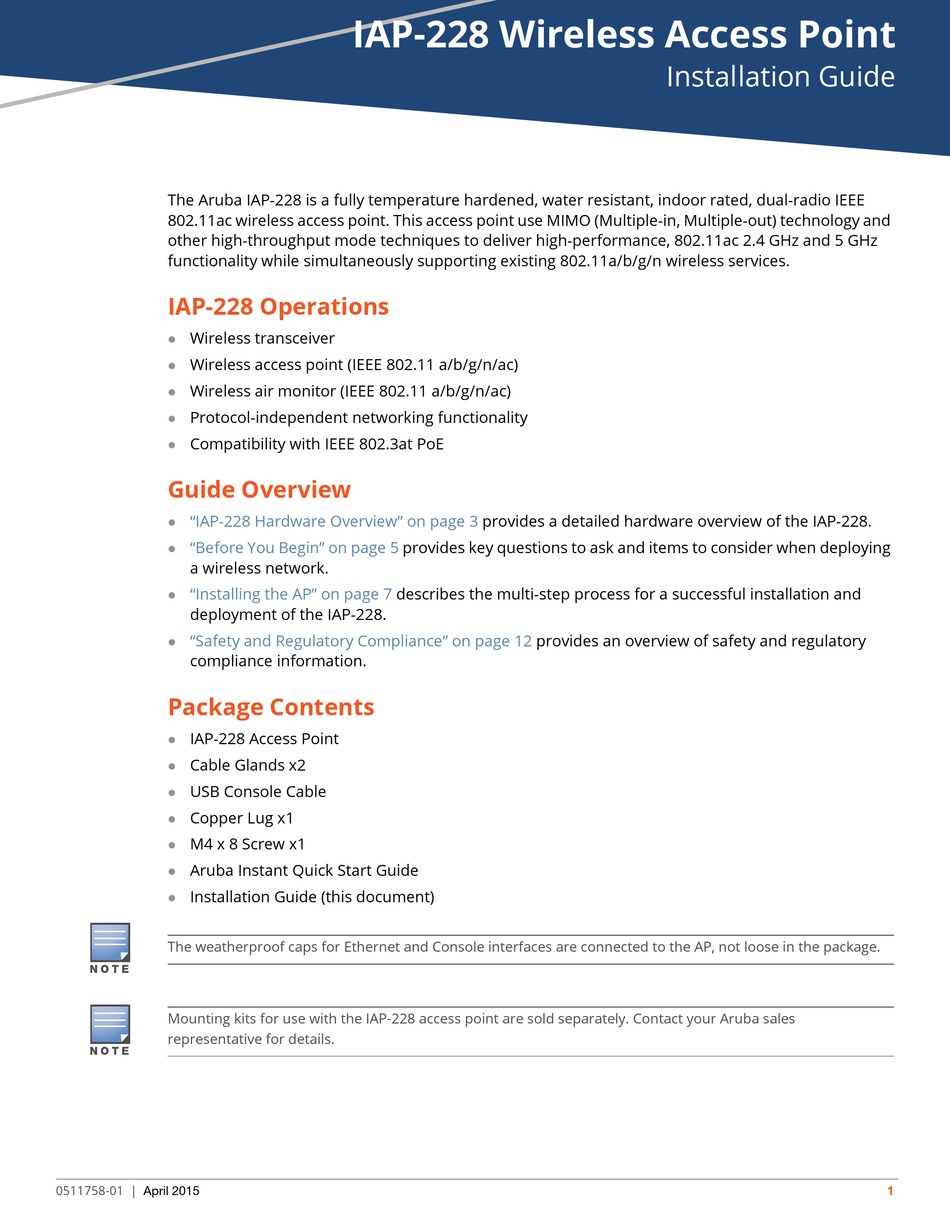

Aruba IAP-228 Installation Manual

The Aruba IAP-228 is a fully temperature hardened, water resistant, indoor rated, dual-radio IEEE
802.11ac wireless access point. This access point use MIMO (Multiple-in, Multiple-out) technology and
other high-throughput mode techniques to deliver high-performance, 802.11ac 2.4 GHz and 5 GHz
functionality while simultaneously supporting existing 802.11a/b/g/n wireless services.
IAP-228 Operations
Wireless transceiver

Wireless access point (IEEE 802.11 a/b/g/n/ac)

Wireless air monitor (IEEE 802.11 a/b/g/n/ac)

Protocol-independent networking functionality

Compatibility with IEEE 802.3at PoE

Guide Overview
"IAP-228 Hardware Overview" on page 3

"Before You Begin" on page 5

a wireless network.
"Installing the AP" on page 7

deployment of the IAP-228.
"Safety and Regulatory Compliance" on page 12

compliance information.

Package Contents

IAP-228 Access Point

Cable Glands x2

USB Console Cable

Copper Lug x1

M4 x 8 Screw x1

Aruba Instant Quick Start Guide

Installation Guide (this document)

The weatherproof caps for Ethernet and Console interfaces are connected to the AP, not loose in the package.
Mounting kits for use with the IAP-228 access point are sold separately. Contact your Aruba sales
representative for details.
0511758-01 |
April 2015
IAP-228 Wireless Access Point
provides a detailed hardware overview of the IAP-228.
provides key questions to ask and items to consider when deploying
describes the multi-step process for a successful installation and
Installation Guide
provides an overview of safety and regulatory
1
