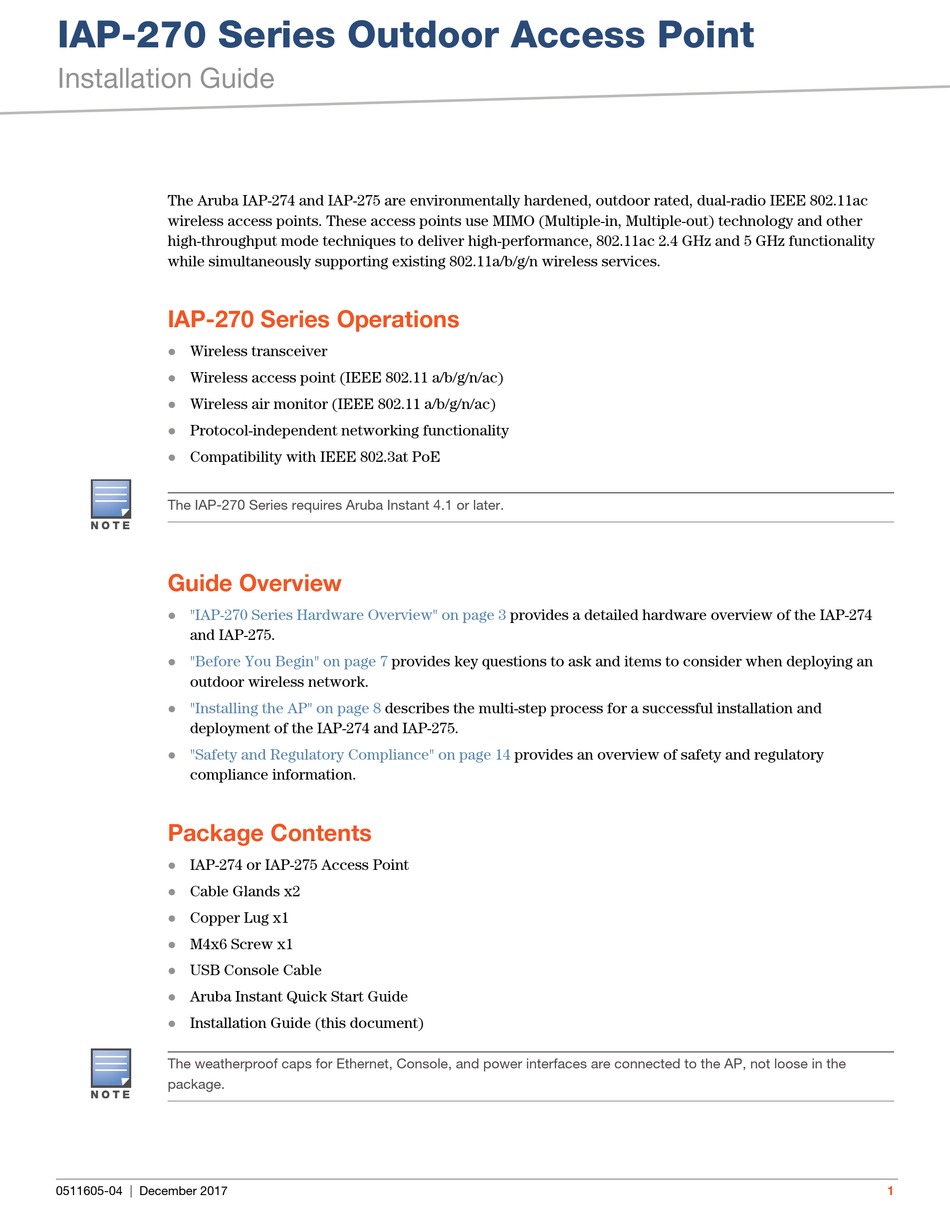

IAP-270 Series Outdoor Access Point

Installation Guide

The Aruba IAP-274 and IAP-275 are environmentally hardened, outdoor rated, dual-radio IEEE 802.11ac
wireless access points. These access points use MIMO (Multiple-in, Multiple-out) technology and other
high-throughput mode techniques to deliver high-performance, 802.11ac 2.4 GHz and 5 GHz functionality
while simultaneously supporting existing 802.11a/b/g/n wireless services.
IAP-270 Series Operations
Wireless transceiver

Wireless access point (IEEE 802.11 a/b/g/n/ac)

Wireless air monitor (IEEE 802.11 a/b/g/n/ac)

Protocol-independent networking functionality

Compatibility with IEEE 802.3at PoE

The IAP-270 Series requires Aruba Instant 4.1 or later.
Guide Overview
"IAP-270 Series Hardware Overview" on page 3

and IAP-275.
"Before You Begin" on page 7

outdoor wireless network.
"Installing the AP" on page 8

deployment of the IAP-274 and IAP-275.
"Safety and Regulatory Compliance" on page 14

compliance information.

Package Contents

IAP-274 or IAP-275 Access Point

Cable Glands x2

Copper Lug x1

M4x6 Screw x1

USB Console Cable

Aruba Instant Quick Start Guide

 Installation Guide (this document)
The weatherproof caps for Ethernet, Console, and power interfaces are connected to the AP, not loose in the
package.
0511605-04 | December 2017
provides a detailed hardware overview of the IAP-274
provides key questions to ask and items to consider when deploying an
describes the multi-step process for a successful installation and
provides an overview of safety and regulatory
