Summary of Contents for Leister SEAMTEK 2000 AT

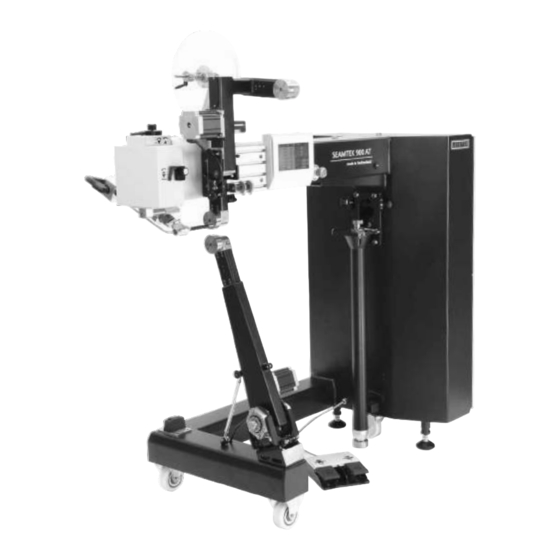

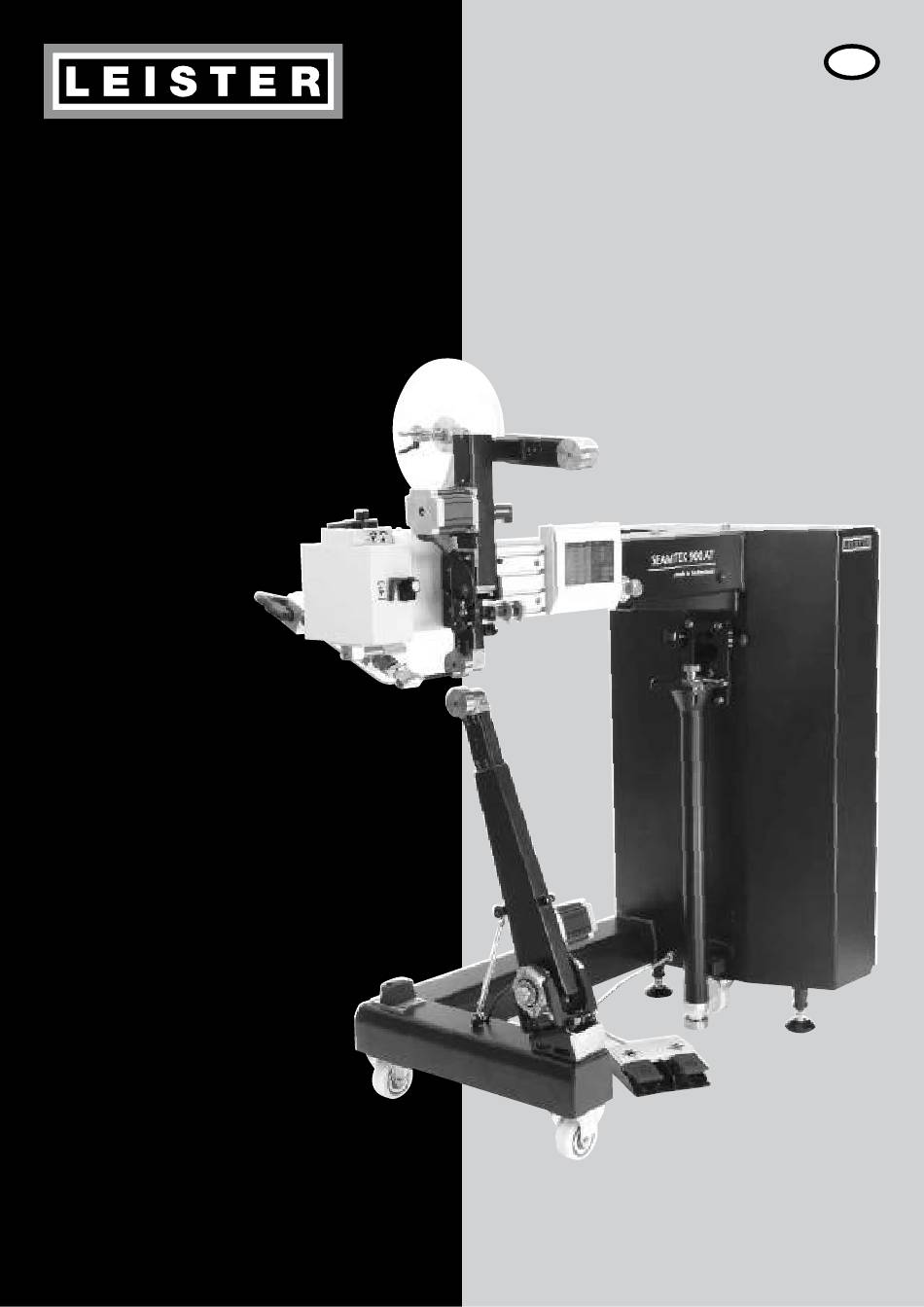

- Page 1 ® SEAMTEK 900 AT 2000 AT Leister Technologies AG Galileo-Strasse 10 CH-6056 Kaegiswil/Switzerland Tel. +41 41 662 74 74 +41 41 662 74 16 www.leister.com sales@leister.com...
-
Page 2: Table Of Contents
English Operating instructions Contents 1. SEAMTEK AT ................................4 1.1 Using this Manual ............................... 4 2. Overview of Important Safety Instructions ........................5 2.1 Important Safety Instructions ..........................5 2.2 Intended Use ..............................6 2.2.1 Welding Vapors ............................6 2.2.2 Extraction ............................... 6 2.3 Improper Use .............................. - Page 3 7.10 Welding Arm Options (P, S, Q), Arm Replacement ....................19 7.10.1 Changing the Arm ..........................19 7.10.2 Pedestal ............................... 19 7.10.3 Quickarm .............................. 20 7.10.4 Sidearm (not available for the SEAMTEK 2000 AT) .................. 20 7.11 Transport Rollers............................... 21 7.11.1 Changing the Transport Rollers ......................21 7.12 Guide Holder ..............................
-
Page 4: Seamtek At
1.1 Using this Manual This document describes how to assemble and operate the SEAMTEK AT. The device is manufactured by Leister Technologies AG in Kägiswil, Switzerland. It describes the setup, installation, operating sequences, nature, and tasks of the various modules that are available for using your SEAMTEK AT. -
Page 5: Overview Of Important Safety Instructions
2. Overview of Important Safety Instructions 2.1 Important Safety Instructions Warning Danger to life, high voltage! Before opening the device, pull the mains plug out of the socket, because volt- age-bearing components and connections will be exposed when it is opened! Danger of fire caused by improper use of the welding machine (e.g., material overheating) and particularly in the vicinity of combustible materials! Risk of burning! -
Page 6: Intended Use
If the extracted air is not filtered internally, the exhaust gases can also be conducted out of the building. We recommend the Leister Airpack (119.358) as an external blow-off unit. Local laws and regulations must be observed for this purpose. -
Page 7: Technical Data
3. Technical Data SEAMTEK 900 AT SEAMTEK 2000 AT Nominal voltage 230 / 240 (US) Frequency 50 / 60 (US) Nominal current Nominal voltage 4500 Temperature °C 120 – 700 Maximum temperature °C Airflow range l/min 80 – 170 Drive speed m/min 0 –... -
Page 8: Moving The Machine Outside Of The Company's Premises
Pay particular attention to the safety distance. A distance of 200 mm must be maintained, as the hot air nozzle unit swings out- ward. Warm air is blown out of the back of the machine. The distance to the wall must therefore be observed. SEAMTEK 900 AT SEAMTEK 2000 AT Required space for the machine 2380 × 1530 3530 ×... -
Page 9: Securely Positioning The Machine
The machine must only be operated at an altitude of up to max. 2,000 m above sea level. We cannot guarantee that the machi- ne will function properly if it is used at a higher altitude. Furthermore, ensure that the machine is only operated in conditions with a maximum humidity of 95% and a maximum tempe- rature of 45 °C. -
Page 10: Connecting The Compressed-Air Supply
The type designation and serial number are specified on the type plate on your device. Transfer this information to your operating instructions; in the event of any inquiries to our representatives or authorized Leister service center, please always refer to this information. -
Page 11: Overview Of Machine Elements
6. Overview of Machine Elements 6.1 Front View 1. Adjusting screws for nozzle position (Chapter 7.1) 8. Welding arm (pedestal) (Chapter 7.8) 2. Touch panel (Chapter 7.2) 9. Transport rollers (Chapter 7.9) 3. Emergency stop button (Chapter 7.3) 10. Upper pressure roller (upper wheel module, UWM) 4. -
Page 12: Back View
26. Pneumatic cabinet 6.3 Outlets The outlets (15 and 20) on the machine are only approved for use with Leister accessories. The electrical connection is supplied with mains voltage. Leister is not liable for any non-approved use. 6.4 Optional Accessories 6.4.1... -
Page 13: Quickarm
The machine can be equipped with the quickarm (28) in two different ways. The quickarm (28) is either fitted to the machine directly by Leister or mounted on the machine afterwards by the customer. 6.4.3 Tape Delivery System The tape delivery system (29) is suitable for supplying tape during the joining process. -
Page 14: Welding Nozzle Position And Heat Input
Now set the welding nozzle (12) to the welding position under the “welding conditions” tab (set everything to “Automatic” mode). Each time an arm, the transport rollers (9), or welding nozzle (12) are changed, the position of the nozzle must be sub- sequently readjusted. -
Page 15: Changing The Welding Nozzle
7.1.3 Changing the Welding Nozzle Caution: Completely cool the machine with the cool-down mode before changing the welding nozzle (12). The welding nozzle (12) may still be hot even following the cool-down mode. A 25 mm welding nozzle (12) is mounted as standard. Nozzles are available in widths from 8 – 64 mm. Before mounting a new welding nozzle (12), use adjusting screw (Y) to turn the welding nozzle (12) as far as possible away from the machine in direction (-Y). -
Page 16: Air Outlet
7.1.6 Air Outlet Air from the pump that is not required in the machine is discharged from the machine via a bypass. This is why hot air can escape from the back of the machine. (Refer to the figure for residual air outlet) In addition, warm air can be blown out of the machine from the cooling air outlet (see figure), which is required to cool the pneumatic cabinet. -
Page 17: Emergency Stop Switch
7.4 Emergency Stop Switch The following occurs as soon as you press this switch: 1. The machine is disconnected from the power supply. The heating element and the pump are switched off. Caution: If the emergency stop switch is activated while the heating element is switched on, this can cause considerable damage to the machine. -
Page 18: Feet
7.7 Feet Turn the feet (6) clockwise (seen from above), to turn the feet downward and turn the feet anticlockwise, to turn the feet upward. Ensure that the machine is suitably and securely positioned before it is commissioned. 7.8 Pedal Unit Danger: Take care not to confuse the two ped- als (7 A + 7 B) of the pedal unit –... -
Page 19: Welding Arm Options (P, S, Q), Arm Replacement
7.10 Welding Arm Options (P, S, Q), Arm Replacement Caution: To select the active arm, the motor icon (M) must be switched off. Make sure that the correct arm is selected to prevent damage to the drive. Danger of crushing! When the nozzle is retracted, there is a risk of crushing because of pneumatically mo- ving parts. -
Page 20: Quickarm
7.10.3 Quickarm Activating the Quickarm Make sure that the upper transport roller (9) is open. (See point 7.8.1) Pull the upper retaining pin (28 A) out, to disengage the locking mechanism for the quickarm (28). Now carefully fold the arm downward and fit the lower retaining pin (28 B) until it fully engages. -
Page 21: Transport Rollers
7.11 Transport Rollers 25 mm wide transport rollers (9) are mounted as standard. The powered transport rollers (9) clamp and transport the material. The maximum roller speed for original Leister accessory rollers is 30 m/min. 7.11.1 Changing the Transport Rollers Caution: Fully execute the cool-down mode so that any operating personnel that unintentionally come into contact with hot components when changing the rollers do not suffer burns. -
Page 22: Guide Holder
Risk of Crushing Danger: Do not reach between moving components, e.g., the transport rollers (9). When working on the open system, do not wear articles of cloth- ing such as scarves, shawls, or neckties and tie up long hair or protect it by wearing headgear. -
Page 23: Mounting And Adjusting The Guide
7.12.1 Mounting and Adjusting the Guide Caution: First adjust the welding nozzle (12) according to Chapter 7.1.1 before the guide is mounted. To fasten a guide, check whether the welding nozzle (12) has been adjusted. Insert the rod and then clamp the guide holder (11) with the clamping lever. -
Page 24: Tab For Changing Views
Tab for changing the view Welding parameters Periphery 8.3 Tab for Changing Views At the upper edge of the screen, tabs for individual screen views can be selected. The view you currently see is indicated by the tab selected. The tab for the current view is in white. Symbol Designation Home view... -
Page 25: Welding Parameters
8.4 Welding parameters The welding parameters are located on the left-hand side of the Home view. Press the respective value to change it. Alterna- tively, you can increase or decrease the value by selecting Designation Symbol Speed The roller speed can be set from 0 m/min to 30 m/min. Upper The upper roller can be operated with a differential speed to the lower roller. -
Page 26: Periphery
8.5 Periphery The air pump is The air pump is switched on switched off Heating element The heating element is The heating element is switched off switched on Cool down When the air pump and heating element are switched on, the cool-down mode can be activated by switching off the air pump. -
Page 27: User
Now enter the old password. You will then need to enter the new password two times. When entering the password for a second time, make sure that it is identical to the password you entered the first time. Ideally, make a note of the password so that you do not lose it. To reset the password, please contact Leister Technologies AG. - Page 28 Individual users have different authorizations. The table below gives an overview of the authorizations of individual users. Admin: Full range of functions for commissioning and any repairs to the machine User: Supervisor, standard functions for machine start Guest: Shop worker, significantly restricted operation User Screen Guest...
-
Page 29: Machine Settings
8.7 Machine Settings In this view, you can change the machine settings. Depending on the user logged in, certain settings are locked or not visible. To display or change all settings, log in as “Admin”. (See also the table of authorizations for individual users). The following adjustments can be made: Setting Description... -
Page 30: Formulas
8.8 Formulas In this view, you can save your welding parameters as formulas in order to use these again at a later date. You can also save your formulas on an external storage medium for data back-up or load the formulas onto other SEAMTEK AT welding machines. This way you can ensure that all your welding machines work with identical welding parameters. -
Page 31: Test Mode
8.9 Test Mode The test mode enables the optimal welding speed to be determined. To do this, select the “Test” tab in the upper area of the screen. The test mode will guide you through the test step by step. View 1 For the test, the welding nozzle (12) and transport rollers (9) must be switched to “Auto”. -
Page 32: Add-Ons Screen
View 4 Carefully tear the test strip starting from the beginning of the weld and measure the distance from the start of the test strip to the point where there is a good weld seam. Enter this value in millimeters or inches in the input window displayed. Note: If the strip was welded well right at the start of the seam, then carry out the test mode again with a higher approximate speed. -
Page 33: Information
8.11 Information The Information view enables users to see the process data for simplified troubleshooting or fault localization. In addition, in the event of an error, errors are displayed in the alarm list with the date/time of the first occurrence, error number, and a brief error description. -
Page 34: Welding Sequence And Tips
9. Welding Sequence and Tips 9.1 Welding Sequence Preparing a Weld/Test Mode To prepare a weld, the welding parameters must be defined. It is advisable to gradually adjust the parameters while using small test strips and the same material pairing until a good weld seam can be achieved. Alternatively, the test mode can be used (see Chapter XY). -
Page 35: Seamtek At Warning And Error Messages
Error List The error number is shown for the Leister Support team in the information text. Error numbers using a basis of 100 indicate the error level, e.g., 201 is a level 2 error. Error 01 is a level 1 error. - Page 36 Error 208: Cannot open Backup Source File. Recipe File on PLC corrupted. Do recover your Data from your Memory Stick. Error 209: Can not open Backup Destination File. Missing Memory Stick. Error 210: Can not read Backup Source File. Recipe File on PLC corrupted. Do recover your Data from your Memory.
- Page 37 Level Info text Description Error No. Error 232: Close File in Write Machine Settings In SettingsWrite(), Error Closing File Error 240: Open File in Read Recipes In RecipesRead(), Error Recipes Open File Error 241: Read CSV Line in Read Recipes In RecipesRead (), Error Read CSV Line Recipes Error 242: Close File in Read Recipes In RecipesRead (), Error Closing File...
-
Page 38: Frequently Asked Questions
Error 271: Air Temperature Setpoint too high. Air Temperature during Heat-Up (slow Cont- Heat Controller Restart initiated roller) can not be reached for long Time. Air Temp. Controller has been reset. Stop and restart Heating. Error 272: Wedge Temperature Setpoint not Wedge Temperature can not be reached. -
Page 39: Maintenance
Display of temperature values remains When connecting the thermocouple, the connecting wires are unchanged (usually around 40 – 65 °C). short-circuited. Check the connection. Rapid and repeating heating-up phases At the point of measurement, the thermocouple short circuits. Replace the thermocouple. The thermocouple was not connected or is interrupted. - Page 40 Time period Monitoring and maintenance work Spare parts Tools • Clean the welding nozzle (12) with a brass As Necessary Air filter Brass brush brush designed for this purpose • Clean or replace the air filter Daily before Start-Up • Check the stability of the machine –...
- Page 41 No. Designation Text Figure Filter Before using the machine, always clean the filter maintenance element with isopropanol to prevent damage. unit The filter must be replaced every two years. The filter is included in the filter set (156.777). • Before removing the filter reservoir, the pres- sure must be removed from the system.
- Page 42 6. Separate the heating element (150.581) from the holder (24, F) and insert the new heating element. 7. Re-assemble the elements following the disassembly steps in reverse. CAUTION: There is a risk of burning when changing the heating element. This process must only be performed after the cool-down mode.
- Page 43 Inductor unit In the case of significant differences in tem- perature or extended periods of use, the axis movement of the welding nozzle and pressure roller can shift. To compensate for these changes, fine adjust- ments can be made using the inductor unit. Axis control: 1A, 1B Z-axis of roller 2A, 2B Z-axis of nozzle...
- Page 44 1.2 Use the screws (8, B) to adjust the angle of the welding arm. Caution: Following the adjustment process, tighten the nuts. 2.1 Detach the screws (8, C) 2.2 Adjust the welding arm using the screws (8, D) Caution: Following the adjustment process, tighten the screws.
- Page 45 3.2 Now use the rod to adjust the height of the welding roller. Caution: Following the adjustment process, tighten the nuts. 4.1 Detach the screws (8, G) on both sides. 4.2 Manually move the welding arm backward or forward. Caution: Following the adjustment process, tighten the screws.
-
Page 46: Machine Fault
13. Accessories Find out about the extensive range of accessories available at www.leister.com. Use only Original Leister spare parts and accessories since otherwise, no warranty or guarantee claims can be asserted. You can find more information at www.leister.com. 14. Add-ons 14.1... -
Page 47: Monitoring The Welding Parameters
14.1.1 Monitoring the Welding Parameters The monitoring of both the air volume and temperature welding parameters can be activated via the On/Off button in the Add- ons/Monitoring tab. The monitoring of both the air volume and temperature welding parameters is deactivated. The monitoring of both the air volume and temperature welding parameters is activated. -
Page 48: Operating Hours Counter
Repairs must only be carried out by authorized Leister service centers. Leister service centers guarantee a professional and reliable repair service with original spare parts in accordance with circuit diagrams and spare parts lists. You will find the address of your authorized service center on the last page. -
Page 49: Declaration Of Conformity
18. Declaration of Conformity Leister Technologies AG, Galileo-Strasse 10, CH-6056 Kägiswil, Switzerland confirms that in the model made available for purchase, this product fulfills the requirements of the following EU directives. Guidelines: 2006/42, 2014/30, 2014/35, 2011/65 Harmonized standards: EN ISO 12100, EN 55014-1, EN 55014-2, EN 61000-6-2, EN 61000-3-2, EN 61000-3-3, EN 62233, EN 60335-1, EN 60335-2-45, EN 50581 Name of authorized representative for documentation: Thomas Schäfer, Manager Product Conformity... -
Page 50: Appendix
21. Appendix Quelle Bilder: SMC... - Page 56 ® © Copyright by Leister Your authorised Service Centre is: Leister Technologies AG Galileo-Strasse 10 CH-6056 Kaegiswil/Switzerland Tel. +41 41 662 74 74 +41 41 662 74 16 www.leister.com sales@leister.com...
