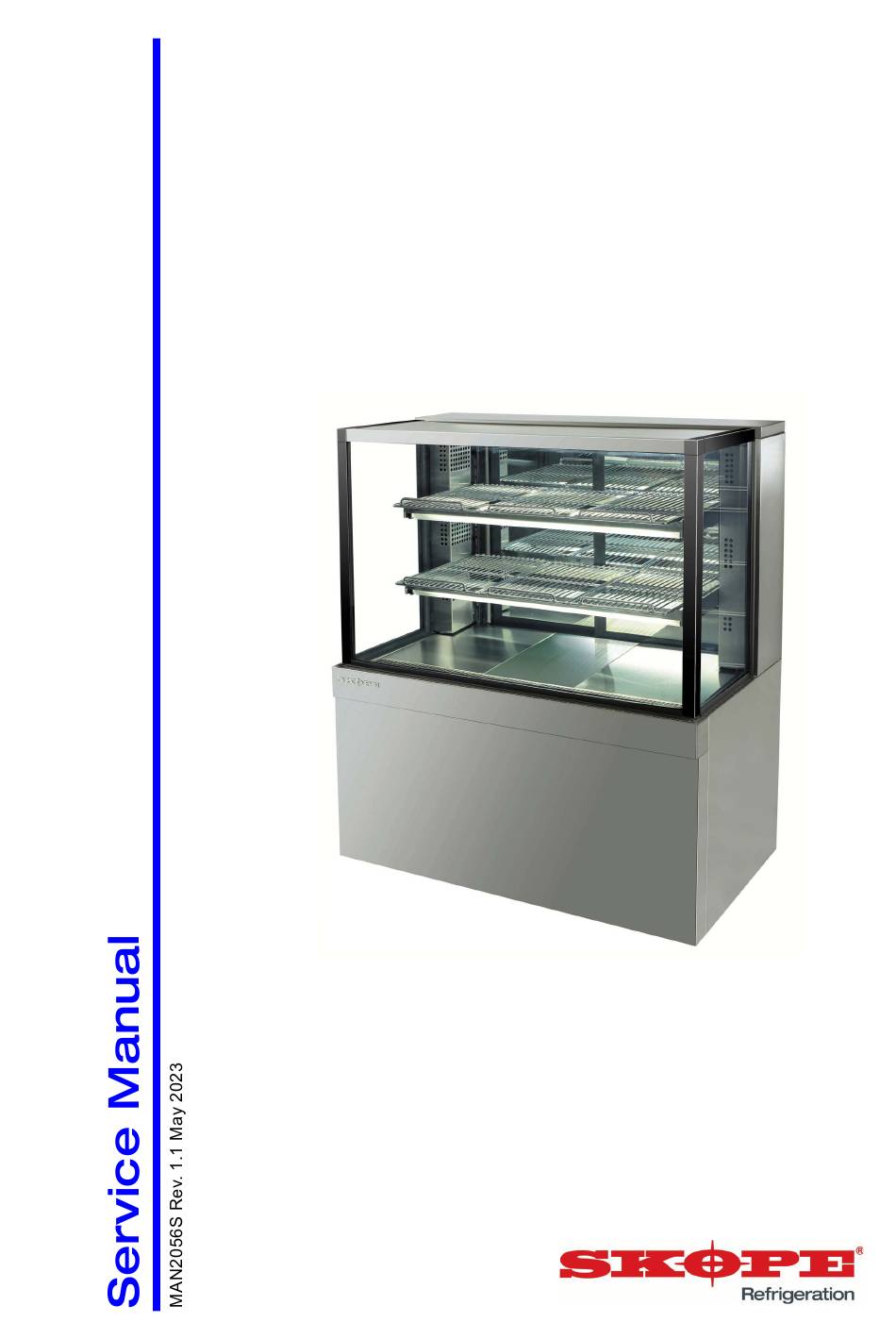

- Page 1 FDM Series SKOPE Food Display Cabinet Integral models: FDM900i, 1200i, 1500i FDM1200i...
- Page 2 E-mail: skope@skope.com Website: www.skope.com Trademark Infringement The SKOPE trademark on this product is infringed if the owner, for the time being, does any of the following: • Applies the trade mark to the product after its state, condition, get-up or packaging has been altered in any manner •...
-
Page 3: Table Of Contents
Wiring FDM Series – Integral ........15 Spare Parts Cabinet Assembly –... - Page 4 Condenser Coil........45 SKOPE Food Display Cabinet...
-
Page 5: Specifications
SKOPE Food Display Cabinet 1 Specifications Table 1: Cabinet Construction FDM900i FDM1200i FDM1500i Insulation 50 mm polyurethane foam Dimensions External Internal External Internal External Internal Height 1305 mm 800 mm 1305 mm 800 mm 1305 mm 800 mm Width 900 mm... -
Page 6: Controller
Customised SKOPE controllers cannot be replaced with standard CAREL controllers. Variations Note: All SKOPE cabinets manufactured from January 2023 will use the CAREL S4 EVO controller. All necessary replacement components are supplied in a replacement kit when ordered as a spare part. See: •... -
Page 7: Temperature Setpoint
1.0°C and 5.0°C, and the standard setting for room temperature food can be adjusted between 10°C and 20°C. SKOPE does not recommend changing the setpoint unless it is absolutely necessary, and then only by small increments at a time. -
Page 8: Hardware Setup
Unused Programming “Cold Key” A controller may be field-programmed via a CAREL Cold Key. The SKOPE factory pre-programmed cold key has the capability of instantly changing program configurations. A cold key may also be used to introduce a customised program to meet a specific customer requirement. -
Page 9: Ir33 Controller Parameters
SKOPE Food Display Cabinet ir33 Controller Factory default configuration of the controller is set by SKOPE for a specific SKOPE product. Parameters The factory default cannot be altered in the field. A label on the controller box indicates the default parameter program (P420 bn1, bn2, bn3, or bn4). -
Page 10: Ir33 Controller Alarms
SKOPE Food Display Cabinet Procedure 4: To modify CAREL ir33 Type C parameters (continued) 5. Increase or decrease the value using the keys respectively. 6. Press the key to temporarily save the new value and return to the display of the parameter code. - Page 11 • Parameter “Ac” (SKOPE default) = 60 (Shutdown = 60°C) • Parameter “AE” (SKOPE default) = 10 (Warning Initiation = Ac minus AE/2 = 55°C. Warning Reset = Ac minus AE = 50°C). Note In low ambient conditions the alarm may not activate due to a blocked condenser. In applications with a continuously low ambient, it may be worthwhile lowering the alarm threshold if condenser blockage notification is wanted.
-
Page 12: Skope Carel S4 Evo
SKOPE Food Display Cabinet SKOPE CAREL S4 EVO Faceplate Table 10: CAREL S4 EVO controller faceplate Item Description Digital display of cabinet temperature or messages. The temperature is what the sensor inside the chiller detects, and not necessarily the product temperature. However, they may be very close depending on how the controller is set to sense temperature. -
Page 13: Running The Cabinet
SKOPE Food Display Cabinet Alarms signal unexpected operational changes in the cabinet and can be muted by pressing the Set (mute) button on the electronic controller faceplate (see page 12). Table 11: CAREL S4 EVO messages Display Description The cabinet is in Normal mode and the electronic controller displays the temperature. -
Page 14: Temperature Probes
SKOPE Food Display Cabinet The evaporator fan starts approximately 3 seconds (parameter F0) after the compressor and condenser fan. To verify, check that the FAN light (item 7 in Table 10 on page 12) is lit on the electronic controller faceplate. -
Page 15: Wiring
SKOPE Food Display Cabinet 3 Wiring FDM Series – Integral Carel S4 CAREL S4 Unit Unit GNYE GNYE T1-6 T1-6 Isolation Isolation T1-5 T1-5 T1-7 T1-7 Comp. Comp. T1-3 T1-3 Compressor Compressor GNYE GNYE Overload Overload Condenser Condenser WH RS... -
Page 16: Spare Parts
SKOPE Food Display Cabinet 4 Spare Parts Cabinet Assembly – FDM900i Spare Parts Service Manual... - Page 17 SKOPE Food Display Cabinet Table 13: Parts – FDM900i cabinet Item Description SKOPE Part No. Customer Part No. Shelf Support F0900/J22 Capping Strip Middle F0901/024 Front Vertical Strip F0901/025 Horizontal Trim F0901/025A Corner Cap – Left Hand F0901/026L Corner Cap – Right Hand F0901/026R Side Tray –...
-
Page 18: Cabinet Assembly - Fdm1200I
SKOPE Food Display Cabinet Cabinet Assembly – FDM1200i Spare Parts Service Manual... - Page 19 SKOPE Food Display Cabinet Table 14: Parts – FDM1200i cabinet Item Description SKOPE Part No. Customer Part No. Shelf Support F1200/J22 Capping Strip Middle F1201/024 Front Vertical Strip F0901/025 Horizontal Trim F0901/025A Corner Cap – Left Hand F0901/026L Corner Cap – Right Hand F0901/026R Side Tray –...
-
Page 20: Cabinet Assembly - Fdm1500I
SKOPE Food Display Cabinet Cabinet Assembly – FDM1500i Spare Parts Service Manual... - Page 21 SKOPE Food Display Cabinet Table 15: Parts – FDM1500i cabinet Item Description SKOPE Part No. Customer Part No. Shelf Support F1500/J22 Capping Strip Middle F1501/024 Front Vertical Strip F0901/025 Horizontal Trim F0901/025A Corner Cap – Left Hand F0901/026L Corner Cap – Right Hand F0901/026R Side Tray –...
-
Page 22: Sliding Door Assembly
SKOPE Food Display Cabinet Sliding Door Assembly Note: FDM1200i right hand door pictured (F1201/N30RF) Spare Parts Service Manual... - Page 23 SKOPE Food Display Cabinet Table 16: Common parts – Sliding doors Item Description SKOPE Part No. Customer Part No. Side Brush Sealing Strip F0900/N36B Vertical Frame (non-handle side) F0901/N32 Right Hand Door Vertical Frame (handle side) F0901/N32HR Left Hand Door Vertical Frame (handle side)
-
Page 24: Tier Shelf Light Assembly
SKOPE Food Display Cabinet Tier Shelf Light Assembly Note: FDM1200i tier shelf light assembly pictured (F1201/L83) Spare Parts Service Manual... - Page 25 SKOPE Food Display Cabinet Table 20: Parts – FDM900i tier shelf light Item Description SKOPE Part No. Customer Part No. – Tier Shelf Light Assembly F0901/L83 14W T5 Fluorescent Tube ELL0594 Lampholder ELZ10777 Shelf Light Diffuser F0900/E71 Shelf Light Cover...
-
Page 26: Top Light Assembly
SKOPE Food Display Cabinet Top Light Assembly Note: FDM1200i top light assembly pictured (F1200/L53-32) Table 23: Parts – FDM900i top light Item Description SKOPE Part No. Customer Part No. – Top Light Assembly F0900/L53-32 14W T5 Fluorescent Tube ELL0594 T5 Lampholder... -
Page 27: Control Box Assembly
SKOPE Food Display Cabinet Control Box Assembly Table 26: Parts – Control box (CAREL ir33 and S4 EVO) Item Description SKOPE Part No. Customer Part No. – Control Box Assembly F0900/G29-420 Capacitor ELC9142NC ENSTO 3-Pole Socket ELZ0499-3 ENSTO 5-Pole Socket... -
Page 28: Controller Box Assembly
SKOPE Food Display Cabinet Controller Box Assembly CAREL ir33 CAREL S4 EVO Table 27: Parts – Control box Item Description SKOPE Part No. Customer Part No. – Controller Box Assembly F0902/K01-SP8 2 Pole Rocker Switch (refrigeration system isolation ELS0495 switch) -
Page 29: Refrigeration Cartridge Assembly - Fdm900I
SKOPE Food Display Cabinet Refrigeration Cartridge Assembly – FDM900i Table 28: Parts – FDM900i refrigeration cartridge Item Description SKOPE Part No. Customer Part No. – Refrigeration Cartridge Assembly UB70ALD-420ZX Compressor – Embraco NEK6187Z CPR10646 Compressor Run Capacitor ELC9914NC Compressor Start Capacitor... -
Page 30: Refrigeration Cartridge Assembly - Fdm1200I
SKOPE Food Display Cabinet Refrigeration Cartridge Assembly – FDM1200i Table 29: Parts – FDM1200i refrigeration cartridge Item Description SKOPE Part No. Customer Part No. – Refrigeration Cartridge Assembly UB71ALD-420ZE Compressor – Embraco NEK6187Z CPR10646 Compressor Run Capacitor ELC9914NC Compressor Start Capacitor... -
Page 31: Refrigeration Cartridge Assembly - Fdm1500I
SKOPE Food Display Cabinet Refrigeration Cartridge Assembly – FDM1500i Table 30: Parts – FDM1500i refrigeration cartridge Item Description SKOPE Part No. Customer Part No. – Refrigeration Cartridge Assembly UB72ACD-420ZX Compressor – Danfoss SC12G CPR6108PH Compressor Mounting Kit SXX3654NC Compressor Start Capacitor... - Page 32 SKOPE Food Display Cabinet Notes Spare Parts Service Manual...
-
Page 33: Replacement Procedures
Refrigeration System Introduction Integral SKOPE Food Display Cabinets are fitted with a bottom-mounted, electronically controlled refrigeration system. The refrigeration system can be isolated from the mains power supply via the refrigeration cartridge isolation switch (see Figure 3 below). To verify whether the cabinet is fitted with a refrigeration system, check the serial number/rating label above the electronic controller at the rear of the cabinet (see Figure 3 below). -
Page 34: Refrigeration System Assembly
SKOPE Food Display Cabinet Refrigeration System Assembly Evaporator Fan Evaporator Fan Terminal Box Evaporator Fan Evaporator Fan Flexible Cord Control Probe Evaporator Probe (red sleeve) Evaporator Tub Evaporator Coil Figure 4: Refrigeration System – Evaporator Note: Sliding doors and evaporator deflector have been removed. -
Page 35: Gaining Access
SKOPE Food Display Cabinet Gaining There are three different access points available for servicing the refrigeration system. Before Access carrying out any work ensure the cabinet is isolated from the mains power supply. Access via the front panel The front panel is attached to the cabinet by a hinge at the bottom and secured in place with two fixing screws along the top of the panel. -
Page 36: Control Box Assembly
SKOPE Food Display Cabinet Control Box The control box assembly is located behind the rear cover, below the electronic controller. It Assembly contains electrical connections, ballasts and fuses for the refrigeration system and cabinet lighting. Procedure 5: To access the ir33 and S4 EVO control box 1. -
Page 37: Evaporator Fans
SKOPE Food Display Cabinet Procedure 6: To remove and replace the condenser fan motor (continued) 4. Trace the condenser fan motor flexible cord to the push-on connections inside the control box and disconnect the terminals. Withdraw the condenser fan motor flexible cord from the control box. -
Page 38: Compressor
SKOPE Food Display Cabinet Compressor Depending on the model, the cabinet will be fitted with either an Electrolux, Embraco or Danfoss compressor. The compressor is located at the bottom of the cabinet and is accessible through both the front and rear cover (see page 35). -
Page 39: Cabinet
SKOPE Food Display Cabinet To inspect the glass fan, fold down the front cover and remove the manifold fan inspection cover. If replacing the glass fan, remove the complete fan manifold assembly and service as necessary. Air Vents Fan Manifold Assembly... -
Page 40: Lighting
SKOPE Food Display Cabinet Procedure 8: To remove the doors, shelves and lights from the cabinet (continued) 4. The shelf rear support panels and shelf lighting can be removed from the cabinet by lifting up and off the shelf brackets. The power supply cable will remain attached to the lighting panels. -
Page 41: Controller Box
SKOPE Food Display Cabinet Procedure 10: To replace a shelf light 1. Remove both sliding rear doors (see page 39). 2. Remove the wire shelves (see page 39). 3. Lift the light assembly panel up off both shelf end supports and remove from the cabinet. -
Page 42: Sliding Doors
SKOPE Food Display Cabinet Sliding Doors Gasket Each sliding door is fitted with a vertical gasket that clips into the outside edge of the frame. The gasket can be removed by peeling it from the frame starting at one end. -
Page 43: Maintenance
SKOPE Food Display Cabinet 6 Maintenance Cleaning When necessary, the interior and exterior of the cabinet can be wiped with a damp cloth. The sliding doors, wire shelves, shelf support panels, shelf lighting and floor panels can all be removed from the cabinet for ease of cleaning. - Page 44 SKOPE Food Display Cabinet Procedure 11: To clean the cabinet (continued) 6. The floor panels can be removed from the cabinet by lifting each panel up. The floor of the cabinet can now be accessed for cleaning. Warning: Be careful not to touch the exposed evaporator coil fins as they are very sharp and damage easily.
-
Page 45: Condenser Coil
If the electronic controller display flashes cht the condenser coil must be cleaned immediately. Over time, dust may accumulate within the condenser that cannot be removed with a brush. If this occurs, contact SKOPE to arrange for a SKOPE Authorised Service Agent to clean the condenser with compressed air. Important If the electronic controller flashes cht, clean the condenser coil immediately. - Page 46 SKOPE Industries Limited ABN: 73 374 418 306 AU: 1800 121 535 NZ: 0800 947 5673 skope@skope.com www.skope.com...
