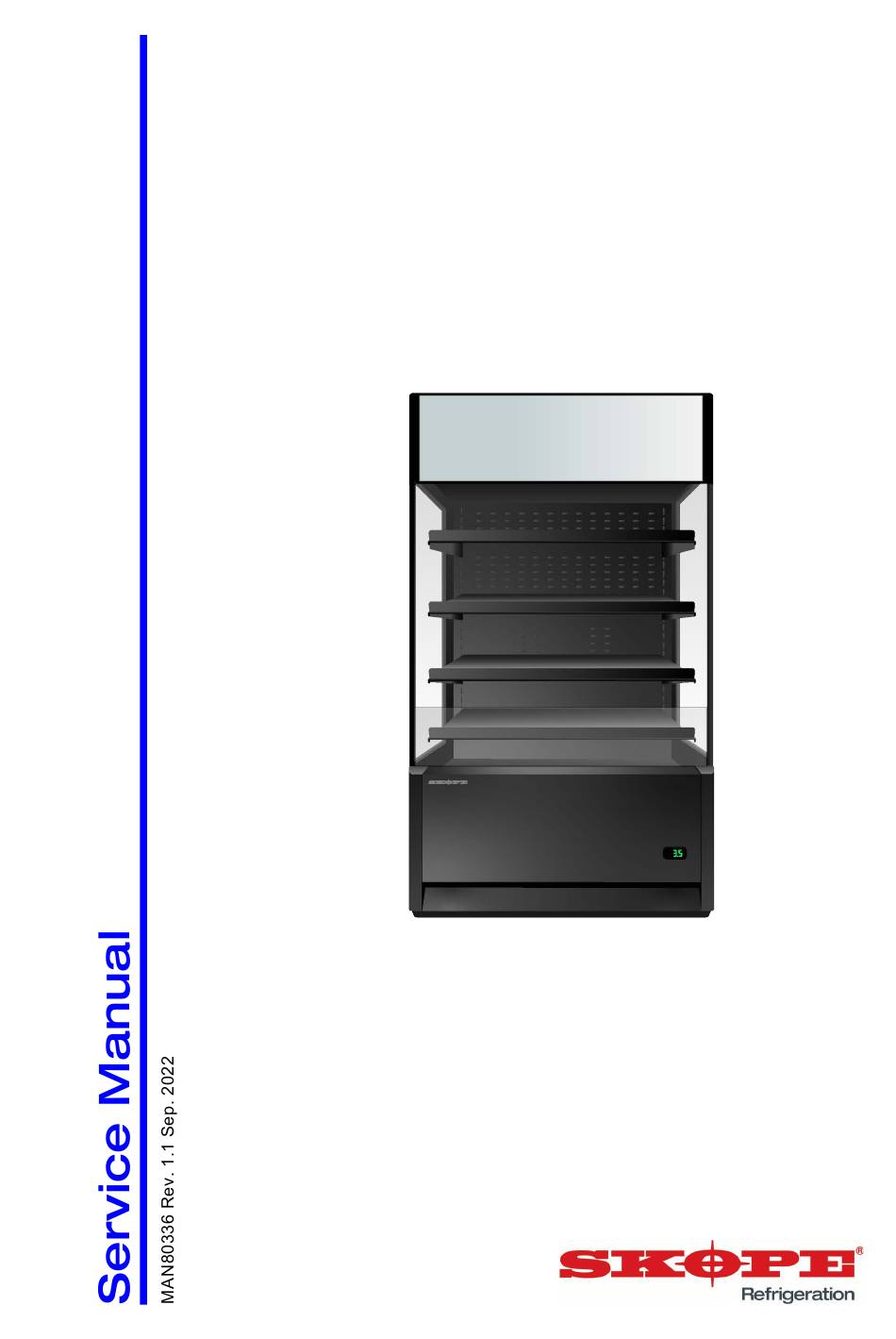

- Page 1 OD1100N SKOPE Open Deck Fridge Hydrocarbon...
- Page 2 E-mail: skope@skope.com Website: www.skope.com Trademark Infringement The SKOPE trademark on this product is infringed if the owner, for the time being, does any of the following: • Applies the trade mark to the product after its state, condition, get-up or packaging has been altered in any manner •...
-
Page 3: Table Of Contents
SKOPE OD1100N........5... - Page 4 Electronic Controller ........48 Cabinet and Refrigeration Cartridge ......48 SKOPE OD1100N Service Manual...
-
Page 5: Skope Od1100N
SKOPE OD1100N 1 Specifications OD1100N See also the relevant specification sheets on the SKOPE website (www.skope.com): PSS1040 – Open Deck Fridge with High Sign PSS1041 – Open Deck Fridge with Low Sign Cabinet Description Free-standing Open Deck Fridge... -
Page 6: Installation
SKOPE OD1100N 2 Installation The fridge is designed to operate within a climate class 3 environment (25°C @ 60% relative humidity), and should not be placed in a location that is likely to exceed these conditions. IMPORTANT The cabinet’s recommended operating temperature is between 18°C and 24°C and 60% relative humidity. - Page 7 SKOPE OD1100N The four top shelves are held in place by two cantilevered shelf brackets which clip into cut- outs in the cabinet back duct. The top four shelves can be adjusted at 28 mm increments (see image below). Position for...
-
Page 8: Gravity Shelf System
SKOPE OD1100N Gravity Shelf Gravity feed matting, including shelf dividers, is available for each shelf. The gravity shelf System system comes in two sizes to suit the different size shelves: 350 mm depth for the top four shelves, and 385 mm for the bottom shelf. Each has 16 dividers. -
Page 9: Wiring
SKOPE OD1100N 3 Wiring GNYE GNYE GNYE GNYE EMC Filter EMC Filter T1-2 T1-2 P1-N S1-N P1-N S1-N T1-1 T1-1 S1-L P1-L S1-L P1-L WDTL SCS WDTL SCS Controller Controller S2-2 P2-2 S2-2 P2-2 Compressor Compressor PIR Sensor PIR Sensor Comp. -
Page 10: Electronic Controller
The controller is pre-programmed. SKOPE does not recommend changing the settings unless it is absolutely necessary. To ensure efficient operation, the controller automatically forces a defrost cycle when required. -
Page 11: Service Mode
SKOPE OD1100N Service Mode The service mode can be run using the controller faceplate, but SKOPE strongly recommends using the SCS Connect Field app. You will need a 9-digit PIN to enter the service mode via the controller. If you don’t have one, contact Customer Services to request a PIN. -
Page 12: App Menu Items
If you edit a parameter, you must: parameters. • select “DISCONNECT” from the menu to apply Edit parameters the updated parameter. SKOPE does not recommended changing • record the changes on the warranty/job card. parameters unless absolutely necessary. Electronic Controller Service Manual... -
Page 13: Faults And Alarms
Load parameter file 2. After loading the new parameter set, select SKOPE does not recommended changing “DISCONNECT” from the menu to apply the parameters unless absolutely necessary. updated parameters. Displays information from the past seven days about... - Page 14 SKOPE OD1100N Table 3: Faults (continued) Description Possible root cause Actions Should be a one-off. If continues, consider: • power supply overloaded Test the incoming voltage to ensure it is correct. The test voltage needs to be between 198 and 264 volts.
- Page 15 SKOPE OD1100N Table 4: Alarms Code Description Possible root cause Action • Ensure that the cabinet is operating in its climate Estimated product • Low ambient temperature class. temperature below allowable range • Check all app settings, and reinstall the •...
- Page 16 SKOPE OD1100N Table 4: Alarms (continued) Code Description Possible root cause Action Cartridge swap is not required. Very high ambient temperature • Ensure that the cabinet is operating in its climate • class. • Remove and clean the condenser filter.
- Page 17 SKOPE OD1100N Table 4: Alarms (continued) Code Description Possible root cause Action Over-cooling product 1. Confirm if really too cold. • Set temperature has been raised by a large amount The internal temperature is too 2. Change parameters accordingly. low. The system has temporarily shut down until the •...
-
Page 18: Replacement Procedures
Venting of R290 and compressor oil Asphyxiation SKOPE does not recommend performing hazardous activities on the refrigeration system. Isolating Electrics Disconnect the cabinet from the power supply before attempting any maintenance. Procedure 5: To isolate the electrics 1. Switch the cabinet off at the power supply. -
Page 19: Kick Panel
2. Fasten the two screws to the bottom of the kick panel. Sign The OD1100N Low Sign model comes with the sign assembly fitted to the cabinet. For transit purposes, the OD1100N standard High Sign model has the sign assembly fitted temporarily to... -
Page 20: Fitting And Removing The Sign
SKOPE OD1100N the cabinet, and the two side panels and rear panel packaged together in the cabinet. The high sign needs to be fitted to the cabinet on site. Fitting and Removing the Procedure 9: To fit the high sign to the cabinet Sign 1. -
Page 21: Cladding
SKOPE OD1100N Cladding The cabinet is clad with a metal kick panel, lit sign, front upstand, and painted metal sides. All cladding is removable and replaceable. Left hand metal side Lit sign Upstand Kick panel Right hand metal side IMPORTANT Do not expose the cabinet to direct sunlight as this may cause distortion of plastic parts. -
Page 22: Lighting
SKOPE OD1100N Procedure 11: To remove the side cladding 1. Remove the kick panel (see page 19), and sign (see page 20). 2. Undo the fixing screws on the back edge of the side cladding and cabinet top, and lift the panel off the cabinet, detaching the cladding from the hook at the front. -
Page 23: Cabinet Electrics Gear Tray
SKOPE OD1100N Procedure 12: To replace a shelf light (continued) 6. Refit the gravity feed matting and dividers (see page 8). 7. Test and tag as per standard procedure. 8. Reconnect to the power supply, check for correct operation and reload product. -
Page 24: Night Blind
SKOPE OD1100N Night Blind The cabinet is fitted with a manual night blind which should be pulled down into the closed position during store closing hours to save power. The night blind has a switch which automatically tells the electronic controller to run the fridge in night mode (with the lights off) when the blind is in the closed position, or day mode (with the lights on) when in the open position. -
Page 25: Refrigeration System
Servicing Ensure you have read and understood this manual before starting any servicing. Important. SKOPE hydrocarbon refrigeration systems must only be serviced by appropriately skilled and qualified refrigeration mechanics. Servicing a sealed refrigeration system must occur at a hydrocarbon workshop or service ... -
Page 26: On-Site Work
▪ Must have no ignition sources, nor any areas where the gas may pool. Must be able to transport swap units. Should carry minimum SKOPE hydrocarbon service parts. On-site Work The service technician must have required knowledge, skills, qualifications, and tools before beginning any on-site work on the refrigeration sealed system. -
Page 27: Diagnosing Lack Of Gas
For servicing or transportation, the refrigeration cartridge unplugs and pulls out of the cabinet. For safety and compliance, only repair the cartridge with SKOPE-supplied parts made specifically for this cabinet. Other parts may appear to be suitable, but may not be approved or safe for use in a fridge with hydrocarbon refrigerant. -
Page 28: Cartridge Removal
SKOPE OD1100N The model and serial number are both printed on the cartridge rating label attached to the front of the cartridge. Before ordering spare parts, take note of the model and serial numbers. Specifications for the model are in the following table. Verify model and basic requirements before servicing. -
Page 29: Cartridge Electrics Box
SKOPE OD1100N Procedure 16: To remove the refrigeration cartridge (continued) 3. Pull the two cartridge lifting levers and rotate inwards to a horizontal position to lower the refrigeration cartridge evaporator tub. Remove 2 × thumb screws from the plinth cross member. - Page 30 SKOPE OD1100N Important Plugs may come loose as a result of movement and vibrations. When refitting, take care that all plugs are securely attached to the correct sockets. Procedure 17: To access the inside of the cartridge electrics box 1. Disconnect the cabinet from the power supply (see page 18).
-
Page 31: Condenser Fan
The condenser fan plug is red. IMPORTANT Replace the motor with the same SKOPE OEM part. DO NOT use alternative parts. It is important that fan blades and fan motors are replaced with the same part to ensure safety, correct alignment and refrigeration performance, and compliance. -
Page 32: Evaporator Fan
SKOPE OD1100N Procedure 19: To access and remove the condenser fan assembly (continued) 3. Remove the cartridge’s left side panel by undoing the 5 screws: • 2 × screws on the top. • 2 × screws on the front. •... - Page 33 Fan motor Evaporator tub IMPORTANT Replace the motor with the same SKOPE OEM part. DO NOT use alternative parts. It is important that fan blades and fan motors are replaced with the same part to ensure safety, correct alignment and refrigeration performance, and compliance. When refitting or replacing fan motors, ensure that the blade screw is tightened to 1.5 Nm.
-
Page 34: Compressor
Test and tag. Compressor The cartridge is designed to be used with the specified compressor only. If you need to replace the compressor, ensure that you use a SKOPE-specified compressor. Do not use other compressors in this refrigeration cartridge. IMPORTANT Replace the compressor with the same SKOPE OEM part. -
Page 35: Electronic Controller
SKOPE OD1100N Electronic Controller Electronic The electronic controller is located within the cartridge electrics box, which is attached to the Controller front of the refrigeration cartridge. Location Replacing the Controller Procedure 25: To replace the controller Before you start Make sure you have the appropriate parameter file to load into the new controller. -
Page 36: Pir Sensor
SKOPE OD1100N Procedure 25: To replace the controller (continued) 10. Connect the cabinet to the power supply and use a mobile device to connect to the controller with the SCS Connect Field app. 11. Navigate to the LOAD PARAMETER FILE menu. -
Page 37: Control And Evaporator Probes
SKOPE OD1100N Procedure 26: To replace the PIR sensor (continued) 5. Unscrew the PIR sensor bracket from the cabinet and detach the PIR sensor from the bracket. 6. Unscrew and remove the front upstand. 7. To remove the PIR sensor from the cabinet, pull the cable and up through the cabinet corner. -
Page 38: Condenser Probe
SKOPE OD1100N Procedure 27: To replace the control probe (continued) 8. Reassemble the cartridge and test and tag as per standard procedure. 9. Reconnect to the power supply and check for correct operation. Procedure 28: To replace the evaporator probe Before you start Make sure you take note of the original evaporator probe cable’s path. - Page 39 SKOPE OD1100N Procedure 29: To replace the condenser probe (continued) 4. Unscrew and remove the cartridge’s left hand side panel to access the condenser probe. Condenser probe 5. Detach the probe from the condenser coil. Trace the probe cable to the cartridge electrics box and unplug it.
-
Page 40: Spare Parts
SKOPE OD1100N 6 Spare Parts Ordering The model and serial number are both printed on the cartridge rating/serial number label attached to the front of the cartridge. Before ordering spare parts, take note of the model and serial numbers. Cabinet... - Page 41 SKOPE OD1100N Table 7: Parts – Cabinet Item Description SKOPE Part No. White Black Stainless steel Cladding – left hand side O11CLN/009L-32 O11CLN/009L-49 O11CLN/009L-SS1 Cladding – right hand side O11CLN/009R-32 O11CLN/009R-49 O11CLN/009R-SS1 Side glass GLA12472 GLA12472 GLA12472 Condenser filters HB0070204892...
-
Page 42: Refrigeration Cartridge
SKOPE OD1100N Refrigeration Cartridge Table 8: Parts – Refrigeration Cartridge Item Description SKOPE Part No. White Black Stainless steel Cartridge UBQENI-0052-P UBQENI-0052-P UBQENI-0052-P Condenser coil CLS12068 CLS12068 CLS12068 Condenser fan blade FAN12482 FAN12482 FAN12482 Condenser fan wall ring US01N00003 US01N00003... - Page 43 SKOPE OD1100N Table 8: Parts – Refrigeration Cartridge (continued) Item Description SKOPE Part No. White Black Stainless steel Fan motors ELM11309 ELM11309 ELM11309 Side cover – left hand US04N00023 US04N00023 US04N00023 Side cover – right hand US04N00024 US04N00024 US04N00024 Condensate tray...
-
Page 44: Cartridge Electrics Box
SKOPE OD1100N Cartridge Electrics Box Table 9: Parts – Cartridge Electrics Box Item Description SKOPE Part No. White Black Stainless steel Cartridge electrics box UA0300046 UA0300046 UA0300046 Controller ELZ11749-1632 ELZ11749-1632 ELZ11749-1632 Electrics box lid US07N00022-49 US07N00022-49 US07N00022-49 LED power supply... -
Page 45: Sign
SKOPE OD1100N Sign High Sign Table 10: Parts – High Sign Item Description SKOPE Part No. White Black Stainless steel High sign assembly O11CLN/T61B-32/00 O11CLN/T61B-49/00 O11CLN/T61BS-SS Wiring cover – high sign O11CLN/T67B-32 O11CLN/T67B-49 O11CLN/T67BS-SS1 Sign reflector – high sign O11CLN/T63B-32... -
Page 46: Low Sign
SKOPE OD1100N Low Sign Table 11: Parts – Low Sign Item Description SKOPE Part No. White Black Stainless steel Low sign assembly O11CLN/T61A-32/00 O11CLN/T61A-49/00 O11CLN/T61AS-SS Wiring cover – low sign O11CLN/T67A-32 O11CLN/T67A-49 O11CLN/T67AS-SS1 Sign reflector – low sign O11CLN/T63A-32 O11CLN/T63A-32 O11CLN/T63A-32 Sign end extrusion –... -
Page 47: Maintenance
Periodically wipe the inside and outside of the cabinet with a damp cloth, taking care to keep moisture away from electrical parts. Condenser To ensure trouble-free performance, SKOPE strongly recommends that the condenser filter Filter and Coil and coil are cleaned: every month with a soft brush to remove dust and fluff. -
Page 48: Troubleshooting
Replace the light. • Refrigeration system error (indicated by • Diagnose and repair. If a system fault is found contact the electronic controller) SKOPE for information on how to proceed. • Plug not connected properly • Check and clean the plugs. •... - Page 49 Refrigeration system error (indicated by • Diagnose and repair. If a system fault is found contact the electronic controller) SKOPE for information on how to proceed. • Refrigeration system error (no active • Check the SCS Connect Field app statistics to see if and fault alarm) when the controller signalled a fault or alarm.
- Page 50 SKOPE Industries Limited ABN: 73 374 418 306 AU: 1800 121 535 NZ: 0800 947 5673 skope@skope.com www.skope.com...
