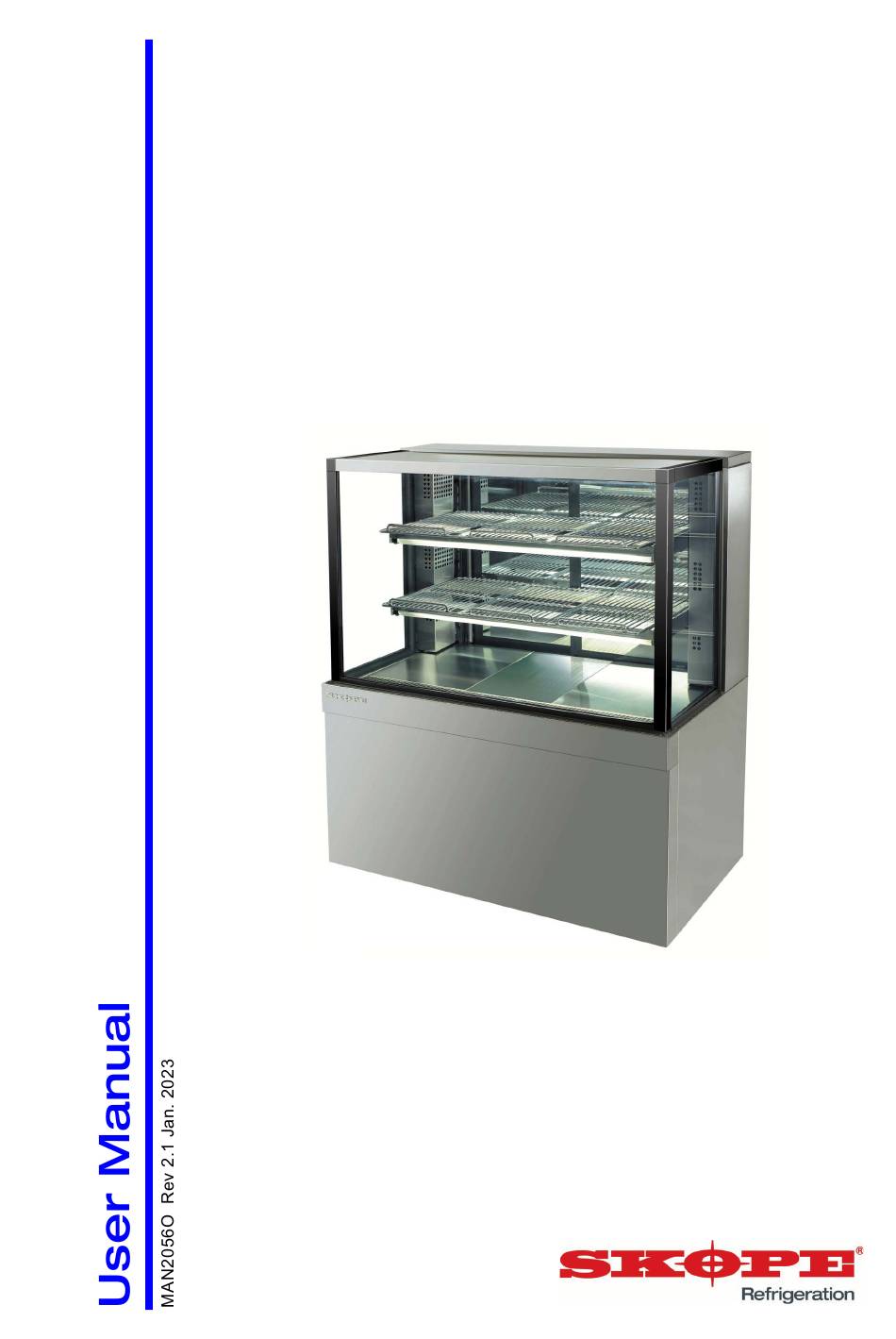

- Page 1 FDM Series SKOPE Food Display Cabinet Integral models: FDM900i/1200i/1500i Model FDM1200i...
- Page 2 E-mail: skope@skope.com Website: www.skope.com Trademark Infringement The SKOPE trademark on this product is infringed if the owner, for the time being, does any of the following: • Applies the trade mark to the product after its state, condition, get-up or packaging has been altered in any manner •...
-
Page 3: Table Of Contents
Troubleshooting.........19 SKOPE Food Display Cabinet - Integral... -
Page 4: Installation
Regulations require that all electrical work be carried out by authorised persons. For your own safety, and that of others, ensure this is done. • If the supply cord is damaged, it must be replaced by a SKOPE-authorised service agent, or similarly qualified person, in order to avoid a hazard. •... -
Page 5: Introduction
SKOPE Food Display Cabinet - Integral Introduction Thank you for choosing a SKOPE Food Display Cabinet. To ensure you get the most out of your product, please read these instructions before installing and plugging in the cabinet. Operation Although this fridge is very energy efficient, further reduction in power consumption can be achieved by turning off the lighting and refrigeration unit when not required. -
Page 6: Ventilation
SKOPE Food Display Cabinet - Integral Ventilation Adequate ventilation is essential. For the Food Display Cabinet to operate efficiently you must make sure that there is adequate ventilation around the refrigeration unit. • Do not cover the rear ventilation panel or block the entry or exhaust of airflow by placing objects up against the refrigeration unit. -
Page 7: Adjusting The Shelves
SKOPE Food Display Cabinet - Integral Adjusting the Shelves Procedure 1: To adjust the shelves 1. Remove both sliding rear doors by lifting each door up and pulling out at the bottom. 2. Cut the plastic ties that hold the shelves in position during transit and remove the shelves from the cabinet. -
Page 8: Locking Castors
SKOPE Food Display Cabinet - Integral Locking Castors After positioning the cabinet, lock both rear castors (wheels) to prevent the cabinet from moving. Castor (wheel) Castor locking lever (in locked position) Procedure 2: To access the rear castors 1. Remove the ventilation panel from the rear of the cabinet by undoing the two bottom screws. -
Page 9: Operation
Electronic Controller Overview Depending on the date of manufacture, the cabinet will be fitted with a SKOPE customised CAREL ir33 controller (before January 2023) or a SKOPE customised CAREL S4 EVO controller (after January 2022). Check the label on top of the controller to verify the controller type. -
Page 10: Carel Ir33
SKOPE Food Display Cabinet - Integral CAREL ir33 Faceplate Table 2: CAREL ir33 keypad Item Function Prg / mute: To start programme sets, press for 5 seconds. Mutes the audible alarm (buzzer) and deactivates the alarm relay. UP / aux: To scroll settings UP (in programme mode). -
Page 11: Temperature Setpoint
Setpoint setting can be adjusted between 1.0°C and 5°C. SKOPE does not recommend changing the setpoint unless it is absolutely necessary, and then only by small increments at a time. Procedure 3: To view and adjust the CAREL ir33 temperature setpoint 1. -
Page 12: Carel S4 Evo
SKOPE Food Display Cabinet - Integral Table 4: CAREL ir33 controller alarms (continued) Display icon Alarm description Initial action Final action Code Flashing Ambient probe fault Flashing Evaporator probe fault Flashing Condenser probe fault To reset the alarm, unplug cabinet from the power... -
Page 13: Lights
3.5°C for other specialist applications if required. Setpoint SKOPE does not recommend changing the setpoint unless it is absolutely necessary, and then only by small increments at a time. Procedure 4: To view and adjust the temperature setpoint for the CAREL S4 EVO 1. -
Page 14: Messages And Alarms
SKOPE Food Display Cabinet - Integral Messages and The following tables explains the messages and alarms that the electronic controller displays. Alarms Table 6: CAREL S4 EVO messages Display Description The cabinet is in “Normal” mode and the electronic controller displays the temperature. -
Page 15: Servicing
SKOPE Food Display Cabinet - Integral 3 Servicing Isolating Electrics The cabinet must be isolated from the mains power supply before attempting any cleaning or maintenance. To isolate the cabinet, unplug the power cord plug from the mains power supply socket. - Page 16 SKOPE Food Display Cabinet - Integral Procedure 5: To clean the cabinet (continued) 5. Remove the shelf brackets by lifting up at the front and pulling out from the cabinet. 6. Remove the floor panels from the cabinet by lifting each panel up.
-
Page 17: Condenser Coil
“cht”, clean the condenser coil immediately. Over time, dust may accumulate within the condenser that cannot be removed with a brush. If this occurs, contact SKOPE to arrange for a SKOPE Authorised Service Agent to clean the condenser with compressed air. -
Page 18: Lighting
SKOPE Food Display Cabinet - Integral Lighting The Food Display Cabinet is fitted with three fluorescent tube interior lights. One light is located in the ceiling of the cabinet. The other lights are located underneath the front of each shelf. -
Page 19: Troubleshooting
Cabinet not operating and no controller • Loss of power supply. • Check mains power supply. display • Requires technical repair by a SKOPE • Blown cabinet fuse. Authorised Service Agent. • Failed fluorescent tube. • Check fluorescent tubes (see page 18). - Page 20 SKOPE Industries Limited ABN: 73 374 418 306 AU: 1800 121 535 NZ: 0800 947 5673 skope@skope.com www.skope.com...
