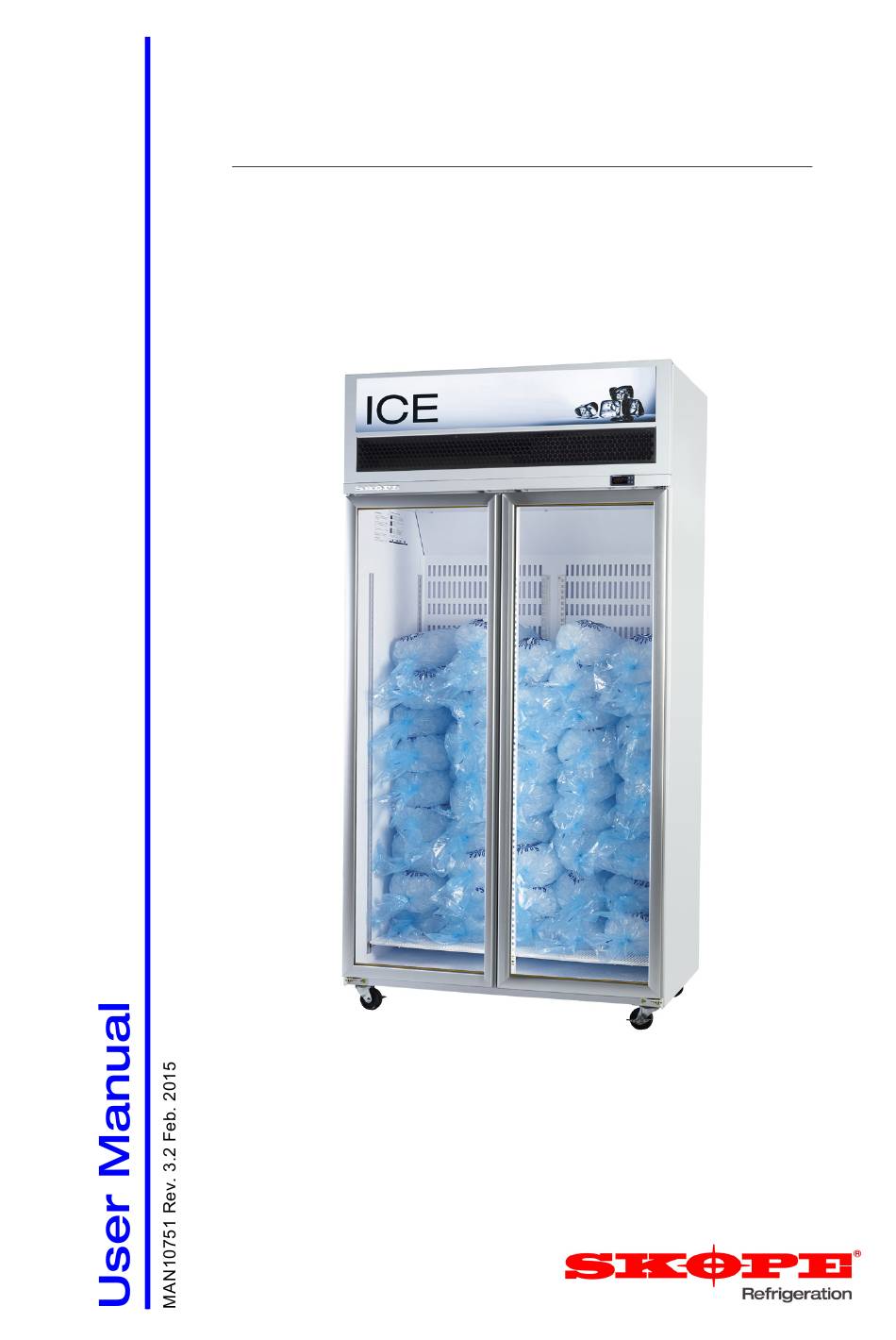

- Page 1 VF-ICE Series SKOPE Ice Storage Cabinet VF1000-ICE...
- Page 2 For pricing information on an extended warranty visit www.skope.com/warrantyprotection Service & Support We know you will get years of satisfaction from your new SKOPE product when you follow a few simple preventative maintenance guidelines.
-
Page 3: Table Of Contents
Troubleshooting......... 15 SKOPE VF-ICE Series Ice Storage Cabinet... -
Page 4: Installation
SKOPE VF-ICE Series Ice Storage Cabinet Installation Safety First Always observe safety precautions when using any electrical appliance. Read these instructions carefully and retain them for future reference. When the appliance is used by or near young children or infirm persons, ... -
Page 5: Positioning The Cabinet
SKOPE VF-ICE Series Ice Storage Cabinet Positioning the Cabinet Power Cord The power cord exits from the top rear of the cabinet and is fitted with a 3-pin plug. Pull the power cord around so that it’s not trapped before you position the cabinet. -
Page 6: Shelves
SKOPE VF-ICE Series Ice Storage Cabinet Shelves The ice storage cabinet is supplied with heavy duty ice shelves which may be positioned at different heights. Refer to the table below for shelf numbers and dimensions. Heavy duty ice shelves Model... -
Page 7: Operation
SKOPE VF-ICE Series Ice Storage Cabinet Operation Automatic Start-Up After the ice storage cabinet has been positioned in a suitable place, plug it in and check the following activity. Item Activity The condenser fan starts and runs at a slow speed. When the Condenser Fan compressor starts, the condenser fan will run at full speed. -
Page 8: Electronic Controller
The electronic controller is pre-programmed and usually requires no initial setup or additional programming. SKOPE does not recommend that the settings be changed unless necessary. Note: Twin unit ice storage cabinets are fitted with two electronic controllers, one for each refrigeration unit. -
Page 9: Defrost
SKOPE VF-ICE Series Ice Storage Cabinet Defrost To ensure efficient operation, the electronic controller forces a defrost cycle when required. During a defrost cycle, the compressor stops, DEF and the will display on the electronic controller faceplate. The ice storage cabinet will resume normal operation once the defrost cycle has finished. -
Page 10: Controller Reset
SKOPE VF-ICE Series Ice Storage Cabinet Controller To delete program modifications and reset the controller to SKOPE default Reset program or when a replacement controller is being fitted, a ‘Controller Reset’ must be performed. To reset the controller 1. Disconnect the ice storage cabinet from the power supply. -
Page 11: Alarms
SKOPE VF-ICE Series Ice Storage Cabinet Alarms The following table explains messages that the electronic controller displays and related alarms. Alarms signal unexpected operational changes in the ice storage cabinet and stop when action is taken to resolve the problem. -
Page 12: Servicing
SKOPE VF-ICE Series Ice Storage Cabinet Servicing Cleaning Ensure the ice storage cabinet is disconnected from the power supply before cleaning. WARNING Twin unit ice storage cabinets have two separate power supplies. Ensure both supplies are disconnected before undertaking any service or maintenance work. -
Page 13: Lighting
SKOPE VF-ICE Series Ice Storage Cabinet Lighting This ice storage cabinet is designed for use with LED tubes and is not compatible with fluorescent tubes. As with any maintenance, ensure the ice storage cabinet is disconnected from the power supply before replacing light tubes. -
Page 14: Sign Light
SKOPE VF-ICE Series Ice Storage Cabinet Sign Light Not as standard - lit sign ice storage cabinets only. The sign unit is lit by one LED tube (see table below for details) which can be replaced by removing the front sign panel. -
Page 15: Troubleshooting
SKOPE VF-ICE Series Ice Storage Cabinet Troubleshooting For questions about the electronic controller, see page 11. For problems with the cabinet and refrigeration cassette, use the following table. Problem Possible Cause Suggestions • Cabinet not • Loss of power • Check mains power supply. - Page 16 E-mail: enquiry@skope.com.au Website: www.skope.com.au Trademark Infringement The SKOPE trademark on this product is infringed if the owner, for the time being, does any of the following: • Applies the trade mark to the product after their state, condition, get-up or packaging has been altered in any manner •...
