Skope Coca Cola OD330N Service Manual

Open deck cooler
Hide thumbs Also See for Coca Cola OD330N:
Table of Contents

Advertisement

Quick Links

Download this manual
OD330N
SKOPE Open Deck Cooler

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Coca Cola OD330N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Skope Coca Cola OD330N

Summary of Contents for Skope Coca Cola OD330N

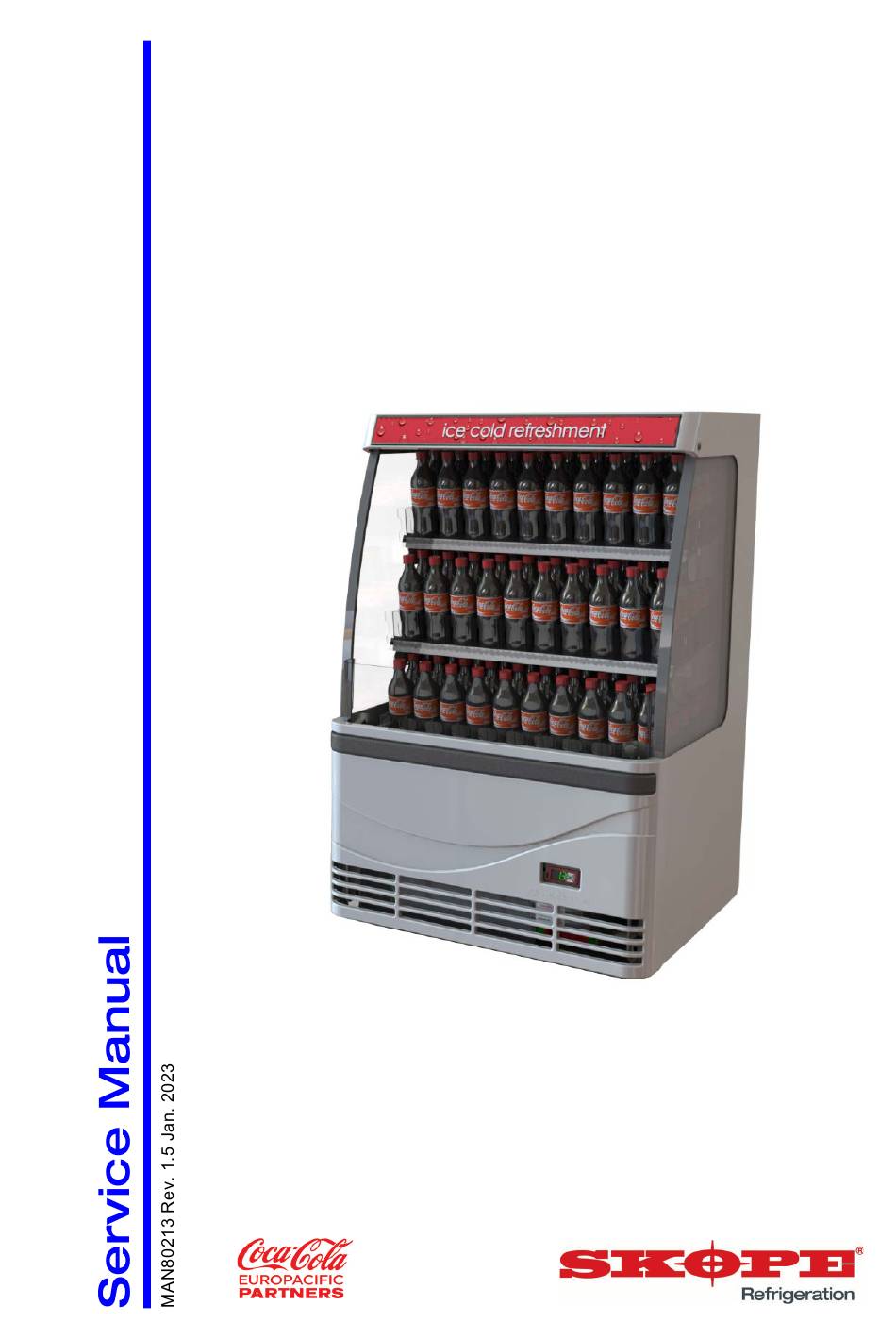

  • Page 1 OD330N SKOPE Open Deck Cooler...
  • Page 2 E-mail: skope@skope.com Website: www.skope.com Trademark Infringement The SKOPE trademark on this product is infringed if the owner, for the time being, does any of the following: • Applies the trade mark to the product after its state, condition, get-up or packaging has been altered in any manner •...

  • Page 3: Table Of Contents

    Electronic Controller ........32 SKOPE OD330N...
  • Page 4 Cabinet ..........43 SKOPE OD330N...

  • Page 5: Specifications

    Special service requirements are needed as R290 is a flammable refrigerant. Safety hazards The main R290 safety hazards are: • Flammable refrigerant • Venting of R290 and compressor oil • Asphyxiation SKOPE does not recommend performing hazardous activities on the refrigeration system. Specifications Service Manual CCEP...

  • Page 6: Models

    SKOPE OD330N Models This service manual is applicable to the SKOPE coolers detailed below. Table 1: Model specifications Model Description Type OD330N Free-standing O33CLN OD330N Table 2: Cabinet Description Free-standing Type O33CLN Construction 40 mm thick, polyurethane foam. Cyclo-iso pentane blowing agent: Insulation n.a.

  • Page 7: Installation

    SKOPE OD330N 2 Installation Climate Class The cabinet is designed to operate within a climate class 3 environment (25°C @ 60% relative humidity). Cabinet The cabinet should not be left exposed to direct sunlight at any time as this may cause Location distortion of plastic parts.

  • Page 8: Ventilation

    SKOPE OD330N Ventilation Keep the ventilation slots in the front panel clear at all times. Never store cardboard cartons or other objects in front or behind the cabinet. CAUTION To prevent over-heating and conserve energy, ensure air flows freely all around the cabinet, including underneath and on top.

  • Page 9: Gravity Shelf System

    SKOPE OD330N Procedure 2: To reposition a shelf (continued) Shelf Locating slot 10. Push the cantilevered brackets outwards until they clip into the edge locating slots on the side of the shelf. Shelf brackets 11. Take up any excess shelf light cable by winding it through the two holes at the rear of the shelf bracket, and reconnect the shelf light cable plug.

  • Page 10: Electronic Controller

    The cabinet is fitted with an SCS Connect electronic controller. The controller located behind the front kick panel. The controller is pre-programmed. SKOPE does not recommend changing the settings unless it is absolutely necessary. To ensure efficient operation, the controller automatically forces a defrost cycle when required.

  • Page 11: Scs Connect Field App

    SKOPE OD330N Service mode includes: Parameters Provides access and editing of individual controller parameters. It is not recommended that parameters are changed unless absolutely necessary. If incorrect parameter settings are suspected, reload the complete parameter set. Reset Returns the controller back to factory or default settings.

  • Page 12: App Categories

    SKOPE OD330N Procedure 5: To connect to a controller 1. Check that the Bluetooth logo on the top right of the controller faceplate is lit, indicating that the controller is ready to connect to a device. Note: A flashing Bluetooth logo indicates that the controller is currently connected to a device.

  • Page 13: Faults And Alarms

    SKOPE OD330N Statistics Information from the past seven days on cabinet activity including temperatures, door openings and alarms. SCS info Controller version and cabinet asset information. SCS setup Add or change SCS info (see above). Disconnect Disconnect from currently connected controller.
  • Page 14 SKOPE OD330N Table 6: Faults (alarm indicator lit – no message displayed) (continued) Description Possible root cause Excessive compressor cycling protection Take spare cassette in case refrigeration system fault. The system has been turning on and off too frequently. • Condenser blocked •...
  • Page 15 SKOPE OD330N Table 7: Alarms (continued) Code Description Possible root cause Evaporator fan over-current protection NO swap cassette required The current supplied to the evaporator fan motor is too high. • Faulty fan motor • Fan blade fault (imbalance, debris or blockage) •...

  • Page 16: Wiring Model: Od330N

    SKOPE OD330N 4 Wiring Model: OD330N WIRE COLOURS LEGEND Black Unit Junction Box Terminal S3/P3 Condenser Fan Motor Socket/Plug (Red 4-Way) Brown Cabinet Wiring Tray Terminal (right hand side) S4/P4 Evaporator Fan Motor Socket/Plug (White 4-Way) Cabinet Wiring Tray Terminal (right hand side) S5/P5...

  • Page 17: Replacement Procedures

    SKOPE OD330N 5 Replacement Procedures Caution Disconnect the cabinet from the power supply before attempting any maintenance. Procedure 6: To disconnect the cabinet 1. Switch the cabinet off at the mains power supply. 2. Unplug the power cord from the mains power supply.

  • Page 18: Cladding

    SKOPE OD330N Cladding The cabinet is clad with a high strength plastic front panel, night blind cover, and front upstand, and painted metal sides. All cladding is removable and replaceable. Left hand side Night blind cover Front upstand Front panel...

  • Page 19: Lighting

    SKOPE OD330N Procedure 10: To remove the front upstand 1. Remove the front panel (see Procedure 7 on page 17). 2. Remove the bottom light cover and bottom light (see Procedure 13 on page 20). 3. Undo the fixing screws from the front upstand and remove the upstand.

  • Page 20: Bottom Interior Light

    SKOPE OD330N Procedure 12: To replace the top interior light 1. Disconnect the cabinet from the mains power supply (see Procedure 6 on page 17). 2. Unclip and unplug the light from the top of the cabinet opening. 3. Clip the replacement light into place at the top of the cabinet opening, and plug the replacement light into the light supply.

  • Page 21: Night Blind

    SKOPE OD330N The surge protector/EMI filter protects the cabinet from voltage spikes and eliminates possible electromagnetic interference, and regulates the supplied voltage before feeding it into the refrigeration cassette. Side cladding Electrics Left hand panel cover electrics panel Right hand...

  • Page 22: Night Blind Switch

    SKOPE OD330N when the blind is in the closed position, or day mode (with the lights on) when in the open position. The night blind is located behind the sign panel and is not visible when in the open position.

  • Page 23: Refrigeration System

    Ensure you have read and understood this manual before starting any servicing. Important • SKOPE hydrocarbon refrigeration systems must only be serviced by appropriately skilled and qualified refrigeration mechanics. • Servicing a sealed refrigeration system must occur at a hydrocarbon workshop or service area with dedicated hydrocarbon equipment and personal protective equipment (PPE).

  • Page 24: On-Site Work

    ▪ Must have no ignition sources, nor any areas where the gas may pool. • Must be able to transport swap units. • Should carry minimum SKOPE hydrocarbon service parts. On-site Work The service technician must have required knowledge, skills, qualifications, and tools before beginning any on-site work on the refrigeration sealed system.

  • Page 25: Refrigeration Cassette Assembly

    The refrigeration cassette is a bottom-mounted, electronically controlled removable cassette. Cassette For safety and compliance, only SKOPE supplied parts specifically for this appliance may be Assembly used for repairs. Other parts may appear to be suitable, but may not be approved or safe for use in an appliance with hydrocarbon refrigerant.

  • Page 26: Cassette Removal

    SKOPE OD330N Cassette Follow the steps below to remove the refrigeration cassette. Removal Procedure 18: To remove the refrigeration cassette 1. Disconnect the cabinet from the mains power supply (see Procedure 6 on page 17). 2. Remove the front panel: Unclip the two clips (1) (each side of the front panel), and rotate and lift the panel out from the cabinet (2).

  • Page 27: Cassette Electrics Box Assembly

    The fan motor, fan blade and mounting brackets are removed from the refrigeration cassette as a complete assembly. The fan blade, fan motor and mounting brackets can then be replaced. IMPORTANT Replace the motor with the same SKOPE OEM part. DO NOT use alternative parts. Replacement Procedures Service Manual CCEP...

  • Page 28: Evaporator Fan

    SKOPE OD330N It is important that the fan blade and/or fan motor is replaced with the same part to ensure safety, and correct alignment and refrigeration performance. Fan blades should be tightened to 1.5 Nm. Procedure 21: To remove the condenser fan assembly 1.
  • Page 29 (complete with fan motor and fan blade) can be lifted off the evaporator tub once the refrigeration cassette cover has been removed. IMPORTANT Replace the motor with the same SKOPE OEM part. DO NOT use alternative parts. It is important that the fan blade and/or fan motor is replaced with the specified part to ensure safety, and correct alignment and refrigeration performance.

  • Page 30: Compressor

    Compressor The cassette is designed for use only with the specified compressor. If the compressor must be replaced, ensure that the SKOPE specified compressor is used as a replacement. Do not use other compressors within this refrigeration cassette. IMPORTANT Replace the compressor with the same SKOPE OEM part.

  • Page 31: Refrigeration Cassette

    SKOPE OD330N Run capacitor Thermal protector Start capacitor and starter IMPORTANT To eliminate possible vibration noise, ensure no pipes touch the evaporator tub bottom surface, evaporator tub support legs, plastic base, and condenser coil assembly. Refrigeration Cassette Cassette For detailed instructions on removing the cassette, refer to cassette removal instructions on...

  • Page 32: Electronic Controller

    SKOPE OD330N Procedure 27: Refrigeration system diagnostic test (continued) 7. Refer to Table 9 below as a guideline to determine if the system charge is correct. • A system with the correct refrigerant charge will frost back to the compressor.

  • Page 33: Replacing The Controller

    SKOPE OD330N Replacing the Controller Procedure 28: To access and replace the controller 1. Disconnect the cabinet from the mains power supply (see Procedure 6 on page 17). 2. Remove the front kick panel (see Procedure 7 on page 17).

  • Page 34: Control Probe

    SKOPE OD330N Procedure 29: To replace the PIR sensor 1. Disconnect the cabinet from the mains power supply (see Procedure 6 on page 17). 2. Remove the front panel (see Procedure 7 on page 17). 3. Unscrew and remove the electrics box cover (see Procedure 19 on page 27).

  • Page 35: Evaporator Probe

    SKOPE OD330N Procedure 30: To replace the control probe (continued) 4. Use wire cutters to remove the insulation from the probe cable wires and from the replacement probe wires. 5. Insert the red wires of each cable into a crimp.

  • Page 36: Condenser Probe

    SKOPE OD330N Condenser The condenser probe is located on the side of the condenser coil (see image below). Probe Condenser coil right hand side Condenser probe Procedure 32: To replace the condenser probe 1. Disconnect the cabinet from the mains power supply (see Procedure 6 on page 17).

  • Page 37: Spare Parts

    SKOPE OD330N 6 Spare Parts Cabinet Assembly – OD330N Table 11: Parts – Cabinet OD330N Item Description SKOPE Part No. CCEP-AU Part No. CCEP-NZ Part No. Left hand side cladding O332/009L Right hand side cladding O332/009R Left and right hand electrics panel cover...
  • Page 38 SKOPE OD330N Table 11: Parts – Cabinet OD330N (continued) Item Description SKOPE Part No. CCEP-AU Part No. CCEP-NZ Part No. Top shelf right hand adjustment bracket STY11601R Top shelf right hand bracket STY10956R Middle shelf – white O332/592B-32 Middle shelf – black...

  • Page 39: Refrigeration Cassette Assembly

    SKOPE OD330N Refrigeration Cassette Assembly Spare Parts Service Manual CCEP...
  • Page 40 SKOPE OD330N Table 12: Parts – Refrigeration cassette Item Description SKOPE Part No. CCEP-AU Part No. CCEP-NZ Part No. HB0070834626 (UBHENI-0014) Cassette assembly HB0070201535H Cassette plastic top cover HB0070201441 120075985 Cassette gasket seal HB0070201536G 120086254 Cassette plastic bottom HB0070108541 120080742...

  • Page 41: Cabinet Electrics Panel Assemblies

    SKOPE OD330N Cabinet Electrics Panel Assemblies Table 13: Parts – Cabinet electrics panel assemblies Item Description SKOPE Part No. CCEP-AU Part No. CCEP-NZ Part No. Left hand cabinet electrics panel assembly O230F/G29L 120085663 Right hand cabinet electrics panel assembly O232F/G29R...

  • Page 42: Maintenance

    SKOPE OD330N 7 Maintenance Cleaning Cabinet Periodically wipe the inside and outside of the cabinet with a damp cloth, taking care to keep moisture away from electrical parts. As with any maintenance, ensure the chiller is isolated from the power supply before cleaning.

  • Page 43: Troubleshooting

    SKOPE OD330N 8 Troubleshooting Electronic Controller Alarms signal unexpected operational changes in the cabinet. When an alarm is activated, use the electronic controller app to assist with fault diagnosis and service as necessary. See page 11 for information. Cabinet For problems with the cabinet and refrigeration cassette use the following table.
  • Page 44 SKOPE Industries Limited ABN: 73 374 418 306 AU: 1800 121 535 NZ: 0800 947 5673 skope@skope.com www.skope.com...
