Summary of Contents for Skope SERENE SC112G

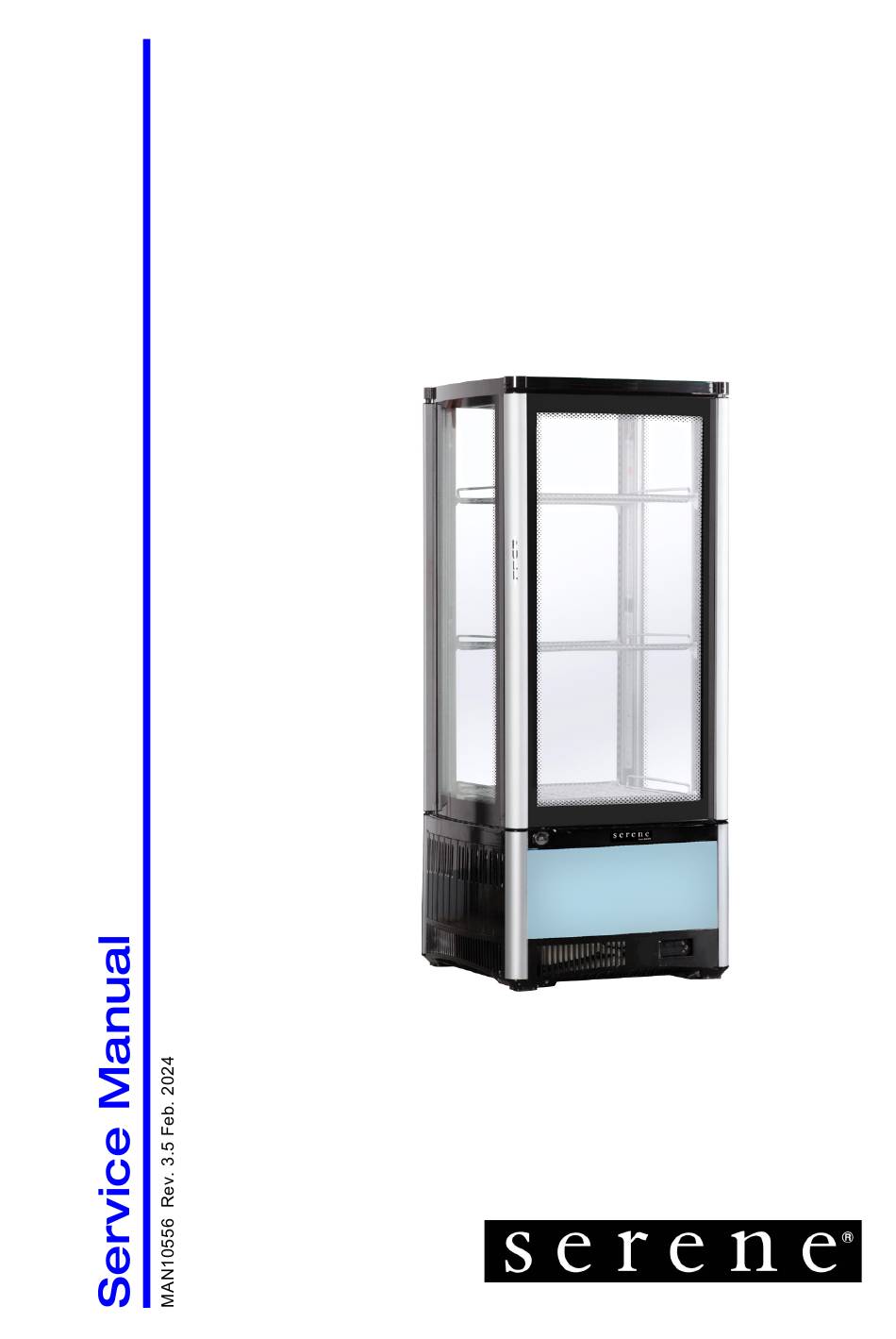

- Page 1 SC112G SERENE Four Glass Sided Fridge Type: HSC112A/Z089 from SKOPE...
- Page 2 Service Manual MAN10556 Rev. 3.5 Feb. 2024 © 2012 SKOPE Industries Limited. All rights reserved. SKOPE Industries Limited reserve the right to alter specifications without notice. is a registered trademark of SKOPE Industries Limited. SKOPE INDUSTRIES LIMITED Head Office PO Box 1091, Christchurch...
-
Page 3: Table Of Contents
Door Switch......... .27 SERENE SC112G... - Page 4 Diagnostics ......... . 34 SERENE SC112G...
-
Page 5: Specifications
SERENE SC112G 1 Specifications SC112G Description: SERENE Four Glass Sided Fridge Type: HSC112A/Z089 Table 1: SC112G specifications Dimensions External Internal 1080 to 1095 mm 740 mm Height 470 mm 340 mm Width Depth 470 mm 350 mm Floor area 0.22 m... -
Page 6: Electronic Controller
It uses two temperature probes within the refrigeration system to collect data, and runs the fridge accordingly. The electronic controller is pre-programmed; SKOPE does not recommend changing the settings unless it is absolutely necessary. To ensure efficient operation, the electronic controller automatically forces a defrost cycle when required. -
Page 7: Faceplate
SERENE SC112G Faceplate Because the electronic controller plays such an important role, it’s helpful to know the parts of the faceplate you may use. Table 2: Controller faceplate Item Description Digital display of cabinet temperature or messages. The temperature is what the sensor inside the fridge detects, and not necessarily the product temperature. -
Page 8: Running The Fridge
SERENE SC112G Running the Fridge Operating The electronic controller will automatically switch the fridge between Normal Modes and Energy Saving modes depending on use. If the front door (on the electronic controller side) is not opened for four hours, the fridge will automatically enter Energy Saving mode and the sign and interior lights will switch off. -
Page 9: Messages And Alarms
SERENE SC112G Messages and Alarms Controller The following table explains messages that the electronic controller displays Display and related alarms. Alarms signal unexpected operational changes in the fridge and can be muted by pressing the Alarm Mute (up) button on the electronic controller faceplate (see page 7). -
Page 10: Programming The Electronic Controller
SERENE SC112G Programming the Electronic Controller Parameters The parameter configuration program is set by SKOPE at the factory. A label on the controller box indicates the parameter configuration program number (e.g. the SC112G fridge uses program 088). The electronic controller parameters can be modified using the keypad. -
Page 11: Parameter List - Sc112G Program 088
1. Only make program modifications with reference to relevant Operating Manual. 2. This parameter sheet is exclusively for SKOPE refrigeration systems with its dedicated Carel controller. 3. Any alteration from this program may adversely affect the SKOPE Refrigeration System operation. -
Page 12: Replacement Procedures
SERENE SC112G 3 Replacement Procedures Shelves Adjusting the The fridge is supplied with three wire shelves which may be positioned at Shelves different heights to suit various products. Each shelf is held in place with four shelf clips which engage in the corner shelf support strips. -
Page 13: Lights
SERENE SC112G Lights The fridge is lit by four interior pillar lights and two bottom sign lights. All lights are powered by a 12Vdc LED power supply located within the refrigeration system (see page 16). If one or several individual light/s fail on a light strip, the remaining lights will still receive power and should work. -
Page 14: Bottom Sign Lights
SERENE SC112G Bottom Sign The fridge has two bottom lit signs, one at the front and one at the back. Lights Each sign is lit by one LED strip light (see page 31 for spare parts). Procedure 4: To replace a bottom sign light 1. -
Page 15: Removing And Fitting Doors
SERENE SC112G Removing and For ease of servicing the doors can be removed from the fridge. Fitting Doors Procedure 5: To remove a door 1. Disconnect the fridge from the mains power supply by unplugging it from the wall socket. -
Page 16: Refrigeration System
SERENE SC112G Refrigeration System The SC112G refrigeration system is a bottom-mounted, electronically controlled serviceable system. It is made up of three levels each containing specific parts and assemblies. Specifications for the refrigeration system are in the following table. Verify basic requirements before servicing. -
Page 17: Refrigeration System Access
SERENE SC112G Refrigeration The following instructions explain how to access the refrigeration system. System Servicing can be completed by separating the top cabinet assembly from the Access bottom refrigeration system. Procedure 8: To access the refrigeration system 1. Disconnect the fridge from the mains power supply by unplugging it from the wall socket. -
Page 18: Refrigeration System Dismantling
SERENE SC112G Procedure 8: To access the refrigeration system (continued) 8. Unplug the two plugs from the front of the cabinet above the electronic controller. Fixing screw Fixing screw 9. Detach the top part of the fridge by undoing the top... - Page 19 SERENE SC112G Procedure 9: To dismantle the refrigeration system (continued) 3. Unclip and detach the control probe and cable from the evaporator shroud. 4. Detach the evaporator shroud by undoing the four fixing screws. Place aside. 5. Free all pipes and cables from the putty on the evaporator tray edge.
-
Page 20: Evaporator Fan
SERENE SC112G Procedure 9: To dismantle the refrigeration system (continued) 8. Undo the eight fixing screws (two on each edge) and detach the electrics tray from the assembly. 9. Partially lift the electrics tray and hold the capacitor to detach the compressor capacitor from the electrics tray. -
Page 21: Condenser Fan
SERENE SC112G Procedure 10: To replace the evaporator fan (continued) 5. Detach the failed evaporator fan from the evaporator shroud by undoing the four fixing screws. 6. Fit the new fan, ensuring the cables follow the original path. 7. Reassemble the cabinet and test for correct operation. -
Page 22: Power Supply And Surge Protector
SERENE SC112G Power Supply The evaporator and condenser fan motor power supply, the sign and interior and Surge LED lights power supply, and the surge protector are located on level two Protector (the middle) of the refrigeration system. Parts within each power supply cannot be replaced individually. -
Page 23: Compressor Electrics
SERENE SC112G Compressor The compressor electrics are located on the side of the compressor and Electrics include the start capacitor, motor protector and run capacitor. The complete assembly is supplied as a spare part if required. Run capacitor Motor protector... -
Page 24: Electronic Controller
SERENE SC112G Electronic Controller Electronic The electronic controller is located at the front of the fridge behind the lower Controller bottom panel and is visible from the front of the fridge. For information on Assembly operation and programming, see “Electronic Controller” on page 6. -
Page 25: Controller Terminals
SERENE SC112G Controller Refer to Figure 7 below for controller termination details. Terminals Door switch Black Evaporator probe Black Black White Control probe Blue Supply Brown Black Compressor Brown White Fans Figure 7: Controller Lights termination Control Probe The control probe is attached to a bracket on the evaporator shroud and plugs into the rear of the electronic controller. -
Page 26: Evaporator Probe
SERENE SC112G Evaporator The evaporator probe is located inside the evaporator coil and plugs into the Probe rear of the electronic controller. Procedure 18: To replace the evaporator probe 1. Disconnect the fridge from the mains power supply by unplugging it from the wall socket. -
Page 27: Door Switch
SERENE SC112G Door Switch The front door (on the electronic controller side) is fitted with a door switch (page 8). The switch is located under the liner bottom below the front door and is activated by a magnet at the bottom of the front door frame. -
Page 28: Wiring
SERENE SC112G 4 Wiring Model: SC112G GNYE Surge Protector Condenser Motor CAREL Controller Compressor Start Main Winding Winding Capacitor Relay Comp Motor Protector ACC Compressor AUX 1 12Vdc Power Supply All Cabinet AUX 2 Lighting Cabinet Temp. Probe Evaporator Evap Temp. -
Page 29: Notes
SERENE SC112G Notes Wiring Service Manual... -
Page 30: Spare Parts
SERENE SC112G 5 Spare Parts Cabinet Assembly Spare Parts Service Manual... - Page 31 SERENE SC112G Table 6: Parts – Cabinet Item Description SKOPE part no. Customer part no. Glass door assembly HB0070807597A Top hinge HB0070109359 Side panel HB0070204927 Lower side panel HB0070204933 LED strip light (bottom sign) HB0071800053 Bottom sign panel (transparent) HB0070509671...
-
Page 32: Refrigeration System Assembly
SERENE SC112G Refrigeration System Assembly 12 13 Spare Parts Service Manual... - Page 33 SERENE SC112G Table 7: Parts – Refrigeration system Item Description SKOPE part no. Customer part no. Refrigeration system assembly HB0070807879 Evaporator fan motor HB0074000370 Evaporator tub HB0070509640 Condenser fan motor HB0074000234 Condenser fan blade HB0074000311 Fan motor 12Vdc power supply...
-
Page 34: Troubleshooting
SERENE SC112G 6 Troubleshooting Diagnostics For problems with the cabinet and refrigeration cartridge, refer to Table 8. Table 8: Cabinet and refrigeration cartridge troubleshooting Problem Possible cause Suggestions • Fridge not operating • Loss of power supply. • Check the mains power supply. - Page 35 SKOPE Industries Limited ABN: 73 374 418 306 AU: 1800 121 535 NZ: 0800 947 5673 skope@skope.com www.skope.com...
