Summary of Contents for Skope FDM Series

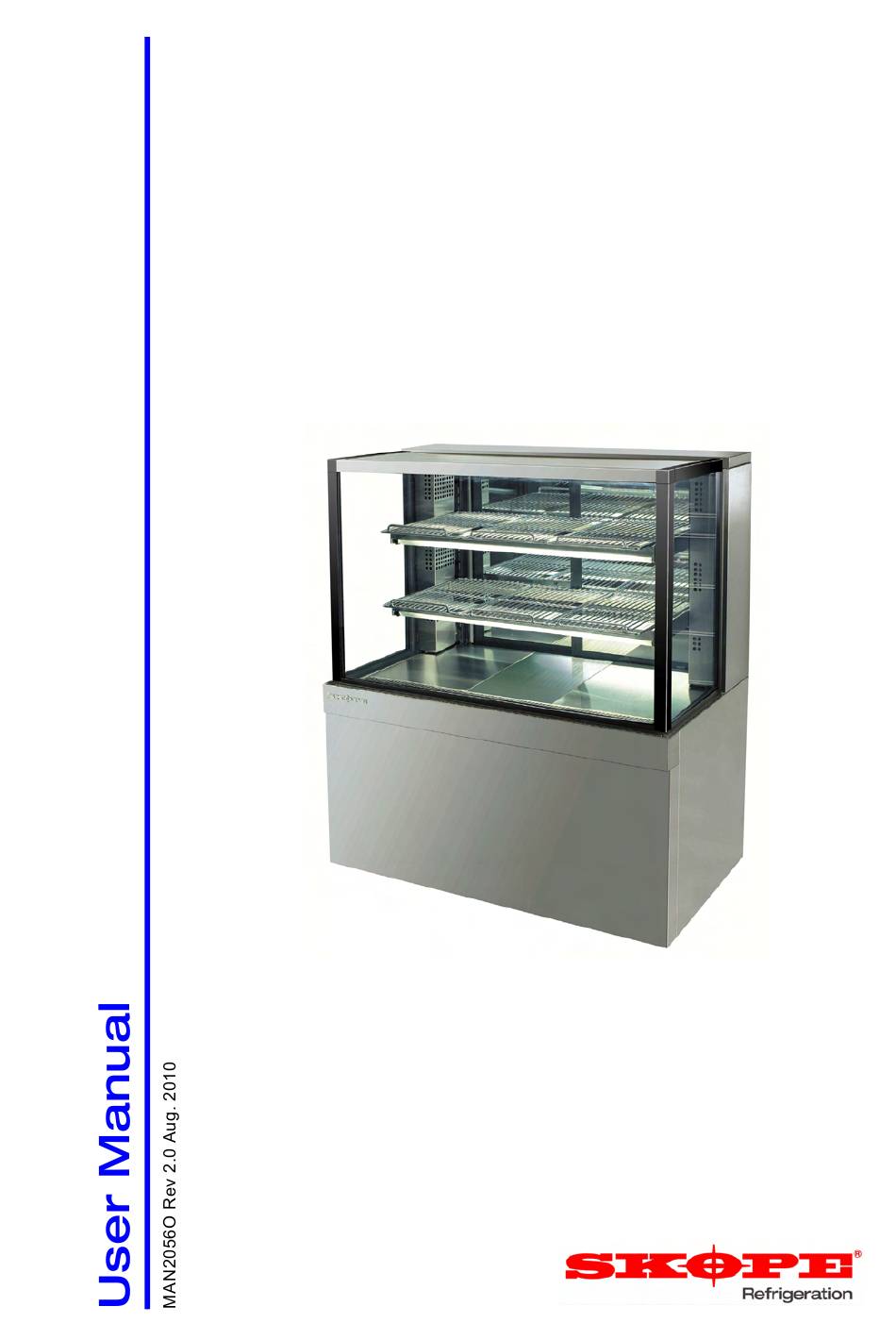

- Page 1 FDM Series SKOPE Food Display Cabinet Integral models: FDM900i/1200i/1500i Model FDM1200i...
- Page 2 E-mail: enquiry@skope.co.nz Website: www.skope.co.nz Trademark Infringement The SKOPE trademark on this product is infringed if the owner, for the time being, does any of the following: • Applies the trade mark to the product after their state, condition, get-up or packaging has been altered in any manner •...
-
Page 3: Table Of Contents
Troubleshooting......... 18 SKOPE Food Display Cabinet - Integral... -
Page 4: Installation
Regulations require that all electrical work be carried out by authorised persons. For your own safety, and that of others, ensure this is done. If the supply cord is damaged, it must be replaced by a SKOPE authorised service agent, or similarly qualified person in order to avoid a hazard. -
Page 5: Introduction
SKOPE Food Display Cabinet - Integral Introduction Thank you for choosing a SKOPE Food Display Cabinet. To ensure you get the most out of your product, please read these instructions prior to installation and plugging in of the cabinet. Operation... -
Page 6: Positioning The Cabinet
SKOPE Food Display Cabinet - Integral Positioning the Cabinet Cabinet When positioning the Food Display Cabinet avoid direct sunlight and warm Location draughts etc. The cabinet should not be situated where it is affected by hot air from adjacent equipment, as this will compromise the airflow and performance. -
Page 7: Ventilation
SKOPE Food Display Cabinet - Integral Ventilation Adequate ventilation is essential. For efficient operation of the Food Display Cabinet, it is essential that adequate ventilation be provided around the refrigeration unit. Do NOT cover the rear ventilation panel or block the entry or exhaust of airflow by placing objects up against the refrigeration unit. -
Page 8: Shelving
SKOPE Food Display Cabinet - Integral Shelving The Food Display Cabinet is supplied with pre-installed shelving and lighting. The shelving consists of two levels of angled adjustable shelves and one bottom level of stainless steel trays. The adjustable shelves can be positioned either horizontal or angled down 5°. -
Page 9: Locking Castors
SKOPE Food Display Cabinet - Integral Locking Castors After positioning the cabinet, both rear castors (wheels) should be locked to prevent the cabinet from moving. To access the rear castors, remove the ventilation panel from the rear of the cabinet by undoing the two bottom screws. -
Page 10: Operation
SKOPE Food Display Cabinet - Integral Operation Start-Up Plug the cabinet into the power supply and check operation of the refrigeration unit, cabinet lighting and electronic controller. Refrigeration The compressor and condenser fans should all operate within two minutes Unit from the time the cabinet is plugged in. -
Page 11: Electronic Controller
SKOPE Food Display Cabinet - Integral Electronic Controller Faceplate Keypad Item Function Prg / mute: To initiate programme sets, press for 5 seconds. Mutes the audible alarm (buzzer) and deactivates the alarm relay. UP / aux: To scroll settings UP (in programme mode). -
Page 12: Temperature Setpoint
Setpoint standard setting can be adjusted between 1.0°C and 5°C. SKOPE do not recommend that the setpoint be changed unless it is absolutely necessary, and then only by small increments at a time. To view and adjust the temperature setpoint 1. -
Page 13: Controller Alarms
SKOPE Food Display Cabinet - Integral Controller Alarms Alarm Final Code Display Icon Initial Action Description Action 1. Check the cabinet product Product HIGH Flashing loading to ensure ventilation temperature alarm slots are not blocked and that product does not overhang the shelves. -
Page 14: Servicing
SKOPE Food Display Cabinet - Integral Servicing Isolating Electrics The chiller must be isolated from the mains power supply before attempting any cleaning or maintenance. To isolate the chiller, unplug the power cord plug from the power supply socket. Cleaning When necessary, the interior and exterior of the cabinet can be wiped with a damp cloth. - Page 15 SKOPE Food Display Cabinet - Integral 5. Remove the shelf brackets by lifting up at the front and pulling out from the cabinet. 6. The floor panels can be removed from the cabinet by lifting each panel up. The floor of the cabinet can now be accessed for cleaning.
-
Page 16: Condenser Coil
Over time, dust may accumulate within the condenser that cannot be removed with a brush. If this occurs, contact SKOPE to arrange for a SKOPE Authorised Service Agent to clean the condenser with compressed air. -
Page 17: Lighting
SKOPE Food Display Cabinet - Integral Lighting The Food Display Cabinet is fitted with three fluorescent tube interior lights. One light is located in the ceiling of the cabinet. The other lights are located underneath the front of each shelf. See the chart below for fluorescent tube specifications. -
Page 18: Troubleshooting
SKOPE Food Display Cabinet - Integral 3. Remove the light diffuser, by compressing one end of the diffuser until it disengages from the housing. The fluorescent tube can now be removed. Revolve the tube until the pin position allows withdrawal.
