Kit Contents
The SpeedVal Kit motherboard comes with all necessary hardware to set the board on a bench and attach
the gate driver and power daughter cards. The kit contains all required gate driver cables and MMCX to BNC
adapters to simplify probing the V
surface mount (SMT) current transformer that can be used for I
cards and an adapter board for compatibility with the NXP control card.
Item Qty Description
1 1 Half-Bridge Motherboard PCB Assembly
2 2 Desat Cable Assembly
3 6 Standoff, Nylon, 8-32, MF, 1.75 in, off-white
4 8 Machine Screw Pan Phillips 8-32, 0.25 L
5 2 Washer, Nylon, #8, 0.055-0.070
6 2 Screw, 8-32, 0.250, PPH, Nylon
7 2 Hex Standoff, 8-32, 0.375
8 8 Hex Nut 8-32 Thread .170 height
9 2 Cable Assembly Coaxial BNC to MMCX 6.00"
10 1 Cable Assembly, Ribbon, 16P
11 1 Current Transformer
12 1 Interposer PCB Assembly

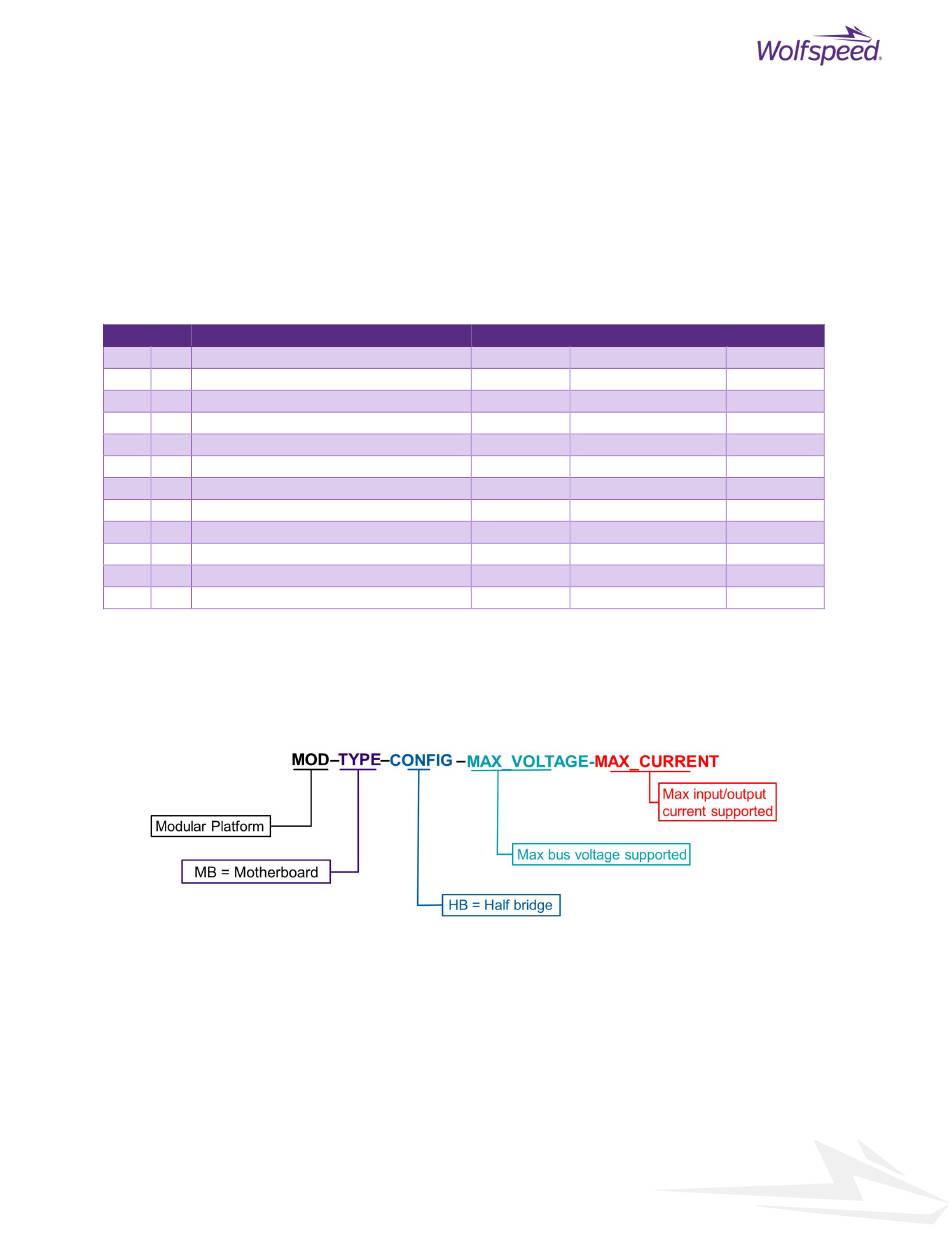

Each SpeedVal Kit motherboard has a unique part number that follows the convention listed in Figure 1
below.
Maximum Bus and Power Terminal Ratings

The maximum voltage rating for the DC bus is 900 V.

The maximum current rating for the DC bus and switch node terminals is 40 A.
