3. No current waveform
 If utilizing the CT method for measuring I
plug that passes the current through one of the recommended high-bandwidth current
transformers. See section 5.4 for further instructions.
 If using the high-resistance shunt method, verify that the MMCX to BNC adapter is
connected to the I

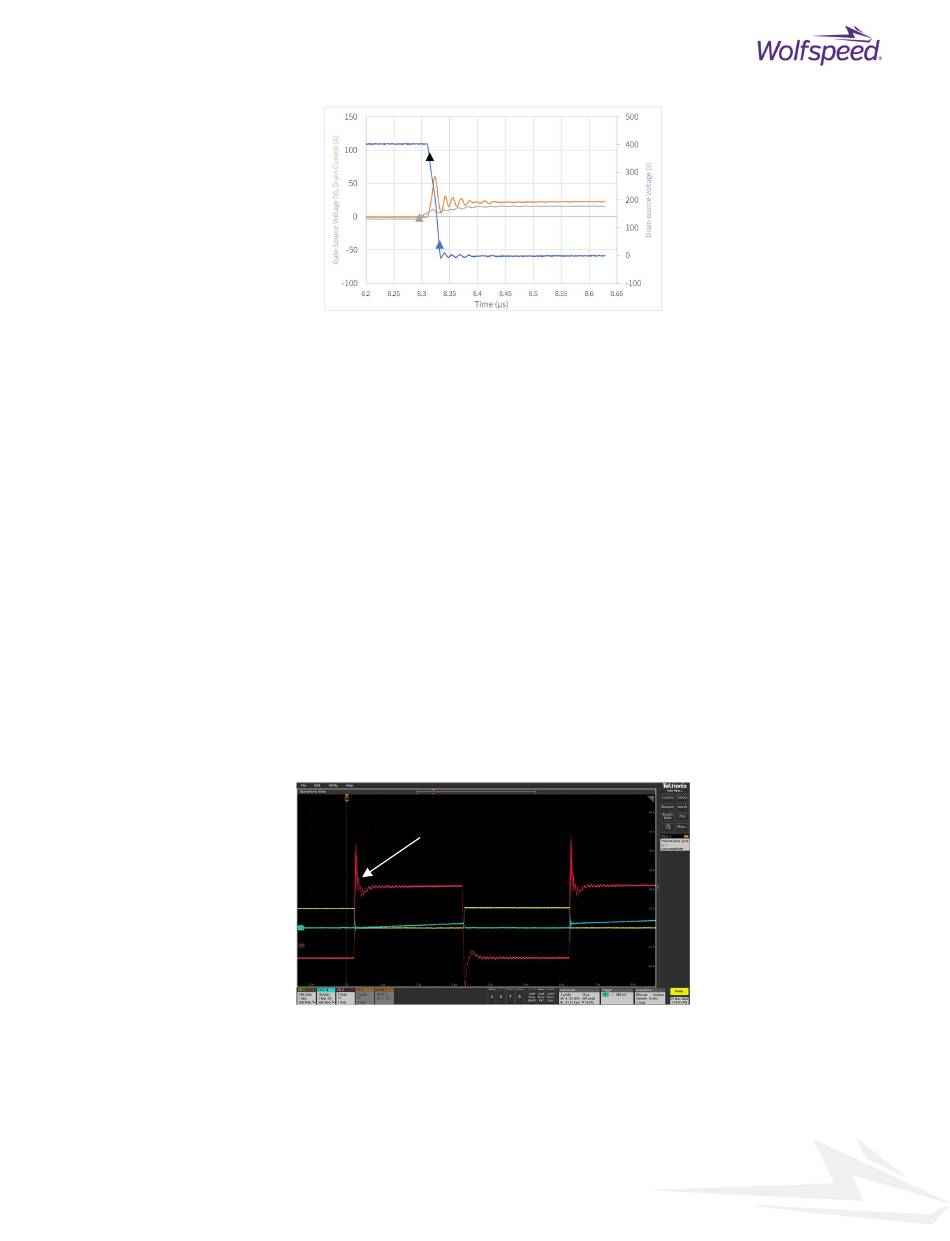

4. Distorted gate waveforms seen on oscilloscope.
On occasion, V or gate waveforms may appear distorted (Figure 54). There are several
GS
connections in the gate measurement path. If one is not solidly connected, it may result in
distorted gate waveforms. Check the following:

X10 oscilloscope probe tip to BNC coupling
 Probe BNC coupling to 6" BNC to MMCX adapter
 6" MMCX adapter to power daughter card MMCX test point
