7. THERMAL MANAGEMENT
The SpeedVal Kit half-bridge motherboard comes equipped with a cooling fan (Sanyo #
9G0612P4S0011 or equivalent). The cooling fan can be controlled manually with switch S1. If one of the
optional control boards is installed, the control board will start the fan automatically when a power
test is run.
The motherboard has two connectors to power fans. Fan 1 (CON14) connector provides power to the
included fan. Fan 2 (CON15) connector provides power to the optional buck boost filter board.
Fan Connector Pinout
Pin Function
1
DC-
2
DC+
3
Sense
4
Control
Fan Connector Maximum Current
Fan 1 + Fan 2 ≤ 3 A
Heatsink
Each power daughter card comes with a heatsink and insulator. The user guide for each power
daughter card contains detailed information including the thermal impedance, assembly instructions,
and information on the PCB thermal vias (SMT packages).
PRD-06829 REV. 1, December 2022
© 2022 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered trademarks and the
SpeedVal Kit™ and Wolfspeed logo is a trademark of Wolfspeed, Inc. Other trademarks, product and company names
are the property of their respective owners and do not imply specific product and/or vendor endorsement,
sponsorship or association.

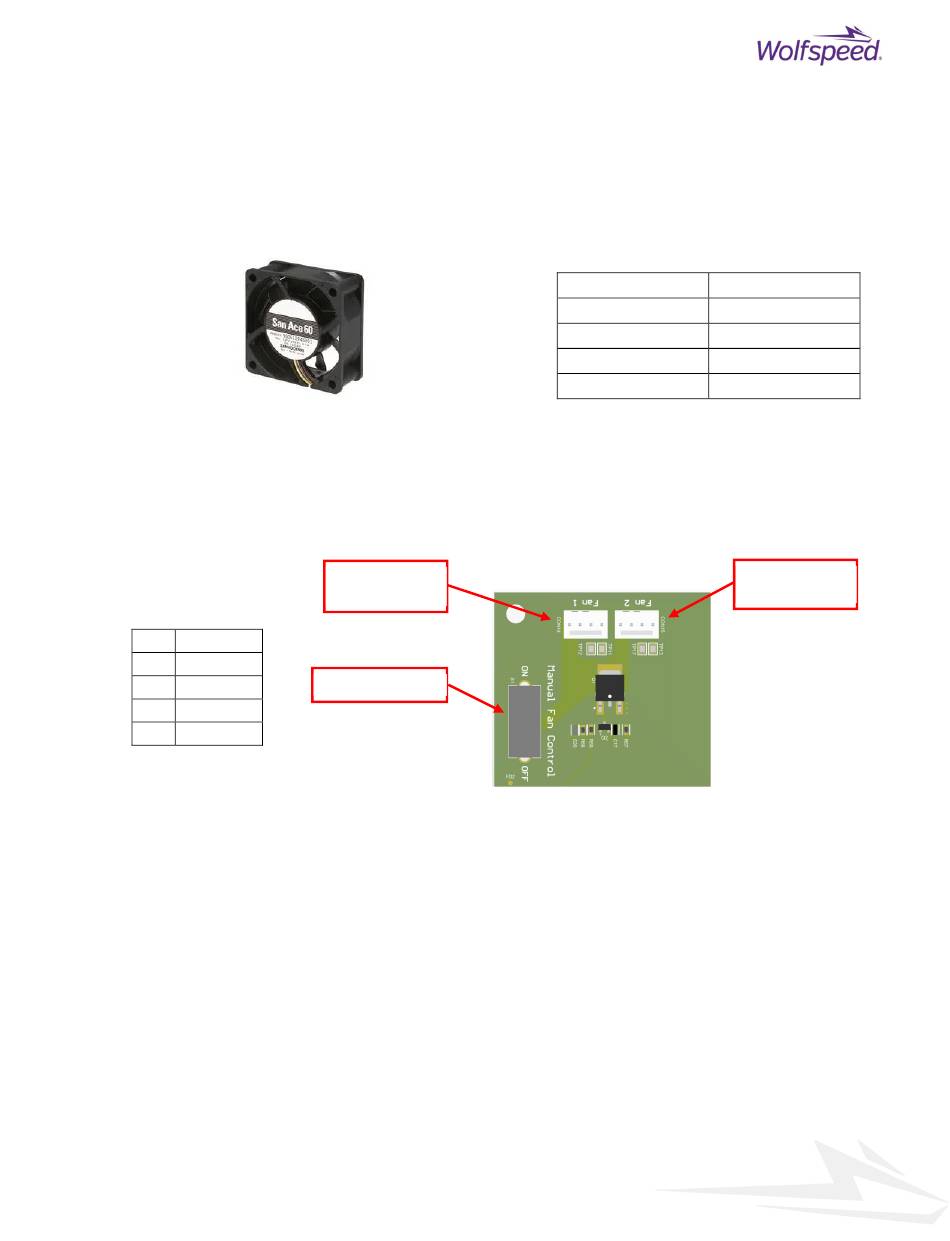

F
41: C
F
IGURE
OOLING
AN AND
Fan 1
Connector
CON14
Fan On/Off
Switch
F
42: F
C
IGURE
AN
ONNECTOR
SpeedVal Kit™ Half-Bridge User Guide
Supply Voltage
Power Rating
Current Rating
Size
Air Flow
S
PECIFICATIONS
P
INOUT
12 VDC
8.04 W
670 mA
60x60x25 mm
49.4 CFM
Fan 2
Connector
43
