Lincoln SL-11 Series Instruction Manual

SPECIFICATIONS
For dispensing fluid lubricant or grease.
Adjustable from .05 cu. in. to .5 cu. in.
MATERIALS
Packings are compatible with common synthetic and
petroleum based lubricants.
OPERATING PRESSURE
1850 p.s.i. Minimum
2500 p.s.i. Recommended
3500 p.s.i. Maximum
300 p.s.i. Maximum Recharge Pressure
Description:
SL-11 series injectors are designed for
applications requiring large volumes of grease.
They are supplied with packings compatible with
synthetic and petroleum based greases.
only as a single unit with 1/2 NPT inlet, and 1/4
NPT outlet. The SL-11 injector incorporates a
hydraulic filler fitting for priming the feed line.
Output adjustment:
The SL-11 injector’s output is adjusted with the
hex screw on top of the unit.
of approx. .050 cu. in. is obtained when the
adjusting screw is turned clockwise, into the
injector, hand tight. To obtain the maximum
output of .50 cu. in., start at the minimum setting
and turn the screw counterclockwise 12 3/4
turns, out of the injector.
is equal to .043 cu. in. in output.
injector is adjusted to a half turn open or less,
output from the injector should be verified.
A PENTAIR COMPANY
Jan. 95
Available
A minimum output
Each turn of the screw
When the
One Lincoln Way
St. Louis, Missouri 63120-1578
(314) 679-4200
Model No. 85497

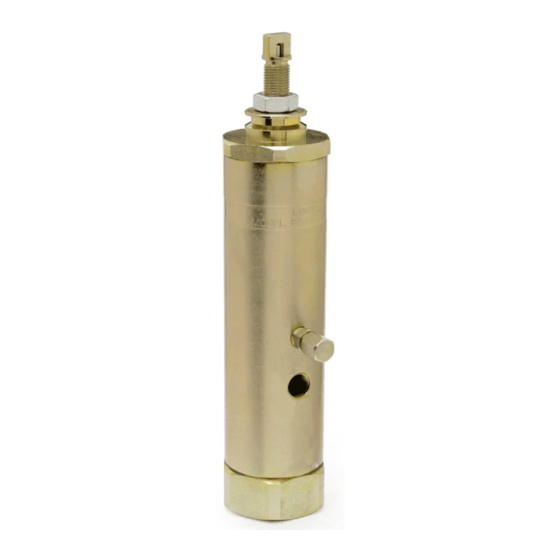

SL-11 INJECTOR
Disassembly Instructions:
1. Remove the adjustment adapter (item #3)
from the top of the injector.
assembly (item #8), spring (item #9), and spacer
(item #19) from inside the injector.
2. Remove the inlet adapter (item #18) from the
bottom of the injector.
assembly (item #11), turn injector over, with the
top pointing down. If the slide valve does not
fall out, it may be pushed out of the slide valve
packings (items #13) with a blunt object, being
careful not to scratch or cut the packings in the
slide valve body.
3. To remove the valve body (item #16):
a. If it sticks in the inlet adapter (item #18),
gently pry the valve body out of the inlet adapter
using a small round rod.
hole in the side of the valve body and pry against
the face of the inlet adapter.
time, working around the valve body until it is
f r e e d .
Copyright
Printed in U.S.A.
Series "A"
Remove the piston
To remove the slide valve
Place the rod into a
Work one hole at a
Continued on page 3
