Lincoln QUICKDATA 233 Owner's Manual

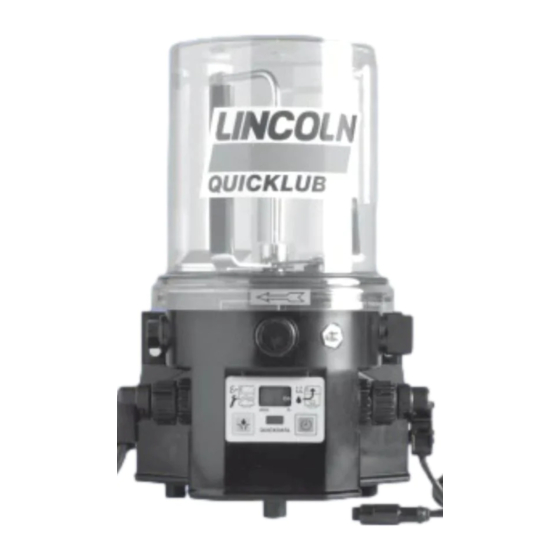

Pump 233 with data logger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner Manual
Operating Instructions
Requesting a service page in French, Italian/Spanish language, see page 35
Ordenar manual en español: página 35
Pour la commande de ce manuel en français, voir page 35
Ordinazione della documentazione italiana, vedi pagina 35
LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259

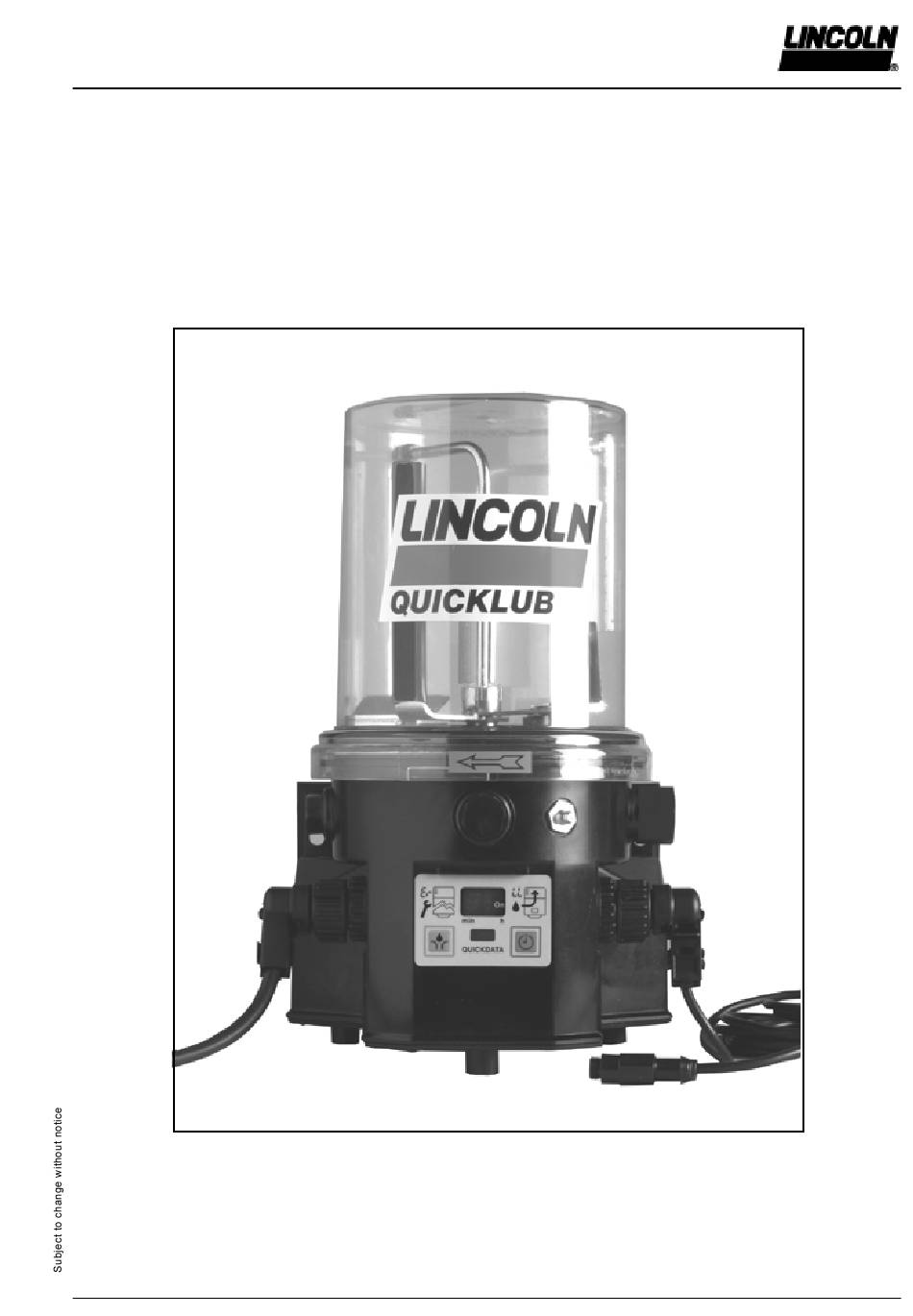

QuickData
Pump 233 with Data Logger
®
2.1A-30004-A02
4 3 5 4 a 0 1
810-55293-1
Page 1 of 36

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QUICKDATA 233 and is the answer not in the manual?

Questions and answers

Related Manuals for Lincoln QUICKDATA 233

Summary of Contents for Lincoln QUICKDATA 233

  • Page 1 Pour la commande de ce manuel en français, voir page 35 Ordinazione della documentazione italiana, vedi pagina 35 810-55293-1 Page 1 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 2: Fields Of Application Of Quickdata Central Lubrication Pumps

    Building Machinery - Agricultural Machines Pump Reservoir : Low-level control (option) for all reservoir sizes Control : MDF00 Page 2 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 3: Table Of Contents

    Technical data .............. 24 Lubricants ..............32 Further information can be found in the following manuals: Page 3 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 4: Safety Instructions

    Risk of bursting if the reservoir is overfilled! Page 4 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 5: Pump Types

    The 233 pumps • Control unit models 233 • Reservoir sizes: QuickData • Electric connection 2A5.10- MFD00, Page 5 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 6: Identification Code - Pump Models

    Note: Any pump combinations other than the above standard pumps can be composed and ordered in accordance with the valid model identification code. Page 6 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 7 4 3 5 8 a 0 1 Fig. 3 - Control p.c.b. MDF 00 with built-on data logger Page 7 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 8: Description Of The Quickdata Pump 233

    Afterwards, the control does not switch the pump on automatically any longer. Page 8 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 9: Mode Of Operation Of Pump 233

    Fig. 8 - The pump element dispenses lubricant 1 - Eccentric 3 - Spring 2 - Piston 4 - Check valve Page 9 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 10 Pump element with adjustable lubricant output 4 1 5 8 a 9 9 Fig. 11 - Adjustable pump element Page 10 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 11 A - Lubricant output in cm³/min S - Size Note: At maximum setting, „S“ is 29±0.1 mm. B - Lubricant output in cm³/stroke Page 11 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 12 Fig. 15 - Pressure relief valve with grease return 00002629a Fig. 16 - Fault indication in the case of a blockage Page 12 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 13 5 - Pump 3 - Membrane key pad 6 - Lubricant divider valve SSV N Page 13 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 14 External triggering of additional lubrication 20002458 Fig. 21 - External triggering of an additional lubrication Page 14 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 15 Fig. 26 - Display of a fault signal If a malfunction is present, the pump does not switch on automatically any longer. Page 15 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 16 Page 16 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 17: Low-Level Control

    Note: The flashing signal „LL“ appears only after the solenoid has activated the electromagnetic switch 6 times contact- free. Magnetic switch Page 17 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 18: Adjustment And Operation Of The Control

    4 2 1 2 a 9 9 Fig. 34 - Membrane key pad in display mode Page 18 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 19 4 2 7 9 a 0 0 Fig. 35 - Membrane key pad in operating mode Page 19 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 20 4 2 7 9 a 0 0 Fig. 36 - Membrane key pad in programming mode Page 20 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 21: Maintenance, Repair And Tests

    10 minutes be- fore it operates with its full output. Repair Pump Page 21 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 22 Fig. 38 - Replacing the pump element Tests Operational Test/ Triggering an Additional Lube Cycle Page 22 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 23: Troubleshooting

    • Cause: Remedy: iron maintain it there for more than 2 seconds and pull out again. Page 23 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 24: Technical Data

    Relay for malfunction Note: All data depends on operating voltage, ambient temperature and max. operating pressure. Page 24 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 25 4 3 6 1 a 0 1 Fig. 39 - Connection diagram pump 233 with data logger Page 25 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 26 Owner Manual Operating Instructions 2.1A-30004-A02 Dimensions 2 l Reservoir 1166b01 Fig. 40 - Dimensions Page 26 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 27 Operating Instructions 2.1A-30004-A02 2 l Reservoir with filling from the top 1167b01 Fig. 41 - Dimensions Page 27 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 28 Owner Manual Operating Instructions 2.1A-30004-A02 2 l Flat-type reservoir 1168b01 Fig. 42 - Dimensions Page 28 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 29 Owner Manual Operating Instructions 2.1A-30004-A02 4 l Reservoir 1169a95 Fig. 43 - Dimensions Page 29 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 30 Owner Manual Operating Instructions 2.1A-30004-A02 8 l Reservoir 1170a95 Fig. 44 - Dimensions Page 30 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 31 Therefore, we can give no guaranty for damages caused by chemical reactions of the lubricant with components of the centralized lubrication system. Page 31 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 32: Lubricants

    Use lubricants with solid matter additives only after having consulted the manufacturer of the system. Page 32 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 33 EN 563 Safety of machinery Temperatures of touchable surfaces Walldorf, 03.06.2002 , Dr. Ing. Z. Paluncic Page 33 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 34 Owner Manual Operating Instructions 2.1A-30004-A02 Page 34 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 35 Heinrich - Hertz - Strasse 2- 8 Germany: +49- 6227-330 Fax: +49 - 6227- 33 - 125 www.lincolnindustrial.de alexander_skarsig@lincolnindustrial.de Page 35 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 36 Owner Manual Operating Instructions 2.1A-30004-A02 Page 36 of 36 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
